Theoretical Investigation on NHCCatalyzed [4+1] Cyclization of Aldehyde and Amidoxime to Build 3,5-Disubstituted 1,2,4-Oxadiazole

As a class of five-membered heterocyclic compound containing nitrogen, 1,2,4-oxadiazole has been widely used in pharmaceutical industry due to significant structure and unique property. This heterocycle structure in ataluren can treat Duchenne muscular dystrophy, cystic fibrosis nonsense mutation and in tioxazafen as nematicide against parasitic nematode [1,2]. In addition, 1,2,4-oxadiazole skeleton was identified as core structural unit in natural alkaloid such as liquid crystal, energetic and luminescent materials [3-6]. Owing to the significance, the synthesis of 1,2,4-oxadiazole has emerged recently involving reaction between amidoximes and carboxylic acid derivatives and carboxylic acids activated by reagents. Kaboudin reported an efficient method for synthesis of 1,2,4-oxadiazoles in water [7]. Movassagh developed one-pot synthesis of 3,5-disubstituted 1,2,4-oxadiazoles from nitriles mediated by K3PO4 [8]. Tolmachev discovered expanding synthesizable space of disubstituted 1,2,4-oxadiazoles [9]. Sharonova gave facile room-temperature assembly of 1,2,4-oxadiazole core from amidoximes and carboxylic acids [10]. However, these approaches require harsh reaction condition of high temperature and complex purification with low yield and limited substrate scope.

N-Heterocyclic Carbenes (NHCs) are well-known effective organic catalysts in constructing oxygen and nitrogen-containing heterocycle. In this field, Zhang researched asymmetric synthesis of γ-lactams under low-loading N-heterocyclic carbene catalysis [11]. Kowalska achieved harnessing indole-derived hydrazones for enantioselective synthesis of pyrroloindolones via NHC-catalyzed formal [3+2]-cycloaddition [12]. Wu obtained N-heterocyclic carbene-catalyzed [3+3] annulations to access dihydropyrano [3,2-b] pyrrol-5-ones [13]. There was also [3+3] annulation of enals and oxindolederived enals with 2-aminoacrylates, enantioselective synthesis of dihydrothiopyranones of 2-bromoenals with β-oxodithioesters and preparation of 4,6-disubstituted α-pyrone [14-16]. When it comes to five-membered aromatic heterocycle, the construction of 2-aminofuran-3-carbonitriles via cascade stetter-γ-ketonitrile cyclization, 2-aryl indoles, 1,2,3-triazoles via intermolecular cross-couplings of azides and LUMO-activated unsaturated acyl azoliums and substituted imidazoles from aryl methyl ketones and benzylamines has also been achieved via NHC catalysis [17-20]. This progress offers novel insights to heterocyclic synthesis. Among conventional methods constructing 1,2,4-oxadiazole, Saadati realized manganese oxide nanoparticles supported on graphene oxide as nanocatalyst from aldehydes [21]. Basak gave convenient one-pot synthesis of 2,4,6-triarylpyridines using graphene oxide as metal-free catalyst with dual catalytic activity [22]. Since few reports documented NHC catalysis for heterocycle, Fu group has done many researches such as NHC catalyzed desymmetrization of N-Cbz glutarimides and oxidation of aldehydes to esters [23,24].

The latest breakthrough was NHC-catalyzed [4+1] cyclization of (Z)-N′-hydroxybenzimidamide and p-chlorobenzaldehyde [25]. Although 3,5-disubstituted 1,2,4-oxadiazole was synthesized, how free N-heterocyclic carbene was generated from selected triazole salt precursor? What’s the concrete process to form key breslow intermediate involving carbene addition and proton transfer? How acyl azolium acts as electrophile undergoing nucleophilic substitution followed by aza-ring closure and dehydration producing target product?

Structures were optimized at M06-2X/6-31G(d) level with GAUSSIAN09 [26]. Among various DFT methods [27], M06-2X functional has smaller deviation between experimental and calculated value than B3LYP hybrid functional [28,29]. With 6-31G(d) basis set, it can provide best compromise between time consumption and energy accuracy. It was also found to give accurate results for stepwise (2+2) cycloaddition, enantioselective (4+3) and Diels-Alder reaction [30,31]. Together with good performance on noncovalent interaction, it is suitable for this system [32-34]. To obtain Zero-Point Vibrational Energy (ZPVE), harmonic frequency calculations were carried out at M06-2X/6-31G(d) level gaining thermodynamic corrections at 298K and 1atm in acetonitrile (CH3CN). At M06-2X/6-311++G(d,p) level, the solvation-corrected free energies were obtained using Integral Equation Formalism Polarizable Continuum Model (IEFPCM) [35-39] on M06-2X/6- 31G(d)-optimized geometries. NBO procedure was performed with Natural Bond Orbital (NBO3.1) obtaining lone pair and bond to characterize bonding orbital interaction and electronic properties [40-42]. Using Multiwfn_3.7_dev package [43].

The mechanism was explored for NHC-catalyzed [4+1] cyclization of (Z)-N′-hydroxybenzimidamide 1 and p-chlorobenzaldehyde 2 leading to 3,5-disubstituted 1,2,4-oxadiazole 3 (Scheme 1). As is illustrated by black arrow of Scheme 2, first, the deprotonation of triazole salt precursor generates free NHC catalyst. Then, the rapid carbene addition to aldehyde 2 together with proton transfer gave key breslow intermediate which further converted to acyl azolium acting as an electrophile in the following. Next, the nucleophilic substitution occurs with nucleophile group in amidoxime 1. Finally, ester intermediate is obtained after the elimination of HNHC, which undergoes aza-ring closure and dehydration within the reaction system to construct five-membered aromatic heterocyclic structure of target product 3. Figure 1 listed schematic structures of optimized TSs in Scheme 2. Table 1 gave activation energy for all steps.

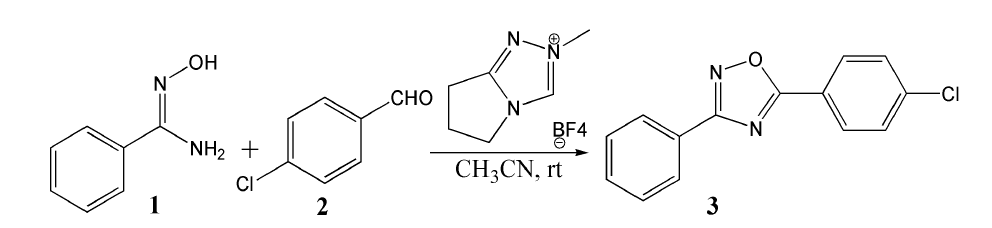

Scheme 1:NHC-catalyzed [4+1] cyclization of (Z)-N′-hydroxybenzimidamide 1 and p-chlorobenzaldehyde 2 leading to 3,5-disubstituted 1,2,4-oxadiazole 3.

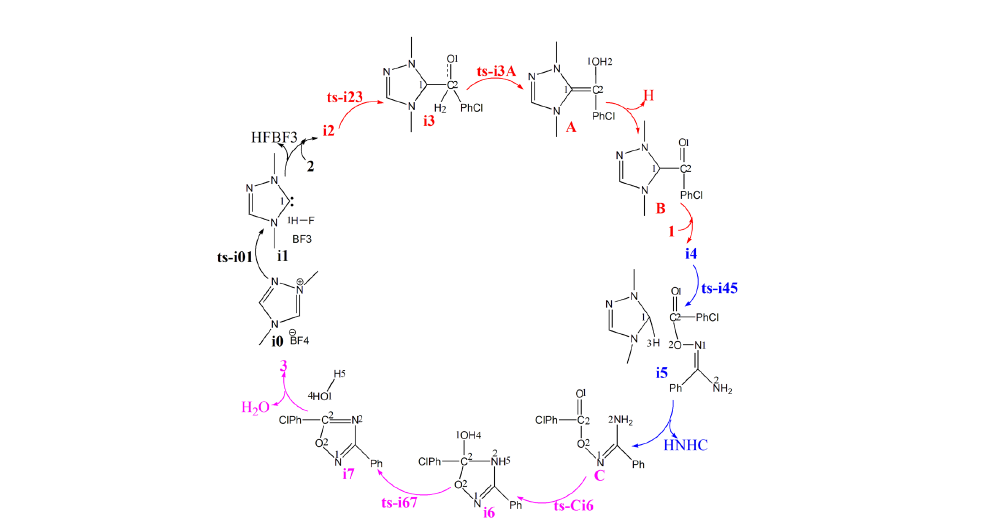

Scheme 2:Proposed reaction mechanism of NHC-catalyzed [4+1] cyclization of 1 and 2 to build 3. TS is named according to the two intermediates it connects.

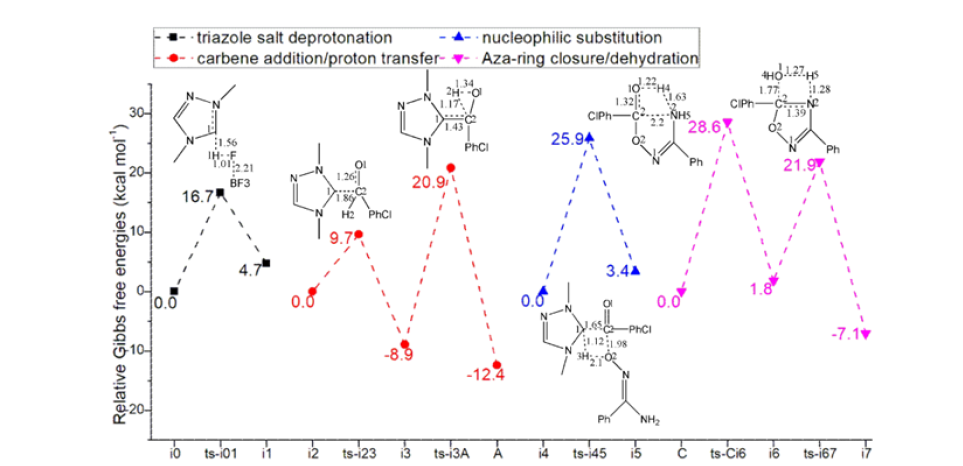

Figure 1:Relative Gibbs free energy profile in solvent phase starting from complex i0, i2, i4, C (bond lengths of optimized TSs in Å).

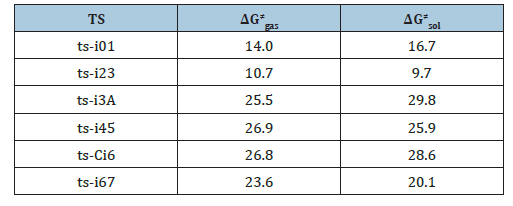

Table 1:The activation energy (in kcal mol-1) of all reactions in gas and solvent.

Triazole salt deprotonation/carbene addition/proton transfer

In step 1, the deprotonation of triazole salt precursor denoted as i0 occurs via ts-i01 with the activation energy of 16.7kcal mol^-1 endothermic by 4.7kcal mol^-1 producing free NHC catalyst binding with HF and BF₃ in i1 (black dash line of Figure 1). The transition vector corresponds to proton H1 on methyl group of cations captured by F of BF₄ anion denoted as C1···H1···F along with concerted breaking of B···F (1.56, 1.01, 2021 Å). Once HF molecule is generated, other two parts formed are also neutral BF₃ and NHC with lone electron pair located on C1 reactive for next step. Then, the intermediate i2 binding NHC and aldehyde 2 is taken as new starting point of next two steps (red dash line of Figure 1). The rapid carbene addition to 2 takes place via ts-i23 with reduced activation energy of 9.7kcal mol^-1 exothermic by -8.9kcal mol^-1 in step 2. The transition vector is simple involving C1···C2 bonding and resultant elongation of C2-O1 from double to single (1.86, 1.26 Å) (Figure S1a). The intermediate B is stable with typical C1-C2 single bond. The subsequent proton transfer is required to afford key breslow intermediate A. Via ts-i3A in step 3, the activation energy is increased to be 29.8kcal mol^-1 continuously exothermic by -12.4 kcal mol^-1. From detailed atomic motion of transition vector, the proton H2 shifts from C2 to O1 that is C2···H2···O1 as well as enhanced C1-C2 from single to double (1.17, 1.34, 1.43 Å) (Figure S1b). With formal hydroxyl O1H2 and C1=C2 double bond, the breslow intermediate A is delivered, which further converted to acyl azolium B under oxidation acting as an electrophile in the following. After removing H2, C2-O1 contracted as double bond with recovered C1-C2 single one in B (Table S1).

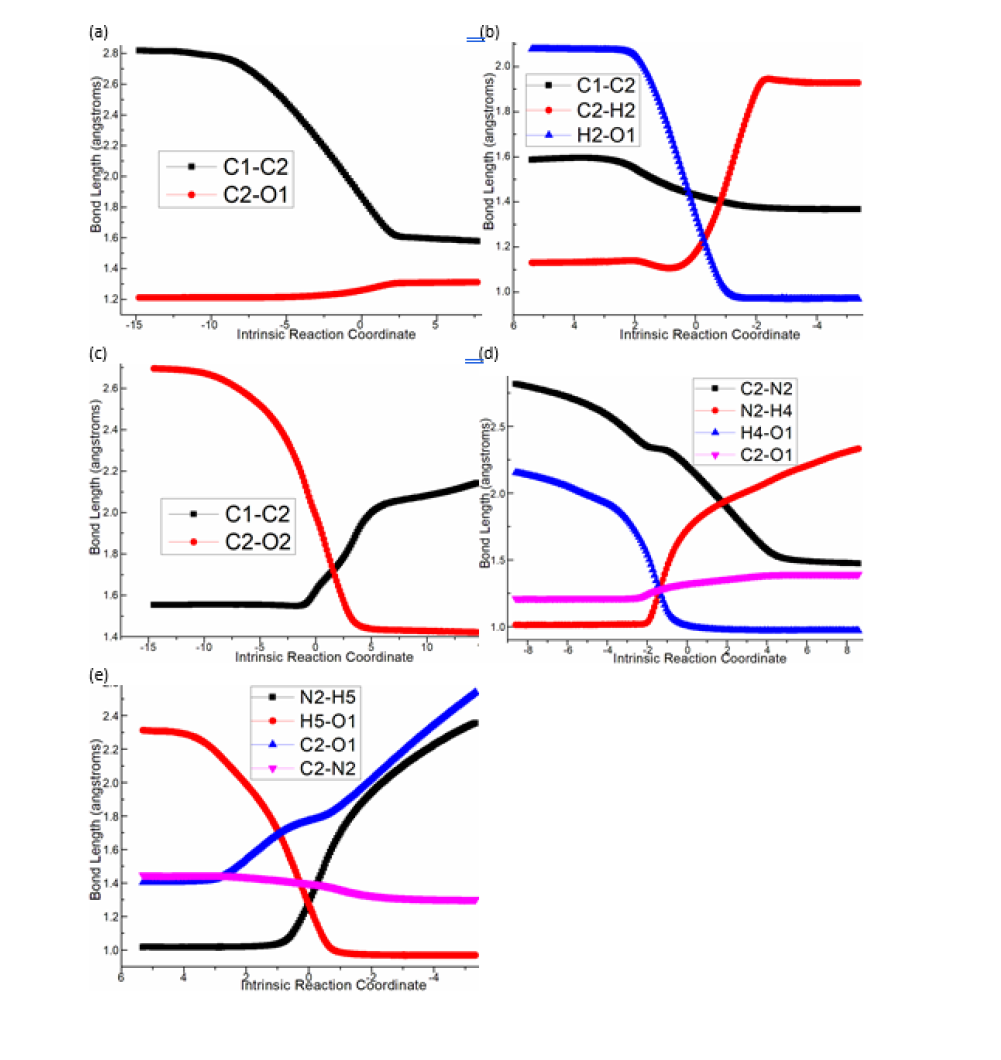

Figure S1:Evolution of bond lengths along the IRC for (a) ts-i23, (b) ts-i3A, (c) ts-i45, (d) ts-Ci6 and (e) ts-i67 at M06- 2X/6-311++G(d,p) level.

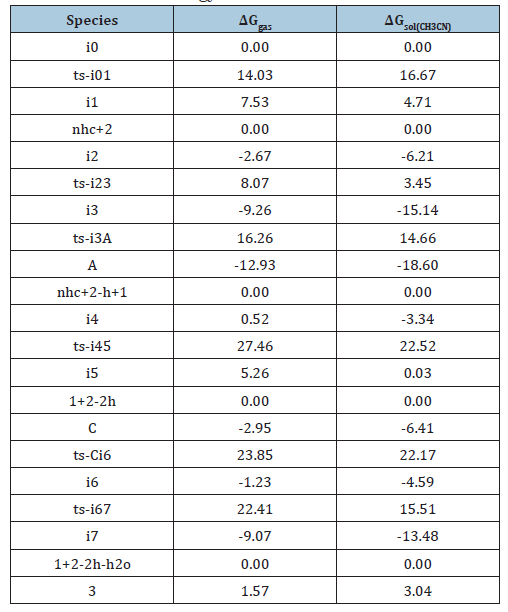

Table S1:Calculated relative energies (all in kcal mol^{- 1}, relative to isolated species) for the ZPE-corrected Gibbs free energies (ΔG_gas), Gibbs free energies for all species in solution phase (ΔG_sol) at 298 K by M06-2X/6- 311++G(d,p)//M06-2X/6-31G(d) method and difference between absolute energy.

Nucleophilic substitution/aza-ring closure/dehydration

Next, acyl azolium B and additional amidoxime 1 afford intermediate i4 as new starting point of step 4. With nucleophile hydroxyl O2H3 of 1, the nucleophilic substitution proceeds via tsi45 with activation energy of 25.9kcal mol-1 slightly endothermic by 3.4kcal mol-1 giving intermediate i5 (blue dash line of Figure 1). The transition vector suggests facile cleavage of C1···C2 single bond driven by linkage of C2-O2 and transferring of H3 from O2 to C1 (1.65, 1.98, 2.1, 1.12 Å) (Figure S1c). Clearly, the carbene catalyst is readily recovered with C1-H3 as HNHC detaching from the system. After the elimination of HNHC, ester intermediate C is obtained as new starting point of next two steps (magenta dash line of Figure 1). C undergoes aza-ring closure via ts-Ci6 with increased activation energy of 28.6kcal mol^{- 1} endothermic by 1.8kcal mol^{- 1} in step 5. The transition vector is complicated not only including linkage of C2···N2, proton transfer N2···H4···O1 but stretching of C2-O1 from double to single (2.2, 1.63, 1.22, 1.32 Å) (Figure S1d). The 5-membered ring is yielded with typical C2-N2, C2-O1 single bond and hydroxyl O1H4 in intermediate i6. At last, in step 6, i6 undergoes dehydration within the reaction system via ts-i67 with reduced activation energy of 20.1kcal mol^{- 1} exothermic by -7.1kcal mol^{- 1} yielding intermediate i7 (Table S2).

Table S2:The activation energy (local barrier) (in kcal mol^{- 1}) of all reactions in the gas, solution phase calculated with M06-2X/6-311++G(d,p)//M06-2X/6-31G(d) method.

The transition vector suggests a second apparent proton H5 transfer from N2 to O1, concerted shortening of C2-N2 from single bond to double and cleavage of C2-O1 (1.28, 1.27, 1.39, 1.77 Å) (Figure S1e). The outcome contains formation of C2=N2 double bond and H₂ O molecule leaving from the system. Finally, the target product 3,5-disubstituted 1,2,4-oxadiazole 3 is constructed as a five-membered aromatic heterocyclic structure. Comparatively, the proton transfer affording breslow intermediate in step 3 is determined to be rate-limiting for NHC-catalyzed [4+1] cyclization producing 3,5-disubstituted 1,2,4-oxadiazole.

In summary, the first theoretical investigation was provided by our DFT calculation on NHC-catalyzed [4+1] cyclization reaction between (Z)-N′-hydroxybenzimidamide and p-chlorobenzaldehyde. The free N-Heterocyclic Carbene (NHC) catalyst was initially generated from deprotonation of triazole salt precursor. Then, the key breslow intermediate was afforded via rapid carbene addition to aldehyde followed by proton transfer. The acyl azolium was further given under oxidation acting as electrophile in the following. Next, with additional amidoxime, the nucleophilic substitution occurs with its nucleophile group leading to ester intermediate. After the elimination of recovered HNHC, ester undergoes azaring closure and dehydration within the reaction system to build five-membered aromatic heterocyclic structure of target product 3,5-disubstituted 1,2,4-oxadiazole. The proton transfer affording breslow intermediate in step 3 is determined to be rate-limiting for this NHC-catalyzed [4+1] cyclization.

Supplementary data available: [Computation information and cartesian coordinates of stationary points; calculated relative energies for the ZPE-corrected Gibbs free energies (ΔG_gas), and Gibbs free energies (ΔG_sol) for all species in solution phase at 298K.]

Conceptualization, Nan Lu; Methodology, Nan Lu; Software, Nan Lu; Validation, Nan Lu; Formal Analysis, Nan Lu; Investigation, Nan Lu; Resources, Nan Lu; Data Curation, Nan Lu; Writing-Original Draft Preparation, Nan Lu; Writing-Review & Editing, Nan Lu; Visualization, Nan Lu; Supervision, Nan Lu; Project Administration, Nan Lu. All authors have read and agreed to the published version of the manuscript.

This work was supported by Key Laboratory of Agricultural Film Application of Ministry of Agriculture and Rural Affairs, PR China.

The authors declare no conflict of interest
