A Point Cloud to BIM-Model Protocol Proposal

With the rapid growth of digital adoption within the Architecture, Engineering and Construction (AEC) industry, Building Information Modeling (BIM) has become the go to approach to support data consolidation and ensure streamlined collaboration for all project disciplines. The information flow within BIM projects is supported by ISO 19650 series, open standards [1] and additional documents developed and maintained by buildingSmart [2]. Besides these, building Smart provides the BIM Use Cases Management [3] service that enables the capture, specification and exchange of best practices and makes them accessible to the entire built asset industry. The protocol presented hereafter, focuses on the so-called Existing Conditions Modeling (ECM) BIM use case that is described as a process in which a project team develops and information model of the existing conditions for a site, building or infrastructure. In many situations, the model is developed based on a 3D point cloud created using a Terrestrial Laser Scanning (TLS), drones equipped with LIDAR technology, photogrammetry or a combination of them, then followed by a geometry modelling of the construction elements (e.g. columns, beams, connections, etc.). This process allows for easy identification of out-of-straightness for all scanned elements and can support the technical expertise procedures. In a subsequent step, additional information is provided through BIM modeling to allow for easy identification of structural and/or secondary members, material information, current state of the element and other meta information. To make sure that all project stakeholders are on the same page, within the BIM model, for all object properties is recommended to be defined in alignment with building SMART Data Dictionary (bSDD) [4]. bSDD is an online service that is hosting terms and properties, allowed values, units, translations and relations between them for easy and efficient access to standards to enrich for BIM models. Once the information model is constructed, it can be queried for information, whether it is for a technical expertise, a modernization project or an extension [5].

Protocol for scan-to-BIM

Generally, a protocol refers to a set of rules or procedures for transmitting data between electronic devices, such as computers, sensors, and actuators. It defines the format, timing, sequencing, and error handling of messages exchanged across a network or other communication system. In the context of BIM-enabled projects and as intended within present paper, a protocol refers to process consisting of a series of steps, verifications, rules and procedures that allow humans and computers interact, ensuring that all stakeholders and the software systems they use, work cohesively. The key elements considered within the protocol are the following:
a) Roles and responsibilities to ensure that all participants know their specific duties in relation to the BIM project. b) Standards and guidelines used to ensure that the project adheres to best practices in modelling, data structures, and documentation. Some examples include ISO 19650, ISO 12006, ISO 16739, ISO 21597, ISO 29481 and bSDD.
c) Data collection, sharing and management to ensure that everyone has access to the latest, most accurate version of the BIM model. It also covers data security and integrity. This usually involves the use of a Common Data Environment (i.e. basically a Share point) with user and access control.
d) Software and tools to ensure compatibility and interoperability among different systems (e.g. data collection ←→ data consolidation ←→ geometric and information modelling ←→ visualization).
e) Communication channels, methods and formats to ensure consistent and efficient communication among human team members and between humans and computer systems.
f) Quality control and compliance to ensure that the BIM model and associated data meet the considered quality standards.

Based on these elements and considering the process described by ISO 19650, the proposed protocol for an ECM case is depicted in Figure 1.

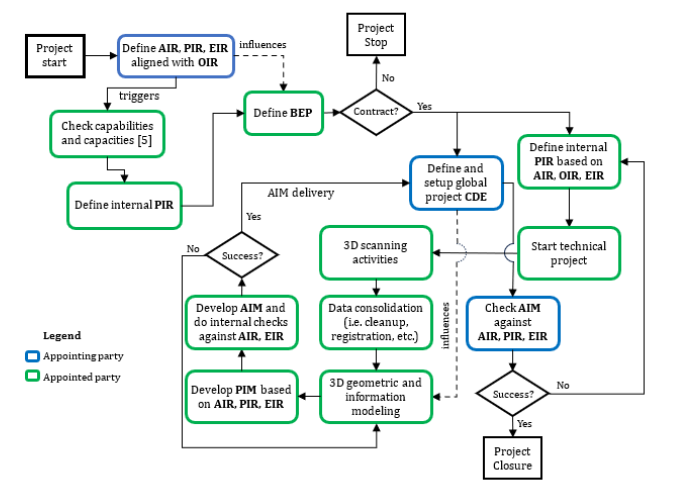

Figure 1a:The proposed protocol for 3D point cloud to a BIM-enabled model.

In Figure 1, the following notations were used:
a) AIR: Asset information Requirements [6]
b) EIR: Exchange information Requirements [7]
c) OIR: Organization Information Requirements [8]
d) PIR: Project Information Requirements [9]
e) BEP: BIM Execution Plan [10]
f) AIM: Asset Information Model
g) PIM: Project Information Model
h) CDE: Common Data Environment

Standards like ISO 19650, ISO 12006, ISO 16739, ISO 21597 and ISO 29481 provide the framework for BIM implementation in projects, but, as all standards, cannot not give specific steps for a successful implementation. Within the given framework and leveraging the extensive experience in 3D scanning, latest digital technologies for AEC industry and the support of building Smart documentation, present article proposes a protocol for a successful digitalization of existing structures. It is important to note that the BIM process has to be aligned with the organizational scope and objectives before starting project development and implementation. Besides organizational information requirements, careful consideration of project and asset requirements together with the information exchange protocol will streamline interdisciplinary communication.

1. (2024) Scope of buildingSMART Standards.
2. (2024) How buildingSMART can help you.
3. (2024) bSI Use Case Management Service (UCMS).
4. (2024) buildingSMART Data Dictionary (bSDD).
5. Centre for Digital Built Britain, BIM Toolkit, Capability and Capacity Assessment, Guidance.
6. Centre for Digital Built Britain, BIM Toolkit, Asset Information Requirements (AIR), Guidance.
7. Centre for Digital Built Britain, BIM Toolkit, Exchange Information Requirements (EIR), Guidance.
8. Centre for Digital Built Britain, BIM Toolkit, Organizational Information Requirements (AIR), Guidance.
9. Centre for Digital Built Britain, BIM Toolkit, Project Information Requirements (AIR), Guidance.
10. Centre for Digital Built Britain, BIM Toolkit, Pre-appointment and Delivery Team’s BIM Execution Plan (BEP), guidance.
