These days, nanofiber layers are used not only for filtration and separation purposes, but also in the clothing industry. Nanofiber membranes are highly suitable for this purpose because of their high porosity, which is 25% higher than the porosity of common porous PTFE membranes, and which provides much better water vapor permeability than other membranes available on the market.
Keywords: Nanofiber membrane; Nanofiber; Outdoor

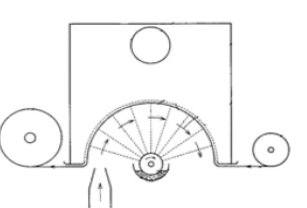

Figure 1:The membrane function diagram.
In Figure 1 you can see how such a nanofiber membrane for clothing works. Drops of water (snow, rain) fall on the top surface material. The top material tries to stop these drops from getting under this textile. This top material is often impregnated or has some chemical finish to achieve this, but at the same time it must be able to let water vapor through. This top material with its good properties has also got its limits and that’s why a nanofiber membrane is added. The different materials (woven or knitted textile and nanofiber membrane) are laminated together to form 2-layer, 2.5-layer or 3-layer laminates. The membranes are made of polymers, the most common ones being PTFE (Polytetrafluoroethylene), PES (Polyether sulfone) or PUR (Polyurethane). The membrane thickness is in the range of micrometer units [1-3].
A Nano spider machine was used to produce the nanofiber membrane (Figure 2). Polyurethane polymer was chosen because it is easy to use on a Nano spider machine, but also for its elasticity as it gives the final laminate sensibility that is very desirable in some kinds of closing.
The produced nanomembrane is made hydrophobic using Fluorocarbon type C6 monomer in low vacuum plasma to achieve a higher hydrostatic resistance. The hydrostatic resistance can be more than 20000mm depending on the top material laminated to the membrane. After hydrophilization the nanomembrane is laminated together with other textile materials. Many long-term tests have shown that a 3-layer laminate is the only solution for nanofiber layers as these layers are very susceptible to friction and for that reason must be well protected on both their sides by other textile materials laminated onto them. (Figure 3) shows such a 3-layer laminate.
Figure 2:The Nano spider machine for the production of nanofibers by electrospinning .
Figure 3:3-layer laminate cross-section

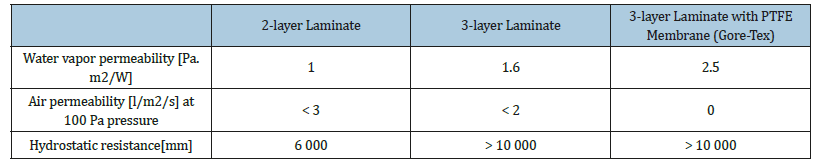

Table 1 shows the results for 2-layer and 3-layer laminates with a nanofiber membrane and a 3-layer laminate from the Gore-Tex company (with the same areal weight).
a) Top layer: 100% PES, 80gsm, ripstop weave
b) Membrane: 100% PU, 3gsm
c) Lining: 100% PES, 66gsm, weft-knit fabric
d) Gore-Tex: Active
The results show, that the nanofiber layer laminate has a much higher water vapor permeability than the laminate with a Gore-Tex membrane while at the same time both laminates have a similar hydrostatic resistance. The nanofiber membrane shows a slightly higher air permeability, but the value is insignificant with respect to the material’s function. All laminates are 100% windproof.
