More undesirable wastes or by-products are generated from the coconut and coir industry as coir pith. The raw coir pith was fired up to 500 ºC inside a suitable oven to obtain Coir Pith Ash (CPA). The effect of CPA as a supplementary cementitious material on the various specific characteristics of Portland cement pastes was investigated. Results illustrated that the blaine fineness of the whole cement blend, water of consistency and setting times increased with the increase of CPA addition. The bound water content and bulk density as well as flexural and compressive strengths improved and enhanced with the addition of CPA only up to 12wt % CPA (CP4), and then sharply decreased suddenly with further increase of CPA content (CP5). The free lime content of the blended cement pastes containing different ratios of CPA decreased at all hydration times and were being lower than those of the blank (CP0). The apparent porosity also gradually reduced with cement pastes containing up to 12wt % CPA as in the cement blend CP4, but then increase with further increase of CPA content > 12wt% CPA as in the cement blend CP5. The Ultrasonic Pulse Velosity (USPV) test showed that the matrix conformities of the various hardened cement pastes with CPA are well sticky and good quality.
Keywords: Cement; CPA; Consistency; Setting; Free lime; Porosity; Strength
Scope of the problem
The utilization of by-products from the various sectors of industry and agriculture as supplementary cementitious materials is gaining popularity between researchers worldwide. These materials are not only improving the quality of products of blended cements, but also it reduces the cost and adverse effects of cement production. The fly ash [1-6], granulated slag [7,8], silica fume [6,9,10], metakaolin [9,11], sugarcane bagasse ash [12-15], wheat straw ash [16-19], corn stalk ash [17-21], rice husk ash [22-26], saw dust ash [27-32], palm ash , sunflower ash , and many others are examples for these materials. The importance of these materials is often due to it possess pozzolanic reactivity from the active amorphous silica which undergoes secondary reactions with the released free lime, Ca(OH)2 from the hydration of the silicate phases of the cement forming additional cementitious materials.
The annual production of coconuts in some countries like Spain, Brazil and India is nearly about 12-15 tons annually. The spongy appearance of coconuts is known as “coir pith”, which is generated from coir processing unit. It could be considered as a by-product. Also, it is very interesting to note that the coir pith (CP) constitutes is about 70% of the total weight of a coconut husk . Also, the rate of CP production is ranging to be 1.6 tons per 10000 coconuts [36,37]. The collected CP is usually dumped in heaps or hills. This creates many environmental problems. This is essentially attributed to its slow decay or disintegration, and moreover to its high phenolic content. In a recent study, the coir pith ash (CPA) passing through 200 μ sieve has been found to possess pozzolanic characteristics and the replacement of cement by CPA improved the mechanical performance of concrete .
Objectives of the study
The objective of this study is to evaluate and follow the influence of coin pith ash (CPA) on the specific characteristics of Ordinary Portland cement. The obtained results were confirmed by Ultrasonic Pulse Velosity (USPV) test.
The used raw materials in the present research study are Ordinary Portland cement (OPC Type I- CEM I 42,5R) with Blaine surface area 3400cm2/g, and Waste of Coconut Pith (WCP) as a source of active nanosilica with fineness 6450cm2/g (Figure 1). The Blaine surface area was applied by the “Air Permeability Apparatus”. The OPC sample was provided by Sakkara cement factory, Giza, Egypt, and its commercial name is known as “Asmant El-Momtaz”, while WCP sample was provided from a local plant, Giza, Egypt. The WCP sample was first processed and washed with running water, and also with distilled water, and then let to dry under direct sun and open air for few days. The dried WCP was subjected to firing at 500 ºC inside a suitable muffle furnace for five hours soaking time, and then was left to cool gradually to room temperature to produce what is known as Coconut Pith Ash (CPA) as shown in Figure 1. Then, the resulting CPA was screened to pass through 200μm standard sieve .
Figure 1: Coin pith (CP) and Coin pith ash (CPA).

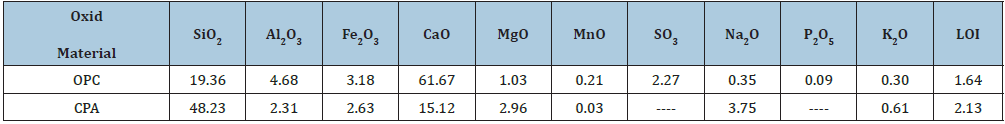

Table 1: Composition of the used raw materials, mass %.
Table 2: Mineralogical composition of the used OPC sample, mass %.

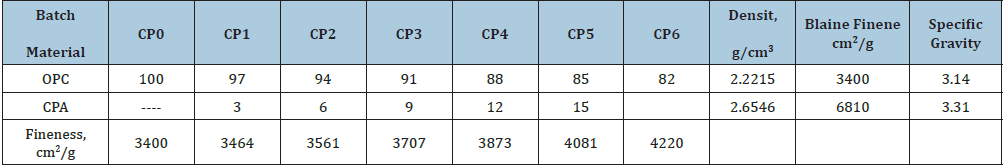

Table 3: The batch composition of cement mixtures, mass %.
The chemical composition of the OPC and CPA measured by X-ray Florescence Technique (XRF) is shown in Table 1. The mineralogical phase composition of the used OPC as calculated from Bogue equations [39,40] is given in Table 2, while the mix composition is illustrated in Table 3. The CPA nanoparticles are amorphous and crystalline, and it is mainly composed of a large percentage of nano-SiO2 and a lower percentage of nano-Al2O3.
There are eight cement batches from OPC and CPA as 100:0, 97:3, 94:6, 91:9, 88:12 and 85:15. These cement batches were given the symbols: CP0, CP1, CP2, CP3, CP4 and CP5, respectively. The blending process was mechanically made in a porcelain ball mill containing three balls for one hour to assure the complete homogeneity of all cement batches. Before casting of cement cubes, all moulds were oiled with a thin film of motor engine oil, to facilitate the release of the cubes from the moulds during the demoulding. A mechanical mixing was used for all cement mixtures using a suitable laboratory mechanical mixer in order to obtain homogenous mixtures. Firstly, the standard water of consistency [41-43] as well as setting time [44,45] of the various cement pastes were directly determined using Vicat Apparatus (Figure 2).

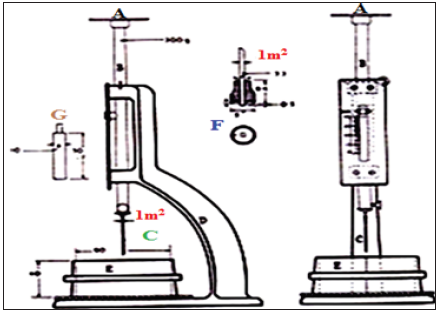

Figure 2: Vicat apparatus for water consistency and setting times.
The water of consistency could be determined from the
WC, %=A/C x 100 (1)
Where, A is the amount of water taken to produce a suitable paste, C is the amount of cement mix (300g). The initial setting time was measured by calculating the time taken from the moment at which the needle could penetrate to the paste up to 5ml from the bottom, while the final setting time was calculated by measuring the time taken from the moment at which the water added to the cement till the final set when the impression of the needle disappeared on the surface of the pastes. During the dry mixing process, the right w/c-ratio was poured into the cement portion inside the mixer and then run the mixer for about 10 minutes at an average speed of 10rpm in order to have a perfect homogenous mixture. During casting of the cement cube moulds, each already prepared oil mould was filled with the premixed cement composite and rammed 10 minutes to eliminate all air bubbles tapped within the mixture. The moulds were filled to the top surface and smoothed with a flat stainless steel trowel or spatula to obtain a flat smooth surface. The cement pastes were then cast using the predetermined water of consistency, moulded into rod-shaped samples of 1 x 1 x 7cm3 and cubic-shaped samples of 2.5 x 2.5 x 2.5cm3 stainless steel moulds using about 500g cement mix for each sample, vibrated manually for three minutes and then on a mechanical vibrator for another three minutes. The surface of the moulds was smoothed using a suitable trowel or spatula. After casting all cement cubes, they were covered with a black wet sheet for the first 24 hours to prevent moisture loss. Thereafter, the moulds were kept in a humidity chamber for 24 hours under 100% relative humidity and room temperature 23±1 °C. In the following day, it demoulded and soon cured under water till the time of testing at 1, 3, 7, 28 and 90 days.
At each hydrating interval, the Bulk Density (BD) and Apparent Porosity (AP) of the hardened cement pastes [19,30,31,37,46] were calculated from the following equations:
B. D, (g/cm3)=W1/(W1-W2) × 1 (2)
A. P, %=(W1-W3)/(W1-W2) × 100 (3)
Figure 3: Schematic diagram of the bending strength (B: beam or load, S: spam, T: thickness, W: width).
Where, W1, W2 and W3 are the saturated, suspended and dry weights, respectively. The rod-shaped samples were subjected to flexural strength using a simple beam with three points loading system (Figure 3), which was determined from the following equation:
F. S, kg/cm=3 (PL)/ 2 (b) (d) / 10.2MPa (4)
Where, where, B: the load of rupture, kg, S: span or the distance between the two lower beams (5cm), W: width of sample, cm and T: thickness of sample, cm.
The Compressive Strength (CS) of the various hardened cement pastes [47,48] was measured using a suitable Piston as follows: CS = L (KN)/Sa (cm2) KN/m2 x 102 (Kg/cm2)/10.2 (MPa) (5) Where L is the load taken, Sa is the surface area. Thereafter, about 10 grams of the broken specimens from the determination of compressive strength were first well ground, dried at 105 ºC for 30min. and then were placed in a solution mixture of 1:1 methanol: acetone to stop the hydration [6,10,11,14,25,32-34,39,40]. The kinetics of hydration in terms of chemically bound water and free lime contents were also measured at each hydration age on the basis of ignition loss at 1000 °C for 30 minutes soaking. About one gram of the sample was placed inside a crucible and first dried at 105 ºC for 24 hours, and then the crucibles were placed into a furnace [6,19,34,42,46]. The chemically bound water content (CBn) at each hydration age was determined as follows:
CBn, % = W1-W2/W2 x 100 (6)
Where, BWn, W1 and W2 are combined water content, weight of sample before and after ignition, respectively.
The free lime content (FLn) of the hydrated samples predried
at 105 °C for 24h was also determined. About 0.5g sample
+40ml ethylene glycol → heating to about 20 minutes without
boiling. About 1-2 drops of pH indicator were added to the filtrate
and then titrated against freshly prepared 0.1N HCl until the pink
colour disappeared. The 0.1N HCl was prepared using the following
equation: Where, Wn, W1 and W2 are combined water content,
weight of sample before and after ignition, respectively. The free
lime content of the hydrated samples pre-dried at 105 °C for 24h
was also determined. About 0.5g sample + 40ml ethylene glycol →
heating to about 20 minutes without boiling. About 1-2 drops of pH
indicator were added to the filtrate and then titrated against freshly
prepared 0.1N HCl until the pink colour disappeared. The 0.1N HCl
was prepared using the following equation:
V1 = N × V2 × W (7) × 100/D × P × 1000 (7)
Where, V1 is the volume of HCl concentration, V2 is the volume required, N is the normality required, W is the equivalent weight, D is the density of HCl concentration and P is the purity (%). The heating and titration were repeated several times until the pink colour did not appear on heating. The free lime content [10,14,19,25,39,40,45] was calculated from the following relation:
FLn, % = (V × 0.0033/1) × 100 (8)
Where, FLn and V are the free lime content and the volume of 0.1N HCl taken on titration, respectively.
The obtained results were confirmed with Ultrasonic Pulse Velocity (USPV) test  which is one of the prominent Non- Destructive Testing (NDT) methods. It is mainly carried out to assess the uniformity and relative quality of existing structures and specimens . The test was carried out on 1, 3, 7, 28 and 90 days.
Water of consistency
The water of consistency of the control OPC cement pastes (CP0) and the various cement pastes containing different ratios of CPA (CP1-CP6) is graphically plotted in Figure 4. As it is clear, the water of consistency of the control cement pastes (CP0) was found to be 29.55%. This value increases gradually with the increase of CPA content. This mainly is attributed to that the CPA wanted more water to produce suitable cement pastes with satisfied workability, i.e., it is very voracious to water [4,6,8,14,39,40]. In normal cases, the quantities of water needed to form suitable pastes are being higher than those of the obtained values.

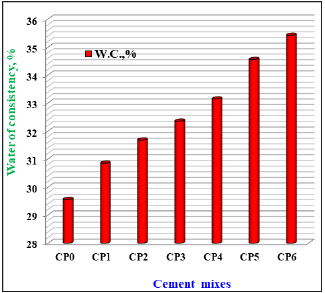

Figure 4: Water of consistency of the various cement pastes (CP0-CP6).
The setting times (Initial and final) of the control OPC cement pastes (CP0) and the various cement pastes containing different ratios of CPA (CP1-CP6) are also represented in Figure 5. The setting times were also increased with the increase of CPA content. This is principally contributed to the increase of mixing water to produce suitable cement pastes with good workability [4,8,16,21,34,37]. Moreover, the very low atmospheric temperature during carrying out the test is another factor to increase the setting times.

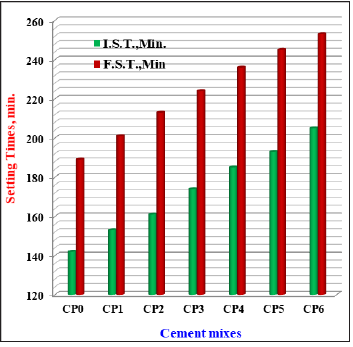

Figure 5: Setting times (Initial and final) of the various cement pastes (CP0-CP6).
Chemically bound water content
The results of chemically bound water contents of the various cement/CPA blended cement pastes are represented as a function of hydration ages up in 90 days in Figure 6. Generally, the bound water contents of all cement pastes increased with the increase of hydration ages up to 90 days. Furthermore, the bound water contents also improved and enhanced with CPA content only up to 12wt. % (CP4), and then decreased with further increase of CPA content (CP5). The increase of the bound water is essentially due to two main factors. The first is the normal hydration of the major cement phases, while the second is due to the pozzolanic activity of the CPA, where the constituents of CPA could be reacted with those resulting from the hydrated cement phases like Ca(OH)2 to produce CSH and/or CAH [30,33,34,37]. On the other side, the decrease of bound water contents is attributed to the lack or deficiency of the main hydrating materials of the cement due to its substituted by CPA [16,18,20,37,39,40].

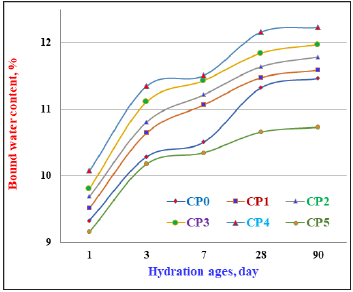

Figure 6: Bound water content of the various cement pastes (CP0-CP6) hydrated up to 90 days.
Free lime content
The results of free lime contents of the various cement/CPA blended cement pastes are plotted as a function of hydration ages in Figure 7. It is obvious that the free lime content of the blank cement (CP0) was increased with the increase of hydration age, i.e., as the hydration times proceeded up to 90 days, the free lime contents increased too. This is mainly attributed to the hydration of silicate phases of the cement, C3S during the early ages of hydration (1-7 days), while β-C2S often hydrated at the later hydration time (28-90 days) [39,40]. On contrast, the free lime contents of the other cement pastes containing different ratios of CPA decreased with the hydration periods up to 90 days, only up to 12wt % CPA (CP4). This is essentially due to the pozzolanic reactions occurred between the constituents of CPA and the resulting free lime, Ca(OH)2 from the hydration silicate phases of the cement to form CSH [16,19,25,30,34,37]. Furthermore, the deficiency of the cement portion due to the addition of CPA at the expense of the cement led to the decrease of the rate of hydration, which in turn led to the decrease of the released free lime [30-34,37,38].

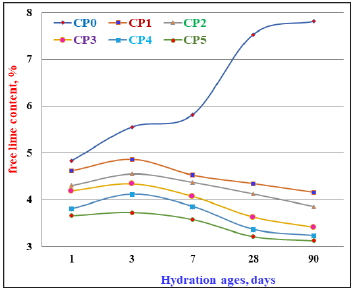

Figure 7: Free lime content of the various cement pastes (CP0-CP6) hydrated up to 90 days.
Bulk density and apparent porosity
The data of bulk density and apparent porosity of the various cement/CPA blended cement pastes are drawn as a function of hydration ages up to 90 days in Figures 8 & 9, respectively. The values of bulk density of the various blended cement slightly increased with time of hydration till reach to 90 days, while those of apparent porosity decreased [39,40]. With the increase of CPA content, the bulk density improved and enhanced at all hydration times when compared with the blank (PC0), whereas the apparent porosity decreased. This was continued till reach to 12wt. % CPA (CP4), but then decreased with further increase of CPA content (CP5), and the apparent porosity increased [13-16,20,21,26,37]. As a result, the optimum content of CPA is 12wt. % (CP4). It is good remember that the higher quantities of CPA (>12 wt. %) must be neglected and avoided.

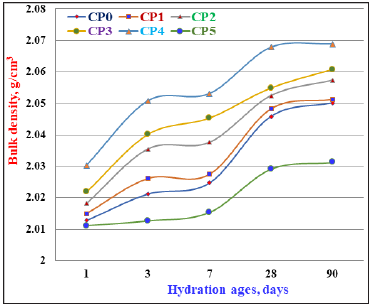

Figure 8: Bulk density of the various cement pastes (CP0-CP6) hydrated up to 90 days.
Figure 9: Apparent porosity of the various cement pastes (CP0-CP6) hydrated up to 90 days.
Figure 10: Flexural strength of the various cement pastes (CP0-CP6) hydrated up to 90 days.
The flexural strength of the various cement/CPA blended cement pastes is graphically plotted versus hydration ages up to 90 days in Figure 10. The flexural strength is generally enhanced with hydration ages for all cement blends [13,16,19,21,30,34,39,40]. Moreover, the flexural strength improved and increased with the increase of CPA content up till 12wt. % (CP4), but then decreased with any further increase of CPA content (CP5). Consequently, the optimum cement blend is that containing 12wt. % CPA, and the high amounts are undesirable.
Figure 11: Compressive strength of the various cement pastes (CP0-CP6) hydrated up to 90 days.
The compressive strength of the various cement/CPA blended cement pastes is graphically represented as a function of hydration ages up to 90 days in Figure 11. The compressive strength was observed to increase with curing times up to 90 days, i.e., as the hydration ages proceeded, the compressive strength gradually increased, This is mainly due to the normal hydration process of cement phases, particularly those of calcium silicate (C3S and C2S) [39,40]. On the other side, as the CPA content increased in the cement pastes, the compressive strength increased only up to CP4 containing 12wt % CPA, but then decreased with the further increase of CPA content. The increase of compressive strength is essentially attributed to the pozzolanic reactivity of CPA with the evolved Ca(OH)2 resulting from the hydration silicate phases of the cement [32,34,41-47], while the decrease of compressive strength is particularly contributed to the deficiency of the main hydration material of the cement, which in turn decreased the rate of hydration [18,21,30,48-51]. In addition, the rate of pozzolanic reactions also decreased. So, the higher content of CPA content is undesired and must be avoided. This is due to the fact that the higher quantity of CPA acted as an obstacle that hindered the process of hydration. As a result, it could be concluded that the optimum content of CPA is only 12wt % (CP4).
Ultrasonic pulse velocity test
There are several Non-Destructive Testing Methods (NDTM) that are able to test the hardened cement samples without destructing it. Ultra-sonic Pulse Velocity Method (USPV) is one of these prominent methods NDTM and it is carried out mainly to assess the uniformity and relative quality of existing structures and specimens. On this basis, the Ultrasonic Pulse Velocity (USPV) of the various hardened cement/CPA blended cement pastes is graphically drawn versus the hydration ages up to 90 days in Figure 12. As it is obvious, the USPV of the blank (CP0) increased only up to 7 days, and then tended to become constant. This means that the various ingredients or constituents of the blank did not affect by the ultrasonic pulse velocity [38,52]. The same trend was displayed by all other blended cement pastes. Accordingly, the USPV test proved that the conformities of the matrix of the various cement pastes are well sticky and with good quality, i.e., good uniformity and conformity as well as no cracks [53,54]. The gradual increase of pozzolanic reactions of CPA, due to its high level of its grain size particles, with the evolved Ca(OH)2 resulting from the hydration of calcium silicate phases of the cement was the main reason responsible for the quality uniformity of the cement matrix .

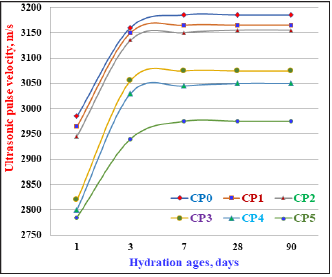

Figure 12:The ultrasonic pulse velocity of the hardened cement pastes containing various ratios of CPA versus hydration ages
Concerning the findings of the laboratory test results, the following overall conclusions could be obtained:
1. As the content of active nano-silica particles from CPA increased in the cement blend, the Blaine fineness of the whole cement batches increased too.
2. The water of consistency of the blank (CP0) was 29.55 %, and its initial and final setting times were 142 and 189 minutes. These values tended to increase with the increase of CPA content. This is mainly due to the fact that the CPA is so gluttonous that it needs much water to produce suitable pastes.
3. The bound water content of the different blended cement pastes (CP0-CP5) increased continuously with hydrating ages up to 90 days. But the bound water content of the blended cement pastes containing CPA up to 12 wt. % (CP4) increased more and are beining slightly higher than those of the blank (CP0), and then decreased with further increase of CPA content (CP5).
4. The free lime content of the blank (CP0) increased as the hydrating time progressed up to 90 days, while those of other blended cement pastes containing different ratios of CPA (CP1- CP5) decreased as the hydration time proceeded up to 90 days.
5. As the cement powder becomes in contact with water, the hydration process started soon and the apparent porosity was soon diminished and reduced due to the deposition of the formed hydration products in the pore structure of the hardened samples. Therefore, the apparent porosioty decreased while the bulk density increased. This is still taking place only up to replace 12 wt% CPA content (C4).
6. The mechanical properties in terms of flexural and compressive strengths were also investigated. Generally, the flexural and compressive strengths were increased as the hydration times progressed up to 90 days for all blended cement pastes. The compressive strength displayed the same trend as flextural strength.
7. The addition of 12% CSA (CP4) to Portland cement could be successfully applied without any adverse effects on the physical, chemical and mechanical properties of Portland cement. Therefore, it was selected to be the optimum batch. 8. The USPV test proved that the conformities of the matrix of the various cement pastes are well sticky and of good quality, i.e., good uniformity or good conformity, and no cracks
