A Review on the Functionality of Nanomaterials in 2d and 3d Additive Manufacturing

Markos Petousis1*,Lazaros Tzounis2 and Nectarios Vidakis1

1Mechanical Engineering Department, Hellenic Mediterranean University, Greece

2Department of Materials Science & Engineering, University of Ioannina, Greece

*Corresponding author: Markos Petousis, Mechanical Engineering Department, Hellenic Mediterranean University, Greece

Submission: October 05, 2020;Published: October 15, 2020

DOI: 10.31031/RDMS.2020.14.000833

ISSN: 2576-8840
Volume 14 Issue 2

Abstract

Additive manufacturing (AM) is a process based on the sequential addition of material layers, allowing thus to print either 2D parts (thin or thick films substrate assisted and obtained then as self-standing films or supporting films/ coatings) or bulk 3D parts consisting of different materials with variable physical and chemical properties. The Global sales in 3D printing (products and services) rose by 21% from 2017, reaching 7B$ in 2018. Various techniques are available and belong to the family of 3D printing of solid materials, while the most well-known ones are the electron beam freeform fabrication, the direct metal laser sintering, and the fused filament fabrication (FFF). Due to the unique possibility to manufacture complex 3D objects layer by layer, as well as due to the relatively low-cost 3D printers available in the market nowadays, AM utilising nanomaterials could be employed in new ways toward greater control over material properties across part dimensions. The multifunctionality endowed through nanomaterials’ incorporation as additives can further extend capabilities of nanocomposites to i.e. by-design and patient specific biomedical equipment and personalised medicine applications, tuned and tailored gradients in electrical and thermal conductivity, increased strength and reduced weight, photonic emissions tunable for wavelength, etc., all of which are elaborated in this mini review article. In specific, FFF 3D printing method that a main focus is given herein could allow direct 3D printing of nano enabled thermoplastic filaments endowing the nanocomposite’s functionality to the bulk 3D printed derived objects.

Keywords: Three-Dimensional (3D) printing; Rapid prototyping; Nanomaterials; Nanotechnology; Additive manufacturing; Two-Dimensional (2D) printing; Polymers; Nanocomposites

Introduction

Two-dimensional (2D) and three-dimensional (3D) printing processes have received significant attention as additive manufacturing technologies amongst others [1,2]. 2D and 3D printing are additive manufacturing (AM) processes based on sequential addition of (nano-)material layers allowing to print either 2D parts (thin or thick films/ layers as self-standing films or coatings) or bulk 3D parts and components made of different (nano-)materials with variable physicochemical properties [3,4]. Namely, the global sales in 3D printing (products and services) rose by 21% from the market in 2017 reaching 7B$, while the total AM market only for the Automotive sector is expected to grow from 1.5B€ in 2018 to 5.3B€ in 2023 and 12.6B€ in 2028.

Roll-to-roll (R2R) and sheet-to-sheet (S2S) 2D additive manufacturing

The 2D AM processing could be a continuous process otherwise defined as roll-to-roll (R2R) or sheet-to-sheet (S2S), both of which allow a continuous deposition of materials as inks/ pastes, melts, etc. onto rigid or flexible substrates (glass, plastic, metallic foils, textiles, etc.). In a R2R process, the materials are deposited in motion between two moving rolls named as unwinder and winder. R2R is an essential substrate-based manufacturing process in which additive (e.g. printing methods as for instance ink-jet, slot-die, etc.) and/ or subtractive technologies (e.g. laser scribing) can be employed to build 2D components in a continuous manner.

R2R could offer cost-effective and high production rates of mass quantities, combining, in a continuous manner, different technologies towards the production of rolls with a finished product. Today, R2R processing is applied in numerous manufacturing fields such as i) coating of textiles (e.g. using a bath coating technology otherwise known as dyeing process) [5], ii) prepregs for advanced CFRP structural composites (bath or slot die deposition of epoxy onto fabrics) [6], iii) packaging i.e. smart packaging (e.g. slot-die, gravure, bath coating, screen printing, flexography of inks, varnishes, etc.) [7], flexible and large-area printed electronics (e.g. slot-die, gravure, bath coating, screen printing, flexography, ink-jet printing of electronic inks and pastes) [8-10], thin-film batteries [11] and (bio-)electrodes (e.g slot-die, screen printing) [12], textiles for wearables (e.g. ink-jet printing, screen printing and flexography) [13], membranes (e.g. slot-die, etc.) [14], etc. The global R2R technology market is expected to reach 35.69 B$ to 2023 expanding at a compound annual growth rate (CAGR) of 13.5% from 2015 to 2023.

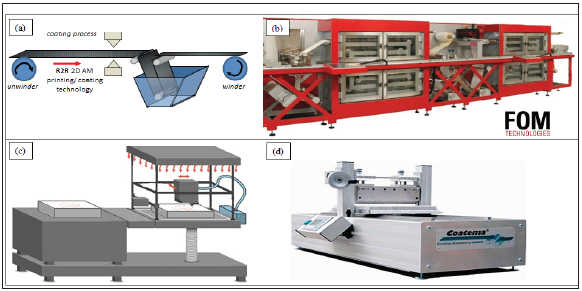

Figure 1 demonstrates (a) a schematic of a R2R AM process, as well as (b) a representative R2R printing/ coating line produced by FOM company (FOM, Denmark); while in (c) a schematic of a S2S printing coating AM process is depicted and in (d) a S2S printing slot-die and blade coating machine produced by COATEMA printing technologies company (Coatema, Germany).

Figure 1: (a) Schematic of a R2R AM process, as well as (b) a representative R2R printing/ coating AM line; (c) a schematic of a S2S printing coating AM process, and (d) a S2S printing slot-die and blade coating machine.


Three dimensional (3D) additive manufacturing

3D printing is nowadays one of the most promising additive manufacturing (AM) processes based on sequential addition of material layers allowing to manufacture bulk 3D parts with tailored properties i.e. mechanical, thermal, electrical, etc. [15]. The first 3D print was reported by Hideo Kodama in 1982 [16]. Since then, 3D printers have become much more accessible in the engineering academic community as well as end-product manufacturing companies with numerous achievements through process optimization, etc. 3D printers are now able to print different materials including metals, wood products, and engineered thermoplastics, such as Polylactic Acid (PLA), Polypropylene (PP), Polyether Ether Ketone (PEEK), and others. Specifically, there are various techniques for printing solid materials in 3D, including, as shown in Figure 2a: inkjet 3D printing, Figure 2b: fused deposition modeling (FFF), Figure 2c: stereolithography (SL), Figure 2d: selective laser sintering (SLS), electron beam freeform fabrication, direct metal laser sintering, among others [16].

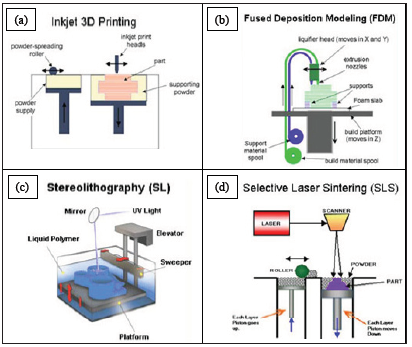

Figure 2: (a) inkjet 3D printing, (b) fused deposition modeling (FFF), (c) stereolithography (SL), and (d) selective laser sintering (SLS).


Figure 3: (a) Flow chart of a 3D printing AM process including the generation of the CAD model towards exporting it in an stl file capable of being communicated with most of the 3D printer software the printing process; (b) CAD model of a surgery retractor as well as a 3D FFF printer deployed to print the objects shown in the right hand-side of the image.


Figure 3 demonstrates (a) the flow chart of a 3D printing AM process including the generation of the CAD model (in a CAD specific software e.g. Solidworks, AutoCAD, 3D Builder, etc.) towards exporting it to an stl file capable of being communicated with most of the 3D printer software the printing process (printing process has to be simulated, process parameters to be chosen etc. from the printer software). In Figure 2b, a CAD model of a surgery retractor is depicted, as well as a 3D Fuse Filament Fabrication (FFF) printer for thermoplastic materials (MakerBot Inc. USA) used to print the objects shown in the right hand-side of the image.

Nanotechnology and applications

Nanoparticles: Nanoparticles (NPs) are particles in the range of 1-100 nanometers (nm) in size with a surrounding capping agent or otherwise known as stabilizer, surface ligand or passivating agent [17]. The capping agent is an integral part of nanoscale matter, fundamentally affecting all of NPs’ properties, while it could be of various chemical compounds i.e. ions, inorganic and organic molecules endowing to the NP the appropriate surface chemistry endowing colloidal stability as well as proper surface functionalities for interaction with other substances. In nanotechnology, a particle is defined as a small object that behaves as a whole unit with respect to its transport and properties, while the type of NP element as a function of the size & morphological characteristics could give a great variety of different properties (catalytic, sensing, electrical and thermal conductivity, bactericidal, etc.).

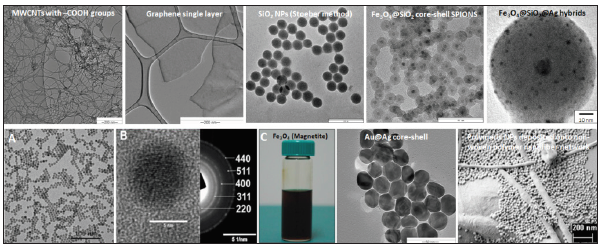

Figure 4 shows representatively scanning and transmission electron microscopy images (SEM, TEM images) of different NP types with different shapes; namely 1D, 2D and 3D NP geometries with different sizes and aspect ratio (length/ diameter). Figure 4 summarizes NPs i.e. multi-walled carbon nanotubes (MWCNTs) [18,19] and Graphene monolayers (from the authors library of TEM images and materials’ microscopy investigations), silica (SiO2) [20], Fe3O4 superparamagnetic NPs and Fe3O4@SiO2@Ag core shell -satellite NPs [21], Au@Ag core-shell NPs [22], and polymeric spherical NPs loaded with pharmaceutical substances (carriers for drug delivery applications) deposited onto electros pinned non-woven fabric biodegradable polymeric fibers (used as scaffolds for controlled drug release) [23].

Nanotechnology: Nanotechnology is considered as the technology that is focusing on the nanoscale and could find a great number of applications in the real world [24]. The exclusive physicochemical properties of nanomaterials can be utilized for applications that the whole scientific society could benefit i.e. electronics, biomedical devices, etc. applications. Nanotechnology could be regarded thus as a “megatrend” in the modern society and has become a “general purpose” technology.

Specifically, nanotechnology refers to the techniques manipulating the matter on an atomic, molecular, and supramolecular scale. With the use of nanotechnology, one could realize nano enabled macroscale products with engineered and precise control of the atoms and molecules position, orientation, etc. otherwise known as molecular nanotechnology [25]. The National Nanotechnology Initiative has given a more generalized description of nanotechnology defining “nanotechnology” as the manipulation of matter with at least one dimension sized from 1-100nm. Another definition states that nanotechnology is the design, characterization, production and application of structures, devices and systems by controlling shape and size at the nanometer scale [26]. It is now generally accepted that for a component or material to be considered as nano at least one critical dimension or manufacturing tolerances has to be below 100 nanometers, down to the size of atoms (~0.2nm) [27].

Figure 4: Representative SEM and TEM images of NP structures: Multi-walled carbon nanotubes (MWCNTs) and Graphene monolayers; silica (SiO2), Fe3O4 superparamagnetic NPs, Fe3O4@SiO2@Ag core shell -satellite NPs, Au@Ag core-shell NPs and polymeric NPs loaded with pharmaceutical substances (drug delivery) deposited onto electros pinned non-woven fabric biodegradable polymeric fibers (as scaffolds).


A huge number of new materials and devices that could find numerous applications as for instance in nanomedicine [28], nanoelectronics [29], energy production [30-32], and consumer products [33] could be realised making use of Nanotechnology methods and techniques. However, issues related to toxicity and the emerging environmental impacts that nanomaterials generate, as well as their potential effects on global economics are raised by the use of nanotechnology, related materials, and processes. These concerns have led to a dispute in the promotion groups and policy makers as well as the governments on whether special regulation of nanotechnology is necessary.

Namely, the revenues from nanotechnology derived products are growing on an annual basis exceeding for 2012 in the US the 200B$ in total, and over 700B$ worldwide (over 1B$ in 2018 and is projected to reach $2,231.4 million by 2025, growing at a CAGR of 10.5% from 2019 to 2025 - www.alliedmarketresearch.com/nanotechnologymarket#:~:text=The%20global%20nanotechnology%20market%20was,10.5%25%20from%202019%20to%202025.). This can give a direct image for the potential of the field with an impressive plausible return on investment under the successful market penetration [34]. At the same time, due to the variety of potential applications, globally billions of dollars have been invested in nanotechnology research. Namely, in 2012 USA invested 3.7B$, Europe 2.1B$ and Japan 750M$.

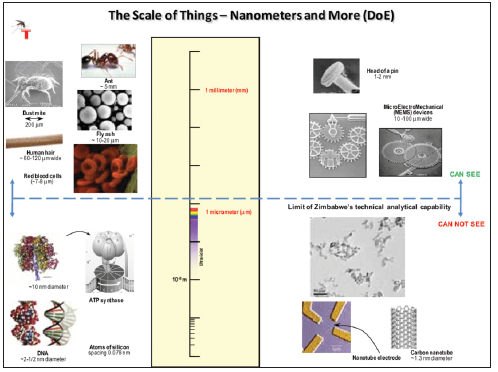

Figure 5 illustrates everyday examples of things that fall in the macro- to nano- size range.

Figure 5: Scale of things from macro to nano size. The figure is courtesy of the DoE, 2006 [27].


Figure 6: SiO2 spherical NPs that can self-assemble into hexagonally packed structures (left hand-side SEM image); and a block copolymer (BCP) with spherical morphology in which spheres are arranged into an hexagonally packed structure (middle TEM image); a block copolymer with lamellar morphology that lamellae have been oriented/ aligned using a shear force field (right hand-side TEM image).

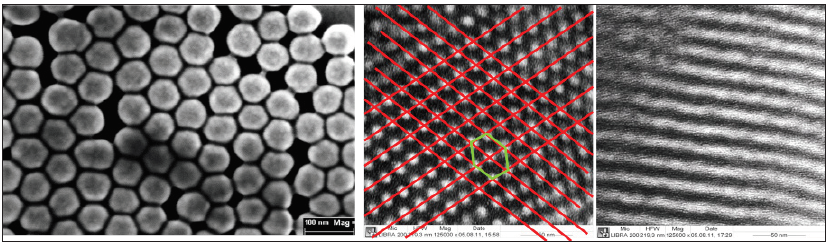

Figure 6 illustrates some nano enabled structures that form well-ordered domains. Namely, a SEM image is depicted of SiO2 spherical NPs that can self-assemble into hexagonally packed structures (left hand-side) [20]; and TEM images of a block copolymer (BCP) with spherical morphology in which spheres are arranged into an hexagonally packed structure (middle image) [35], and finally a block copolymer with lamellar morphology that the lamellae have been oriented/ aligned using a shear force field with potential nanoelectronics, thin-film nanotemplates with anisotropic magnetic, electrical properties, etc. applications [36,37].

Three-dimensional printing of thermoplastic nanocomposite materials through FFF towards multi-functional 3D printed objects

Additive Manufacturing (AM) has been considered one of the most promising technologies the last decades and has found several applications in various scientific fields i.e. automotive, marine, electronics, biomedical, aerospace, etc. since it offers the ability to create functional 2D and 3D objects using a wide range of materials [38]. Especially, in several cases where state-of-the art technologies cannot overcome existing limitations i.e. in the medical field where customized parts are on demand on a daily use and the personalized medicine is of paramount importance, 2D and 3D printing are providing significant improvements in terms of design flexibility, fast production, availability, etc. [39]. Introducing nanomaterials could endow multifunctionality to the 2D and/ or 3D printed parts and objects with tailored and by-design properties i.e. increased strength and reduced weight, isotropic and anisotropic thermal and electrical conductivity, photonic emissions tunable for wavelength, etc.

Among AM techniques, Fused Filament Fabrication (FFF) uses as feedstock thermoplastics which then are extruded onto a build platform [40]. To enhance the properties of the polymeric matrices, particle reinforcements are widely used due to their low cost and the ease to be dispersed into the polymeric matrix via different versatile currently available technologies [41-43]. According to their type, size, geometry, aspect ratio, surface chemistry, etc. they have the potential to enhance different properties of the final composite and add new functionalities.

For instance, the addition of iron or copper particles to ABS can contribute to thermal conductivity and the improvement of the storage modulus, while it reduces the thermal expansion coefficient. An Al or Al2O3/Nylon-6 composite exhibits reduced frictional coefficient. BaTiO3 in ABS or CaTiO3 in polypropylene dispersion can offer enhanced dielectric permittivity and controllable resonance frequency. MWCNTs and their surface functional groups affect the thermoelectric properties of melt-mixed polycarbonate (PC) nanocomposites [44]. Apart from the traditional particles, numerus nanomaterials can offer exceptional mechanical, thermal and electrical properties to the polymeric matrix [45].

The addition of several nanomaterials for the production of composite parts utilizing 3D printing is also capable to increase the tensile strength [46]. For example, composite parts with 5wt% titanium dioxide (TiO2), 10 wt% carbon nanofibers or 10wt% multi-walled carbon nanotubes exhibited an improvement of the tensile strength by 13.2%, 39% and 7.5% in comparison with neat polymer parts, respectively [47].

In another study, 3D printed nano- and micro-composites using ZnO nano- and micro-sized particles in Acrylonitrile Butadiene Styrene (ABS) matrix have shown a mechanical reinforcement effect on the 3D printed nanocomposite samples compared to that of the neat polymeric ABS matrix. Namely, compared to neat ABS the tensile strength was increased by 14% at 5% wt. concentration in both nanocomposite and micro-composite materials. Moreover, a 15.3% increase in the flexural strength was found in 0.5% wt. ABS/ZnO 3D printed nanocomposite, while an increase of 17% was found for the 5% wt. ABS/ZnO micro-composite [48].

Two types of nano additives were employed in another reported article: namely (a) graphene nanoplatelets (GnP) at different concentrations, and (b) carbon nanotubes (CNTs), while FFF process was adopted to fabricate nanocomposite specimens that have been investigated in terms of mechanical performance and electrical conductivity [49]. The tensile as well as flexural properties (strength and modulus) showed a decreasing trend with the increase of the GnP loading. However, the ABS/CNT 3D printed nanocomposites showed higher tensile and flexural strength when compared to pure ABS and ABS with GnP. Moreover, electrical characterization of the 3D printed nanocomposites by DC methods and AC dielectric spectroscopy revealed that the dielectric constant increases with the higher GnP filler loading, while the specimens remained nonconductive, even when the GnP filler concentration was at the maximum that was able to be processed (10wt.%). On the contrary, ABS/CNT nanocomposite with 10wt.% filler loading exhibited a large electrical conductivity.

Tzounis et al. [50] recently reported on 3D Printed Thermoelectric Polyurethane (TPU)/Multiwalled Carbon Nanotube Nanocomposites [50]. 3D printing of stretchable, electrically, and thermoelectrically active polymer nanocomposite materials has been for the first time reported making use of flexible, stretchable and electrically conductive 3D printable thermoplastic polyurethane (TPU)/multiwalled carbon nanotube (MWCNT) filaments at various MWCNT filler loading. Advanced microscopy (SEM, TEM) showed the excellent achieved CNT nano dispersion in the TPU polymeric matrix due to the applied optimum melt mixing/ compounding and extrusion process parameters chosen. No remarkable knock-down effect was observed for the static tensile mechanical properties i.e. moduli and strengths, for the 3D printed samples compared to the nanocomposites prepared by compression molding. This indicates the high quality of adhesion for the 3D printed sample interlayers, translated into exceptional mechanical performance of the 3D printed nanocomposites achieved also by the optimum set of 3D printing parameters chosen. Thorough electrical and thermoelectric characterization illustrated that TPU/MWCNT conductive polymer composites (CPCs) at 5.0 wt.% exhibited the highest thermoelectric performance (σ=133.1S/m, S=19.8 ± 0.2µV/K and PF=0.04μW/mK2) amongst TPU/CNT CPCs that can be found in literature. Finally, a very interesting feature the authors pointed out is an anisotropic electrical conductivity in the through- and cross-layer printing directions; however, the Seebeck coefficient remains the same.

Vairis et al. [51] reported on a very interesting study of the strain rate sensitivity of 3D printed ABS parts [51]. ABS samples 3D printed with dimensions according to ASTM D638-02a were tested at three different test speeds, namely as described by the ASTM D638-02a standard, lower, and higher as compared to the standard. The tensile strength values obtained were compared and discussed in relation to the investigated scanning electron microscope fracture surface images of selected specimens indicating the failure mode/ mechanism of the filament strands. The main finding has been that upon increasing the test strain rate, specimens develop higher tensile strength and Young’s modulus. Specifically, specimens tested under the maximum speed of the experiment exhibited on average ~11% higher tensile strength and ~10% higher elastic modulus.

Just recently, the compressive behavior of an ABS FFF printed Steward Platform part has been reported [52]. In specific, ABS parts were 3D printed with variable printing parameters and investigated for their mechanical performance according to the ASTM D695 standard. Compression strength results were compared to stock ABS material values. A Steward Platform part was tested in compression mode, while a finite element model (FEM) of the Steward Platform part utilizing the experimental results was developed in order to determine the maximum force the part can withstand. The FEM results fully corroborated the experimental values measured in the Steward Platform part by the corresponding compressive tests. Moreover, another interesting finding has been the fact that with increasing the layer thickness, the ABS part showed lower compressive strength.

The mechanical properties of FFF manufactured specimens made of polylactic acid (PLA) and PLA nanocomposite with graphene nanoplatelets fillers (PLA/ GnP) has been experimentally measured [53]. Evaluation of the mechanical strength between FDM-printed PLA and PLA/GnP nanocomposites was performed to illustrate the filler’s contribution. Moreover, the effect of the FFF printing process on the 3D printed samples’ mechanical properties was elucidated by comparing them with the mechanical properties of the bulk injection molded specimens. The comparison demonstrated slight differences in the mechanical performance between the PLA/GnP nanocomposites prepared by FFF 3D printing and injection molding demonstrating that the mechanical performance is dominated by the PLA and the PLA/ GnP “material’s” properties and not affected by the manufacturing process used to create 3D samples. Dielectric spectroscopy measurements were carried out to show the effect of GnP fillers in the dielectric properties of the material indicating a significant enhancement in the dielectric values.

Petousis et al. [54] have recently published on 3D printed antimicrobial thermoplastic nanocomposites [54]. In specific PLA/AgNP nanocomposite filaments were produced initially by an in-situ reduction reactive melt mixing process extruded further into nanocomposite filaments that were used for 3D printing. Silver nitrate (AgNO3) as precursor in powder form was mixed in the polymer melt and it has been reduced from silver ions (Ag+) into elemental (Ag0) nanoparticles utilizing polyethylene glycol (PEG) or polyvinyl pyrrolidone (PVP), as macromolecular reducing agents additives in the polymer melt. 3D printed antimicrobial (AM) PLA/AgNP parts were manufactured by Fused Filament Fabrication (FFF) and an optimum set of 3D printing parameters resulting in high quality 3D printed models and dog-bone samples used for mechanical tests. The 3D printed PLA/AgNP samples showed remarkable AM properties against Staphylococcus aureus (S. aureus) and Escherichia coli (E. coli) investigated by bacteria viability (%) experiments. The 3D printed antimicrobial objects/ parts reported in this study could generate the seeds for further development of the recipe and the whole experimental protocol towards the next generation of nosocomial personal protective equipment (PPE), as well as biomedical antimicrobial equipment i.e. surgery equipment, implants, etc. It could be envisaged that such approaches could allow the low-cost, on demand and fast production of biomedical objects manufactured within the hospital endowing a personalized medicine character and capable to offer solutions in critical periods of the health systems as e.g. massive disasters, pandemics, etc.

Apart from the mechanical enhancement, the addition of nanoparticles in the polymeric matrix can contribute to the improvement of electrical and thermal properties. Gnanasekaran et al. [55] applied 3D printing of CNT- and graphene-based conductive polymer nanocomposites by FFF [55]. Authors used dispersions of CNTs and graphene (G) in polybutylene terephthalate (PBT). The results showed that electrical conductivity increased from 1×10-13S/m for neat PBT to 11×101S/m for 3D printed polymer nanocomposites with CNTs and 1S/m with dispersed graphene. Additionally, they assessed thermal stability by conducting Thermogravimetric Analysis (TGA). They presented that the addition of conductive fillers enhanced the thermal stability, as both the maximum degradation temperature and the onset of the degradation mechanism shifted to a higher value. More specifically, a weight loss of 5% occurred at 303  ̊C, 339  ̊C, and 332  ̊C for the PBT, PBT/CNT and PBT/G respectively. Inlet guide van was fabricated from Glenn Research Center by using FFF process with Ultem 100 and chopped carbon fiber (CF) with operating temperature reaching 400  ̊F. Carbon fibre reinforced Polyether Ether Ketone (PEEK) composites with 50% less weight than aluminium was fabricated by Impossible Objects company, with heat resistance at about 250  ̊C, while maintaining 2/3rds of the aluminium’s strength [47]. This composite material has been printed as demonstrator airfoil, rotor support arm and air intake (Figure 7).

Figure 7: 3D printed airfoil demonstrators based on the glass fibre (a,b) and carbon fibre (c,d) formulations.


The specific and closely linked dependencies of production processes, materials and component design represent a challenge. The method of layer-wise construction enables the direct production of complex three-dimensional geometries in a single production step and without time-consuming process and tool planning. The higher the geometric complexity of the component, the greater the advantages of additives over conventional manufacturing. The above-mentioned properties open up new possibilities for structural optimization, especially in light-weight construction (Figure 8). Nearly any structure can be produced which has an adaptation of the design depending on the load situation and the stress distribution. In this context, with the increasing possibilities of additive manufacturing, research has focused in particular on cellular lightweight grid structures in combination with sandwich construction. This concept is based on the principle of inserting material only at places where it is required for force transmission or from an electromagnetic point of view [56]. Thereby, parts of the object with high material concentration are replaced by complex cellular structures [57]. The production of such structures is difficult or impossible with conventional methods, so that only the additive procedures make an economic conversion of such concepts possible.

Figure 8: Optimized H13 rotor shaft with lattice structures for lightweight design optimization.

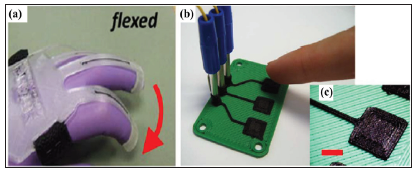

Figure 9: 3D printed carbon black/PCL composite for (a) Piezoresistive sensors (b) Capacitive sensors (c) macro image of the printed sensor pads (scale bar 5mm).


Christ et al. [58] fabricated FFF 3D printed nanocomposites of polyurethane/multiwalled carbon nanotube (TPU/MWCNT) with various MWCNT content up to 5 wt% [58]. The results showed that the material strength, initial elastic modulus, and electrical conductivity enhanced with the increased addition of MWCNT filler. Also, different MWCNT contents can provide different ranges of flexibility and sensitivity, offering tunable properties for particular applications. TPU/MWCNT 3D printed nanocomposites can also be used as excellent piezoresistive feedstock for strain sensors. Other potential applications are in the fields of wearable electronics, soft robotics, and prosthetics (Figure 9). Chizari et al. [59], developed highly conductive nanocomposite materials (up to 5000Sm-1) for SC-3D printing of 2D and 3D structures with applications in liquid sensing and EMI shielding [59].

3D printing of thermoplastic nanocomposites towards biomedical applications: Recent trends and challenges: 3D printing FFF method could allow direct printing of nanomaterials-modified filaments, to bring a new paradigm for nanocomposite functionality in bulk 3D objects [60]. A novel development accomplished with 3D printing process was a formatting glove with embedded programmable heater, temperature sensors and the ability of thermotherapeutic treatment via associated control electronics [61].

Palmiga company (Palmiga Sweden; https://palmiga.com/) developed and characterized polymer based conductive 3D-printed EMG sensors/ electrodes (EMG: electromyography). In comparison to the gold standard Ag/AgCl gel electrodes, there was no remarkable difference in the EMG signal amplitude under the same conduct area. The sensors were capable to distinguish a big number of muscle activity of the biceps brachii. The experimental data and signals acquired gives 3D printed EMG electrodes a big opportunity to replace the state-of-the art electrode wearable technologies towards personalized sensing elements and structures, e.g. in prosthetic and orthotic contexts [62] (Figure 10).

Figure 10: Photograph of 3D-Printed EMG electrodes using flexible conductive filaments (TPU/ Carbon black based).


Palmiga also constructed a flexible force sensor by 3D printed conductive Thermoplastic Polyurethane (TPU). The capacitance of the sensor changed due to an applied sinusoidal force. The experiments were carried out utilising a readout circuit and an oscillatory set-up consisting of an operational amplifier and a frequency-counter based on an Arduino Nano. From this study, the possibility to implement low-cost capacitive sensors into 3D printed objects has been elaborated, which could be of interest for customized robotic and prosthetic applications [63].

Discussion and future perspectives: Advancements beyond the state-of-the-art: Additive manufacturing and especially FFF 3D printing have been investigated for surgical implants, tissue scaffolds, and organs [64]. Till now, the most important application of 3D printing in the medical field is the design and development of medical devices and instrumentation [65,66]. One high impact example of 3D printing in the biomedical sector is the use of patient specific computed tomography derived 3D prints for better preoperative planning to better organize surgical approaches [67], plan complex operations [68-70] and/or for surgical educational proposes [71]. Moreover, 3D models of patient-specific anatomy, such as dental crowns and biological scaffolds are already being used for human implants [72-74].

With regard to bio-related applications, PLA and Polyglycolic Acids are very promising and widely used materials that have been already investigated for biodegradable implants and suture material, such as Vicryl (Ethicon, New Brunswick, NJ) [73]. PLA has been found after cytotoxicity experiments to be safe for surgical implantation as it is a biocompatible and biodegradable polymeric material. As such, PLA could be used for 3D printing a great variety of biomedical objects i.e. surgical instruments, sutures, surgical grids, etc.

Surgery equipment should have the ability to be sterilized as it is of paramount to its application, while possible being sterilized for several times making the objects reusable till their end-of-life. PLA is normally extruded at temperatures >150 °C rendering possible its exposure and application for steam sterilization or even for dry heat sterilization at 170 °C [74]. However, lower temperature methods of sterilization such as ethylene oxide “gas” sterilization did not impact PLA strength. Alternatively, an effective sterilant for room temperature treatment; glutaraldehyde, has been shown to retain the greatest PLA strength, when compared with other chemical sterilants [75].

The main characteristics that a surgery instrument should exhibit is to be sterile before use, as well as to possibly have the durability of several cycles of typical sterilization process treatments in the routine applied methods in the daily use of the nosocomial application. Moreover, it would be very beneficial surgery instrument to exhibit anti-adhesive properties as well as potentially resistance to biofilm formation i.e. antibacterial properties against specific bacteria strains upon being in contact, etc. This is because surgery that involves a cut (incision) in the skin can lead to a wound infection after surgery.

Therefore, an important issue in 3D printed biomedical objects is to endow antimicrobial properties to the final object. For this purpose, polymeric materials are ideal candidates since they can be modified by incorporating antimicrobial agents in their bulk structure e.g. by solvent of melt-mixing; or by depositing thin AM films onto their surface resulting into the desired properties. Various antimicrobial agents have been extensively investigated and the results showed that there is a great potential that can be utilized in order to prevent the growth of pathogenic microorganisms, as for instance bacteria, fungi, algae, etc. [76-78]. Namely, polyhexamethylene biguanides, triclosan biopolymer, chitosan, quaternary ammonium compounds, N-halamine, Silver and copper metal salts and complex molecules as well as Ag and Cu nanoparticles (NPs), etc. are some of the AM agents that could be introduced in a polymer matrix or being deposited as thin films on polymeric material surfaces [79].

Silver has been one of the most used materials as antibacterial agent among the above mentioned ones in the form of NPs, complexes and salt, due to its wide spectrum of antibacterial activity combined with the experimentally proven low toxicity towards mammalian cells [80]. One of the most plausible mechanisms for the AgNPs’ antimicrobial activity is the release of silver ions from the particle’s surface. Silver in its ionized form is well-known that is highly active, since it binds to tissue proteins and brings structural changes to the bacterial cell wall and nuclear membrane leading thus to cell distortion and finally bacterial cell death [81]. Therefore, the small size of silver nanoparticles (Ag NPs) has rendered them a new class of antibacterial agents with exceptional properties for different medical applications [82].

Many approaches have been reported in literature with the aim to incorporate silver nanoparticles (AgNPs) in a polymer matrix or the deposition of thin films consisting of silver onto polymeric surfaces with engineering of the surface interaction and adhesion of the thin film deposited material with the underlying substrate. Solvent mixing is one possible technique to introduce AgNPs (or any other type of antibacterial NPs in a polymer matrix) in a polymer matrix as reported elsewhere [83]. Magnetron sputtering [84], ion-beam-assisted deposition process [85], dip-coating using colloidal silver [86] and sonochemistry depositions methods [87,88] have been reported for the deposition of AgNPs onto polymeric surfaces.

Surgical equipment like for instance an antimicrobial retractor could be fabricated by 3D printing the 3D object and subsequent deposition of a nano-layer of a specific antimicrobial agent. Especially in the health and hygienic field, a great focus is given to develop planar surfaces, bulk materials, textiles, etc. with antimicrobial properties. More specific, the 3D objects could be produced at a specific use-case and by design as well as patient specific. Since PLA has been proven to be biocompatible and biodegradable and a safe material even for surgical implantation, it can be selected for various future applications as it is a cost effective, safe, and environmentally suitable material for 3D printing.

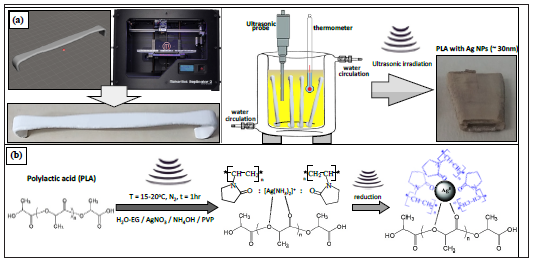

Figure 11: (a) Process for 3D printing a PLA surgical retractor, as well as the method for sonochemically immobilizing Ag NPs; (b) chemicals and the protocol followed to achieve high quality monodispersed Ag NPs immobilized onto the retractor surface.


Figure 11a shows the process for 3D printing a PLA surgical retractor, as well as the method for sonochemically immobilizing Ag NPs; while the chemicals and the protocol followed to achieve high quality monodispersed Ag NPs immobilized onto the retractor surface are illustrated in Figure 11b (recently published by Tzounis et al. [89])

The optimization of 3D FFF AM processes via on-line monitoring and modeling approaches have the potential to provide high-quality components with built-in functionalities for multiple applications in various fields such as Health, Automotive, Aeronautics & Aerospace, Consumer goods & Electronics, Industrial equipment & Tooling, Construction and Energy. Additionally, 3D FFF AM further developments at process and process optimization and process monitoring control level, as well as at materials level will improve the reliability, the quality and the accuracy as well as the multi-material capabilities through printed processes of nanocomposite filaments as fast as standard materials by avoiding process related issues [90,91].

Conclusion

In this mini review article, an introduction to 2D and 3D AM processes as well as to nanotechnology and nanomaterials has been given, with a specific focus on combining the 3D printing with nano enabled materials towards “smart” and multifunctional nanotechnology-enabled 3D printed objects. Many examples of nano enabled 3D objects are described, and a special attention is given on biomedical objects and potential products, i.e. EMG sensors, surgery equipment, 3D printed gloves with embedded programmable heaters, temperature sensors for thermotherapeutic treatment, etc.

It is of utmost importance that scientists from different sectors will realize the mutual benefits of combining additive manufacturing (AM) technologies with nanomaterials and nanotechnology concepts. Even if the nanomaterials and nanotechnology are in quite early stages of being implemented into AM processes and technologies, it is true that there are several cases for the application in order to enhance some of the existing and endow new properties to 3D manufactured objects and products. All these needs further investigation to realize how the 3D printing process itself can be affected (i.e. destroy the printer heads, etc.) and the orienting parameters to be appropriately optimized and adjusted. In that respect, both nanomaterials can be tuned to allow their ease of processing by additive manufacturing technologies as well as the printing process and the printing machinery can be accordingly customized allowing the printing of nano enabled products. It is undoubtful that the nanotechnology and additive manufacturing communities as well as researchers active in these fields could benefit from increased academic and research interactions and collaborations. Only through such greater engagement, 3D printing of multifunctional nano-enabled objects could be realised.
