Recycling of Glass Waste in Ceramics-Part II: Microstructure of Ceramic Products using XRD, DTA and SEM Techniques

It is well known that nanotechnology differs from a field to a field and from a place to a place and it is essentially used to describe very small things [1-3]. Nanotechnology is to make materials less than 100nm, i.e. nanomaterials to convert it into materials with essentially new and fine features and functions [4,5]. The overwhelming demand and interest of nanotechnology is so one of the most exciting disciplines that it almost interferes into all applied science branches as: physics, chemistry, materials sciences, biology, agriculture, medicine, tissue engineering, bones caffolds, dentistery, ceramics, nanoceramics, bio ceramics and in a general biomaterials because the nanoparticles are highly efficient additives for the modification of ceramic products, even at small ratios (1-2wt. %). The author interests with using nanomaterials or accurately nanoparticles to prepare ceramic batches containing ultra fine and nano raw materials as nano-SiO₂ and nano-Al₂O₃ to indicate the importance of nano particles, to improve the physical, chemical, mechanical properties and thermal properties as: thermal shock, thermal expansion, firing resistance, and also durability of the resulting bio products against aggressive environments. Recently, nanomaterials are the basis and backbone of nanotechnology. Nanomaterials are of a great interest due to the fact that unique optical, rheological and electromagnetic properties could be arised. These features are of a great importance in nanomaterials-based on nanoceramics [6,7]. Scientists have not unanimously settled on a precise definition of nanomaterials, but agree that they are partially characterized by their size that measured in nanometers. A nanometer is one millionth of a millimeter- approximately 100,000 times smaller than the diameter of a human hair. Nanomaterials by definition must have at least one dimension that is less than approximately 100 nanometers. Most nanoscale materials are too small to be seen with the naked eye, and even with conventional lab microscopes. Nanomaterials can be added to huge number of materials to make them stronger and yet lighter. Nanomaterials have very small size particles which are having 1-3 dimensions ≤100nm or may be more, i.g. Nanomaterials can be created with various dimensions.

In recent years, nanomaterials have taken an over welming interest due to that nano ceramics are flexible at high firing temperatures if compared with those containing coarse size particles [1,7-13]. The increase in the various solid waste residues in the cities particularly those do not decompose easily neither in nature, nor by weathering factors for thousands of years such as wastes of glass bottle that created the growth of both ground and air populations. The recycling of these wastes is an important environmental and economical alternative solution [14-22].

In Egypt, there are huge quantities of waste glass bottles of several shapes, colors and sizes. This certainly causes an environmental problem like as the ground pollution. Therefore, it is very necessary to solve this serious problem through scientific researches that could use these priceless waste materials in traditional ceramics like as wall and/or floor tiles, table wares or porcelain stoneware tiles. These may be used for out and/or indoor applications. Thus, the glass waste can act as inert component in total replacement of quartz sand, and also can act as fluxing agent at the expense of feldspar totally. Clay is a product which is coming from the decomposition of granite rocks that is represented of about 75% of the earth’s crust, and it is essentially composed of alumina (Al₂O₃) and silica (SiO₂), i.e. these two minerals are of the major constituents of clay [23,24].

The main objective of the present study (Part II) is to analyze and detect the new formed phases and microstructure of the prepared traditional ceramic products made from clay, feldspar, limestone and quartz in combination with glass waste nanoparticles using XRD, DTA and SEM techniques, where In Part I [25], the physical, thermal and mechanical properties were investigated.

The clay sample (TC) was taken from Toshka region which is located on latitude 20º 30′ N and longitude 31º 53′ E at 250km south of Aswan. It was related to the Upper Cretaceous age. The selected clay deposit is belonging to El- Dakhla Shale Formation. About 10kg clay was collected from the 85thkm north of Aswan/ Abu-Semple asphaltic road. It is a dark yellowish grey. The clay sample was first well dried in an open air for three days and also in a suitable furnace at 105 ºC for another three days, then crushed, ground and quartered to have a representative sample which was fine ground to pass a 200 mesh sieve using a suitable agate mortar. Feldspar (F), quartz (Q) from El-Hekma firm, limestone (LS) from Samalout district and a waste of broken fired ceramic known as Grog (GG) were obtained from the Arab Ceramic Company, which is commercially known as Aracemco, Egypt. Also, the glass waste bottles do decompose easily neither in nature, nor by weathering factors (Figure 1). The chemical analysis using the X-ray fluorescence technique (XRF) and the particle size distribution of the starting raw materials are shown in Table 1 & 2, respectively.

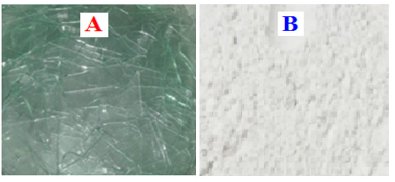

Figure 1: Glass waste cullet (A) and glass waste powder (B).

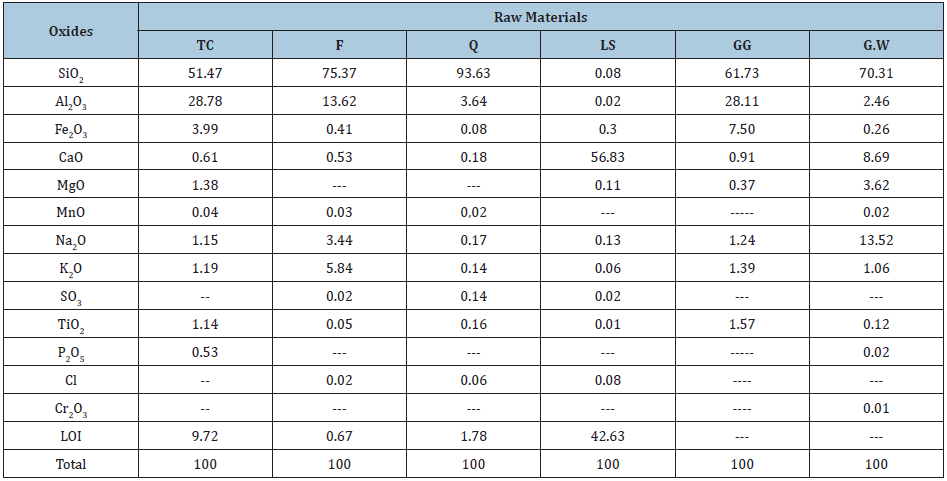

Table 1: Chemical analysis of the starting raw materials.

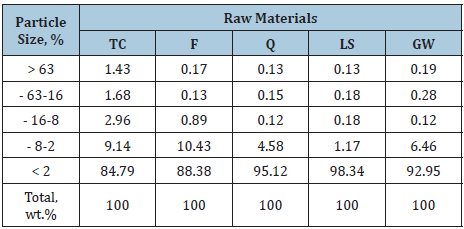

Table 2: The grain size distribution of the used raw materials, wt. %.

The suggested base ceramic batch was prepared from 50% Clay (TC), 20% feldspar (F), 15% quartz (Q), 10% limestone (LS) and 5% grog (GG). The base batch composition was well mixed in an agate ball mill for one hour using the wet method. Then, it lets to dry in open air for two days and also in a dryer at 105 ºC for three days. Thoroughly, it crushed and ground well to pass through 200 mesh sieve to be the stock base ceramic tile batch. Eight batches were prepared from the base batch (BB) and glass waste (GW) as 100:0, 95:5, 90:10, 85:15, 80:20, 75:25, 70:30 and 65:35 mass% having the symbols G0, G1, G2, G3, G4, G5, G6 and G7, respectively. The batches were mixed well in agate ball mill using 3-5 porcelain balls for two hours, dried again at 105 ºC for three days, and then let to pass through a 200 mesh sieve to obtain the same homogeneity of all batches. Five disc-shaped samples of 1cm diameter and 1cm thickness were prepared for the physical properties in terms of water absorption (WA), bulk density (BD) and apparent porosity (AP). Another five rod-shaped samples of 1×1×7cm3 for dry and firing shrinkage, thermal expansion and bending or flexural strength were prepared. Also, five cylindrical shaped samples of one cm diameter and 3cm height for crushing strength were prepared. The molding of specimens were carried out under a shaping pressure of 20KN/mm2 using water as a binder. After remolding, the samples were let to dry in air (23±2 ºC) for 2-3 days, and then dried to a constant weight at 105 ºC in a suitable oven to ensure the complete elimination of the free water and to avoid the cracks during firing. The fired specimens were left to cool slowly over night inside the furnace to room temperature. The optimum firing temperature and the optimum GW content of each ceramic batch were estimated. The tested specimens of the base batch (G0) and those containing glass waste (G1-G7) were subjected to follow up the firing shrinkage for each batch [25].

In the Part II, we will follow the phase compositions and/or the microcrystalline structure of the optimum ceramic batch which achieved the best results (G5) in comparison with the blank (G0) were investigated by X-ray Diffraction Analysis (XRD), Differential Thermal Analysis (DTA) and Scanning Electron Microscopy (SEM) techniques to identify the newly formed crystalline materials or phases after sintering process. The X-ray Diffraction Analysis (XRD) was employed by a Philips X-Ray Diffractometer of Mod. P.W. 1390 with Ni-filtered Cu-Kα radiation. The DTA-TGA thermo grams was carried out by using NETZSCH Geratebae GmbH Selb, Bestell No. 348472c at a heating rate 10 ºC/min. up to 1200 ºC. The SEM micrographs were done by using JEOL-JXA-840 electron analyzer at accelerating voltage of 30KV. The fractured surfaces were fixed on Cu-kα stubs by carbon paste and then were coated with a thin layer of gold.

In Part I [25], the physical characteristics in terms of densification parameters as water absorption, bulk density, apparent porosity as well as mechanical properties in terms of flexural and crushing strengths were investigated. Moreover, the thermal behavior of the resulting ceramic products in terms of dry and firing shrinkage, thermal expansion also was conducted. In addition, the coefficient of linear thermal expansion was further investigated. The use glass waste nano particles with an original ceramic batch to produce wall and floor tiles, where eight different mixtures with various ratios of glass waste nano particles were prepared (0, 5, 10, 15, 20, 25, 30 and 35% having the symbols G0, G1, G2, G3, G4, G5, G6 and G7), respectively, and then fired in a temperature range of 1000-1200 ºC for two hours soaking. Results showed that the water absorption decreased as the glass content increased up to 35% if fired up to 1100 ºC. On firing >1100 ºC, the water absorption decreased only up to 25% glass content (G5), and then increased with G6 and G7. The bulk density of all batches increased up to 1100 ºC. On firing >1100 ºC, the bulk density increased only up to 25% glass waste content, and then decreased with further increase of glass waste content. The mechanical properties in terms of flexural and crushing strengths were displayed the same trend of bulk density. The dry shrinkage recorded zero reading, i.e. it was unchanged, while the firing shrinkage was slightly increased with both glass content and firing temperature. The experimental results revealed that the glass contributes to improve thermal, physical and mechanical properties as well as microstructure of the prepared samples containing up to 25 wt. % of glass waste fired at 1150 ºC. The addition of high amounts of glass waste (>25 wt. %) into the ceramic body is undesirable due to its adverse action on physical and mechanical properties of the fired products. Moreover, the external appearance of the ceramic units was too bad, i.e. surface bloating. The dry shrinkage was unchanged, but the firing shrinkage was increased with both temperature and glass waste content. The coefficient of linear thermal expansion decreased with glass waste content.

In Part II, the microstructure of the produced optimum ceramic unit using XRD, DTA and SEM techniques were evaluated in comparing with those of the blank. Table 1 shows the composition analysis of the starting raw material, while Table 2 showed the grain size distribution of glass waste. It is clear that there are high ratios of SiO₂, CaO, MgO and Na₂O and detectable low ratios of TiO₂, Fe₂O₃, SO₃, Al₂O₃, K₂O, MnO, Cl^- and K₂O were observed in the raw materials. Also, a detectable Na₂O ratio was noted in the glass waste composition. These ratios besides the grain size distribution could be helped in the sintering of the ceramic units during firing.

Figure 2 demonstrates the DTA-TGA thermo grams of clay sample (TC). The endothermic peak at the temperature range of 700-900 ºC is due to the calcination of limestone. The two endothermic peaks at the temperature range 100-120 ºC and 500-600 ºC are due to the evaporation of the absorbed and structural or hygroscopic water, respectively. The endothermic peak at the temperature range 500-600 ºC is due to the conversion of kaolinite (Al₂O₃.2 SiO₂.2H₂O) to metakaolin (Al₂O₃.2SiO₂), which in turn is converted to mullite phase (3Al₂O₃.2SiO₂) at 980 ºC [25]. The XRD analysis of the used clay and glass waste samples are shown in Figure 3. Clay is essentially composed of kaoline, quartz, illite and gibbsite, whereas that of the waste glass is composed mainly of quartz and minor traces of other oxides [25].

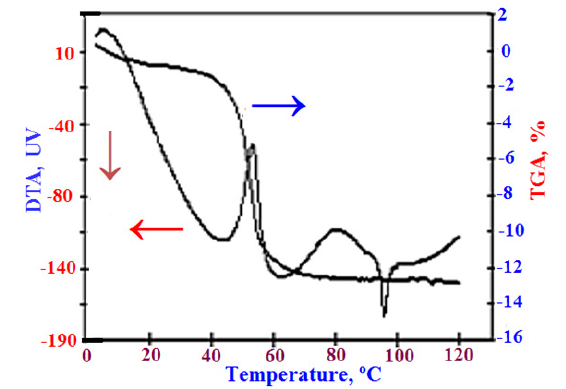

Figure 2: The DTA-TGA thermo grams of the used clay sample.

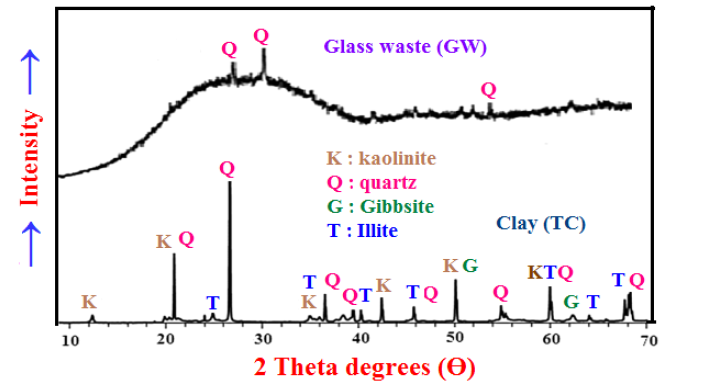

Figure 3: The XRD patterns of the Toshka clay sample and waste glass powder.

The XRD diffraction patterns of the well sintered blank sample (G0) and the optimum ceramic product (G5) are shown in Figure 4. It is clear that quartz, walstromite (BaCa₂Si₃O₉ , ICCD no 18-0162) and also wollastonite (CaSiO₃, ICCD 84-0654 ) are detected in case of the blank sample, whilst in case of the optimum sample (G5), the well crystallized and well developed phases of wollastonite, spurrite, anorthite and mullite phases were developed. The resulting new well sintering phases during firing and sintering are responsible for the better characteristics of the physical, mechanical and thermal properties of the formed ceramic products [10,25-29].

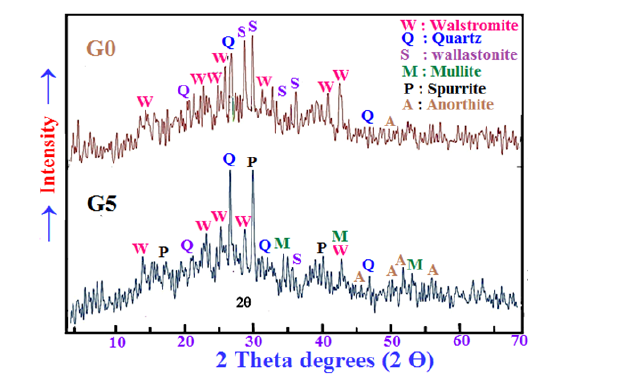

Figure 4: The X ray diffraction patterns of the sintered 3 and 4 samples.

The phase transformations of the blank batch (G0) and the optimum batch (G5) were estimated by DTA thermo grams as shown in Figure 5. The endothermic peak at the temperature range of 450-680 ºC is due to the evaporation of the free or absorbed water and/or the hygroscopic or structural water. Also, the endothermic peak at the temperature range of 860-960 ºC is attributed to the dehydroxylation and the conversion kaolinite (Al2O3.2SiO2.2H2O) into metakaolin (Al2O3.2SiO2) as shown in the equation 1. It is also due to the calcination of limestone. The endothermic peak at the temperature range of 1100-1850 ºC is mainly due to the melting of feldspar and may be also silica quartz [30,31]. Moreover, it is due to the crystallization of the glass frits incorporated in the different batches.

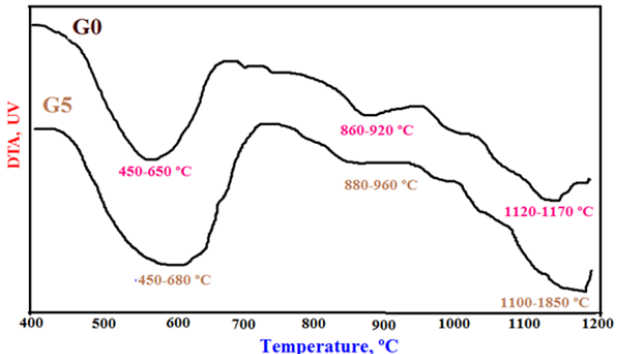

Figure 5: The DTA thermograms of the well sintered samples G0 and G5 at 1000 ºC.

The SEM microscopy of the well sintered sample at 1000 ºC of the optimum sample G5 comparing with that of the blank (G0) is shown in Figure 6. This was carried out with two magnification powers. The image of the blank sample (G0) shows large rounded pores with the embedded lathes and rods around the glassy groundmass. A similar texture was developed with the optimum sample (G5), but with more well developed and well crystallized sheet or cluster structures, but with little pores. There are several particulates with various shapes and sizes as flocculants or almost globulars. The formed new phases seemed to be as thick fibers which supported the resulting ceramic products. This is responsible for the improvement of the physical and mechanical properties. Moreover, this improved the external appearance of the formed ceramic units, and so enhanced the mechanical strength of them [9,10,27-29,32].

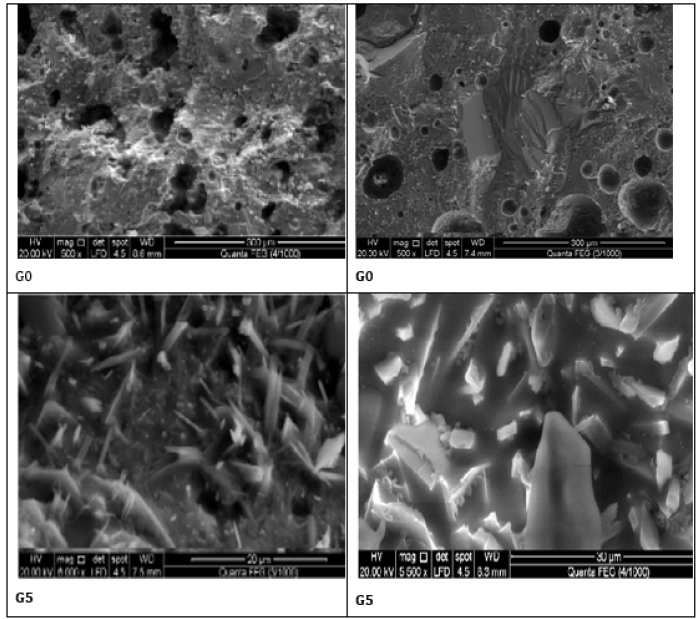

Figure 6: SEM micrographs of the well sintered samples G0 and G5 at 1000 ºC.

There are two successive processes namely, sintering and verification. The reactions could be taken place between constituents on heating as solid phase reactions which are the first step towards densification, even when it is followed by the formation of liquid phase or not at all. This process is a mutual diffusion of atoms among the touching particles, which is known as “sintering”. As a result, the particles become fewer and larger, and then the pores are eliminated or reduced. The verification (i.e. glass formation) may start to form in the ceramic bodies above 900-1000 ºC depending on the composition of these bodies. The particles of feldspar which used as a flux and glass waste which used as a secondary or modifying flux could react with the constituents of other ingredients which they are in contact to form the liquid phase. The quantity of this liquid phase increases with the increase of firing temperature. Often, the fired ceramic bodies contract during firing due to the formation of the liquid phase which is known as “firing shrinkage”. So, the porosity of the bodies as well as water absorption reduced, while the bulk density increased [28,33].

New phases may be crystallized, particularly as the temperature increased as mullite (3Al₂O₃.2SiO₂) which usually separated from the melt. On cooling, more other crystals may be separated and the liquid itself solidifies to a glass after cementing the unmelted particles together. This often finished by the formation of a glass matrix with crystal aggregates. The presence of MgO, CaO, K₂O and Na₂O is the main reason controlling the maturing temperature, liquid phase formation, crystallization of the new phases and the resulting densification properties. The MgO in glass waste favors the conversion of quartz to α-tridymite and then to α-cristobalite [34-36].

The presence of alkali oxides (Na₂O and K₂O) from feldspar and/or glass waste enhanced the liquid phase content, and lowered the viscosity at higher firing temperatures to improve the verification process. The formed liquid phase always favors the conversion reaction of quartz to α-cristobalite rather than the dissolution of MgO into it. However, the quantity of SiO₂ dissolved in the glassy matrix only has a small effect on the amount and composition of the liquid phase [33]. The major influence of alkalies is to alter the relative amounts of α-cristobalite and liquid phase up to the maturing temperature. Furthermore, the temperature dependence of the verification rate of a certain composition as that used in the current study is greater than that of viscosity alone. This is to be expected in the presence of glass waste due to the increased liquid phase content at the firing temperatures to reach the suitable maturing conditions. Also, the addition of CaO, as that existed in the glass waste in forms of carbonates, sulphates or silicates, the formation of gehlenite (2CaO.Al₂O₃.SiO₂), wollastonite (β-CaO.SiO₂), anorthite CaO.Al₂O₃.2SiO₂), spurrite (2C₂S.CaCO₃) as well as C₃A was enhanced. So, the crystallization of these solid phases was increased which in turn improves and enhances the densification properties of the ceramic body containing glass waste [31]. This is due to the enhancement of verification and sintering processes together to reach the best conditions that governs the function of the liquid phase to close the pores as well as its role to conduct bonding of solid phases present together resulting in higher densities [28,35-37].

Generally, clay minerals are often formed from the decomposition of igneous rocks as granite which is composed mainly of roughly equal proportions of potash mica (K₂O.3Al₂O₃.6SiO₂.2H₂O), quartz (SiO₂) and potash feldspar (K₂O.Al₂O₃.6SiO₂). The kaolinitic clay was due to the kaolinization of feldspar in presence of air and water [16,25,28] as follows:

The most important clay minerals is kaolinite (Al₂O₃.2SiO₂.2H₂O or AS₂H₂), which appears as flat and extremely minute hexagonal plates. The crystal size may vary from 5μ to 1μ (or 10-4 meters), which in turn is responsible for their extreme properties [28-31] as the plasticity or workability which simplifies the manufacture of clay wares and also account for the dry strength of the unfired article. So, this helps to reduce handling losses. At the temperature range 100-200 ºC, the volume of certain argillaceous minerals shrinks as a result of water loss causing a dimensional change. The oxidation of organic materials occurs at the temperature range 200-300 ºC [32-35]. Kaolinite which is a decomposition product of feldspar, often decomposes at 500-600 ºC to metakaolin (Al₂O₃.2SiO₂ or AS₂) and water vapor [25,28,31] as follows:

This reaction was often accompanied by an expansion, i.e. the ceramic units enlarged. At about 980 ºC, a sudden evolution of heat accompanies the complete breakdown of the structure with the formation of mullite (3Al₂O₃.2SiO₂) and quartz minerals as follows:

The transformation of quartz into cristobalite is slow and it depends on the firing temperature and time of firing. At 573 ºC, β-quartz converts into α-quartz, which converted into α-tridymite at 870 ºC, which in turn converted to α-cristobalite at 110-1470 ºC, as follows:

β-quartz → α-quartz ------ 4

α-quartz → α-tridymite ----- 5

α-tridymite → α-cristobalite -------- 6

There are two types of feldspar namely orthoclase potash feldspar (K₂O.Al₂O₃.6SiO₂) and albite soda feldspar (Na₂O.Al₂O₃. 6SiO₂), in addition to small ratios of mica and silica. Feldspar starts to melt at high temperature depending on the total alkali content and particle size distribution of materials. Limestone is an important ingredient in tiles due to its ability to reduce moisture expansion [33,34]. Limestone is often used at about 10-12wt. % in tile bodies to reduce the amount of glassy phase during firing. At 700-900 °C, it decomposes to CaO and CO₂ as follows:

CaCO₃ → CaO+CO₂↑ -------7

Then, the resulting CaO can react with other constituents to form anorthite-lime feldspar (CaAl₂Si₂O₈) rather than enter into the glassy phase. The reduction in glass content virtually eliminates firing shrinkage [33].

It is well known now that the thermal reactions during firing and sintering plays a vital role to evaluate the mechanisms of thermal behavior, and to separate the reactivates of single components especially with respect to multi component systems. This in turn could be an advantage, and this will be the ultimate challenge for the next years. We are looking forward to a bright future for the use of glass wastes in useful application. It could be concluded that the XRD patterns, DTA thermo grams and SEM microscopy of the selected samples of the blank (G0) and the optimum sample (G5) proved that some new well crystallized and well developed phases were detected with G5 incorporated glass waste when compared with those of the blank (G0). The DTA analysis showed the decomposition and transformation of different minerals during firing and sintering. These new formed phases were responsible for the excellent results previously obtained with glass waste. This study could be applied successfully in both pilot scale and/ or industry. The SEM images showed clearly that with G5 sample, there are well developed morphological and crystal phases when compared with those of the blank sample (G0).

Authors wish to express their deep thanks to NRC for helping to obtain materials, processing, preparing, molding and measuring all of the obtained data of the study.
