Investigation on the Reducibility of Agbaja Iron Ore Lumps

Table 1: Chemical composition and estimated reserve of some Nigerian iron ore.

Source: Asuquo and Nebo, 1994, Uwadiale and Nwoke, 1995

It should be noted that Iron ore deposit was discovered in Nigeria as far back as 1904, since then several deposits have been discovered. Table 1 shows the Chemical Compositions and Estimated Reserve of some Nigerian Iron ores. The deposits are hematite, magnetite, goethite or siderite - goethite grades. Effective harnessing of the estimated reserve deposits which runs to over 3.1 billion metric will generate employment opportunities, wealth creation, revenue generation and foreign exchange earnings as these will further improve technological base i.e. in agricultural sector, military defense and provision of infrastructures and reviving of the moribund iron and steel industries across the nation.

This is a name for the velocity of iron oxide transformation to metal by effect of gas reduction, or also a time needed for a complete iron oxide reduction. The value of the reduction rate is the metallic charge weight loss per a time unit. The weight loss caused by the charge oxygen transformation into gas.

Where - degree of (indirect) gas reduction

Σ₀ - Total mass weight of oxygen bound to iron [g]

A₀ - Difference in mass weight of oxygen in ore during gas reduction [g]

The reducibility has a lot of influence on the blast furnace operation which is highly important; it can be used for a fuel consumption determination and a selection of proper lumpiness. The reducibility value changes in particular by hot treatment (sintering). The charge porosity influences the reducibility, too. The higher porosity of the charge, the larger reaction surface and the faster gas reduction. The ISO - R ISO950 standard is the main parameter when considering the reduction velocity v₄₀. The velocity of oxygen degradation in percentage .min^-1 at 40% reduction degree are determined.

Where: t₃₀ - time to reach 30 % R (min)

t₆₀ - time to reach 60% R (min)

The constant = 33

Agbaja iron ores: The Agbaja iron ore lumps are in sizes or in fines. Production/availability of lumps is limited by virtue of the natural occurrence and because of generation of lot of fines during crushing of large lumps present in the run-off -mines (ROM). Iron ore with very low-grade iron ore are not suitable for operating the metallurgical plants. The very low -grade ores are upgraded to increase the iron content and reduce the gangue content. Beneficiation is a process adopted to upgrade the iron ore. Concentration is the process that involves the upgrading of ore to higher iron content for metallurgical processes. Iron ore is being beneficiated all round the world to meet the quality requirement of Iron and Steel industries. However, each source of iron ore has its own peculiar mineralogical characteristics and requires the specific beneficiation and metallurgical treatment to get the best product out of it. The choice of the beneficiation treatment depends on the nature of the gangue present and its association with the ore structure. The techniques for processing the ores are washing, jigging, magnetic separation; advanced gravity separation and flotation enhance the quality of the iron ore. Due to the high density of hematite relative to silicates, beneficiation usually involves combination of crushing and milling as well as heavy liquid separation. The finely crushed ores passes over the bath of solutions containing bentonite or other agent, which increases the density of the solution. The unwanted elements are removed from the solution as the silicate mineral fragments float. The hematite sinks due to calibration solution density.

The Agbaja Iron ore is an acidic pisolitic/ oolitic ore consisting of goethite, magnetic and major amounts of aluminious and siliceous materials [1]. It cannot be used directly in the Blast Furnace process or other reduction process without further treatment e.g. pelletization or briquetting. The ore is a lean ore and sedimentary origin [1]. It is therefore necessary to harness the opportunities created to work on the ore in order to add economic value to our national economy. The ore is also known to be oolittitic in nature, limonite that occur in mannmilated or stalactite forms having fibrous structure resembling hematite [1]. The Agbaja Iron ores are made of brown compacted fine-grained materials, which consist of extremely lager particles, and friable in nature. Agbaja iron ore is strongly magnetic [2]. The ore particles were further processed by crushing them for specific experimental procedure. The Agbaja iron ore sample were compacted ground fine particles, which significantly exhibits the characteristics of being friable and magnetically strong. The picture below shows the iron ore as being sourced at the Agbaja plateau in Kogi State (Figure 1).

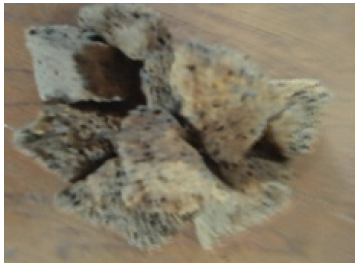

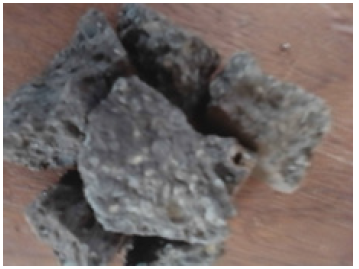

Figure 1: The sourced Agbaja iron ore (NMDC).

Table 2 shows the results of the chemical compositions of Agbaja iron ore lumps. These chemical compositions were determined using X- Ray Fluorescence (XRF) methods. The experiments were performed at the laboratory of Tshwane University of Technology, South Africa on (2019-1-16 17:53)

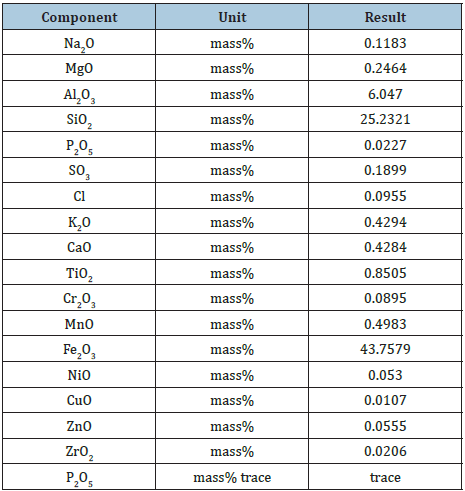

Table 2: The chemical compositions of Agbaja iron ore using XRF Method.

(Figure 2; Table 3)

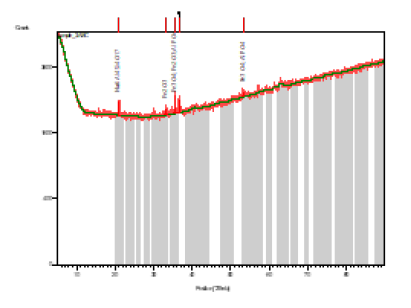

Figure 2: X-ray diffraction on Agbaja Iron Ore.

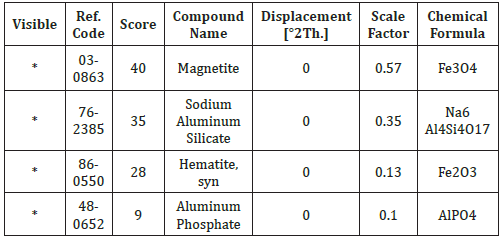

Table 3: Identified patterns list: Agbaja iron ore.

Source from the XRD Analysis

Some quantity of Metallurgical Coking Coal was obtained from the Ajaokuta Steel Company Limited, The coal were crushed into sizes which were then used in the experiments as reducing agent. Table 4 shows the chemical compositions of the coal has been analysed by the vendor before inporting them to the Steel Company (Figure 3 & 4).

Table 4: Chemical analysis of metallurgical coking coal.

Source: Ajaokuta Steel Company Limited, Ajaokuta

Figure 3: The metallurgical coking coal before they were used as reducing agent.

Figure 4: The metallurgical coking coal after being used as reducing agent.

The following equipment were used for the preparation of the Agbaja iron ore lump samples. The research works were performed at Laboratories in the Department of Metallurgical and Materials Engineering and Laboratories at the Nigerian Liquefied Natural Gas (NLNG) in the Department of the Metallurgical and Materials Engineering of the University of Nigeria (UNN), Nsukka, Enugu State and the Laboratories of Extractive Metallurgy at Tshwane University of Technology, South Africa.

1. Electronic digital weighing balance: The electronic digital weighing balance with model name C&G GmbH Gielerister 65-69 (41460) Neuss, Germany was used for weighing of the iron ore lumps at the laboratory of the Department of Metallurgical and Materials Engineering, University of Nigeria, Nsukka.
2. Sample handler: The Agbaja Iron Ore lumps were carefully handled in order to avoid breakage during handling.
3. Muffle furnace: A Muffle furnace was used for the heating of the Agbaja iron ores lumps.
4. The laboratory dry oven: The Laboratory Dry Oven with model number DHG 9101 was used for heating of the samples at low temperature particularly with respect to determining the moisture contents of the iron ore lump samples [3].
5. Inverted metallurgical microscope: The inverted metallurgical microscope with model name XJL-17 was used for the examination of the microstructures of the iron ore lump samples before and after the reducibility. The equipment is also located at the laboratory of the Department of Metallurgical and Materials Engineering situated at the Nigerian Liquefied Natural Gas (NLNG) building, University of Nigeria, Nsukka.

The Iron ore lumps obtained consist of the chemical compositions given in Tables 2 (XRF). The Agbaja Iron ore lumps contain some amount of phosphorus. The morphologies of the ores were determined using the X-Ray Diffraction methods as shown in Figure 2.

Reducibility is a summary of raw materials properties, which determines the rate of conversion of iron oxides to metals by treatment with reductant. A measure of reducibility is represented by a weight loss of ore samples per time unit caused by transition of oxygen into gas.

1. The Agbaja Iron ore lumps were used for these experiments, while a metallurgical coking coal obtained from the Ajaokuta Steel Company Limited was also used as reductant (reducing agent).
2. The collected iron ores lumps were crushed in 15-20mm sizes.
3. The collected Metallurgical coking coal was crushed to -5+ 15 size.
4. The chemical composition of the metallurgical coking coal is shown in Table 4.
5. The crushed iron ore lumps were dried in the laboratory dry oven with a view to eliminating moisture content that was present in the ores as they were subjected to a temperature of 120 ͦC.
6. The crushed iron ore lumps were taken inside six (6) stainless steel containers (size: 60.75mm height × 59.40mm inside diameter) with mouths tightly closed by air tight covers having out let for exit gases. Then the lumps were surrounded with the metallurgical coking coals, which serves as reducing agent in the experiments at various period and time.
7. The crushed iron ore lumps were properly placed at the centre of the solid packed bed. These were done with a view to ensuring that the iron ore lumps inside the packed were surrounded.
8. The experimental procedures were strictly followed .The muffle furnace was used to heat up the iron ore lump samples to the required temperatures of 800  ͦC, 840  ͦC , 860  ͦC, 880  ͦC, 920 ͦC, 960  ͦC and 1000  ͦC, at 8  ͦC per minutes rate. The samples were allowed to soak at various temperatures as indicated above by varying the soaking period in the range of 20-120 minutes at inverval of 20 minutes.
9.  The experimental process was performed to determine the reducibility at the stipulated temperatures. Each of the containers was properly labelled for specific experiments. The samples were brought out from the muffle furnace at designated interval of 20 minutes up to 40 minutes residence, and the same processes were performed for all the rest samples at an interval of 20 minutes up to 120 minutes of residence in the furnace. The containers containing the samples were brought out from the muffle furnace and were allowed to cool at the room temperature in the normal atmospheric air. The weight losses analyses of the iron ore lumps were determined and recorded. The degrees of reduction (%) of the lumps were calculated by using the following formula.

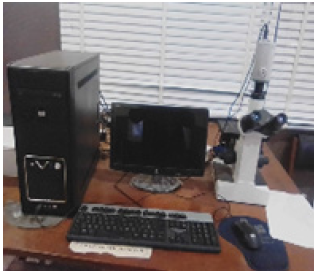

Figure 5: The inverted metallurgical microscope used for the determination of the samples microstructures.

The inverted metallurgical microscope was used to examine the iron ore lumps as shown in Figure 5. Some important distinct phases were identified in the Agbaja iron ore lumps with some quality like texture with characteristic indicating that it contains pisolitic structure on the surface as indicated in Figure 6. The iron ore shows concentrated materials in the pisolite nature while the matrix present consists of major impurities (Figure 7-12).

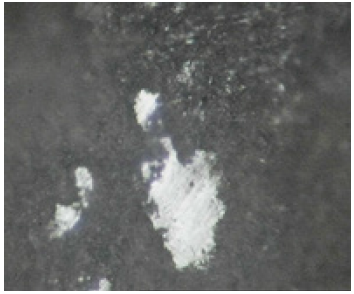

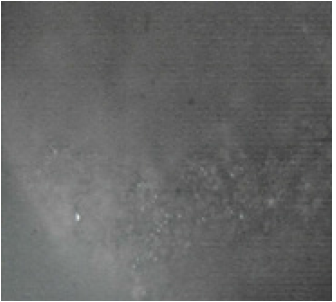

Figure 6: The microscope of the Agbaja iron ore before the reducibility experiment.

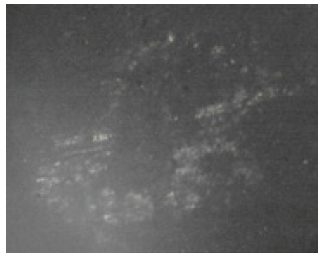

Figure 7: The Agbaja iron ore reduced @800 oC (Partially reduced).

Figure 8: The Agbaja iron ore reduced @840 oC.

Figure 9: The Agbaja iron ore reduced @880 oC.

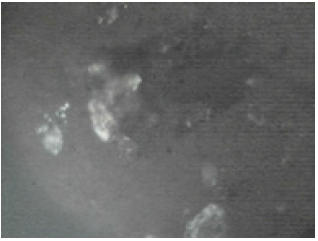

Figure 10:The Agbaja iron ore reduced @920 oC.

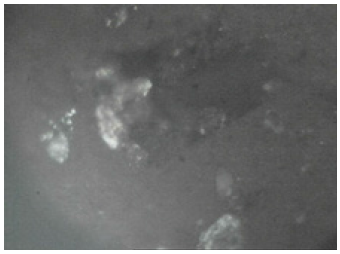

Figure 11: The Agbaja iIron ore @960 oC (Partially reduced).

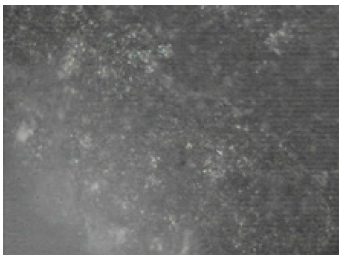

Figure 12: The Agbaja iron ore @1000 oC (Fully reduced).

The blue line colour runs on 30 ͦC got to 200 ͦC and moved upwards, it got to the peak value of Deriv. weight (%C) at 0.13 with the corresponding temperature value at 300 ͦC. This value declined and continued at a steady movement and dovetailed at 0.00 Deriv. weight (%C). While the light green line started from 100 weight (%) and continue to decline and dovetailed at 88.2 (weight%) with corresponding value at 1000 ͦC. Figure 13 shows the Isothermal behavior of the thermal decomposition of the Agbaja iron ore.

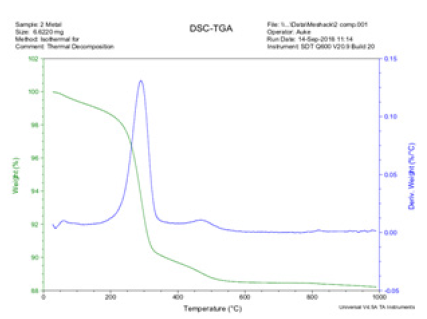

Figure 13: The thermo Gravimetry Analysis (TGA) performed on Agbaja iron ore.

Figure 14 shows the sample been examined using Scanning Electron Microscopy (SEM) /Energy-Dispersive Spectroscopy (EDS) This reveal that there are fine and whitish structures found in the ore. The Figure 15 shows the three-spectrum locations that were taken in order to determine the concentration of ore. While Figure 16 shows spectrum 39 where the concentration of the elements are distributed with weight (%) concentration ranging from O, Fe, C, Al, Si and P with their corresponding density values.

Figure 14: The Scanning Electron Microscopy (SEM) of the Agbaja iron ore at 100μm.

Figure 15: Electron image 12 of the spectrum location 36 at 10μm.

Figure 16: Energy dispersive spectroscopy.

Table 5 & Figure 17 show the degree of reduction(%) as a function of furnace holding time for the reduction of Agbaja Iron ore lumps at temperature between 800 ͦC-1000 ͦC and corresponding time from 20-120minutes.

Table 5: Agbaja iron ore lumps.

Figure 17: Degree of reduction (%) of Agbaja iron ore lumps versus time (in mins) at temperature between 800 oC to 1000 oC.

The investigation on the reducibility study on Agbaja iron ore lumps: In this study, reducibility behaviour of Agbaja iron ores lumps (size: 20mm approximately) was determined. The Iron ore samples were fired in the muffle furnace from various temperatures range and corresponding times. The reducibility experiments were performed using the obtained metallurgical coking coal from the Ajaokuta Steel Company Limited, Ajaokuta in Kogi State as reducing agent. The iron ore lumps were subjected under identical slow heating temperature where the heating rate was maintained at 8 ͦC min^-1.

The samples were heated up to various temperatures ranging from 800 ͦC-1000 ͦC and the samples were allowed to soak for period of time ranging from 20 minutes to 120 minutes.

The corresponding values were collected and recorded and these values obtained were used to plot graphs as function of furnace holding time for the reduction (%) of Agbaja Iron ore lumps at temperature between 800 ͦC-1000 ͦC. The results obtained from the experiments showed that there was some degree of reduction (%) in the iron ore lumps of the samples.

The Agbaja iron ore lumps are also shown on Figure 17-29 after the reducibility tests at various temperature and period of times. Some samples with the highest heating time were taken for further analyses which were the Scanning Eclectron Microscopy (SEM) with EDS.

Figure 18: shows the reduced Agbaja iron ore @960 oC for 20mins.

Figure 19: The reduced Agbaja iron ore @960 oC for 40mins.

Figure 20: The reduced Agbaja iron ore @960 oC for 60mins.

Figure 21: The reduced Agbaja iron ore @960 oC for 80mins.

Figure 22: The reduced Agbaja iron ore @960 oC for 100mins.

Figure 23: The reduced Agbaja iron ore @960 oC for 120mins.

Figure 24: The reduced Agbaja iron ore @1000 oC for 20mins.

Figure 25: The reduced Agbaja iron ore @1000 oC for 40mins.

Figure 26: The reduced Agbaja iron ore @1000 oC for 60mins.

Figure 27: The reduced Agbaja iron ore @1000 oC for 80mins.

Figure 28: The reduced Agbaja iron ore @1000 oC for 100mins.

Figure 29: The reduced Agbaja iron ore @1000 oC for 120mins.

Effect of time on degree of reduction: The experiments performed in the research work show that rapid heating of the Agbaja iron ore lumps have significant effects on the heating time. The results of these effects are shown in Table 5 which indicated the highest degree of reduction (%).

It was also observed that the Agbaja iron ore completely reduced (more than 90% reduction) in about 120 minutes. The excessively high degree of reduction in the first 40 minutes was mainly associated with the release of volatiles from the metallurgical coking coal used due to their reformation into H2, CO, etc.

The major participation of these reducing gases in the reduction of iron oxide (i.e. an appreciable presence of H2 and CO in the reduction chamber gives a boost in the reduction rate). The decrease in reduction rate with increasing time above 60 minutes was undoubtedly due to the combined effects of an increase in product metallic layer thickness and diminished evolution of volatile matter from the coal. An increase in the thickness of produced iron layer offers greater resistance in the diffusion of carbon and reducing gas to the surface of unreduced iron oxide.

The effect of heating mode on the samples were studied with a view to determining its effects on the degree of reduction (%) in iron ore lumps. The Agbaja iron ore lumps were reduced using metallurgical coking coal at temperature range between 800 ͦC-1000 ͦC ( the soaking times were varied from 20 minutes -120 minutes at an interval of 20min), these experiments were performed under rapid and slow heating conditions with the use of muffle furnace . It was more likely that rapid heating from 920 ͦC to 1000 ͦC causes higher rate of volatile matter escaping from the metallurgical coking coal, thereby providing less time for H2 and CO (reducing gases) to be in contact with the iron ore lumps.

The results in this research work thus indicate that there were some level of the degree of reduction in rapid heating in the iron ore lumps during lower heating operation. The volatile matters were released from coal at a slower rate. The more deposition of highly reactive pyrolytic carbon and increased time of contact of carbon and reducing gases (H2 and CO) with the iron ore lump appearing to be the obvious reasons for the high degree of reduction (%).

Effect of heating mode on the degree of reduction (%) Scanning Electron Microscopy (SEM) of the Agbaja iron ore: (reducibility of Agbaja iron ore lumps at 800 ͦC, 920 ͦC and 1000 ͦC)

Agbaja Iron Ore @800 ͦC for 120 minutes @920 ͦC for 120 minutes and @1000 ͦC for 120 minutes after the reducibility tests: Examination by using the Scanning Electron Microscopy (SEM) showing the morphologies of structures at 100μm (Figure 30-32).

Figure 30: The reduced Agbaja iron ore @800 oC -SEM.

Figure 31: The reduced Agbaja iron ore @920 oC –SEM.

Figure 32: The reduced Agbaja iron ore @1000 oC -SEM.

Energy-Dispersive Spectroscopy (EDS) Agbaja iron ore after reducibility tests on samples at 800 ͦC for 120 minutes , @920 ͦC for 120 minutes and @1000 ͦC for 120 minutes

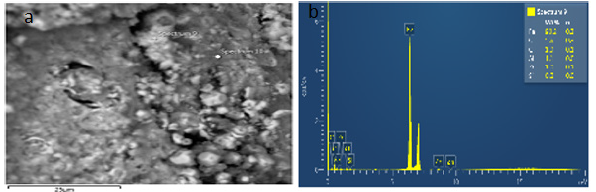

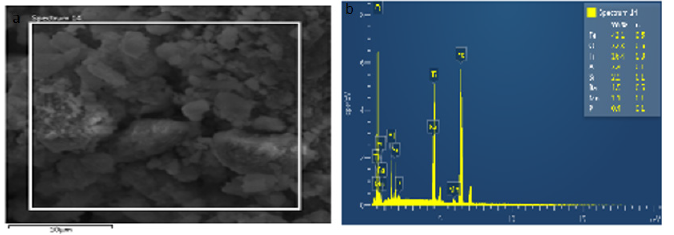

Figure 33a & 33b show the EDS of Agbaja iron ore @800 ͦC for after reducibility test on electron image 4 and the EDS where the concentration of the elements are distributed with weight (%) concentration ranging from O, Fe, C, Al, Si and P and also with their corresponding density values.

33(a) & (b): Electron image 4 and the EDS where the concentration of the elements were distributed of Agbaja iron ore @800 oC after reducibility test.

34(a) & (b): Electron image 4 and the EDS where the concentration of the elements were distributed of Agbaja iron ore @800 oC after reducibility test.

Figure 34a & 34b show the EDS of Agbaja iron ore @ 920 ͦC for 120minutes after reducibility test on electron image 7 and the EDS where the concentration of the elements are distributed with weight (%) concentration ranging from Fe , O, Al Si and Ca also with their corresponding density values.

Figure 35a & 35b show the EDS of Agbaja iron ore @ 1000 ͦC for 120minutes after reducibility test on electron image 9 and the EDS where the concentration of the elements are distributed with weight (%) concentration ranging from Fe , O, Ti, Al, Si , Ba, Mn and P also with their corresponding density values.

35(a) & (b): Electron image 11 and the EDS where the concentration of the elements were distributed of Agbaja iron ore @1000 oC after reducibility test.

Summary of the analysis on results after the reducibility test (SEM and EDS) findings and contribution to knowledge

Table 6 shows analysis of the results of samples after performing the reducibility Tests using SEM and EDS on Agbaja Iron Ore at 800 ͦC for 120 minutes, at 920 ͦC for 120 minutes and at 1000 ͦC for 120 minutes. The processes indicated that at 800 ͦC for 120 minutes the Fe content obtained was 90.2wt%. As the ores were heated to 920 ͦC for 120 minutes a value of Fe content obtained was 84.5wt% . The samples were further subjected to reducibility test at 1000 ͦC for 120mins and the value Fe content obtained was 42.1wt%.

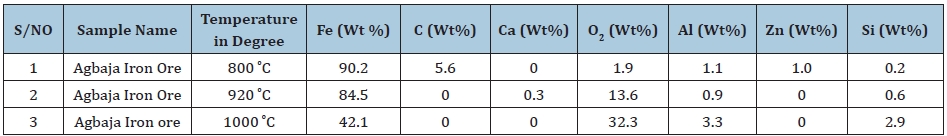

Table 6: Analysis of results of samples after performing the reducibility tests using SEM and EDS on Agbaja iron ore.

The Agbaja iron ore has been known to have large deposits in Kogi State of Nigeria. In the past, the government of Nigeria have been involved in the importation of high-grade ores. It must be noted that the processes of importation and financial constraints and cost implication which in the past has run into over 607 dollar/ tonne even when the plants were not operated at the optimal capacity.

The investigation on the reducibility on the Agbaja Iron ore was performed, and the contributions to knowledge from this research work may be viewed in these ways:

1. The time of reduction and temperature of the iron ore lumps of Agbaja indicates that there was greater influence on the degree of reduction (%). It was observed that the degree of reduction (%) increased with increase in heating time from 800 ͦC-1000  ͦC. The time for the degree of reduction was performed within the time range of 20-120minutes (20 minutes intervals) as these processes indict that the degree of reduction (%).
2. The reduction behavior of the iron ore lumps are identical in all the investigation . The use of the metallurgical coking coal as reducing agent had great effects on the lumps as there were significant influences on the degree of reduction (%) on the tested samples.
3. From the findings of the investigation, the results and data obtained could be used for further studies while the other iron ore deposits in the country could also be subjected to other experimental investigations and processes. Such ores could also be investigated and subjected to the reducibility studies, with other iron ores with a view to generating the necessary data and to make comparism with those already investigated.

1. Enough funds will be needed to perform this kind of research work because of its capital involvement nature which is intensive. In regards to this, some of the research institutions, universities and Industries where such research works are performed should have rates that could be greatly affordable to students, researchers. In some cases waivers could also be granted to reduce costs.
2. Time should be made available for the completion of this kind of research work within the academic period as many experimental procedures and processes are involved.
3. Sourcing of the raw iron ores from the National Metallurgical Development Centre (NMDC), Jos, National Iron ore Mining Company (NIOMCO), Itakpe and Agbaja plateau in Kogi State posed some challenges.
4. The accessibility to source for these materials were very difficult as lot of resources and money were spent to obtain the materials and also the security network of the locations and terrain were not easily accessible .Efforts should therefore be made by all the stake holders to always assist researchers, students and other individuals by creating enabling environments and opportunities to have access to these raw materials.
5. As regards the equipment used in performing these experiments, some of them were not readily available in Nigeria like Scanning Electron Microscope (SEM) with EDS, the Thermogravimetric Analysis (TA) and the Differential Thermal Analysis (DTA), the X-Ray Fluorescence (XRF), R-Xay Diffraction (XRD) and other facilities. These issues posed a lot of challenges as the samples were sent to South Africa and waited for the results to be sent back and the money involved in performing such tests. In most cases, where such equipment are available in Nigeria, they are bedeviled with issues ranging from faulty parts, total breakdown , in accuracy, doubts results and non compliance to international standard or global best practice .
6. The cost of performing such experiments are relatively high for an average students / researchers to afford, therefore, Governments and other research Institutes, Universities and Industries should reduce the cost of performing such experiments with a view to encouraging researchers .
7. In view of the above therefore, the Universities, Research Institutes in Nigeria should collaborate with agencies like the NLNG, TETFUNDS, PTDF, and SHELL CHEVRON, AGIP e. t. c to supply such equipment and to collaborate with students/ researchers in order to achieve optimal results.
8. The research work performed is not exhaustive as more work could be experimented with other iron ores available within Kogi State like the Agbajanoko, Oshokosho, Konto Karfi, BassaNge and Muro and in other States in Nigeria.

Finally, there should be synergy between Government, Universities, Research Institutes and industries with a view to solving basic problems in extractive and process metallurgy through collaborations.
