Synergistically Improved Physico-Mechanical Properties of Nanopolystyrene-Viton Rubber Blends

Various polymer nanoparticles have been used to anlayze their effect on various properties such as mechanical, physical, thermal, mechano-chemical and curing behaviour of polymer and rubber-based nanocomposites and blends [1-4]. Polymer nanoparticles, such as nanopolystyrene (nPS), [2-9] have been synthesized by various emulsion polymerization approaches [2], such as seeded micro-emulsion [4], in-situ emulsion polymerization, atomized micro-emulsion [2,7,10,11], micro-emulsion polymerization [2,4,5,8,12-15] with drop wise addition of monomer and other novel methods. Micro-emulsion polymerization has received much attention and it can be scaled up at the industrial level because of optimum use of surfactant [2] in micro-emulsion polymerization as compared to the conventional emulsion polymerization [6]. The polymer nanoparticles have been used in paints, coatings, ceramic processing, agrochemical, surface treatment and biomedical sectors [2-15].

A uniform dispersion of nanomaterials shows better thermal, mechanical and physical properties [5], because the performance of polymer nanocomposites and blends is strongly dependent on the morphology of the polymer nanoparticles dispersed in the rubber matrix. The effect of polymer nanoparticles on rheological, thermal, and mechanical properties of linear low-density polyethylene was also studied [9]. The nPS structures have been incorporated to improve the mechanical properties of the polymer and rubber blends, such as polypropylene [2,5], nitrile-butadiene rubber [4], natural rubber [6], styrene-butadiene rubber, and other elastomers [7,8]. Curing is an important parameter which influences the mechanical, thermal and physical properties of elastomeric materials. These properties of rubber depend on the filler as well as the state of curing. The energy consumed during processing and vulcanization of rubber is directly linked to the cost of final products. The vulcanization of rubber involves multiple and complex reactions with the addition of various ingredients, which show varied thermal and mechanical properties. So, before compounding and vulcanization of rubber, it is essential to evaluate the rate of curing as well as the thermal, rheological behaviour, and physico-mechanical properties of the elastomer blend for optimization of both process as well as cost reduction [1,4-8,16,17].

Fluoroelastomer based materials are used for O-rings, gaskets, shaft seals, fuel hose, in aerospace, offshore, energy and automobile applications owing to their chemical resistant nature. Viton is a synthetic rubber and fluoroelastomer (FE). Viton is a terpolymer of hexafluoro-propylene, vinylidene fluoride and tetra-fluoroethylene with a cure site monomer. It is a peroxide cure, 70% fluorine FE [1,16- 22]. In our earlier work [1], thermal, mechanical and morphological properties of surface modified montmorillonite-reinforced viton rubber (VR) nanocomposites have been studied [1,21]. Various research works have been carried out to study structure-property relationship and the different properties (melt processing, thermal, curing properties) of VR-clay based nanocomposites. Most of VR based nanocomposites have been prepared by melt mixing process [1,16-22].

The main aim of this research work is to analyze the synergism of nPS with VR matrix and synergistic effect on physical, mechanical properties and curing behaviour of nPS-VR blends. In this work, micro-emulsified nPS from 0.5 to 2.5 wt.% were reinforced into VR by two roll mills followed by a compression moulding. Physicomechanical (tensile strength, elongation at break and young’s modulus, swelling index) properties of nPS-VR blends were studied. The extent of nPS dispersion in the VR matrix and their surface morphology were studied by scanning electron microscopy, while the crystallinity and curing rate were studied by X-ray diffractometer and mooney viscometer, respectively.

Material

Chemicals such as styrene (as monomer), sodium dodecyl sulphate (SDS as a surfactant), n-pentanol (as a co-surfactant), ammonium persulphate (APS, as initiator) and methanol were procured from S.D. Fine chemicals Ltd., (Mumbai, India). Toluene and MgO (acts as an acid scavenger) were received from the Merck Specialities India Limited, (Mumbai, India). VR (specific gravity=1.7) , a class of elastomer family comprising terpolymer of vinyldiene fluoride, hexafluoropropylene and tetrafluoroethylene, and Diak-3 (N,N -Dicinnamylidene-1, 6-hexanediamine) as curing agent were received from DuPont Performance Elastomers, USA. As per data sheet, VR (containing fluorine=67%, carbon black=30%, high activity MgO=3%) has a mooney scorch viscosity of 30 at 121 ºC, minimum viscosity of 0.9kg⋅cm, scorch time of 1 min, maximum torque of 20.2kg⋅cm and optimum cure time of 5min. These conditions were measured using micro die at temperature of 177 ºC.

Synthesis of nPS by micro-emulsion process

The nPS were prepared by a micro-emulsion polymerization process. In this method, 4g of SDS and 0.5g of APS were dissolved separately in 100mL distilled water containing beakers and then stirred at 2000rpm for 30min for proper mixing. In this solution, 0.5g of n-pentanol was added and resulting mixture was transferred into the three necked round bottom flask. This reaction mixer was stirred at constant speed of 2000rpm for 20min maintaining temperature at 75 ºC. A 50g of styrene was added drop wise with the help of burette. A resulting emulsion was stabilized by keeping it overnight for 12h at room temperature.

The nPS were isolated by drop wise addition of methanol at constant speed of 200rpm. The beaker was kept in an ice bath to avoid the evaporation of solvent in which latex was added. Then methanol was added into this homogeneous mixture, filtered using whatman filter paper and then washed three times to remove impurities. Finally, isolated nPS were dried in hot air oven at 50 ºC temperature for the duration of 12h, which yielded 75% nPS.

Preparation of nPS: VR blends

The filler (i.e. nPS) in 0.5, 1.0, 1.5, 2.0 and 2.5 wt.% of VR was mixed separately in VR. Each set masticated on a two-roll mill for 5min. As milling with two rolls generally produces heat, and as a result the temperature of the soft VR blend sheet rises. The temperature of sheet was found to increase up to ~60 ºC due to shearing and mechano-chemical breaking of the chains. In these conditions, deformations and coalescence of the nPS may occur due to this shearing phenomenon, which also affect shape of nPS blended in VR matrix. After complete mixing of nPS with VR for 30min, 1.8g of MgO was added as additive followed by addition of Diak-3 as curing agent. Further mastication was done for 10min to disperse nPS, additives and curing agent uniformly in VR. The compounded nPS: VR rubber blend was compressed for a duration of 30min at 125 ºC under pressure of 9.80 MPa in compression moulding machine, which gave a cured nPS: VR blend sheet having size of (13×13×0.2) cm.

Characterization

SEM analysis: The particle shape and structure of nPS as well as surface morphology of cured and uncured nPS: VR blends were observed by FE-SEM (Model S-4800 Type II Hitachi High Technology Corporation Limited, Japan) at an operation voltage of 10keV and a pressure of 0.00133 kg/cm2. The samples were gold coated before analysis.

Particle size analysis: Particle size analysis was carried out by particle size analyser (MALVERN 2S90, England, UK) at system temperature of 25 ºC, then the light could scatter from the sample for duration of 1min at count rate speed of 237 and 228.7kcps. Approximately, 5mL of sample was taken in disposable cuvette to carry out size analysis. The particle size distribution (PSD) and Z-average of nPS in the nanometer range were analyzed from the results and plots obtained from the software installed in the computer system.

X-ray diffraction (XRD): XRD analysis of all nPS: VR blends were conducted on Advance X-ray diffractometer (D8, Brukers, Germany) with CuKα1 radiation (λ=1.5404 Å) within the 2θ range of 20-80º. The % crystallinity values were recorded and reported from XRD data obtained from the software installed in a computer system.

Tensile test

Tensile tests of nPS: VR blend having a rectangular shape (6×1.25×0.2) cm specimens were performed using Universal Testing Machine (INSTRON 5582, Buckinghamshire, UK). The tensile tests were conducted according to ASTM D638. Testing was carried out at room temperature with the crosshead speed of 0.4cm/min. For a span length of 4cm, load of 500kg was applied to develop tensile force. Total five specimens were tested, and the average values of tensile strength and tensile modulus were reported.

Hardness

The hardness tests were conducted by shore hardness (ASTM D2240 A-type) tester. Specimens of nPS: VR blends were tested. The average thickness of the specimen was kept 0.2cm, because the die for making a sheet was 0.2cm in depth. Thickness was measured by thickness gauge meter. Total five specimens were tested, the average values of the results were reported.

Swelling behavior

Swelling behavior of nPS: VR blends, rectangular shape (5×1×0.2) cm specimens, were performed by toluene absorption tests as per ASTM D570 procedure. The weights of specimens were measured before immersion and then after immersion in the toluene bath for the duration of 24h. The condition of toluene bath was maintained at a temperature of 25 ºC. The specimens were removed from toluene bath after predetermined interval of time (duration of 24h). The swelling behavior was analyzed from the calculation of % swelling or Swelling index, i.e. toluene absorption by different composition of nPS: VR blends. % Swelling of the nPS: VR blends was calculated by equation (1) in which W0 is the weight of the samples before soaking in toluene and Wt is the weight of the samples after soaking in toluene after 24h.

Toluene absorption or Swelling index (% Swelling)

Surface and size analysis

Structure and shape of nPS: The FE-SEM micrographs of microemulsified nPS are shown in Figure 1a & 1b. The shape of microemulsified nPS are clearly observed as a needle like nanostructures having one end broader and another pointed end. However, the needle like nanostructures of the nPS are observed to be coming out on a broken surface of VR due to the cross links formed by the curing agent Diak-3 (N,N -Dicinnamylidene-1, 6-hexanediamine) [16]. This could be due to the high stirring speed that may result in tubular form of micelles. These needles like nPS nanostructures Figure 1c are responsible for the anisotropic nature of VR blends, which indicates that the nPS, with high aspect ratio, could act as a reinforcing agent to provide higher mechanical properties to the VR matrix.

Figure 1:FE-SEM micrographs of nPS prepared by emulsion polymerization.

Size analysis of nPS: The size (i.e. diameter) of nPS was recorded by particle size analyser, and the values obtained from paricle size analyser results are reported in Table 1. Figure 2a shows bimodal distribution curves and it also shows the two different PSDs which are almost equally broad. The intensity of peak 1 and peak 2 was reported as 47 and 53 %, respectively. A bimodal particle size distribution was observed due to the presence of small and large nPS needle shaped nanostructures grown during the microemulsion process. The range is shown by mid of peak height, i.e. 39nm for peak 1 and 537nm for peak 2. An average size of the nPS nanostructures, present on the volume basis, was reported to be 274nm. As shown in Table 1, the polydispersity index was recorded to be 0.84, while the Z-average (also known as the mean value of the particle size) was recorded as 253nm. Figure 2b shows % number of nPS nanostructures which have size in nm, i.e. 25% of total of nPS nanostructures had an average size less than 100nm.

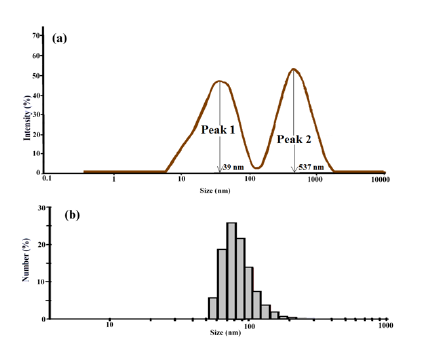

Figure 2:Particle size distribution shown by two peaks indicates (a) Intensity of a bimodal distribution curves of nPS, (b) % number of nPS present having size in nm.

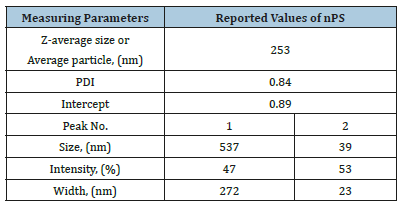

Table 1:Particle size distribution of nPS with narrow PSD.

Surface morphology of uncured and cured nPS: VR blends

FE-SEM micrographs of nPS: VR blends were recorded before and after their curing. Cross sections of broken surface of cured and uncured nPS: VR samples were observed and analyzed by FE-SEM. It is clearly observed from Figure 3a that the uncured nPS: VR blend sheet showed slightly non-uniform overlapped layers of the rubber chains within the VR. FE-SEM micrographs of cured nPS: VR blends are shown in Figure 3b-3g. These FE-SEM micrographs show marks of needle shaped nanostructures of the nPS at the plane surface of the VR chains. However, the needle like nanostructures of the nPS might be due to the crosslinking by the curing agent Diak-3 (N,N -Dicinnamylidene-1, 6-hexanediamine) [16]. These nanostructrues can clearly be seen in FE-SEM micrographs of 2.5wt. % loaded nPS: VR blend (Figure 3h-j). Agglomerated structures were observed more as the amount of nPS increased in VR blend. Thus, it can be said that an improvement in interaction between nPS and VR is achieved at the optimum loading of nPS in VR. The nPS were properly incorporated in VR matrix despite agglomeration. This can also be strengthened from FE-SEM micrographs (Figure 3b-j), which illustrates the incorporated nPS with branched network and high aspect ratio.

Figure 3:FE-SEM (50μm resolution) micrographs of (a) uncured nPS: VR blends; (b) 0, (c) 0.5, (d) 1, (e) 1.5, (f) 2 and (g) 2.5wt% of nPS in cured VR blends, (h-j) cross links points of 2.5wt% of nPS in cured VR blends observed in magnified view.

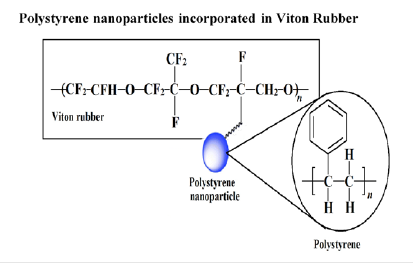

Figure 4:Structure of nPS incorporated in VR blends.

Figure 4 shows a possible structure of nPS incorporated in the VR rubber comprising terpolymer of vinyldiene fluoride, hexafluoropropylene and tetrafluoroethylene. The basic character of any amine present in Diak-3 (curing agent) is to initiate dehydrofluorination at the vinyldiene fluoride site followed by the amine addition (cross links) in VR matrix [16]. The amine cure system shows some popularity as it enhances rubber-to-metal bonding, whereas the cross links of hexamethylene (Dicinnamylidene present in Diak-3) provides strength, and as a result it improves the mechanical properties of the resulting blend [1,16].

Crystallinity of nPS: VR blends

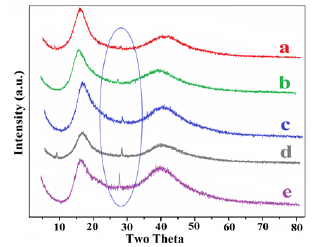

Figure 5:X-ray diffractographs of cured VR blends having (a) 0.5, and (b) 1, (c) 1.5, (d) 2 and (e) 2.5wt% of nPS.

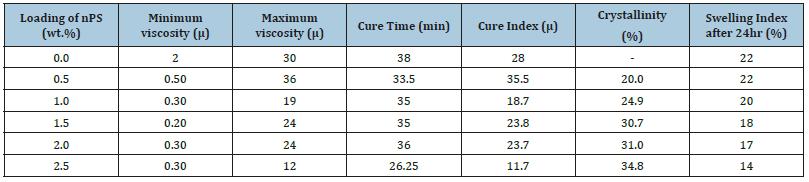

Table 2:Effect of nPS loading on the crystallinity, curing rate, mooney viscosity and swelling index of nPS: VR blends.

Figure 5 shows XRD patterns of the different nPS: VR blends. The crystallinity values were recorded during XRD characterization, which indicates an increasing order with increase in wt. % of nPS in VR blends, as reported in Table 2. The increment in the crystallinity of nPS: VR blend was due to the increasing amount of crystalline nPS in the VR matrix. The high shearing of VR (having high viscosity) during two roll mixing coupled with small amount of interaction between nPS and VR might have resulted in a formation of crosslinked structures [16,17]. The XRD pattern of nPS in all VR blends exhibited at 2θ=~27.2˚ which became broad as nPS loading increased in VR. The XRD pattern of VR exhibited at 2θ = 17.2˚ due to tetra-fluoroethylene contents in VR and 2θ=40˚ due to vinylidene fluoride contents in VR [22].

Physico-mechanical properties of nPS: VR blends

Tensile strength: Figure 6 illustrates the effect of nPS on tensile strength at break of nPS: VR blends. It is observed that tensile strength increased with increasing the nPS loading in VR. The tensile strength of 0.5, 1, 1.5, 2 and 2.5 wt. % nPS loaded in VR blends were recorded as 18.4, 18.8, 19.2, 19.8 and 21kg/cm2, respectively, while it was least (16.5kg/cm2) for pristine VR. Approximately, ~30% increment was observed in tensile strength of 2.5wt. % nPS: VR blend as compared to pristine VR. Maiti et al. [20] reported tensile strength for VR-clay based vulcanized nanocomposites which were observed in the range of 1.72 to 4.12 MPa (i.e. 17.54 to 42.01kg/ cm2).

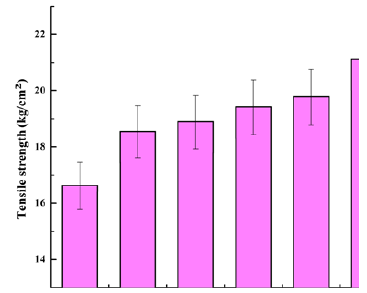

Figure 6:Tensile strength of nPS: VR blends.

Elongation at break: The effect of variation in nPS loading on % elongation at break of nPS: VR blends are shown in Figure 7. The % elongation at break of 0.5, 1, 1.5, 2 and 2.5wt. % nPS loaded in VR were recorded as 932, 918, 837, 770, and 730%, respectively, while it was highest up to 1025% for pristine VR. This indicates (~29%) decrement in % elongation at break of 2.5 wt. % nPS: VR blend as compared to pristine VR. The reduction in elongation at break is due the uniform dispersion of nPS having needle structures and high aspect ratio. It is also due to continuous increment in the crystallinity or highly crystalline nature of 2.5wt. % nPS: VR blend, which is clearly seen from X-ray diffractograms. Maiti et al. [20] reported elongation at break of different VR-clay based unvulcanized nanocomposites in the range of 80 to 1170%, while elongation at break for VR-clay based vulcanized nanocomposites were observed in the range of 90 to 180% .

Figure 7:% Elongation at break of nPS: VR blends.

Young’s modulus: Figure 8 illustrates the effect of nPS loading (wt. %) on Young’s modulus of nPS: VR blends. The Young’s modulus of 0, 0.5, 1, 1.5, 2 and 2.5wt% nPS loaded in VR blends were recorded as 1.8, 2.21, 2.35, 2.77, 2.99 and 3.4kg/cm2, respectively. It can be clearly seen from Figure 8 that Young’s modulus increases with increasing nPS loading up to 2.5wt%, which is 89 % greater as compared to pristine VR.

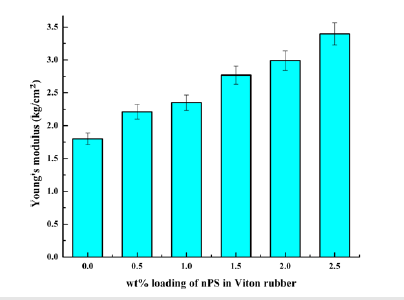

Figure 8:Young’s modulus of nPS: VR blends.

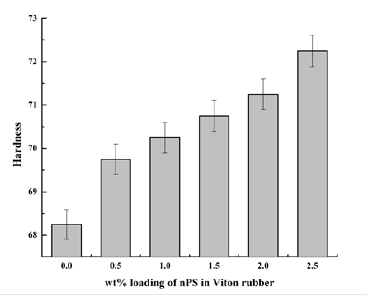

Figure 9:Hardness of nPS: VR blends.

Hardness: In case of VR blends filled with nPS, hardness was observed to be increasing continuously with increase in nPS loading up to 2.5wt. % in VR matrix (Figure 9). The filler made the surface of VR blend harder due to uniform distribution of nPS which might form the crosslinks due to presence of curing agent (N,N -Dicinnamylidene-1, 6-hexanediamine). Thus, the addition of nPS improved the physical properties of nPS: VR blends. The hardness of 0, 0.5, 1, 1.5, 2 and 2.5wt. % nPS loaded VR blends were recorded to be 68.25, 69.75, 70.25, 70.75, 71.25 and 72.25, respectively. Thus, 2.5wt. % nPS added VR blends showed a marginal improvement (6%) as compared to that of virgin VR. The improvement in hardness is due to increase in cross linking and crystallinity of the blend by addition of nPS.

Swelling index: The swelling index was reported to be decreasing with increasing the nPS wt. % loading in VR matrix. The minimum swelling index was reported to be 14 in case of 2.5wt. % loaded nPS: VR blend, while the maximum swelling index was recorded to be 22 in case of pristine VR. The 36 % decrement in swelling index was observed for 2.5wt. % nPS loaded VR blend as compared to pristine VR (Table 2). This may be due to crosslinks between nPS and VR formed by the curing agent (Diak-3) and also because of the formation of the incorporating network of nPS: VR blends which might minimize the voids inside the matrix.

Effect of nPS loading on curing of VR blends

Tables 2 shows the results of mooney viscosity and curing index along with the time required for curing. It is observed from the results that the mooney viscosity of nPS: VR blends decreased with increasing the loading of nPS from 0.5 to 2.5wt.% (except 1.0wt. %) in VR matrix. The minimum mooney viscosity was observed to be 2μ in case of pristine VR, while mooney viscosity was observed to be 0.30μ in case of 2.5 wt.% nPS filled VR blends. Mooney viscosity of the nPS: VR blends was observed to decrease to 0.50 to 0.20μ with increasing the nPS contents which is very less as compared to that of the neat VR rubber. It is due to melting the nPS in the matrix, and hence the non-monotonous effect of the nPS concentration on mooney viscosity of VR blend was also observed. Kader et al. [16] showed that the unmodified nanoclay in VR nanocomposites slowed down the cure reaction and high loading of clay in VR nanocomposites decreased the cure rate with lowering the torque [16].

The curing torque of pristine VR was recorded to be 30μ. When 0.5wt. % of nPS was blended into the VR matrix, the torque was observed to be increased up to 36μ. By further increasing the loading amount of nPS as 1, 1.5, 2 and 2.5 wt. %, the values of curing torque were reported to be 18, 25, 24, and 12μ, respectively., It can be seen from Table 2 that the time required for curing of pristine VR matrix was 38min, while, the time required for curing for 0.5, 1, 1.5, 2 and 2.5wt. % nPS loading in VR blends were recorded to be 33.5, 35, 35, 36 and 26.25min, respectively. From the results of mooney viscosity, curing index and required curing time, it can be said that the amount of nPS plays a vital role in improving the properties of VR blend, because the higher wt. % loading of nPS may enhance the curing process due to the uniform dispersion and incorporation of nPs in the VR blends.

Needle like nanostructured nPS were synthesized using microemulsion polymerization technique. The size of nPS was observed in the range of 39 to 537nm having 53 % intensity, and Z-average size (average size of nanostructure) was reported to be 253nm. Up to 2.5wt. % of nPS were successfully reinforced in VR matrix by a two-roll mill followed by a compression moulding. The 2.5wt. % of nPS in VR matrix showed an improvement of 6 % in hardness, 30% in tensile strength, and 89% in young’s modulus; while 29% decrement in % elongation at break and 36% decrement in swelling index were observed as compared to pristine VR. The significant improvement in properties was due to the uniform dispersion of nPS with high aspect ratio in the VR matrix. It might also be due to continuous increase in crystallinity of 2.5 wt. % nPS: VR blend. The presence of curing agent (Diak-3) formed the incorporating network in nPS: VR blends with proper cross links between them and minimized the voids inside the VR blend. Hence, the VR blends with improved physico-mechanical properties could be useful in various applications like O-rings and gaskets, cable connectors, electrical, light fittings, switch gear, space and defence industries.

1. Mali AD, Shimpi NG, Mishra S (2014) Thermal, mechanical and morphological properties of surface-modified montmorillonitereinforced viton rubber nanocomposites. Polym Int 63: 338-346.
2. Chatterjee A, Mishra S (2012) Novel synthesis of crystalline polystyrene nanoparticles (nPS) by monomer atomization in micro emulsion and their effect on thermal, rheological and mechanical properties of polypropylene. Macromol Res 20(8): 780-788.
3. Andujar CB, Tung LD, Thanh NTK (2010) Synthesis of nanoparticles for biomedical applications. Annu Rep Prog Chem 106: 553-568.
4. Lunov O, Syrovets T, Loos C (2011) Differential uptake of functionalized polystyrene nanoparticles by human macrophages and a monocytic cell line. ACS Nano 5(3): 1657-1659.
5. Mishra S, Chatterjee A (2011) Effect of nano-polystyrene (nPS) on thermal, rheological and mechanical properties of polypropylene (PP). Polym Adv Technol 22(12): 1547-1554.
6. Chuayjuljit S, Luecha W (2011) XSBR-NR rubber blends filled with polystyrene-encapsulated nanosilica prepared by differential microemulsion polymerization. J Elast Plast 43(5): 407-427.
7. Lu M, Zhou J, Wang L (2010) Design and preparation of cross-linked polystyrene nanoparticles for elastomer reinforcement. J Nanomater 2010: 1-8.
8. Ma S (2010) Nanostructures and properties of blends of homopolymer and elastomeric block copolymer nanoparticles. Ph.D. Thesis, Georgia Institute of Technology, Georgia.
9. Mishra S, Chatterjee A, Rana VK (2011) Polymer nanoparticles: their effect on rheological, thermal, and mechanical properties of linear lowdensity polyethylene (LLDPE). Polym Adv Technol 22(12): 1802-1811.
10. Mishra S, Chatterjee A (2011) Novel synthesis of polymer and copolymer nanoparticles by atomized micro emulsion technique and its characterization. Polym Adv Technol 22: 1593-1601.
11. Mishra S, Chatterjee A (2010) Particle size, morphology and thermal properties of polystyrene nanoparticles in micro emulsion process. Polym Plast Technol Eng 49(8): 791-795.
12. Yildiz U, Capekc I (2003) Microemulsion polymerization of styrene in the presence of macroinimer. Polym 44(8): 2193-2200.
13. Gan LM, Chew CH, Lye I, Imae T (1991) Microemulsion polymerization of styrene. Polym Bull 25: 193-198.
14. Guo JS, El-Aasser MS, Vanderhoff JW (1989) Microemulsion polymerization of styrene. ACS Symp Series Amer Chem Soc (Washington DC), 384: 86.
15. Kaiyi L, Zhaoqun W (2007) A novel method for preparing monodispersed polystyrene nanoparticles. Front Chem China 2: 17-20.
16. Kader MA, Nah C (2004) Influence of clay on the vulcanization kinetics of fluoroelastomer nanocomposites. Polym 45(7): 2237-2247.
17. Kader MA, Lyu MY, Nah C (2006) A study on melt processing and thermal properties of fluoroelastomer nanocomposites. Comp Sci technol 66: 1431-1443.
18. Heidarian J, Hassan A, Rahman NMMA (2015) Improving the thermal properties of fluoroelastomer (Viton GF-600S) using acidic surface modified carbon nanotube. Polímeros 25(4): 392-401.
19. Ganguly A, Maiti M, Bhowmick AK (2008) Structure-property relationship of specialty elastomer-clay nanocomposites. Bull Mater Sci 31(3): 455-459.
20. Maiti M, Bhowmick AK (2006) Structure and properties of some novel fluoroelastomer/clay nanocomposites with special reference to their interaction. J Polym Sci B: Poly Phy 44: 162-176.
21. Mali AD, Shimpi NG, Mishra S (2016) Property investigation of surfacemodified MMT on mechanical and photo-oxidative degradation of viton rubber composites. Polym Bull 73: 3033-3048.
22. Heidarian J, Hassan A (2014) Microstructural and thermal properties of fluoroelastomer/carbon nanotube composites. Comp Part B 58: 166- 174.
