Synthesis of Graphene oxide (GO) was done by Improved hummer’s method and confirmed by Field Emission Scanning Electron Microscopy, Transmission Electron Microscopy, Fourier Transform Infrared Spectroscopy, X-ray Diffractometry and Raman Spectroscopy. The dispersion of GO was obtained using cetyl trimethyl ammonium bromide (CTAB), a cationic surfactant, in the epoxy matrix. The enrichment in the mechanical properties was observed by loading of GO (1.0 wt.%, 2.5 wt.% and 5.0 wt. %) in the epoxy/coir fiber (ECF) composites. The ECF composites were prepared using hand layup technique, with constant fiber ratio of 5.0 wt. % and fiber length in the range of 5-7mm. The highest tensile strength of 13 MPa was obtained for 5.0 wt. % GO-reinforced ECF as compared to 4 MPa for neat epoxy and 6 MPa for ECF. Flexural strength of 64 MPa was obtained for 5.0 wt. % GO reinforced ECF as compared to 23 MPa for neat epoxy and 32 MPa for ECF. The impact strength increased from 31J/m to 44J/m and 135J/m for neat epoxy, ECF, and 5.0 wt. % GO reinforced ECF respectively. It was noticed that the CTAB treatment resulted in proper interaction of GO with epoxy resin and coir fibers, which improved mechanical properties of ECF.
Keywords:Coir fiber; Graphene oxide; Epoxy; Mechanical
Epoxy resin is a versatile high-performance thermosetting polymer. Due to its higher strength and ease of processability; epoxy resin finds applications in aerospace sector, automobile sectors , in coatings , for electronic encapsulation, as adhesives , hybrid composites . However, epoxy resin alone cannot provide good strength suitable for highperformance applications because of its inherent hard and brittle nature . Therefore, epoxy resin has to be mixed or modified by nanomaterials such as Graphene oxide, Graphite nanoplatelet and Graphene and/or with natural or synthetic fiber as a reinforcing agent [6-9] to improve its stiffness and strength [10-16].
Among the different synthetic fibers, glass and carbon fibers are mostly used due to higher enhancement in mechanical properties of the epoxy resin, suitable for high-performance applications. However, these synthetic fibers are expensive, non-recyclable, non-renewable, non-biodegradable in nature, and toxic products are released during their production. So, these fibers create major environmental hazards. As compared to synthetic fibers, natural fibers are cheaper, lower in density, biodegradable [17,18], and when incorporated after chemical modifications enhances the electrical , mechanical [20-22], and water absorption properties [23,24] of various polymers. Among the different natural fibers, coir fiber, a waste material of the coconut husk having higher toughness and durability, finds applications in various products such as ropes, mattresses, baskets, brushes, automobile parts and ballistic appliances [25-27]. The higher strength of coir fiber as compared to majority of the natural fiber makes it suitable for enriching the mechanical properties of epoxy resin. However, the higher lignin percentage in its structure makes it poorly compatible with the epoxy resin. But certain chemical or physical treatment can enhance the adhesion of coir fiber with the epoxy resin. Also, when coir fibers are used as reinforcing agent along with nanomaterials then it will enhance the mechanical properties of the epoxy resin due to higher strength of coir fibers and higher surface area of nanomaterials [28-31].
Among the different nanomaterials, Graphene oxide (GO) has attracted major world attention owing to its ease of aqueous processability obtained by the presence of oxide functional groups such as epoxide, carbonyl and carboxyl as defects [32-36]. Due to promising mechanical, thermal and electronic properties [37-40], GO finds applications in drug delivery , photo catalysis, composites, gas sensing, energy storage, super capacitors, etc [38,39]. But the major drawback is that GO has poor dispersion and weak interfacial adhesion with epoxy resin and coir fiber due to formation of agglomerates among GO sheets . In order to overcome this problem, GO is pretreated with a cationic surfactant, cetyl trimethyl ammonium bromide (CTAB) and this mixture is simultaneously dispersed in the epoxy/coir fiber matrix (Figure1). Epoxy/coir fiber (ECF) composites with GO concentrations of 1.0 wt. %, 2.5 wt. % and 5.0 wt. % individually are prepared by hand layup technique and their enriched mechanical properties are also addressed in this study.
Figure 1:Schematic representation of preparation of GO reinforced Epoxy/coir fiber composite.
Graphite powder, Hydrogen peroxide (30%) and Methanol were purchased from S D Fine chemicals, Mumbai, India. Cetyl trimethyl ammonium bromide (CTAB), Sulphuric acid, Orthophosphoric acid, Hydrochloric acid, Potassium permanganate (99.9%), Polyvinyl Alcohol (PVA), Ethanol and Petroleum Ether were purchased from Merck chemicals, Mumbai, India. Epoxy Resin LY556 and Hardner HY951 were purchased from Variety Plywood, Mumbai, India. All the chemicals were used without further purification. All experiments were carried out with doubled distilled water.
The Coconut Husk was dried under the sun. The coir fibers were collected manually after soaking the husk in hot water to lose the interaction between fiber and lignocellulosic matrix and drying at 40 ℃.
GO was synthesized by Improved Hummer’s method mentioned elsewhere [42-44] and GO reinforced epoxy/coir fiber composites were fabricated using hand layup technique as mentioned in our earlier work . 1g of CTAB was added to 100 ml of methanol followed by addition of 2g GO powder. This mixture was dispersed ultrasonically using bath sonicator for 3h followed by addition of 200g of epoxy resin with continuous stirring for proper mixing. The methanol was removed completely from this mixture by keeping it in an oven at 50 ℃ and further brought down to room temperature. Later on, 10g of coir fibers (size 7-9mm) were added in this mixture for 1h by glass rod followed by mixing of hardener in a ratio of 10:1. This mixture was spread into the mold (270mm x 50mm x 5mm), by hand layup technique. A thin film of 5% aqueous solution of PVA was used as a mold releasing agent. The mold was closed with its core and kept for 7 days for curing at one atmospheric pressure and room temperature (approx. 31 ℃). The cured composite was removed and cut according to the desired specimen size and shape.
The morphology of the GO was investigated on Field Emission Scanning Electron Microscope (FE-SEM, Model S-4800 Type II Hitachi High Technology Corporation Limited, Japan), operated at 15.0KeV, and also on Transmission Electron Microscope (TEM, Philips CM-200, Eindhoven, The Netherlands) with 75μA of filament current and 200KV of accelerating voltage .
The functional groups of the GO were analyzed by Fourier Transform Infrared Spectroscopy (FTIR, Model-8400 Shimadzu, Japan) with a resolution of 4cm-1, over the frequency range of 400- 3500cm-1. Each spectrum is average of 100 scans. The samples were prepared by mixing the powdered GO with powdered potassium bromide and pressing it under high pressure.
The crystallinity and structural behavior of the GO were determined by X-Ray Diffractometer (XRD) (D8 Advance Bruker) Limited Germany using monochromatic CuKα1 radiation (λ = 1.5406Å) at 40kV and 40mA. The diffraction patterns were optimized with a step size of 0.020 over an angular range 5-80º (2θ) with a scanning speed of 1º/s. Raman spectra of the GO were recorded on a Raman Spectrometer (Horiba JY LabRAM HR 800) coupled with microscope in reflectance mode with 633nm excitation laser source and a spectral resolution of 0.3cm-1.
Mechanical properties of GO/ECF composites were performed on Universal Testing Machine, Model UT2302, HI-TECH Instrument and services, Mumbai at cross-head speed of 50mm/min. The tensile test was carried out according to ASTM D3039. For the tensile strength, width, length and thickness of the specimens were kept as 25mm, 250mm and 3mm respectively. The tensile strength and Youngs modulus are expressed using the equation, σt=Pmax /A and E = Δσ/Δε respectively, where σt=tensile strength (MPa), Pmax=maximum force before failure (N), A = average cross-sectional area (mm2), E=Young’s modulus of elasticity (MPa), Δσ=difference in applied stress between the two strain points (MPa), Δε=difference between two strain points.
The three-point flexural tests of the composites were conducted using the same UTM according to ASTM D790. The specimen dimensions were 12.7mm x 125mm x 3.2mm. The flexural strength and flexural modulus were calculated using formula σf=3PL/2bd2 and Ef=Δσ f /Δεf, respectively, where σf=stress at the outer surface at mid span (MPa), P=applied force (N), L=support span (mm), b=width of the specimen (mm), d=thickness of the specimen (mm), Ef=flexural modulus of elasticity (MPa), Δσf=difference in flexural stress between the two strain points (MPa), Δεf =difference between two selected strain points.
The impact strength of the composites was conducted on Izod Impact tester, 293, International Equipment’s, Mumbai by clamping a specimen vertically as a cantilever beam per ASTM D 256. The specimen was strucked by swing of pendulum released from a fix distance from the specimen clamp. The tests were repeated five times and average values are reported.
The surface hardness tests of composites were carried out by first placing a specimen on a hard and flat surface of Shore-D durometer. The pressure foot of the instrument was pressed onto the specimen, making sure that it was parallel to the surface of the specimen. The durometer hardness was read within 1sec after the pressure put in firm contact with the specimen. The tests were repeated five times and mean value is reported.

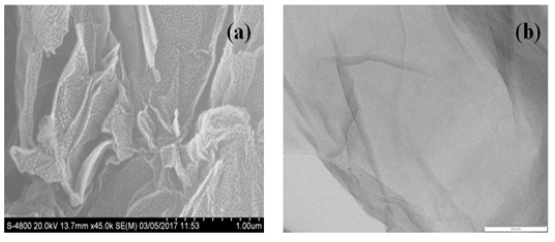

Figure 2:a) FE-SEM and b) TEM images of Graphene oxide.
Figure 2a & 2b shows the FE-SEM and TEM images of the GO showing folded sheets like morphology with 40-50nm thickness and lateral size up to the certain micrometer [10,41-42]. This confirms the formation of GO by oxidation of Graphite.
The Raman spectral peaks of GO can be observed at 1609cm- 1 and 1348cm-1 corresponding to G band of sp2-hybridized carbon and D bands of defects or edge areas (Figure 3a). The intensity of D band is more as compared to G band which confirms the oxidation of graphite . Also, the XRD peak can be observed at 10.25° (001), which confirms the exfoliation of GO due to attachment of oxygenated functional groups [41-44] (Figure 3b).
Figure 3c shows the FTIR of GO and their ECF composites. It is noticed that GO exhibited broad absorption peak at 3215cm- 1 and 3358cm-1 corresponding to water for stretching vibration of hydroxyl group. The peaks observed at 1715cm-1, 1620cm-1, 1041cm-1 correspond to C=O stretching, unoxidized sp2 C-C bonds, skeletal C-O stretching respectively, confirming the oxidation of GO sheets [41-44]. The peak observed at 2918cm-1 correspond to C-H group deformation, 1730cm-1 for hemicellulose, 1650cm-1 and 1242cm-1 for C-O-C in cellulose chain while 1043cm-1 correspond to C-OH stretching vibration of the coir fiber [46,47]. For uncured epoxy resin, the absorption peaks at 3055cm-1 correspond to symmetric stretching of oxirane groups, peak at 1178cm-1 for C-O aromatic ring stretching, peaks at 916cm-1 and 829cm-1 for C-O oxirane group and aromatic absorbance respectively . For ECF composite and 5.0wt.% GO/ ECF composites, the peak at 3055cm- 1 was absent while new peaks at 1240cm-1 and 1029cm-1 were present corresponding to the C-O-C of cellulose and C-OH groups of coir fiber [46,47] respectively. After curing, the peak at 916cm-1 is diminished from the ECF composites; confirming the complete curing of epoxy resin. This is due to reaction of all epoxy groups with the hardner kept at room temperature for a week. Also, the absence of peaks at 1620cm-1 in 5.0 wt. % GO/ECF composites was due to the uniform dispersion of GO by CTAB treatment [45,48].
Figure 3:a) Raman spectra, b) XRD, and c) FTIR of Graphene oxide and GO reinforced epoxy/coir fiber composites.
Tensile strength, % elongation at break and Young’s modulus: It is observed from Figure 4a that the tensile strength increases with increase in GO concentration from 1.0 wt. % to 5.0 wt. % in GO/ECF composites. The neat epoxy shows the tensile strength of 4 MPa (Figure 4a). The maximum tensile strength (13 MPa) was recorded for 5.0 wt. % GO/ECF composite as compared to 6 MPa of ECF composite; 7 MPa of 1.0 wt.% GO/ECF composite and 9 MPa of 2.5 wt.% GO/ECF composite. Thus, it is proved that enrichment in the tensile strength of the ECF composites is obtained with increasing GO concentration due to proper interlocking of GO with coir fiber and epoxy resin.
Figure 4:a) Tensile strength and % Elongation at break b) Young’s Modulus of GO reinforced epoxy/coir fiber composites.
Figure 4a also shows the % elongation at break of GO/ECF composites. As compared with results of increment in tensile strength, unlikely the reverse behavior was observed for % elongation at break. The neat epoxy shows 5.75 % elongation at break as compared to 4.9, 3.7 and 2.0 % elongation at break for ECF composite, 1.0 wt.% and 2.5 wt.% filled GO/ECF composites respectively. The lowest 1.0 % elongation at break was recorded in 5.0 wt. % GO filled ECF composite. Thus, it is confirmed that GO decreases the % elongation at break of ECF composites in reverse way as that of tensile strength due to synergistic effect of GO on ECF.
Like tensile strength, the Young’s modulus was found to increase with increasing the GO contents in ECF composite (Figure 4b). The neat epoxy shows Young’s modulus of 443 MPa, as compared to Young’s moduli of 537 MPa for ECF composite, 750 MPa for 1.0 wt.% GO/ECF composite and 1004 MPa for 2.5 wt.% GO/ECF composite respectively. The highest Young’s modulus of 1250 MPa was recorded for 5.0 wt. % GO/ECF composite. Thus, GO also improves Young’s modulus of ECF composites in a similar way as that of tensile strength due to good dispersion of GO in the epoxy matrix and good compatibility with the coir fiber. Moreover, the functional groups present on the GO surface increased the degree of crosslinking as resulted in improvement in tensile property.
Flexural strength and flexural modulus: Figure 5 shows the flexural strength and flexural modulus of GO/ECF composites. As compared to increment in tensile strength with GO, similar behavior was observed for the flexural strength and flexural modulus in all GO/ECF composites. The neat epoxy showed the flexural strength of 23MPa and flexural modulus of 720 MPa respectively. Flexural strength of 32, 37 and 49MPa, and flexural moduli of 1103, 1425 and 1718MPa were obtained for ECF composite, 1.0 wt.% GO/ECF composite and 2.5 wt.% GO/ ECF composite respectively while maximum flexural strength of 64 MPa and flexural modulus of 2006 MPa were recorded in ECF composites filled with 5.0 wt. % of GO. Thus, it is proved that synergistic effect of GO resulted in an increase in flexural strength and flexural modulus of ECF composites in similar way as that of tensile strength.
Figure 5:Flexural strength and flexural modulus of GO reinforced epoxy/coir fiber composites.
Impact strength and shore D hardness: The impact strength of GO/ECF composites was found to increase with increasing the GO contents, like tensile and flexural properties (Figure 6). The neat epoxy shows the impact strength of 31 J/m as compared to 44, 62 and 89 J/m for ECF, 1.0 wt.% GO/ECF composite and 2.5 wt.% GO/ ECF composite respectively. The highest impact strength of 135J/m was recorded in ECF composite filled with 5.0 wt. % GO. Thus, it is proved that the increase in GO contents is responsible for the increment in the impact strength of ECF composites. Unlike the impact strength, opposite behavior was observed for Shore D hardness tests in GO/ECF composites (Figure 6). The neat epoxy shows the Shore-D hardness of 75 as compared to 68, 62 and 54 for ECF composite, 1.0 wt.% GO/ECF composite and 2.5 wt.% GO/ECF composite respectively. The lowest shore D hardness of 49 was recorded for 5.0 wt.% GO/ECF composite. Thus, it is proved that GO decreases the brittleness of ECF composites which is responsible for the decrease in the shore D hardness of GO/ECFs.
Figure 6:Impact strength and Shore D Hardness of GO reinforced epoxy/coir fibre composites.
GO is synthesized by improved hummmer’s method and confirmed by FE-SEM, TEM, FTIR, XRD and Raman spectroscopy. FE-SEM and TEM reveal the presence of overlapped GO layer while FTIR and Raman reveal that GO has oxygen functional groups, responsible for interaction with epoxy resin and coir fiber. The GO is used as nanofiller in ECF. GO enriches the overall mechanical properties of ECF. For 5.0 wt.% GO/ECF composite, the mechanical properties such as tensile strength, Young’s modulus, flexural strength, flexural modulus and impact strength show % enrichment up to 325, 282, 278, 278 and 435% respectively as compared to neat epoxy. The enrichment in tensile strength and impact strength is responsible for decrement in hardness to a percentage of 65 for 5.0 wt. % GO/ECF composite as compared to neat epoxy. Thus, 5.0 wt. % GO/ECF composite shows highest mechanical properties as compared to neat epoxy and ECF composites respectively due to proper interlocking and synergistic effect of GO with coir fiber and epoxy resin, obtained due to good dispersion of GO in epoxy matrix by CTAB.
