Potential of Rice Husk Ash as a Partial Cement Substitute in Rigid Highway Pavements

The highway pavement is the biggest structural asset a country can build and operate. To construct rigid highway pavements involves using high quantities of portland cement. Rigid pavements demand high target cement content and a good degree of particle packing due to the aggressive environment it will be subjected to. The need to reduce the of portland cement in rigid pavements in now accepted by most governments with sustainability being key in most civil engineering contracts. It is reported in literature that apart from environmental friendliness, the use of supplementary cementitious materials (SCMs) such as pulverised fuel ash (PFA), ground granulated blast furnace slag (GGBS), Silica fume (SF) and rice husk ash (RHA) reduces the cost of concrete and improves the durability of hardened concrete, thereby enhancing the service life of structures [1,2]. This report undertakes an investigation into the use of rice husk ash as a pozzolan in rigid pavements to reduce the portland cement content required to achieve British highway specifications.

Cement is deemed to have a considerably high carbon footprint, contributing immensely to global anthropogenic CO₂ [3]. Global warming is a phenomenon that brings about a rise in global temperatures due to the presence of excessive carbon dioxide (CO₂) in the atmosphere and is cumulative and irreversible over timescales of centuries [4,5]. The burning of fossil fuels, in this case to produce cement contributes to the greenhouse gas effect, which is a major cause of global warming [6]. Even though heavily energy intensive, cement is pivotal to development and is produced in virtually all countries [7]. One ton of concrete on average is produced every year for each human being in the world, a population that currently stands above 7 billion [8]. The growing population, matched by a corresponding increase in demand for socio-economic infrastructure that is aimed at creating affluent societies, especially in the developing world and former socialite countries [9], has led to a gradual increase in the demand for cement in the past few decades, with construction investment directly linked to higher gross domestic product (GDP) [10,11]. Cement was described by Al-Salami [12] as the most utilised construction material in the world, its global consumption only seconding that of water. It constitutes between 7%-15% of the total mass of concrete mixes [13], yet according to Sakai [11], the development of a nation is directly proportional to its consumption of concrete. Its yearly global production was 1.6 billion tons over 10 years ago, accounting for about 7% of the total global CO₂ loading in the atmosphere, a considerably high level of emissions when compared to 2% total global CO₂ emissions attributed to the aviation industry [14-16].

SCMs comprising industrial and agricultural waste products such as PFA, GGBS, SF, RHA and CCA unnecessarily occupy space when stored or create environmental hazards when dumped in landfill [1]. Their utilisation in the construction industry reduces the overall cost of construction, mitigates on the technical and environmental nuisance that is associated with the production of cement, reduces solid waste, cuts on greenhouse gas emissions and conserves existing natural resources, thereby enhancing sustainability as well as improving the properties of fresh and hardened concrete [17-21].

The production of a ton of cement emits approximately a corresponding ton of CO₂ [17], making it the most energy-intensive material produced after steel and aluminium [3,14]. In as much as development is required to match increasing populations, it should also be sustainable [18]. The underlying principles of sustainability lie in the appropriate balance of economic, social and environmental impacts [19]. Steel et al. [18] defined sustainability as a road for society advancement in which progress must be in harmony with the natural world, rather than in conflict with it, while Gambhir [14], termed it as a regime in which endeavors are towards meeting the needs of the present generation without compromising those of future generations. With a heavy demand for concrete in the developing world and other major and equally populous economies such as China and India predicted, cement producing companies have not anticipated in the foreseeable future any major changes in production that will reduce on emissions [1]. However, energy efficiency can be achieved by reducing on the amount of clinker and utilizing SCMs, which require less process heating and emit fewer levels of CO₂ [14].

The report compares mechanical properties and workability of concrete mixes prepared to British highway specification [22,23]. The investigation looks at the minimum processing of the rice husk ash required to achieve the acceptable strength properties and compares. The investigation prepared GGBS and OPC mixes to the same specification for comparison. The fines and aggregate used in this study are been chosen as they are sourced from locations other than open cast mining. Table 1 shows mixes investigated, the mix ratio is referenced is: cement: fine aggregate: coarse aggregate.

Experimental

Work was undertaken to investigate the mechanical and workability properties of the mixes shown in Table 1. The mixes have been selected to show the differing quality of materials available and the impact this has on the properties of the fresh and hardened concrete. The rice husk ash was received unprocessed with organic matter still present in the ash; much like what that would be received from rice plantations. The rice husk ash was prepared in two states; first of which being sieved through a 500-micron sieve, which was recorded as having a density of 0.21 of portland cement; and secondly being sieved through a 500-micron sieve, ground in a ball mill and sieved through a 45-micron sieve, which was recorded as having a density of 0.42 of portland cement. As the volume of the ash is significantly different to ordinary Portland cement the proportionality of replacement was modified to account for this difference. CEM I 52,5N, white cement, and CEM II / A-LL 32,5N were used to evaluate the use of high-quality cement with pozzolanic material. Each mix was evaluated for workability and the common slump tests to were undertaken. This test reports the suitability for different types of pavement construction whether being poured or using slip form construction. The minimum requirement of mechanical properties specified in the MCHW [22,23] has been investigated through compression, tensile and density testing of cubes and cylinders at 1, 7 and 28 days. All preparation and testing were conducted in accordance to the relevant European British standards – [24-29].

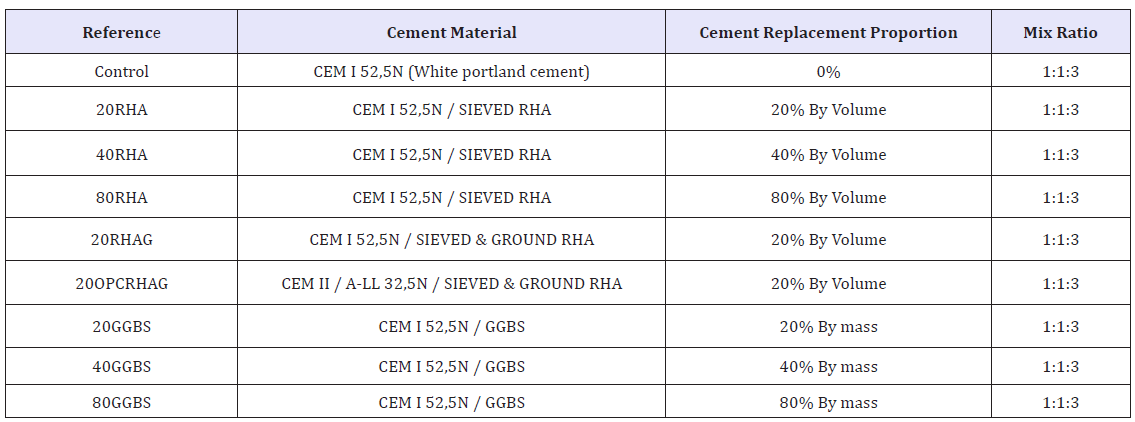

Table 1:Specimen mixes prepared.

The report uses the experiments to evaluate the applicability of replacing cement with rice husk ash to make a pavement quality concrete that satisfies British highway pavement standards and specification.

Test materials

Cement: The cement used was white Portland cement designation CEM I 52,5N to BS EN 197: Part 1 [24], and portlandlimestone cement CEM II/A-LL 32,5N to BS EN 197: Part 1[24].

Rice husk ash: The rice husk ash has been sourced from the far east. The chemical composition of the ash is detailed in the report and shows the ash to contain a high content of amorphous silica content and a residual amount of carbon.

Ground granulated blast-furnace slag: Ground granulated blast-furnace slag sourced from tata steel in scunthorpe to classification BS EN 15167-Part 1.

Sand: Sharp sand was used complying with BS 1200 [30].

Aggregate: 20mm siliceous gravel (local river bottom) conforming to BS EN 12620 [31].

Water: Water used conforming to EN 1008 [32].

Specimen preparation

Rice husk ash preparation: A sample of rice husk ash was tested for chemical composition through XRD. The chemical composition of the RHA is detailed in Table 2. The sample was oven dried at 110 degrees centigrade for 24 hours to remove moisture and speed up processing time. The ash was sieved through a 500-micron sieve to remove any residual husks, foreign objects and other organic matter. This is referred to as RHA1. A sample was taken at this point and mixes prepared as shown in Table 1. The remaining rice husk ash was then ground in a ball mill for 15 minutes. The ash was then passed through a 45-micron sieve. This is referred to as RHA2.

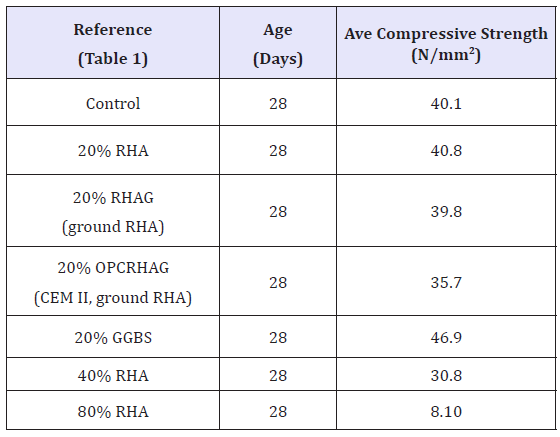

Table 2:Compressive strength results-28 day.

Compressive strength: Compressive strength was determined using 100 x 100 x 100mm cubes using a mix ratio of 1:1:3 with a target equivalent cement content of 350kg/m3. Cement proportion has been calculated using volume as opposed by weight. Mixes were prepared as shown in Table 1. W/C ratio used across all mixes was 0.45, the maximum allowed for pavement quality concrete [22,23]. Samples where loaded into the moulds and placed on a vibrating table for compaction. The samples were allowed to set for 24 hours before being removed from the moulds. The cubes where labelled and placed in a water bath at a constant 20 °C until testing. The cubes were tested by using an Avery-Denison testing machine at a loading rate of 200N/min. Three cubes from each mix were tested at 1, 7 and 28 days. The average load was recorded.

Tensile strength: The tensile strength was determined using cylinder specimens of 150mm diameter and 300mm height. Two cylinders were prepared from each mix detail in Table 1. Each cylindrical mould was loaded in three layers; each layer was tampered 25 times to ensure compaction. The samples were allowed to set for 24 hours before being removed from the moulds. The cylinders were labelled and placed in a water bath at a constant 20 °C until testing. The cylinders were loaded onto the jig and tested by using an Avery-Denison testing machine at a loading rate of 353kN/min. The two cylinders from each mix were tested at 28 days. The average load was recorded.

Compressive strength

Table 2

The minimum 28-day compressive cube strength requirement for highway pavements in the UK is 37N/mm²; this is the requirement for CEM I concrete mixes. There is an allowance for CEM I & SCMs (containing either PFA or GGBS) mixes which equates to 82% of the compressive strength of CEM I concrete mixes - this is 30N/mm² strength at 28 days - with the caveat that the mix will eventually meet the minimum compressive strength required as concrete containing partial cement replacements gain strength for up to 365 days, i.e. long term strength gain as substantiated by many researchers [2,16,33-35]. This means any concrete mix containing partial cement replacements must achieve a minimum compressive strength of 30N/mm² by 28 days and 37N/mm² by 91 days. Giving the same allowance to mixes containing RHA, with the exception of 80% RHA all other mixes exceed the requirements of the minimum compressive strength requirements for motorway standards. Further to this Figure 1 shows that both 20% and 40% RHA concrete mixes reached the minimum requirement of pavement quality concrete at 28 days. According to Bapat [1] & Shetty [36], the early age strength for concrete containing PCRs is solely due to the hydration of cement, with the RHA only acting as an inert filler of voids and not substantially contributing to the strength gain, while the latter age strength was due to the reaction of SiO2 present in the RHA with free lime [Ca(OH)₂] from the hydration of cement in a secondary reaction over time, to form strength giving compounds such as calcium silicate hydrate (C-S-H). Quite interestingly, 20% RHA with CEM II 32.5 has nearly the same strength as 20% RHA with CEM I 52.5 which is very intriguing given the disparity in strength class between both sets of cements [37].

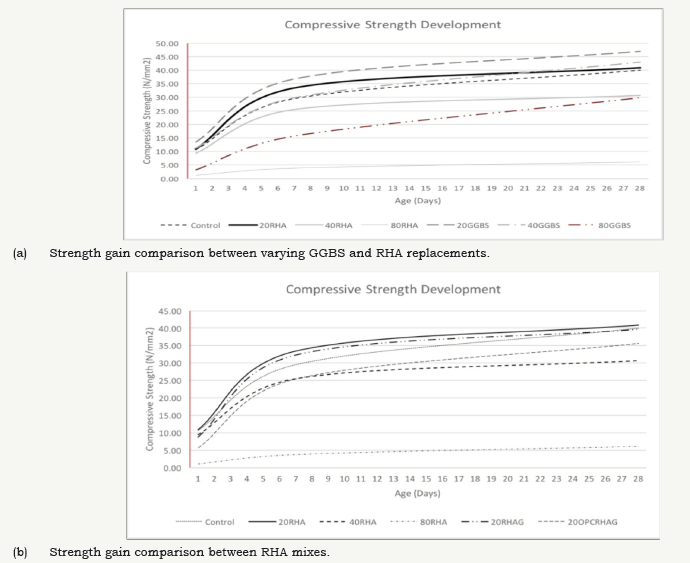

Figure 1:Compressive strength development.

The results also suggest that grinding the RHA lessens the reactivity of the material resulting in a marginally lower strength concrete. This concurs with work done by Mahta [38] who reports that the reactivity of the pozzolan is due to the internal surface area of the particles. It was also noticed that the workability of the unground RHA was significantly better which may be due to the pores retaining the water within the mix and therefore improving the hydration reaction; however, unlike GGBS and PFA, the addition of RHA does not increase the workability, in fact like silica fume, i.e., the water demand of concrete containing RHA increases with increasing amounts of RHA. This increase is likely to be caused by the high surface area of the RHA. On the other hand, the fresh concrete containing RHA was observed to be more cohesive and less prone to segregation than concrete containing 100% CEM I.

Tensile strength

The tensile strength of pavement quality concrete is an important mechanical property when considering the most economical concrete mix to be used to construct continuously reinforced concrete pavements. The correct mix will ensure longevity of the pavement during service and improve the whole-time cost. Table 3 shows the indirect tensile strength of the mixes as detailed in Table 1. The results show that RHA mixes have a reduced tensile strength. This is as reported by Sarawathy et al. [39]. Although these results may seem significant, the mixes reporting acceptable compressive strength for pavement quality concrete maintain an acceptable 28- day tensile strength and therefore for the purposes of this report are not a concern [40,41].

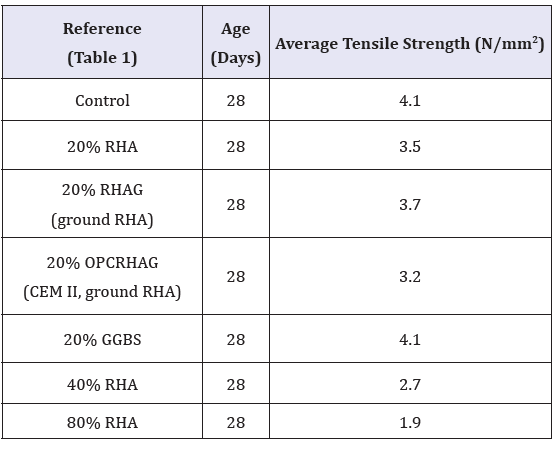

Table 3:Tensile strength results-28 day.

a) It is recommended that replacing cement with unground and sieved RHA up to 20% can provide an improved pavement quality concrete.

b) RHA/cement concrete mixes have higher water demand however are less prone to segregation.

c) It is recommended that RHA be sieved through a 500-micron sieve before using. Preferably RHA should not be ground.

d) The use of CEM II / A-LL 32,5N and 20% replacement of RHA produces a pavement quality concrete sufficient enough for motorway roads.

e) CEM II / A-LL 32,5N and 20% replacement of RHA increases improves the compressive and tensile strength of pavement concrete.

f) The use of CEM I 52,5N and 20% replacement with RHA produces a pavement quality concrete applicable to motorway networks in the UK.
