Silicone Rubber Composites of Differently Fired Cadmium Oxide and Their Positron Lifetime Study

Some composites, polymer-ceramic composites, have often been designed to target specific applications. Interesting electrical or magnetic properties of certain ceramics usually come with the drawback that brittle ceramics cannot be shaped easily into bulk components or flexible sheets. Cadmium oxide (CdO), a II-VI semiconductor, appears to be a promising electromagnetic material. Cadmium oxide with rock-salt structure, is almost entirely transparent in the optical part of the electromagnetic spectrum, and has high electrical conductivity [1,2]. Particularly high room temperature conductivity has been achieved by firing at temperatures like 800 °C as detailed later. Interest in CdO and other transparent conducting oxides (TCOs) for more than two decades has been for optoelectronic devices operating at short wavelengths, thin-film photo- voltaics and flat panel displays. However, current decade finds use of these oxide semiconductors, with potential application in optoelectronics and high-performance electronic device applications. While ZnO, with 3.3 eV room-temperature band gap (Eg) and large exciton binding energy of 60meV, is playing the main role in many II-VI optoelectronic devices, their spectral range is being extended [3] into the visible and deep ultraviolet ranges by alloying ZnO with the smaller band-gap compound CdO [4], having room-temperature Eg of ~2.2eV at the Brillouin-zone centre, and with larger band-gap compound MgO [3,5] with Eg of 7.7eV, respectively.

We find non-stoichiometry [6-10] and, hence, widely varying electrical conductivity [2] in differently heat-treated cadmium ox ide (Figure 1). Large composition variation in the NaCl structured CdO phase has been proved from RBS [5,7], atomic absorption spectroscopy [8], Elastic Recoil Detection Analysis [6-10] and Time of Flight Secondary Ion Mass Spectroscopy [6]. Room temperature resistivity of as-supplied E Mark (India) cadmium oxide was 97m cm. Firing [4,7] at 270 °C reduce it to ~26.4 m cm. Resistivity reduces, further, to ~2.1 m cm after 800 °C heat treatment. It is a n-type semiconductor [1] (as found from Hall effect measurements in this and other work) with NaCl type cubic structure (XRD in Figure 2). We observed [6] weight loss at high temperatures in TGADSC experiments. The conductivity of CdO appears to be associated with its defect structure, either due to excess Cd ions in interstitial positions or due to oxygen vacancies [11]. However, the sintered pellets are brittle and resist any fabrication. So, here we have fabricated [2,12,13] new composites of these differently heat-treated Cd-O solids with an interesting silicone rubber polymer. We have discussed above how cadmium oxide is becoming technologically important. It is welcome for alloying with other oxides or doping and for forming complex with the polymer rubber to form finetuned materials. However, even the pure material is complex, exhibiting non-stoichiometry and defect structures, as a function of its preparation or heat treatment temperature. Positron annihilation spectroscopy (PAS) being a powerful tool to study defects in soft [14] and hard [4,15] condensed matter, we investigate silicone-rubber CdO complex samples by positron lifetime spectroscopy (PLS) [14,15].

Figure 1:Variation, with firing temperature, of room temperature electrical resistivity of heat-treated Cadmium oxide. Low resistivity of 800°C fired “CdO” may be noted.

Cadmium oxide

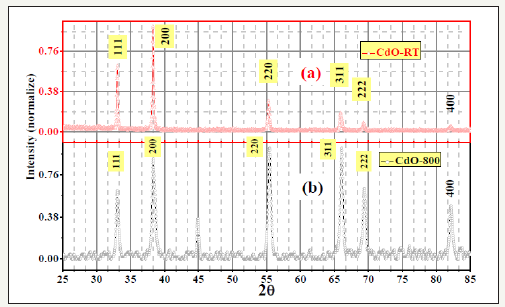

Figure 2:X-ray Diffraction (XRD) patterns for as supplied cadmium oxide (CdO-RT) and 800°C fired cadmium oxide (CdO-800)

There are still a few poorly understood aspects of cadmium oxide like its non-stoichiometry (Figure 2) and colour, although cadmium oxide has been well investigated experimentally and theoretically for many decades. These aspects have been somewhat addressed here. The high achievements of global CdO research include following publications in 2008 and later. Jefferson et al. [1], determined from infrared reflectivity, ultraviolet/visible absorption, and Hall effect measurements, the bandgap and band-edge effective mass of single crystal cadmium oxide, epitaxially grown by metal-organic vapor-phase epitaxy. Analysis and simulation of the optical data have yielded room temperature bandgap and bandedge effective mass values of 2.16±0.02 eV and (0.21±0.01) m0, respectively, with m0 = band-edge effective mass. The valence-band density of states of CdO and similar oxides, have been determined [3] from XPS and DFT calculations. We have studied [6,9] room temperature XPS of differently fired Cd-O, finding significant electronic re-distribution due to the high temperature treatments.

Characterization of differently fired CdO

99.999% pure Aldrich and 99.99+% pure Ma Teck GmbH cadmium oxide (CdO) have been used. These have been supplied as brown powder. This was further ground to fine powder, and then pelletized before firing. Heat treatments (36h) have been done in air in a Carbolite Furnace with PID Temperature Controller at temperatures between 120 °C (to drive out moisture, if any) and 800°C. Samples have been taken out of the furnace under hot condition instead of furnace cooling, to preserve the firing temperature condition. After firing, say, at 800 °C, the fired sample will be called CdO-800, and so on. XRD pattern of each sample has been taken at room temperature in a Bruker Diffractometer to know the correct phase. For the DSC or Differential Scanning Calorimetry runs in a Seiko DSC 6200 set-up, the heating has always been kept at 5ºC/min, as higher rates mask finer features of the DSC plot. Typically, ~25 mg sample has been taken in a miniature platinum (Pt) crucible (~180 mg) on one of the two heaters in the DSC set-up. A similar Pt crucible in empty state on the other heater served as the standard for the differential measurement. A follow-up blank run of two empty crucibles has provided the background correction. A check of the set-up has been our rough measurement of the specific heat of platinum, reproducing the value 0.033 cal g-1.K-1 in 20-500 ºC range [16,17]. This is encouraging, although phase transition temperatures rather than specific heat values have been of interest in the present work. Thermo-gravimetric Analysis (TGA) has been similarly done in a Seiko TGA set-up.

Composites of differently fired CdO and silicone

Composites have been prepared with the Silicone Polymeric Binder 732 RTV (to be called P2) or 734 RTV (to be called P4) manufactured by Dow Corning. It is a thick liquid inside its tube. Overnight curing in air of the binder or the binder-solid composite resulted in rubber-like sheets of controllable thicknesses and sizes. In this way, composites (Tables 1 & 2) were prepared from P2 or P4 and fine powders of unfired or fired cadmium oxide. The ingredients have been mixed in various proportions. Each composition was mixed homogeneously and allowed to cure overnight on glass plate in air.

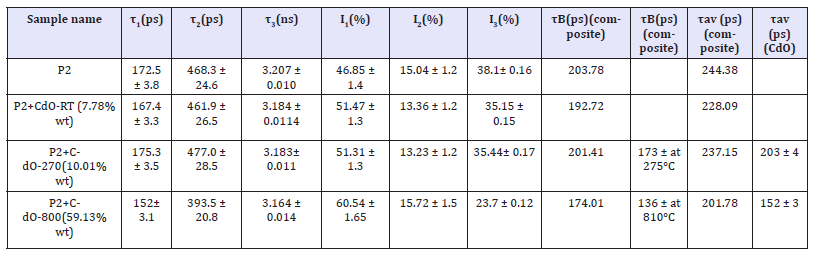

Table 1A:Positron lifetime results for composites of silicone rubber P2.

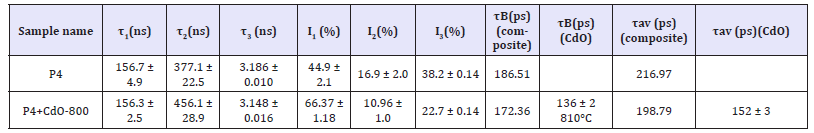

Table 1B:Positron lifetime results for composites of silicone rubber P4.

Table 2:Calculation of Fractional Free Volume of pure polymers P2 and P4, and their CdO composites.

Positron lifetime measurement

Radioactive 22Na is the most commonly used PLS probe. It emits a prompt gamma-photon of 1.276MeV almost simultaneously with the positron (Figure 3), and the prompt gamma-ray can be considered as the birth signal of the positron. The positron annihilates with an electron (in the probed sample) predominantly by emitting two oppositely directed 0.511MeV gamma-rays. These photons are oppositely directed and 0.511MeV in the electron-positron centre of mass frame. This annihilation gamma–ray can be considered as the death signal of the positron. The 22Na source is sandwiched (Figure 4) between two tablets of the sample, so that all the emitted positrons will annihilate with the electrons of the sample. The time (t) that elapses between the detections of the 1276keV and 511keV photons by the two scintillation detectors (BaF2 scintillators with PMTs), acting as start and stop signals for a time-amplitude-converter (TAC), is the positron lifetime in that sample or that material. The lifetime spectrum N(t) vs. t is recorded in a computer-based MCA. Higher electron density leads to shorter lifetime in the bulk.

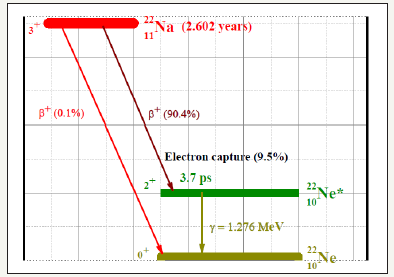

Figure 3:Decay scheme of the radioactive isotope 22Na, present PAS probe. This has been embedded in the Source (vide Figure 4) as a layer of NaCl. Most (90.4%) of the 22Na atoms decay by emission of a positron and an electron neutrino to the excited state 22Ne*. 22Ne* has a very short lifetime (3.7ps) to decay into the ground state by the emission of a γ-quantum of 1.27Mev. So, this γ -quantum of 1.27Mev is the birth signal of the positron, important for PAS (Positron Annihilation Spectroscopy). Competitive processes of electron capture (EC) and direct transition to the Ne ground state are of much lower probabilities.

Figure 4:The schematic diagram shows the sample-source sandwich arrangement to let the positrons from the source migrate into Sample 1 or 2. Registering (i) the 1.27MeV prompt photon as the birth signal of a positron (start for a time-amplitudeconverter or TAC), and (ii) one of the two 511keV annihilation γ -rays as death signal for the positron (stop signal for the TAC) measures the positron lifetime. The γ -quanta are detected as light flashes or photons in the scintillator. These photons are converted into electrical pulses in the photo-multipliers

N(t) vs. t graph for ceramics and polymers often consists of three lifetime components, i i = 1,2,3 with intensities Ii. Pure annealed metal standards show only one lifetime component. The longest component 3 (with intensity I3) is the lifetime of positronium (ps) atoms formed in holes or voids in the sample. The positronium (Ps) lifetime (~1 to ~3 ns) is longer in larger holes. I3 is supposed to give fraction of holes of size corresponding to 3. Here, following [18-20]

with R0 representing the total radius of the hole (assumed to be spherical), where positroniums (Ps) are localized. R is the radius of the free volume hole, and R=R0-R. Here, R is the thickness of the uniform electron layer, accepted as R=1.66 Å. So, average free volume, V_F = (4/3) R₃ (Å3).

Free volume fraction, V_f = CV_FI₃ (%), accepting C=1.8 10-3Å-3. Also, average lifetime and bulk lifetime are [15,19,21]

Cadmium oxide, CdO, is usually supplied by manufacturers as a light brown powder. It is the most ionic II-VI compound that should have high resistivity. We measured, by vander Pauw (vdP) 4-probe technique, its room temperature resistivity to be high: 97m cm. It is remarkable that after 800 °C firing of the as-supplied sample for 36 hours, we got black coloured semi-metallic sample of only ~2.2mΩcm room temperature resistivity. This and related colour changes have not been well recorded or explained in the literature. Many compounds or phases (like CdO2) are known for cadmium and oxygen [22,23]. However, same XRD peaks visually at same positions for differently fired cadmium oxide (Figure 2), prove these to represent the same “CdO” phase of the phase diagram. Significant changes of peak heights imply defect structures, atomic re-distribution and non-stoichiometric compositions. To understand the origin of generated electrical conductivity, we carried out Hall measurements (Table 3) at 4.8kG on differently fired cadmium oxide samples. This showed negative Hall Coefficient proving electrons to be the charge carriers. Such negative free carriers must have been generated by excess Cd ions or oxygen deficit, as mentioned earlier in this work.

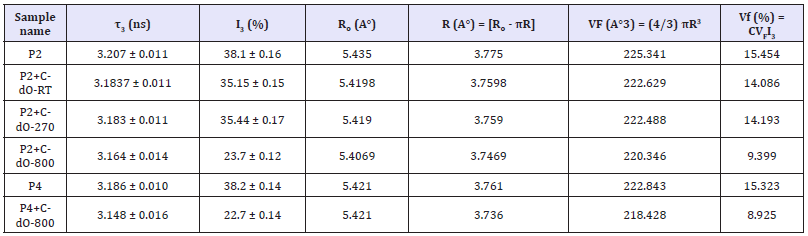

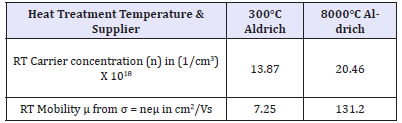

Table 3:

Having explained the electrical conductivity of differently fired CdO, we proceed to their composites with the silicone rubber. As-supplied CdO or CdO-RT loses weight or mass (TGA graph in Figure 5) basically at two temperatures (236C and ~381C) that correspond to two endothermic dips in the DSC plot (DSC graph in Figure 5). The DSC result allows us to go deeper into the 2-step O-loss from the NaCl structure of cadmium oxide. O-loss at around 236C can start an atomic re-arrangement on further heating. The majestic exothermic peak at 270 C implies a lower potential energy structure or state at 270C (Figure 6). So, atomic re-arrangement takes place during the progress of TGA to lead to a more tightly bound lower potential energy state at around 270 C. So, next steep O-loss from this state requires a higher temperature (T), ~381 C. This also supports the fact that there is practically no O-loss in TGA of the 800C fired sample as shown in Figure 6a & 6b. DTGA or temperature derivate of the TGA signal is shown in Figures 5b & 6a to check sharp changes in TGA vs. T graphs.

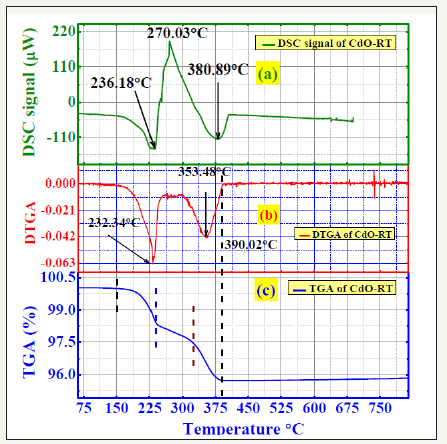

Figure 5:(a) DSC or Differential Scanning Calorimetry of as received cadmium oxide, CdO-RT. (b) DTGA or temperature derivate of TGA (Thermo-Gravimetric Analysis). (c) TGA pattern.

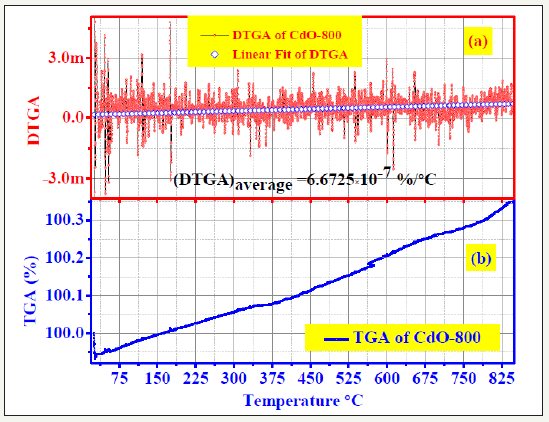

Figure 6:6a: Thermo-gravimetric Analysis (TGA) on powdered CdO-800 sample, already fired at 800 °C, 6b: Heating up to 825 °C results in no mass loss. Gain in mass, only 6.6725×10-7%/°C, is insignificant and not understood.

Many polymers have large free volume fraction. Of the three positron lifetime components, the longest component, τ3, originates from voids where positroniums form and reside for time 3 till annihilation [15,21,24]. So, I3 indicates their number. Table 1a shows that I3 reduces from ~38% in pure P2 polymer to ~35% on adding 7.78wt% CdO-RT or ~10.01 wt% CdO-270. This corresponds Table 2 to the free volume fraction Vf = CVFI3 of 15.45% in pure P2 reducing to 14.09% for the CdO-RT addition and to 14.19% for CdO- 270 addition. Adding large amount of 59.13% CdO-800 reduces I3 significantly to (23.7 0.12) % with 3 remaining practically the same. Similar addition in P4 reduces I3 to a similar value (22.7 0.14), Table 1b. In fact, Table 1b shows the polymer P4 to have almost identical 3 (= (3.18 0.01) ns) as P2, as expected. Table 2 shows that the free volume fraction Vf reduces from 15.45% in pure P2 to 9.399% in P2+59.13% CdO-800. This compares well with Vf=8.925% in similar P4+CdO-800. Bulk lifetime (τB) is the lifetime of the probing positrons in the bulk, while lifetime component τ2 with τ2 > τB, is the lifetime of positrons trapped at defects (like positive-ion vacancies). Adding n type CdO-800 to P2 or P4 indeed reduces bulk lifetime due to more electrons being available for electron-positron annihilation. Lifetime component τ2 exists and is larger than τB for all sample to indicate trapping by defects in cadmium oxide.

Novel properties and non-stoichiometry in differently fired cadmium has been probed by a host of characterization techniques. Next, their composites with a silicone rubber binder have been formed at different concentrations to get flexible cloth-like composites with the advantages of cadmium oxide. Flexible electromagnetic (EM) shielding [13] has been one of the applications in mind. Current positron lifetime measurements in the composites prove that cadmium oxide enters the free volume of the polymeric binder to form the composites. The measurements also show higher number density of electrons in polymer-embedded 800C fired CdO (CdO- 800) in line with higher electrical conductivity measured in pure CdO-800. So, the composites are seen to retain the advantage of high electrical conductivity, while providing flexible samples. These composites and other silicone rubber-based composites have been used [12,13] for EM Interference (EMI) shielding applications.
