Polymer Science: Peer Review Journal
Instable Melt Extrusion of Polypropylene through Capillary
Wang Ruming, Chen Yabo, Fan Zepeng and Wang Kejian*
College of Mechanical and Electrical Engineering, Beijing University of Chemical Technology, China
*Corresponding author:Wang Kejian, College of Mechanical and Electrical Engineering, Beijing University of Chemical Technology, 100029, China
Submission: March 17, 2021;Published: April 06, 2021
ISSN: 2770-6613 Volume1 Issue5
Abstract
One polypropylene melt was extruded through capillary rheometer with several die diameters for testing its shear viscosity at different shear rates and temperatures when the extrudate distortion was observed. Under certain conditions, the melt exhibits shear thinning in viscosity with shear rate. The die with greater aspect ratio of length-to-diameter allows the melt to relax more being embodied by decrease shear viscosity. In capillary flow, the applied shear orients, uncoils or disentangles molecular chains to store energy for elasticity. At 180 °C, the extrudate swells and distorts spirally until random fracture. The distortion and the swelling can be weakened by using the die with larger aspect ratio or by increasing temperature due to chain relaxation.
Keywords: Instable melt extrusion; Capillary rheometer; Polypropylene melt; Distortion; Swell; Viscosity
Introduction
Polypropylene (PP) is a kind of general synthetic thermoplastic resin with the
characteristics of non-toxic, tasteless, low density, good rigidity, impact resistance, flexure
resistance and chemical corrosion resistance. It is widely used in civil and industrial and
engineering’s such as packaging, coatings and building and parts of electronic devices [1].
There are two types of factors that affect the viscosity of polypropylene. The internal ones
include molecular structure, molecular weight and its distribution as well as branching
characteristics. The external ones involve such processing parameters as shear rate and
temperature as well as geometry of flow field [2,3]. PP melt is non-Newtonian fluid [4]. Its
flow ability can be tested by capillary rheometer, from which the plug pressure versus its
velocity is converted into shear stress versus strain rate, further viscosity is calculated using
different constitutive models reflecting the influences of shear rate and temperature as well
as die geometry of diameter and length [5]. The ratio of diameter to length is also called aspect
ratio. Besides, the extrudate surface and sizes are also observed reflecting the extrusion
characteristics. The surface gradually appears smooth, rough, sharkskin, spiral, oscillated and
fractured in extrusion instabilities with the increase of shear rate [5-7]. The ratio of extrudate
diameter to die inner diameter is usually larger than one, which is termed as swell ratio. The
swelling degree and the surface roughness are embodied of melt elasticity [6]. Die swell as
one characteristic elasticity is the functions of material parameters, flow field characteristics,
the reservoir-capillary entry effect and the outside swell environment.
When molten polymer flows through a capillary, molecular chains become oriented,
uncoiled or disentangled due to the applied shear. The entanglements will, to some extent,
prevent the molecules from slipping past one another, thus preventing total relaxation of
the molecules. As melt leaves the die, molecular chains tend to recoil in the flow direction
and grow in the normal direction, leading to extrudate swell. The mechanism and degree
of swelling are usually explained in terms of elastic recovery or effect of residence time on
the applied stresses. The phenomenal [6] or physical models [7] have been developed for
showing the rules in addition to texture checks [8]. Such analyses are important to study the
relationship between rheological properties of polymer melt and processing conditions for
the determination of process parameters and the improvement of plastic forming quality.
Here, the capillary is used to analyze the effects of temperature and die geometry on viscosity
and extrudate surface.
Test Materials and Methods
Materials
Polypropylene (PP 4220) with melt mass flow rate of 0.92-0.94g/10min and density 0.963g/cm3 was from Yanshan Petrochemical Co., Ltd.
Test method
One capillary rheometer was used at constant pressure. The die length is of 5,10 or 20mm while diameter is 1, 1.5 or 2mm. Process temperature was 180, 190, 200, 210 or 220 °C. The shear rate was set as 10, 50, 100, 300 or 500s-1.
Results and Analysis
Effect of length-diameter ratio of die on shear viscosity of polypropylene
(Figure 1) presents the shear viscosity versus shear rate curve of PP melt through dies of different length-diameter ratio at 180 °C for capillary barrel under constant pressure. The shear viscosity decreases with the increase of shear rate, showing PP melt being pseudoplastic fluid. Under shear against barrel wall, the macromolecular chains are continuously oriented and disentangled along the flow direction. Besides, the shear viscosity decreases with the increase of die aspect ratio due to the greater content of disentanglement and relaxation. The extrudates from three die ratios at 180 °C are shown in Figure 2. For each die ratio, four specimens are obtained at 10, 50, 100, 300 and 500s-1 respectively. Only one smooth specimen is obtained for 5:2 die at 10s-1. All of other specimens are spiral. The helix pitch turns greater when the melt were extruded at higher shear due to a greater elasticity. The similar tendency in pitch occurs in longer die of the same diameter of 2mm when the roughness becomes smaller due to a greater relaxation. The distortion results from the stored elasticity at entrance and shear orientation. However, the depth of spiral groove is not monotone function of length-diameter ratio in Figure 2. It is reduced when the inner diameter or when the length of die is increased as listed in Table 1. Table 2 shows the swell ratio changes with die sizes. It is reduced when the length of die is increased while it is increased when the inner diameter of die is increased as listed in Table 1. The former case is due to the longer residence time of melt in the die for elastic recovery, i.e. relaxation. The latter case is due to easier elastic recovery outside the die of larger diameter. This tendency becomes weaker when the die length is longer because a greater content elastic deformation at entrance can be relaxed in longer die.

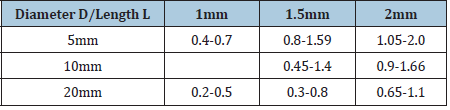

Table 1:The depth (mm) of spiral groove on the extrudate with different dies.

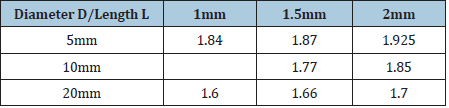

Table 2:The extrudate swell ratio for dies with different sizes at the same shear rate.
Figure 1: Shear viscosity versus strain rate for dies with different length-diameter ratios.

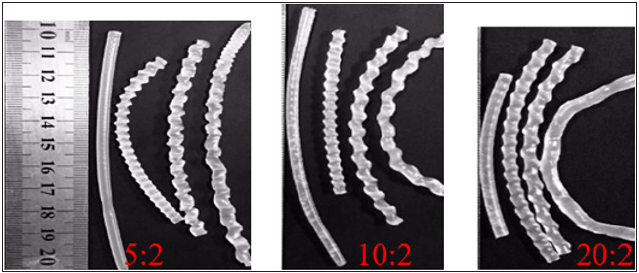

Figure 2: The extrudates under four shear rates with three die length-diameter ratios.
The effects of temperature on shear viscosity of polypropylene
Figure 3a shows the shear viscosity versus shear rate of PP melt at different temperatures under constant pressure and die length diameter ratio of 5:2. At the same temperature, the shear thinning is preliminary. Under the same shear rate, the viscosity gradually decreases with the increase of temperature. Higher temperature allows molecular chains to deform and relax faster. Figure 3 shows the influence of temperature and die length-diameter ratio on the swell ratio. For a certain die, the higher the temperature is, the smaller the extrusion swell ratio is. The movement ability of PP molecular chain increases at higher temperature corresponding to faster relaxation and smaller orientation. At the same temperature, the swell ratio drops with length-diameter ratio showing more relaxation, resulting in the lower resident elasticity and higher viscous dissipation of deformation energy stored in the melt. The extrudates exhibit differently as illustrated in Figure 4 when the melt is extruded from die of 5mm in length and of 2mm in diameter. All specimens extruded at different are smooth at low shear rate 10s-1. The extrudates become smoother when increasing barrel temperature at the same shear rate. The distortion is strengthened in stronger shear at the same temperature, the shape turns from spiral state to sharkskin state. More importantly, the smooth surface is obtained for four shear rates when temperature is not below 200 °C. With the increase of temperature, the extrusion distortion is reduced. When the temperature is higher than 210 °C, the distortion phenomenon has disappeared completely.

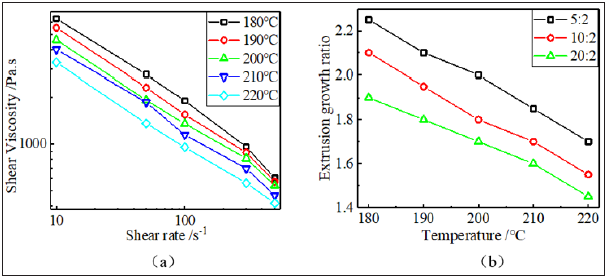

Figure 3: The viscosity curves versus shear rate in increasing temperature (a) and swell ratio versus temperature for dies with different aspect ratios. (b) shows the influence of temperature and die length-diameter ratio on the swell ratio.

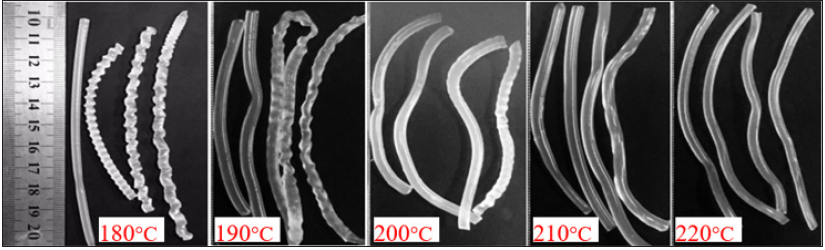

Figure 4: The extrudates from die of 5:2 for barrels of different temperatures at four shear rates.
Conclusion
a. The melt shear viscosity decreases increasing shear rate
or die aspect ratio under the same other conditions.
b. The viscosity decreases with the increase of temperature
under the same other conditions.
c. At 180 °C, the extrudate became rougher in spiral from
smooth surface until random fracture after being distorted.
The distortion and die swell ratio decreases with the increase
of die aspect ratio.
d. The swell ratio and extrudate distortion drop when
increasing temperature.
References
- Papageorgiou DG, Chrissafis K, Bikiaris DN (2015) β-nucleated polypropylene: processing, properties and nanocomposites. Polymer Reviews 55(4): 596-629.
- Li Q, Chen Y, Song X, Xie Y, Hou Q, et al. (2015) Synthesis of phosphorus-containing flame-retardant antistatic copolymers and their applications in polypropylene. J Appl Polym Sci 132(12): 41677-41685.
- Lee HY, Kim DH, Song Y (2006) Anomalous rheological behavior of polyethylene melts in the gross melt fracture regime in the capillary extrusion. Polymer 47(11): 3929-3934.
- Jae JB, Costas T (1998) A study of extrudate distortion in controlled-rheology polypropylenes. Polym Eng Sci 38(2): 274-281.
- Barczewski M (2015) Flow instabilities in polymer melt extrusion. Part I. Types and characteristics of flow instabilities. Polymer 60(10): 612-619.
- Wang KJ (2010) Description of extrudate swell for polymer nanocomposites. Materials 3(1): 386-400.
- Cyriac F, Covas JA, Gilles Hilliou LH, Vittorias I (2014) Predicting extrusion instabilities of commercial polyethylene from non-linear rheology measurements. Rheologica Acta 53(10-11): 817-829.
- Manel K, Abdehak A, Chedly B, Mohamed SA (2020) Effect of a radial flow foregoing a capillary die on the behavior of extruded PDMS: velocity field-distorted strand correlation. Rheologica Acta 59(7): 425-434.
