Minimally Invasive Fixation of Anterior Pelvic Ring Disruption Using INFIX Technique

Ebeed yasin MD1*, Faisal Adam MD2, Hesham Refae MD1, Mahmoud Abdelgaliel MSc1, Ahmed Abdellatif MD1, Morsy Basiony MD1, Mohamed Salman MD1

1Orthopaedic Department, Aswan University, Egypt

2Orthopaedic Department, Assiut University Hospital, Egypt

*Corresponding author: Ebeed Yasin, Aswan University, Egypt

Submission: February 07, 2020;Published: February 18, 2020

DOI: 10.31031/OPROJ.2020.06.000646

ISSN: 2576-8875
Volume6 Issue5


Background: The posterior pelvic ring provides the main stability 60%, the anterior ring account for 40% of stability of the pelvic ring. Unstable pelvic ring injuries usually associated with high energy trauma and high mortality and morbidity. External fixation is commonly used as a definitive fixation for unstable anterior pelvic ring fractures, but it has many drawbacks. INFIX, recently developed as minimally invasive technique utilized by authors to achieve stable fixation and good patient satisfaction with minimal complication.

Purpose: The preliminary study aimed to evaluate the fracture reduction, stability, bone healing, intra and postoperative complications using the INFIX technique.

Methods: A prospective cohort study was carried out for patients with unstable anterior pelvic ring fractures in Aswan University Hospital and Assiut University Hospital utilizing spinal pedicle screws inserted into the supra-acetabular bone and connected by a subcutaneous rod (INFIX).

Material: Sixteen patients were carried out with one year follow up, (62.5%) pelvis C and (37.5%) pelvis B fracture. (94.75%) males and (6.25%) females their age ranges between (17-43 years), Mean (29.54±6).

Results: According to radiological Matta criteria, (81.25%) excellent reduction, (12.5%) good reduction and (6.25%) fair reduction. According to Majeed Score, (93.75%) excellent and (6.25%) good clinical outcome. Postoperative complications, 3 cases of lateral femoral cutaneous nerve (LFCN) irritation (18.75%) and 2 cases of asymptomatic heterotopic ossification (12.5%).

Conclusions: INFIX is a reliable method for fixation of anterior pelvic ring with small incision, short time for application, excellent clinical and radiological outcome with fewer complications.

 Keywords: Pelvis; Fractures; Anterior ring; INFIX


Management of high energy pelvic ring fractures represents a challenging issue for orthopedic surgeons. Unstable high energy pelvic ring fractures usually associated with high morbidity and mortality [1,2]. Urgent intervention with simple stable fixation device is needed to achieve hemodynamic stabilization. External fixation is commonly used for fixation of unstable anterior pelvic ring fractures. Pin site infection, fixation loosening, patients unsatisfied, nerve injury, delayed rehabilitation and difficult nursing are common complications with external fixator [3]. Open reduction and internal fixation using plate need more dissection in dangerous area and associated with potential neurovascular and bladder injury, more blood loss and it is contraindicated with visceral injury and contaminated field so many surgeons not prefer it [4]. The INFIX is a pelvic subcutaneous cross-over internal fixator technique for fixation of anterior pelvic ring fractures using a Polyaxial pedicle screw anchored to the supra-acetabular region of the ileum in each side and connected by contoured rod which inserted subcutaneously after successful closed reduction. The original description of the INFIX was by Kuttner et al. [3]. The Nickname “INFIX” had been introduced in the English literature in 2012 [5].


Our study entails a prospective Cohort Study to evaluate preliminary results of patients with fracture pelvis Tile B & C from June 2018 to December 2019 treated on orthopedic department, Aswan University Hospital and Assiut University Hospital by using INFIX and follow up for one year (mean, 14.5 months). The inclusion criteria were unstable pelvic fracture (type B&C), recent fracture (> 10 days), closed fracture and patient age more than 14 years old. However, the study was excluding obese patients, osteoporotic patients, need for exploration, bladder Injury and unfit for anesthesia.


sixteen patients were carried out with one year follow up, 15 males (94.75%) and one female (6.25%) their age ranges between (17-43 years), Mean (29.54±13.6). High Energy Trauma was the cause in all cases as expected from the violent nature of pelvic fractures. Motor car accidents was the major cause, it was 9 cases (56.25%), 4 cases fallen from height (25%), 2 cases motor bike accident (12.5%) and one case road traffic accident (6.25%). According to Tile classification there were 10 case (62.5%) pelvic B fracture and 6 cases (37.5%) pelvic C fracture.

Surgical technique

If both anterior and posterior fixations are planned, the posterior fixation is typically performed first, then anterior fixation with INFIX. Under general anesthesia, the patient is positioned supine on a flat radiolucent table and the patient’s pelvis is widely sterilized and draped. Longitudinal 3cm skin incision at the level of anterior inferior iliac spine (AIIS), an obturator outlet view is obtained of one hemi pelvis to mark the incision on the skin, this is achieved by positioning the X-ray tube (source) below and image intensifier (detector) above the table. The detector is tilted 30o laterally and caudally to obtain a clear ‘‘teardrop’’ appearance of the supra-acetabular bone (Figure 1).

Figure 1: Tear drop, mark skin incision.

Subcutaneous blunt dissection is performed gently to avoid the injury of the lateral femoral cutaneous nerve (LFCN). Then the deep dissection is carried down to the bone in the interval between the sartorius and tensor fasciae lata muscles. The starting point of the track for pedicle screw is created in the anterior inferior iliac spine using the Awl to perforate the near cortex and its position is confirmed radiographically using obturator outlet view (Figure 2).

Figure 2: Obturator inlet view, showing awl and pedicle finder insertion.

The awl is then removed and replaced by the pedicle finder which is advanced cranially between the two tables of iliac bone toward the sacroiliac joint and above the level of greater sciatic notch. Two additional fluoroscopic views are obtained. First, an obturator inlet view is obtained by tilting the C-arm detector approximately 30o laterally and cranially, but fine adjustment should be performed until obtaining a clear view passage of the pedicle finder between well demarcated inner and outer tables of the iliac bone.

The second view, a standard iliac oblique view is obtained by tilting the C-arm detector approximately 300 medially to ensure the starting point has remained at least 2cm cranial to the hip to avoid intracapsular placement and that the trajectory of the screw is just cranial to the greater sciatic notch [6]. The pedicle screw is inserted in the prepared bony track after removal of the pedicle finder. Screw length is planned to catch enough grip through the strong sciatic buttress region but not reach the sacroiliac joint. In this series, the measurements of the pedicle screws were 6.5 or 7.3mm in diameter and 75-100mm in length. The screw is inserted until the head is just deep to the level of the fascia lata.

The same procedure is repeated for the contralateral hemi pelvis. Confirmation of the position of pedicular screws: the same three fluoroscopic views (obturator outlet, obturator inlet and iliac) are used to confirm the screw has been advanced along the same prepared track (Figure 3).

Figure 3: Obturator inlet, obturator outlet, oblique iliac view.

A stainless-steel connecting rod (6mm diameter) is contoured to fit the anatomical contour of inguinal region of the patient without compression the femoral neurovascular bundles or the abdominal viscera. The subcutaneous track for the rode is made by blunt long hemostats that inserted in the subcutaneous tissue at the level of the lower abdominal fold just superficial to the fascia until it reaches the contralateral incision. The bent rod is then inserted in the subcutaneous track and fixed into the screw heads tightly on one side and loose on the other side to permit manipulation during reduction. Multiaxial screw heads with open sections greatly facilitate rod placement. At this point the reduction instruments attached to the screw heads and manipulated according to the requirements of the fracture pattern (compression or distraction device) to obtain fracture reduction. Also, the reduction can be obtained manually through side to side compression of both hemipelvis. With the reduction being held, the assistant tightens the set screws to fix the rod to the screw heads. Then the wounds are closed in layers (Figure 4).

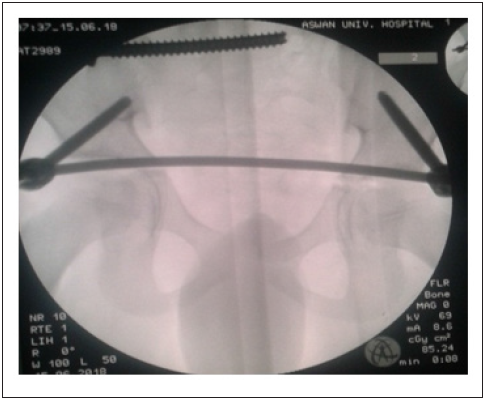

Figure 4: After INFIX application.


INFIX application consumes long time at first, this time reduced gradually, so it takes 90 minutes on the first case and 45 minutes on the last case. The mean hospital stays (7±4) days. Reduction follow up (Matta criteria)[7], 13 cases had excellent reduction postoperative (81.25%), 2 cases had good reduction (12.25%), one case had fair reduction (6.25%), on follow up after 1.5, 3, 6 and 12 months, the results were the same as early postoperative which indicate stable fixation. MAJEED score [8] of clinical follow up after one year for study group, there were 15 cases of them had excellent (93.75%) and 1 case had good clinical outcome (6.25%). Two cases show mild asymptomatic heterotopic ossification (12.5%), 3 cases had lateral femoral cutaneous nerve irritation postoperative which resolve spontaneously few days postoperative (18.75%), also one case had DVT after 3 months follow up (6.25%), no 2ry instability, infection, femoral bundle affection nor technical error.


Many techniques are used for management of unstable fracture pelvis aimed to stabilization of hemodynamic status and fracture reduction. External fixation and plates are the two popular methods used for this issue, each of which has its own complications. External fixation device usually associated with Pin track infection, fixation loosening and difficult nursing [3], on the other hand, Open reduction and internal fixation is associated with potential neurovascular and visceral injury [4]. Recently, the minimally invasive INFIX technique utilized by authors to achieve stable fixation with minimal complication [5]. Our study aimed to evaluate the preliminary result of INFIX technique for treatment of unstable fracture pelvis.

In our study, within the postoperative first day, all patients were satisfied as they were pain free, starting rehabilitation without weight bearing, changing their bed positions even in prone decubitus without limitations. Patients started protected weight bearing after 6 weeks and full weight bearing after 12 weeks. Although, some patients could feel the implants, it did not interfere with their ability to ambulate, this is the major advantages of INFIX which reported on other studies [5].

Clinically and radiologically, fracture union rate was 100% (mean union time was 10 weeks) without any union complication although some cases of delayed union reported on other literatures [4]. The authors used polyaxial screws vary from 7-10mm in diameter [3,5,9]. We used two screws diameter; 6.5 and 7.3mm which achieved an excellent stability. The largest screw diameter may contribute to LFCN neuropraxia because Scheyerer reported no LFCN palsies using a smaller screw [10]. In our study, unilateral lateral femoral cutaneous nerve (LFCN) irritation was reported only in three cases (18.75%) which improved spontaneously few days later. Rahul et al, reported irritation of the lateral femoral cutaneous nerve in 27 of the 91 patients (30%) [11]. The mean operation time for INFIX application almost equal to the time reported in other literatures which was 51 min (range 44-65) [3].

As regard to infection, loss of reduction, heterotopic ossification, DVT, LFCN and femoral nerve palsy, our final results were better than other studies [11] (Table 1).

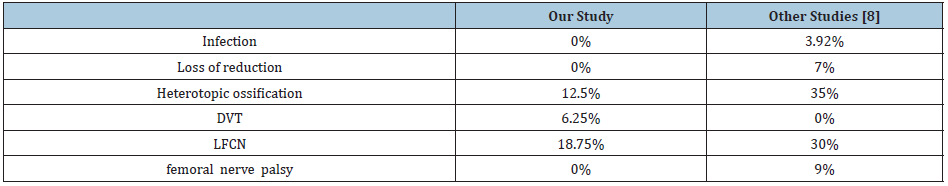

Table 1: Our results compared to other studies.

Table 2: Our results compared to external fixator.

Table 3: Our results compared to plates and screws.

In our study INFIX Achieve better results than the studies [12,13] using the external fixator (Table 2) and better than the studies of internal fixation using plates and screws [14] for management of unstable fracture pelvis (Table 3). Larger sample studies with longer follow up are needed.


INFIX achieved better results than other fixation methods used for management of unstable fracture pelvis as regard to fracture reduction, stability and bone healing with less operative time, small incision and less complication rate.
