Full Text

Orthoplastic Surgery & Orthopedic Care International Journal

A New Method for Reduction of Shoulder Dislocations

L Prakash*

Institute for Special Orthopaedics, India

*Corresponding author: L Prakash, Institute for Special Orthopaedics, 29, Karuneegar Street, Nerkundrum, Chennai -600107, India

Submission: October 26, 2017;Published: February 23, 2018

DOI: 10.31031/OOIJ.2018.01.000511

ISSN: 2578-0069
Volume1 Issue3

Abstract

A new method of reduction of anterior dislocations of shoulder is described, which requires neither analgesia or anaesthesia/ pre-med, assistants, or traction, is reproducible, and yet provides reduction in almost every case including dislocations delayed up to three months. Several methods of reducing an acute anterior dislocation of the shoulder have been described [1-24]. Around ten years back, the author introduced a different method, in which the shoulder was reduced painlessly, and without anaesthesia in 87 consecutive cases over a decade, including delayed and neglected dislocations of up to three months duration.

The method was announced and described by an internet video in May 2016, and since then more than twenty thousand shoulders have been reduced in various centres of the world with ease, without anaesthesia, and with reproducible success in every case, if it was done exactly the same way as described by the author. This paper describes the method, and analyses the results of the first hundred and forty seven cases reduced by this method.

Context

This prospective study has been performed in Madras Central Prison, for over ten years where about a hundred patients with anterior shoulder dislocations were managed successfully and subsequently 47 patients were managed in two years of clinical practice. With extremely restricted medical facilities, and complete lack of aesthetic drugs this procedure was developed under duress. The first patient to be reduced had dislocated his shoulder 19 days prior. The second dislocation was 11 days old and the third one was 89 days later. Almost three months old. In each case the reduction was almost automatic, painless and effortless both for the surgeon and patient since the video publication of the method thousands of successful procedures have been reported from the world over within two months, and many more are being reported or communicated each day [25-29].

Aims

To evaluate the efficiency of the Prakash’s Method in reduction of Anterior Dislocation of the Shoulder (gleno-humeral) Joint.

Settings and design

A hundred and forty seven consecutive shoulder dislocations, from immediate to three months old, including sixteen with associated fractures, were reduced by the author, by this method without anaesthesia or analgesia. There were no failures. The average reduction time was four and a half minutes, with a minimum of three and maximum of six minutes. Subsequent efforts by other surgeons in other centers also produced identical results, confirming the fact that this is very useful tool in the armoury of those dealing with this type of injuries.

Methods and Material

This is a prospective study conducted among convict prisoners and staff members of Madras Central Prison between 2003 to 2014. Eighty seven prisoners and thirteen prison guards and officers, who dislocated their shoulders over a ten year period, were treated by this method. Data recorded included duration since dislocation, mode of injury, the time needed to complete the reduction from the start of the procedure, and the number of attempts at reduction. The patient rated the pain during the reduction as none, mild, moderate, or severe, and these ratings were given a score on a 4-point scale with 1 indicating no pain and 4, severe pain. Complications, if any, were also noted.

Method for reduction of shoulder dislocations: technique

The diagnosis was confirmed by clinical examination and X-Ray findings using an anteroposterior radiograph. A neurovascular examination of the extremity and a thorough examination for coexisting injuries were carried out. The principle of this method is that traction has no role in reduction of shoulder dislocations. These are purely rational and lateral translation injuries and the reduction too is performed by rotations and lateral translations. The patient either stands with his back to the wall to fix his scapula. Else he Sits on a chair with a back rest and pushes his back against the chair to fix his scapula. This procedure does not work as effectively in supine or prone positions. No assistant is needed and the surgeon easily and single handedly performs this procedure. The forearm is held by the elbow and wrist and the following sequence is deployed.

a. Slow gentle external rotation until the arm is fully externally rotated. There should be no attempt at abduction or adduction. The external rotation should be done with the arm in its original position. This step is performed very gently and slowly, often taking up to a minute. The forearm acts as a long lever arm to achieve the external rotation.

b. The limb is kept in external rotation for two to three minutes by the clock. The patient is engaged in conversation so that his attention is diverted during this step, as this is the painful part. This is the most important step, and performing it properly is essential for this method.

c. The limb is now slowly adducted in external rotation till the elbow comes over the body.

d. The limb is now slowly internally rotated so that the fingers touch the opposite shoulder.

The shoulder glides in majestically without any audible clicks, clunks or sounds. The average time taken for the procedure is there to four minutes (Figure 1).

Figure 1: Technique: method for reduction of shoulder dislocations.


Level of evidence: Therapeutic study, Evidence level 4.

Results

The study done at Madras Central Prison, for over ten years had a hundred patients with anterior dislocation of the shoulder were reduced successfully, and subsequently 47 patients were managed in two years of clinical practice.

Figure 2: Traction has no role in reduction of shoulder dislocations.


a. Age: The age distribution was between 18 and 78.

b. Patient’s age and numbers.

c. Sex: All patients were males.

d. Side: Right shoulder was dislocated in 110 and left in 37, indicating the preponderance of dominant hand involvement (Figure 2 & 3).

e. Mechanism of injury: In all cases it was rotation lateral translation injury.

f. Duration since dislocation: Minimum ten minutes to maximum 89 days.

g. Time taken for reduction: Three to six minutes with an average of four and a half minutes.

h. Pain during manipulation: Grade one (no pain) in 116 patients, Grade 2 and 3 in 30 patients and grade 4 in one patient, the oldest in the group. The patient selection might also be a cause for this finding, as all patients were prisoners or prison staff with high pain threshold.

i. Number of attempts: Every shoulder reduced in a single attempt and manoeuvre.

j. Complications and failures: None (Table 1).

Table 1:


Discussion

More than 50-60% of dislocations of large joints involve the shoulder (glenohumeral) [30-34]. Up to 90-96% of shoulder dislocations are anteroinferior [35,36]. Most dislocations can be reduced in the emergency department using simple methods. The ideal method should be simple, easy, quick, effective, atraumatic, pain-free, require little assistance or medication, and cause no additional injury to the shoulder joint, musculoskeletal or neurovascular structures [37,38]. Till date there is no standard procedure for reduction of shoulder dislocation. Numerous methods and procedures have been described [14-18,31-35] and most of these require a general anaesthesia, muscle relaxation, pre medication or sedatives. Success rates for the various described procedures varies between 70-90% regardless of technique [38]. Literature states that more than one method may be needed in some cases, while 5-10% of cases cannot be reduced in the Emergency Room [39]. It is often wrongly mentioned that traction is the first and most important step of reduction. Shoulder dislocations are primarily rotation/lateral shift injuries, and there is no role or traction, push, pull, counter traction, tapes or heel in the axilla, in their reduction [40].

It is often erroneously stated that some shoulders are tricky and the practitioner must be familiar with more than one method so that if one fails, the other can be deployed [38]. All methods deploy traction in some form or the other, and this is combined with rotations, translations, scapular movements, counter tractions, direct pushing in of the head, etc. [40,41] The methods described include traction-counter-traction in adduction (Hippocrates) [1], in forward flexion (Stimson and Spaso), in lateral elevation (Eskimos), with leverage (Kocher and Milch), scapular manipulation, and other methods using direct pressure or pushes. The existence of plethora of methods spells the fact that not one method is fool proof or guaranteed to work all the time. Other methods are fist in axilla [41], direct knee pressure [2,3] sheets or straps to pull out the axilla [4] pulling the arm over the back of a chair [5,6] Simpson’s hanging arm method [8,9,37-39] reverse Spaso [10-13] painful self reduction method of Boss-Holzach [14] Milch and its variants [16-24,42-45] Leidelmeyer’s external rotation method [46,47] Scapular manipulations [48-50] and other miscellaneous methods [51]. Many of these methods have been called easy, revolutionary, new or simple by their inventors and proponents [4-10,14-18]. However the success with all these procedures and methods varies tremendously and the success rate has been variously reported from 60% (auto reduction) to 97% (Milch) [26].

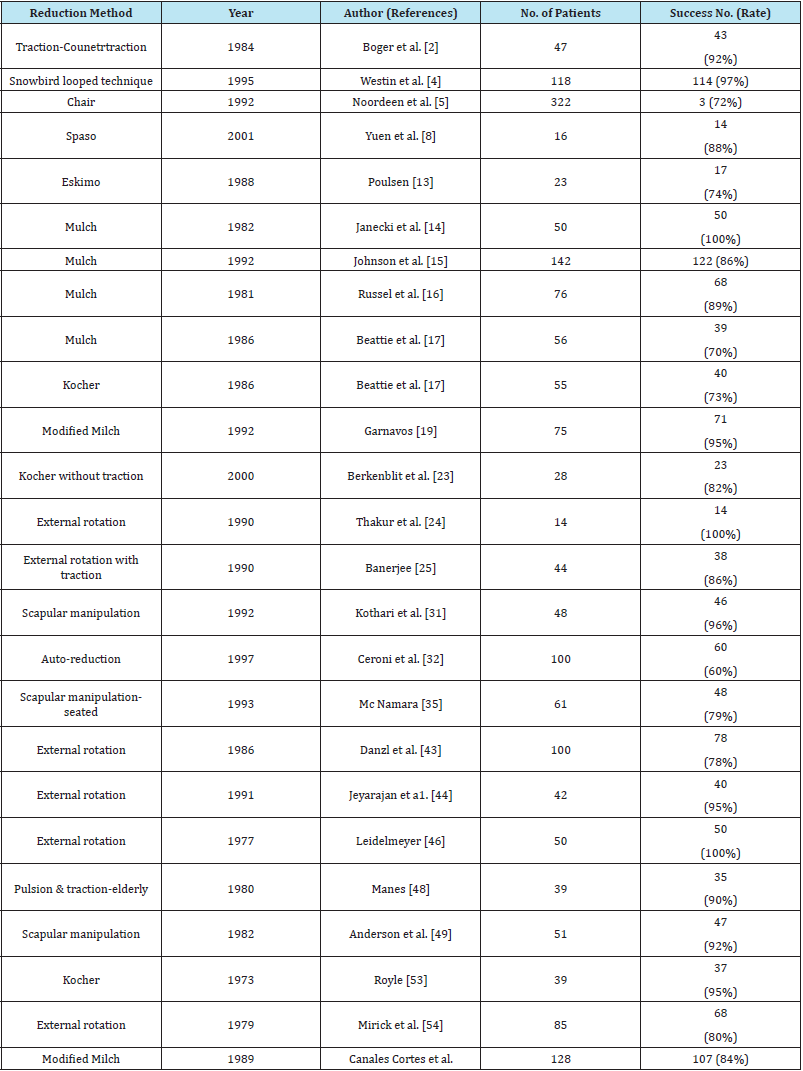

The below Table 1 modified from CH Chung’s [26] publication, lists the success rate of various procedures. This method is different from the others hitherto published, because the exact combination of movements to be performed in an erect position, without any traction, anaesthesia or analgesia, leading to a hundred percent successful reduction, has not been previously described. Not a day passes without emails, messages, phone calls, or texts, praising this method [52-54].

References

  1. Adams F (2003) The internet classics archive: Instruments of reduction by Hippocrates.
  2. Boger D, Sipsey J, Anderson G (1984) New traction devices to aid reduction of shoulder dislocations. Ann Emerg Med 13(6): 423-425.
  3. White AD (1976) Dislocated shoulder-a simple method of reduction. Med J Aust 2(19): 726-727.
  4. Westin CD, Gill EA, Noyes ME, Hubbard M (1995) Anterior shoulder dislocation. A simple and rapid method for reduction. Am J Sports Med 23(3): 369-371.
  5. Noordeen MH, Bacarese Hamilton IH, Belham GJ, Kirwan EO (1992) Anterior dislocation of the shoulder: a simple method of reduction. Injury 23(7): 479-480.
  6. Lippert FG (1982) A modification of the gravity method of reducing anterior shoulder dislocations. Clin Orthop Relat Res 165: 259-260.
  7. Pick RY (1977) Treatment of the dislocated shoulder. Clin Orthop 123: 76-77.
  8. Yuen MC, Yap PG, Chan YT, Tung WK (2001) An easy method to reduce anterior shoulder dislocation: The Spaso technique. Emergency Medicine Journal 18(5): 370-372.
  9. Yuen MC, Yap PG, Chan YT, Tung WK (1999) The Spaso technique in reduction of anterior shoulder dislocation in the Accident and Emergency Department of Kwong Wah Hospital (Hong Kong). Prehospital and Disaster Medicine 14(supplement 1): S78.
  10. Yuen MC, Tung WK (2001) Reducing anterior shoulder dislocation by the Spaso technique. Hong Kong Journal of Emergency Medicine 8: 96- 100.
  11. Yuen MC, Tung WK (2001) The use of the Spaso technique in a patient with bilateral dislocations of shoulder. Am J Emerg Med 19(1): 64-66.
  12. Joy EA, Roberts WO (2000) Self-reduction of anterior shoulder dislocation. The Physician and Sportsmedicine 28(11): 65-66.
  13. Poulsen SR (1988) Reduction of acute shoulder dislocations using the Eskimo technique: a study of 23 consecutive cases. J Trauma 28(9): 1382-1383.
  14. Janecki CJ, Shahcheragh GH (1982) The forward elevation maneuver for reduction of anterior dislocations of the shoulder. Clin Orthop Relat Res 164: 177-180.
  15. Johnson G, Hulse W, McGowan A (1992) The Milch technique for reduction of anterior shoulder dislocations in an accident and emergency department. Arch Emerg Med 9(1): 40-43.
  16. Russell JA, Holmes EM, Keller DJ, Vargas JH (1981) Reduction of acute anterior shoulder dislocations using the Milch technique: a study of ski injuries. J Trauma 21(9): 802-804.
  17. Beattie TF, Steedman DJ, McGowan A, Robertson CE (1986) A comparison of the Milch and Kocher techniques for acute anterior dislocation of the shoulder. Injury 17(5): 349-352.
  18. Milch H (1938) Treatment of dislocation of the shoulder. Surg 3: 732- 740.
  19. Garnavos C (1992) Technical note: modifications and improvements of the Milch technique for the reduction of anterior dislocation of the shoulder without premedication. Journal of Trauma and Acute Care Surgery 32(6): 801-803.
  20. Kothari RU, Dronen SC (1990) The scapular manipulation technique for the reduction of acute anterior shoulder dislocations. J Emerg Med 8(5): 625-628.
  21. McMurray TB (1961) Recurrent dislocation of shoulder. J Bone Joint Surg 43B: 402.
  22. Saha AK (1983) The classic. Mechanism of shoulder movements and a plea for the recognition of “zero position” of glenohumeral joint. Clin Orthop Relat Res 173: 3-10.
  23. Berkenblit SI, Hand MB, MacAusland WR (2000) Reduction of skiingrelated anterior shoulder dislocation using Kocher’s method without traction. Am J Orthop (Belle Mead NJ) 29(10): 811-814.
  24. Thakur AJ, Narayan R (1990) Painless reduction of shoulder dislocation by Kocher’s method. J Bone Joint Surg Br 72(B): 524.
  25. Banerjee A (1990) Is anaesthesia necessary for reducing shoulder dislocation? Arch Emerg Med 7(3): 240.
  26. Prakash L Thirteen years in prison, orthopaedics and a little more.
  27. Prakash L. Modified Kocker’s method for reduction of shoulder dislocations.
  28. Prakash L. Biomechanics and Pathophysiology of fractures and dislocations.
  29. Prakash L. A new method for dislocation of shoulder dislocations.
  30. Kocher T (1870) Eine neue Reductionsmethode fur Schuiterverrenkung. Berlin Klin Wehnschr 7: 101-105.
  31. Kothari RU, Dronen SC (1992) Prospective evaluation of the scapular manipulation technique in reducing anterior shoulder dislocations. Annals of Emergency Medicine 21(11): 1349-1352.
  32. Ceroni D, Sadri H, Leuenberger A (1997) Anteroinferior shoulder dislocation: an auto-reduction method without analgesia. Journal of Orthopaedic Trauma 11(6): 399-404.
  33. Villarin LA Jr, Belk KE, Freid R (1999) Emergency department evaluation and treatment of elbow and forearm injuries. Emergency Medicine Clinics of North America 17(4): 843-58.
  34. Plummer D, Clinton J (1989) The external rotation method for reduction of acute anterior shoulder dislocation. Emergency Medicine Clinics of North America 7(1): 165-175.
  35. McNamara RM (1993) Reduction of anterior shoulder dislocations by scapular manipulation. Ann Emerg Med 22(7): 1140-1144.
  36. Daya M (1998) Shoulder. In: Rosen P, Barkin (Eds.), Emergency medicine: concepts and clinical practice, (4th edn), St. Louis: Mosby, USA, pp. 728- 729.
  37. leeson AP (1998) Anterior glenohumeral dislocations: what to do and how to do it. J Accid Emerg Med 15(1): 7-12.
  38. Uehara DT, Rudzinski JP (2000) Injuries to the shoulder complex and humerus. In: Tintinalli JE, Kelen DG, Stapczynski JS, (Eds.), Emergency Medicine: a comprehensive study guide, (5th edn), Mcgraw- Hill, USA, pp. 1783-1791.
  39. Riebel GD, McCabe JB (1991) Anterior shoulder dislocation: a review of reduction techniques. The American Journal of Emergency Medicine 9(2): 180-188.
  40. Nicola T (1949) Acute anterior dislocation of the shoulder. J Bone Jt Surg Am 31: 351.
  41. Mattick A, Wyatt JP (2000) From Hippocrates to the Eskimo- -a history of techniques used to reduce anterior dislocation of the shoulder. J R Coll Surg Edinb 45(5): 312-316.
  42. Hussein MK (1968) Kocher’s method is 3,000 years old. J Bone Joint Surg Br 50(3): 669-671.
  43. Danzl DF, Vicario SJ, Gleis GL, Yates JR, Parks DL (1986) Closed reduction of anterior subcoracoid shoulder dislocation. Evaluation of an external rotation method. Orthop Rev 15(5): 311-315.
  44. Jeyarajan R, Cope AR (1992) Anaesthesia for reduction of anterior dislocations of the shoulder. Arch Emerg Med 9(1): 71.
  45. Kothari RU, Dronen SC (1990) The scapular manipulation technique for the reduction of acute anterior shoulder dislocations. J Emerg Med 8(5): 625-628.
  46. te Slaa RL, Wijffels MP, Marti RK (2003) Questionnaire reveals variations in the management of acute first time shoulder dislocations in the Netherlands. Eur J Emerg Med 10(1): 58-61.
  47. Janecki CJ, Shahcheragh GH (1982) The forward elevation maneuver for reduction of anterior dislocations of the shoulder. Clin Orthop 164: 177- 180.
  48. Manes HR (1980) A new method of shoulder reduction in the elderly. Clin Orthop Relat Res 147: 200-202.
  49. Anderson D, Zvirbulis R, Ciullo J (1982) Scapular manipulation for reduction of anterior shoulder dislocations. Clin Orthop 164: 181-183.
  50. Doyle WL, Ragar T (1996) Use of the scapular manipulation method to reduce an anterior shoulder dislocation in the supine position. Ann Emerg Med 27(1): 92-94.
  51. McNair TJ (1957) A clinical trial of the hanging arm reduction of dislocation of the shoulder. J R Coll Surg Edinb 3(1): 47-53.
  52. Eachempati KK, Dua A, Malhotra R, Bhan S, Bera JR (2004) The External Rotation Method for Reduction of Acute Anterior Dislocations and Fracture-Dislocations of the Shoulder J Bone Joint Surg Am 86-A(11): 2431-2434.
  53. Royle G (1973) Treatment of acute anterior dislocation of the shoulder. Br J Clin Pract 27(11): 403-404.
  54. Mirick MJ, Clinton JE, Ruiz E (1979) External rotation method of shoulder dislocation reduction. JACEP 8(12): 528-531.

© 2018 L Prakash. This is an open access article distributed under the terms of the Creative Commons Attribution License , which permits unrestricted use, distribution, and build upon your work non-commercially.
