Digital Bite Registration of Habitual Occlusion with Specific Skeletal Intraoral Scan Bodies for the Fabrication of a Fixed Full-Arch Prosthesis on Immediate Loading Dental Implants with Full Digital Workflow: Two Case Reports

In dentistry, several scientific articles show an increasing interest in the digital protocols [1-4]. They are gradually replacing the traditional analogical laboratory procedures, demonstrating not only the same efficiency, but also higher precision and accuracy [5- 7]. The workflow used to create a fixed full-arch prosthesis on immediate loading dental implants using CAD/CAM technology is based on the following 7 steps:
1. preliminary intraoral scan;
2. cone beam computed tomography (CBCT) with radiologic template or with
intraoral radiopaque landmarks;
3. prosthesis guided surgical planning.
4. surgical guide fabrication [8,9].
5. static-guided or computer-guided dynamic surgery [10,11].
6. intraoral scan with scan bodies after the surgery [12]
7. delivery of the CAD/CAM prosthesis [13].
All mentioned steps need to be followed accurately to avoid deviations or mistakes that can negatively affect the succeeding steps [14-16].
Prosthesis guided surgery is followed by the immediate delivery of a previously designed prosthesis, which is adapted to become passive on the implants’ abutments. This is usually needed because the fixtures cannot be perfectly placed in the bone as planned [17,18]. This step interrupts the digital workflow, extends the working time, and interferes with the surgical procedure, decreasing cleanliness and fluency. However, if the prosthesis is realized after surgery, the procedure starts with a pre-surgical scan of the dental arches and the maxillomandibular relationship in maximum intercuspation. Following surgery, the digital impression of the gingiva and the implants scan bodies must be obtained. The scan will also include unchanged anatomic landmarks that were already present in the pre-surgical scan, together with the recording of the patient’s habitual occlusion. After surgery, it is very difficult to identify many anatomic landmarks, because they could be missing, in case of tooth extraction or because the total prosthesis is removed due to gingival edema, and because the soft tissues can be completely altered by the procedure. This makes matching the pre-surgical and the post-surgical digital impressions very difficult. In addition, it is necessary to add the recording of the patients’ habitual occlusion in the digital workflow. Therefore, after scanning the dental arch with the healing abutments, a waxbite registration of the maxillo-mandibular relationship is needed as a reference point that can be used to design and prepare the temporary prosthesis. Such relationship will be re-evaluated at the moment of the fabrication of the definitive prosthesis [19].
This analogical step not only interrupts the digital workflow, but also requires the delivery of the wax registration to the dental laboratory, in order to produce stereolithographic models of the dental arches to be positioned in the correct maxilla-mandibular relationship interposing the wax registration. These models are then scanned by the laboratory technician. This analogical step introduces a possible margin of error at different stages. First of all, the clinical procedure is operator dependent [20,21]. Secondly, the repositioning of the wax registration on the cast models occluding with the opposing arch is also subject to error [20,21].
After this step, it is possible to proceed with the digital workflow by registering the maxillo-mandibular relationship with the laboratory digital scanner. Based on such record, the technician produces a temporary full-arch prosthesis applying the CAD/CAM technique. The purpose of the temporary fixed fullarch prosthesis is twofold: to allow implants osteointegration (if the prosthesis is passive and well occlusally balanced), and to deliver aesthetics and function to the patient. Once the implants are integrated and both hard and soft tissue are healed and stable, a new definitive prosthesis is fabricated. Because of this assumption, the aim of this study was to introduce a reliable method to digitally record the patients’ maximal intercuspation without interrupting the digital workflow and minimize the margin of error.

Specific skeletal scan bodies have been designed and fabricated (designed by Dr. Marco Serri, manufactured by Biotec S.r.l., Povolaro di Dueville, Italy). They are unique for each side, to be positioned on the right and left side of the distal parts of the dental arch where the implants are placed. They have an irregular parallelepiped shape with rounded edges on one side, and three facets oriented at a 45° angle on the other side, made of polyether-ether-ketone (PEEK), a biocompatible material. The two contralateral skeletal scan bodies differ in the occlusal surface, due to the opposite location of a hemisphere and the presence of the letter L on the left skeletal scan body. This specific shape, combined with the specific side of positioning, prevents the scanner from detecting the external surfaces of the skeletal scan bodies as identical (Figure 1). For the same reason, also the titanium implant scan bodies (LaStruttura S.p.A., Cassano Magnago, Italy) have a distinct design on their occlusal surface, in order to overcome this problem created by the software.

Figure 1: Skeletal scan bodies.

Two case reports of a fixed full-arch prosthetic rehabilitation on immediate loading dental implants with the use of skeletal scan bodies are presented.

Case 1

In the first case, the prosthetic rehabilitation on dental implants in the upper arch of an edentulous male patient wearing a total removable prosthesis is described.
The first step consists in the creation of two holes in the removable prosthesis in the area of the maxillary second molars, to allow the housing of the skeletal scan bodies. In each of these sites, one mini-implant (Biotec S.r.l., Povolaro di Dueville, Italy) combined with the skeletal scan body is placed (Figures 2 & 3).
At this time, before surgery, four intraoral scans with the skeletal scan body in place were taken: a scan of the maxillary edentulous mucosa, a scan maxillary arch with the removable prosthesis in place, a scan of the mandible, a scan of the patient’s habitual occlusion in maximum intercuspation (Figure 4).

Figure 2A: One mini-implant positioned in the left side of the maxillary arch.

Figure 2B: The two skeletal scan bodies positioned on the maxillary arch.

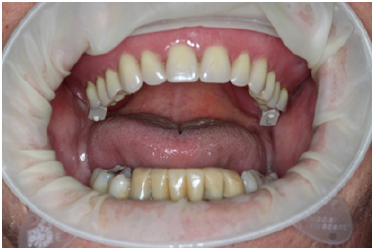

Figure 3: Skeletal scan bodies with the removable prosthesis in place.

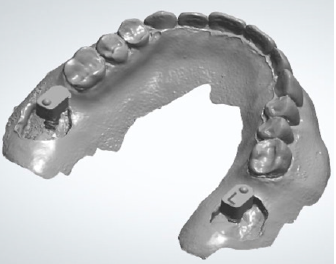

Figure 4A: Digital impression of the maxillary arch with the removable prosthesis in place and the scan bodies.

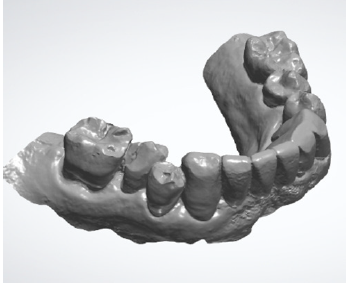

Figure 4B: Digital impression of the antagonist arch.

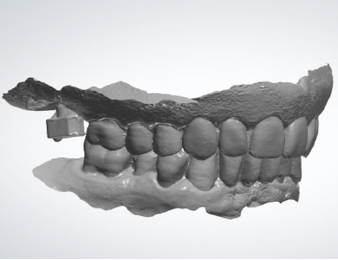

Figure 4C: Digital impression of the maxillomandibular relationship of patients’ habitual occlusion in maximum intercuspation.

After concluding the surgical phase, the implant scan bodies were connected to the implants and merged together with the universal scan template (Designed by Dr Andrea Papa, produced by LaStruttura S.p.A., Cassano Magnago, Italy), in order to ease the scanning procedure in case of altered or bleeding mucosa (Figure 5). The scan started from the skeletal scan bodies to allow the software to correlate the pre-surgucal and post-surgical scans obtaining a perfect relation with the opposing arch (Figure 6).

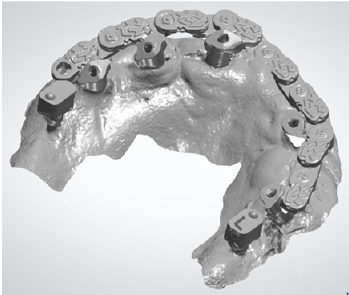

Figure 5: Post-surgical digital impression including the skeletal scan bodies, the implant scan bodies and the universal scan template.

Figure 6: Maxillo-mandibular relationship in patient’s habitual occlusion in maximum intercuspation obtained matching the pre-surgical and post-surgical digital scans.

In the resulting post-surgical intermaxillary space, a fixed full-arch temporary prosthesis was digitally designed and manufactured in a complete digital workflow (CAD/CAM) with the occlusal plane parallel to the Camper’s plane and the bipupillary plane, it was then screwed on the implants (Figures 7-12). The definitive prosthesis will be fabricated once the implants are integrated and both hard and soft tissue are healed and stable.

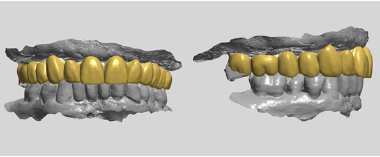

Figure 7: Frontal and sagittal view of the design of the temporary maxillary full-arch prosthesis.

Figure 8A: Maxillary arch immediately after surgery before positioning the temporary full-arch prosthesis.

Figure 8B: Temporary maxillary full-arch prosthesis.

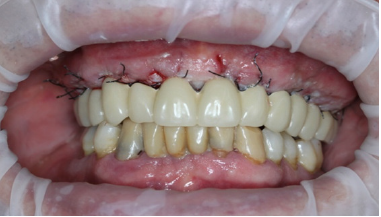

Figure 8C: Temporary maxillary full-arch prosthesis screwed on the implants immediately after surgery.

Figure 9: Control of the correct relationship between the prosthesis’ occlusal plane and Camper’s plane. Right side.

Figure 10: Control of the correct relationship between the prosthesis occlusal plane and the bipupillary plane.

Figure 11: Final aesthetic result.

Figure 12: Post-surgical panoramic X-ray.

Management of dental and periodontal pathologies affecting the mandible will not be described in this article.

Case 2

The second case shows the prosthetic rehabilitation of a male patient suffering from periodontal disease, with five periodontally compromised anterior teeth in need of extraction. This case was elaborated in complete digital workflow. A static guide was designed and manufactured based on cone beam computed tomography (CBCT) images and intraoral digital scans, in order to carry out a prosthesis guided surgery.
Before surgery, two mini-implants combined with the associated skeletal scan bodies were placed in the distal sectors of the maxilla. Three intraoral digital scans with the skeletal scan bodies in place were taken: a scan of the maxillary arch, a scan of the mandible, a scan of the patient’s habitual occlusion in maximum intercuspation (Figures 13A & 13B).

Figure 13A: Digital impression of the maxillary arch and the scan bodies in place.

Figure 13B: Digital impression of the maxillomandibular relationship of patients’ habitual occlusion in maximum intercuspation.

At the end of the surgical session, the position of the implants was defined by the use of specific scan bodies connected to each other through the use of the universal scan template. Then, the post-surgical digital scan was carried out, including the entire maxilla, the skeletal scan bodies, the implant scan bodies and the universal scan template (Figure 14).

Figure 14: Post-surgical digital scan including the entire maxilla, the skeletal scan bodies, the implant scan bodies and the universal scan template.

As seen in the previous case, in the resulting post-surgical intermaxillary space, a fixed full-arch temporary prosthesis was digitally designed and manufactured in a complete digital workflow (CAD/CAM) with the occlusal plane parallel to the Camper’s plane and the bipupillary plane, it was then screwed on the implants (Figures 15-22). The definitive prosthesis will be fabricated once the implants are integrated and both hard and soft tissue are healed and stable.

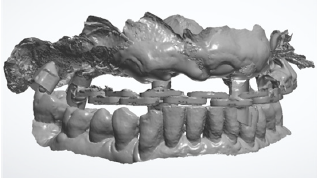

Figure 15: Maxillo-mandibular relationship in patient’s habitual occlusion in maximum intercuspation obtained matching the pre-surgical and post-surgical digital scans.

Figure 16: Design of the temporary maxillary full-arch prosthesis. Fontal view.

Figure 17: Design of the temporary maxillary full-arch prosthesis. Occlusal view.

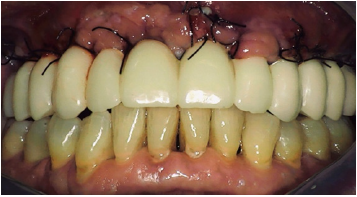

Figure 18: Temporary maxillary full-arch prosthesis screwed on the implants immediately after surgery.

Figure 19A: Control of the correct relationship between the prosthesis’ occlusal plane and Camper’s plane. Right side.

Figure 19B: Control of the correct relationship between the prosthesis’ occlusal plane and Camper’s plane. Left side.

Figure 20: Control of the correct relationship between the prosthesis occlusal plane and the bipupillary plane.

Figure 21: Final aesthetic result.

Figure 22: Post-surgical panoramic X-ray.

In the present study, a protocol is proposed to allow the fabrication of a fixed full-arch prosthesis on immediate loading dental implants with full CAD/CAM digital workflow, without interrupting the digital work-flow, and minimizing the margin of error. A standardized method to perfectly reproduce the presurgical patient’s habitual occlusion in maximum intercuspation has been introduced. The use of specific skeletal and implant scan bodies with a peculiar morphology provides an unique position in the space and guarantees the unique superimposition of the presurgical and post-surgical scans. In the cases where the clinician cannot superimpose the pre-surgical and the post-surgical digital impressions with his own intra oral scanner (IOS), the laboratory technicians can benefit from a specific software to match the two digital scans by the use of the landmarks given by the skeletal scan bodies.
In some cases, to avoid to interrupt the digital workflow, we can use the presence of remaining teeth, when their presence does not hinder the surgical procedure and the fabrication of the dental prosthesis. They can be extracted afterwards if needed. Natural teeth can surely represent anatomic landmarks unchanged after surgery, therefore they can be employed to allow matching of the pre-surgical and post-surgical digital impressions. However, this technique is suitable in a limited number of cases. Conversely, the positioning of the skeletal scan bodies overcomes such limits, because it can also be utilized in edentulous patients were all the reference points are missed. Since the main advantage of such protocol is the reproduction of the patient’s habitual occlusion, it is most appropriate when treating patients whose habitual occlusion in maximum intercuspation is deemed correct, with the occlusal plane parallel to the Camper’s plane and the bipupillary plane. In fact, if we need to treat edentulous subjects or patients with improper dental occlusion, it would not be appropriate to reproduce patient’s habitual occlusion in the new prosthesis. Nonetheless, the same method could be used after restoring correct dental occlusion by the use of a temporary full-denture (in edentulous patients) or a dental appliance (in patients with improper dental occlusion).

The protocol described in the present study allows the fabrication of a fixed full-arch prosthesis on immediate loading dental implants with full CAD/CAM digital workflow, perfectly reproducing the pre-surgical patient’s habitual occlusion in maximum intercuspation. This can be achieved by the use of unique skeletal scan bodies.
