Thorough understanding of root canal anatomy is a prerequisite for successful endodontic treatment. The
failure of root canal treatment of maxillary molars is highly associated with missing the second mesiobuccal (MB2) canals.
Aim: we aim to assess the prevalence and morphology of MB2 canals of first (1st) and second (2nd) maxillary molars based on CBCT images. We further compared the treatment rate of MB2 canals to the rate identified from CBCT imaging analysis.
Methodology: Pre-operative CBCT images of 400 maxillary 1st molars and 264 maxillary 2nd molars in a cohort of 661 subjects were examined. Parameters studied were:
Result: 99% of maxillary 1st and 89.77% of 2nd molars had three separate roots with 2nd molars showing higher morphological variability. MB2 canals were found in 77% of maxillary 1st molars and 46.9% of 2nd In 3-rooted molars, the most common Vertucci classifications for MB canals in 1st molars were Type II (37.63%) and in 2nd molars Type I (47.26%). When MB2 orifices were not at the pulpal floor level (~50% of cases), the average distance below the pulp floor was 0.94mm in maxillary 1st molars and 0.92mm in 2nd molars. Clinically, the rates of MB2 canals being treated of 1st and 2nd molars were 67% and 37.8%, respectively. With MB2 identified in CBCT images, 86.6% were obturated in maxillary 1st and 80.64% in maxillary 2nd molars.
Conclusion: Despite the resolution limit, CBCT remains a widely accepted non-destructive tool to study canal morphology and is readily available to many endodontists. When it is beneficial to patients and cost or radiation exposure is not a concern, pre-operative CBCT images should be thoroughly analyzed before treatment to ensure treatment quality and to limit iatrogenic complications.
Keywords: CBCT imaging; MB2 canals; Maxillary molars; Fused roots
The morphology of maxillary molars has been extensively studied, particularly the prevalence of a second
mesiobuccal (MB2) root canal. Despite of this effort, the high failure rate of root canal treated maxillary molars remains tightly associated with untreated MB2 canals. There is a significant increase in the incidence of MB2 canals in retreatment cases, suggesting that these canals are frequently missed in the initial treatment . Moreover, maxillary 1st molars with missed MB2 canals were 4.38 times more likely to be associated with a periapical lesion and, surprisingly, MB2 canals were unfilled in almost half of endodontic cases (46.5%) . To maximize the success rate of root canal treatment, it is important for endodontists to be aware of anatomic variations. Since the first report of MB2 canals in maxillary molars in 1925 , the prevalence of MB2 canals has been examined by many techniques, which may explain the variable results between studies. Some commonly used methods include clearing and staining of extracted teeth , various sectioning techniques [5,6], conventional/digital radiographs [7,8], root canal treatment under microscope in vitro , and micro-computed tomographic imaging . The incidence of MB2 canals in the literature ranges from 18-96% .
Studies using clearing and staining techniques of extracted teeth revealed that more than 90% of maxillary molars have multiple canals in MB roots [12,13]. On the other hand, clinical studies reported lower incidence (18-73%) of MB2 canals [14-16]. Such discrepancies could also be attributed to different selection criteria of sample population, such as ethnic background or age. Numerous studies have been conducted to establish a reliable and efficient clinical method to help locate MB2 canals [16-18]. In recent years, 3-dimensional cone-beam computed tomography (CBCT) has been used for identifying root canal configurations [10,19,20]. It can confirm the presence of MB2 canals as well as locate and orient a canal in relation to MB1, distobuccal, and palatal canals [19,21]. As a non-destructive tool, CBCT imaging offers not only high-resolution images in all spatial planes with minimal distortion but also reconstructs the volumetric images [22,23]. The aim of this study is to investigate the root and canal morphology of maxillary 1st and 2nd molars based on pre-operative CBCT images and associate the MB2 detection rate of CBCT with those being treated in clinic.
The protocol of this study was approved by the Pearl Institutional Review Board, Indiana, USA (19-KIM- 101). The study included pre-operative CBCT images of 400 maxillary 1st and 264 maxillary 2nd molars taken from 661 subjects between August 2014 and March 2019 for diagnostic purposes. The number of CBCT scans to be included in the study was determined by a power analysis using a sample size calculator (www.qualtrics.com) with a significant level of 0.05 and 99% power.
Inclusion criteria for CBCT images were as follows:
Pre-operative evaluation of CBCT images
CBCT images were taken with a Carestream CS 9000 3D (Carestream Dental, Atlanta, GA) using the following parameters: 70kVp, 10mA, 10.8 second exposure time, 76mm voxel size, and 50mm x37mm scan field of view. Images were viewed with a 27-inch monitor (Samsung T27B350ND) at a screen resolution of 1920x1080 and luminance of 300cd/m². Serial sagittal, coronal, and axial views of CBCT images were evaluated. In axial view, the axis of slicing was rotated to intersect with the long axis of the root. The presence of additional canals was most observable when scrolling the axial planes coronally to apically. In coronal and sagittal view planes, the axis of image slicing was rotated to be parallel to the long axis of the root, then the canal configuration was evaluated as the axis was scrolled in a mesio-distal and bucco-lingual plane, respectively. For samples with MB2 canals detected, the incidence of MB2 orifice appearing at the level of the pulpal floor was recorded. To determine the level of the pulpal floor, coronal and sagittal axes of image slicing were first adjusted to intersect at the center of the pulp space in axial view plane while maintaining the rotation of all 3 axes. Then, the axial axis was carefully adjusted to the level of pulpal floor in sagittal and coronal view plane. When the MB2 orifice did not appear at the pulpal floor level, the distance from the pulpal floor to MB2 orifice was measured. We studied the following parameters:
Clinical management of MB2 canals
All root canal treatments were performed under a dental operating microscope (OPMI PICO S100, Zeiss, Germany) by two endodontists in a private practice. After endodontic access was made and the MB1 canal was negotiated, the distance and orientation of MB2 orifice/canals were guided by CBCT images. The #1 bur with a surgical shank on a high-speed handpiece and #1/2 Mueller bur were used during the exploratory excavation. A Stropko irrigator tip (Spartan/Obtura, St. Louis, MO) was used to blow the dentin debris. Microscopic examination of the pulpal floor was used to locate the white dot created by the accumulation of the dentin debris. #6, #8, and #10 files were used in discovery and initial negotiation of the MB2 canal. RC-Prep (Premier Dental, PA) and 17% EDTA were routinely used during the exploration and discovery of MB2 orifices. 2.5% NaOCl and 0.12% chlorhexidine were used as disinfecting irrigants. Once the canals were fully negotiated and shaped to the apical terminus, the canals were dried and obturated with gutta-percha and endodontic sealer.
Post-operative evaluation with periapical radiographs
Post-operative periapical radiographs were evaluated to determine the clinical treatment of MB2 canals.
To be included and recorded as clinically treated, a MB2 canal had to be negotiated and obturated to its
own apical terminus or merged with the MB1 canal.
Number and morphology of roots
The morphology of maxillary 1st and 2nd molars is summarized in Tables 1&2, respectively. 99% of maxillary 1st molars had 3 roots and 1% had 2 roots. Among maxillary 2nd molars, 89.77% had 3 roots, 7.20% had 2 roots and 3.03% had a single root. Maxillary 2nd molars showed higher variability in root morphology compared to maxillary 1st molars. Roots were considered fused when there was an absence of alveolar bone in between the roots from the cementoenamel junction to the apex. The incidence of root fusion in maxillary 1st and 2nd molars was 3.25% and 13.25%, respectively (Table 3). Of the fused roots, distobuccal root fused with palatal root was the most common morphology in maxillary 1st molars (2.25%), whereas it was the rarest in maxillary 2nd molars (0.38%). None of the maxillary 1st molars had a MB root fused with a palatal root while 2.27% of 2nd molars had such morphology. Three root fusions were found in 0.25% maxillary 1st molars and 3.41% of 2nd molars.
Table 1: Morphology (number of roots and canal classification) of maxillary 1st molars.
B: buccal; DB: distobuccal; MB: mesiobuccal; P: palatal Values within parentheses are percentages of the total number of teeth in each group.

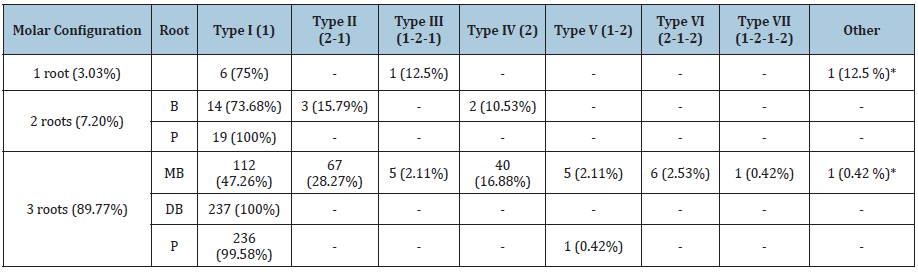

Table 2: Morphology (number of roots and canal classification) of maxillary 2nd molars.
B: buccal; DB: distobuccal; MB: mesiobuccal; P: palatal Values within parentheses are percentages of the total number of teeth in each group. *C-shaped canal system.
Table 3: Percentage of fused roots in maxillary 1st and 2nd molars.
Values within parentheses are percentages of the total number of teeth in each group.
Number and configuration of root canals
MB2 was present in 77% maxillary 1st molars and in 46.9% maxillary 2nd molars. All MB2 canals were once visualized as radiolucent dots on axial planes and/or lines on coronal planes. Root canal configuration of MB roots in maxillary 1st and 2nd molars was analyzed based on the Vertucci’s classification shown in Table 1& 2. In 3-rooted maxillary 1st molars, Type II morphology was the most common, followed by Type IV and Type I. In the 2-rooted maxillary 1st molars, 50% had a single canal in B root, 25% had Vertucci Type II, and 25% had Type IV. In the 3-rooted maxillary 2nd molars, MB roots showed all variations from Type I to Type VII as well as C-shaped canals that did not fall under the Vertucci’s classification system. Type I root canal configuration was most common in MB roots of 3-rooted maxillary 2nd molars, followed by Type II and Type IV. In 2-rooted maxillary 2nd molars, 73.68% had single canals in buccal roots while 15.79% had Type II and 10.53% had Type IV. In 1-rooted maxillary 2nd molars, 75% showed one canal, 12.5% had Type III, and 12.5% had C-shaped canal systems. Examples of variable root canal morphologies are shown in Figure 1.

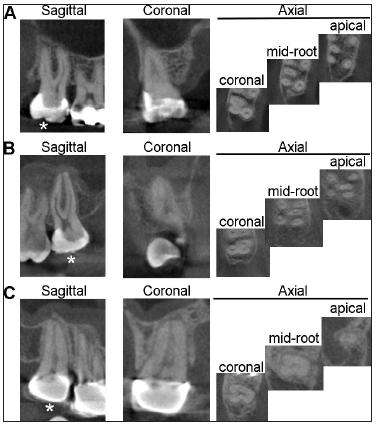

Figure 1: Representative CBCT images showing sagittal, coronal, and axial planes of A) One maxillary 1st molar with type II (2-1) MB canals. B) One 2nd molar with type IV (1-2) MB canals. Notice thedisappearance of MB canal on the sagittal plane indicating the bifurcation of canals. C) One 2nd molar with C-shaped canal. *indicated the tooth of interest.
Incidence of MB2 orifice on the pulpal floor
Out of 448 samples with MB2 canals, 212 maxillary 1st molars and 124 maxillary 2nd molars were included in the analysis. Excluded images were due to the MB2 canal bifurcating below mid-root level or presence of artifacts on the pulpal floor due to extensive restoration or caries. The incidence of MB2 orifices appearing at the pulpal floor was 53% in maxillary 1st molars and 48% in 2nd molars. In instances where the MB2 orifice did not appear at the pulpal floor level, the average distance from the pulpal floor to the MB2 orifice was 0.94±0.58mm for maxillary 1st molars and 0.92±0.53mm for 2nd molars measured from pre-operative CBCT images.
The incidence of clinically treated MB2 canals
We next examined the number of all MB2 canals being clinically treated to the frequency of molars that have MB2 canals identified on pre-operative CBCT images. Approximately 30% of teeth had full-coverage crowns present at the time of treatment. Our data showed that 66.7% of 1st and 37.82% of 2nd molars had MB2 canals negotiated and obturated. There was no significant difference on the prevalence of MB2 canals being treated with (1st molars: 87.4%, 2nd molars: 82.1%) or without (1st molars: 86.2%, 2nd molars: 80.2%) the presence of crown restoration. The rate of MB2 canals being clinically treated was approximately 10% lower than those identified on CBCT images. Of the MB2 canals that were identified from pre-operative CBCTs, 86.6% of maxillary 1st molars and 80.64% of maxillary 2nd molars were clinically treated.
In this study, we analyzed root and canal morphology of 664 maxillary 1st and 2nd molars using CBCT images and associated the MB2 detection rate of CBCT with clinical outcome. Our data suggest that a higher percentage of MB2 canals in maxillary 1st molars and more anatomical variations in maxillary 2nd molars. We only identified C-shaped canals in maxillary 2nd molars and found a higher incidence in 2nd molars with only one root. We also found a palatal root with 2 canals bifurcating at mid-root level of one maxillary 2nd molar. Fused roots should be considered as part of treatment planning for apicoectomy involving a specific root. While apicoectomy is mostly done in MB roots of maxillary 1st molars, the chance of an MB root fused with any other root is lower than 1%. The top three most common canal types of MB roots of 1st molars are Vertucci type II (2-1), IV (2) and I (1). For 2nd molars are type I, II, and IV. This is consistent with a previous study using coronal plane root sectioning that Vertucci type II and IV are the most common configuration of 1st maxillary molars with MB2 canals . Many factors can affect the identification of MB2 canals, such as age, ethnicity, and the presence of crown etc. A CBCT study showed that the detection rate of MB2 canals is significantly higher in younger patients (20-30-year-old) than older patients (60-70year-old) . A recent CBCT study found the overall prevalence of MB2 canals in 21 geographic regions to be 73.8% . In a Chilean population, the prevalence of MB2 canals was found to be 73.44% in maxillary 1st molars and 42.88% in 2nd molars . In North Americans, the prevalence of MB2 canals in 1st molars was 68.2% .
Another study showed that the rate of MB2 canals was 85.4% for maxillary 1st molars in Chinese  while in Brazilians the prevalence of MB2 canals was remarkably lower with 42.63% reported for maxillary 1st molars and 34.32% for 2nd molars . Studebacker et al.  showed that during initial treatment, MB2 canals were detected more often in maxillary 1st molars without a crown (66%) than molars with a crown (50%) but there was no statistically significance in maxillary 2nd molars and for retreatment cases . Our study participants are North Americans with a wide distribution of age, mostly older than 40 years. We found no significant difference in the treatment rate of MB2 canals in maxillary molars with or without full-coverage crowns. Extensive tertiary dentin deposition or calcification above MB2 orifices due to aging or pathology often makes the detection of MB2 canals challenging. Vertical troughing is as important as the horizontal position for negotiating MB2 canals. Park et al. & Yoshioka et al. [30,31] reported that most MB2 canals could be found with average troughing depths of 2.7mm and 2mm, respectively [30,31]. Here we found that approximately half of the MB2 canals (53% for 1st molars and 48 % for 2nd molars) appear at the pulpal floor.
The rest of MB2 canals that are detectable ranged from 0.36mm to 1.52mm, with an average about 1mm, below the pulpal floor. Zhang et al.  reported 94.9% of MB2 orifices appearing at the pulpal floor level in the maxillary 1st molar with an average vertical distance of 0.76mm±0.35mm below the pulpal floor when MB2 orifice does not appear on the pulpal floor . Differences between studies may be in part caused by different sample sizes and analytical techniques. The field of view of CBCT scans were 18cmx16cm in the previous study  and 50mmx37mm in our study. In addition, Zhang et al.  used only axial axis  whereas we adjusted all three axes, sagittal, axial, and coronal planes, of each tooth being studied using oblique slicing mode. In our study, MB2 canals of 22 molars could only be visualized on the coronal plane but not on the axial plane. The other reason that our results showed less vertical distance than other studies could be due to our exclusion criteria of extensive calcification in order to discern the canal configuration of Vertucci’s classification on CBCT images. This is a limitation of our study because we excluded molars with MB2 canals that were not directly visualized. Two other clinical studies investigated the rate of MB2 canals in private endodontics practices with provider experience and a study period (5-8 years) comparable to our study [1,15]. For 1st molars, the prevalence of MB2 canals was 58% , 60%  and 66.7% (our study) [1,15]. For 2nd molars, the reported incidence of MB2 canals was 34% , 42%  and 37.8% (our study) [1,15]. Although the results are relatively comparable, several differences may attribute to slightly different reporting rates. First, the pre-CBCT images were only available in our study; second, our study was the only one that used the dental microscope for all procedures; and third, criteria of MB2 canals are different. Wolcott et al.  recorded MB2 canal as present only when the canal was obturated to its own apex or when it merged with the MB1 canal within 5mm of the apex . In Stropko’s  study, 16% of MB2 canals that were clinically detected could not be fully instrumented and were classified as unfilled canals . The effectiveness of pre-operative CBCT to locate MB2 canals in clinical settings remains controversial. Some studies conclude that CBCT has a limited role in the detection of MB2 canals [24,32,33]. Parker et al., showed that CBCT images identified 5 out of 15 molars (33%) with MB2 canals while 8 teeth (53%) with existing MB2 canals were found during root canal treatment . Hiebert et al.  showed that CBCT analysis reveals the presence of MB2 canals 69% of the time in 100 extracted molars while the detection rate of MB2 is 92% by coronal plane root grinding . In contrast, Studebaker et al., showed that pre-operative CBCT scans significantly increase the incidence of treated MB2 canals of maxillary molars from 54.5% to 76% . In our study we review 664 CBCT images and show that more MB2 canals are being identified in CBCT images than during treatment.
This could be mainly due to teeth that have one common MB orifice that bifurcate into MB1 and MB2 canals in mid root levels, such as Vertucci class III (1-2-1), V (1-2), VII (1-2-1-2) canals, and the subsequent clinical decision to prematurely stop horizontal and vertical troughing in order to preserve coronal tooth structure.
The pre-operative CBCT imaging serves as an “endodontic 3-dimensional map” and can be beneficial for endodontic treatment of complex root canal configurations. CBCT can potentially better guide conservative endodontic access preparation, detect root canal morphology, and prevent procedural errors such as perforation, fracture, or missed canals. The major concerns for the routine use of CBCT are radiation exposure and cost to the patient . The radiation dose of a small field of view of maxillary molars is substantially lower than for mandibular molars and is roughly equivalent to that of two digital periapical radiographs . When benefits weigh more than risks, we recommend to perform CBCT-guided endodontic treatment in identifying MB2 canals of maxillary molars.
In summary, for maxillary 1st molars, 3 separate roots and 4 canals are the most common morphology whereas most of the maxillary 2nd molars have 3 separate roots and 3 canals. Maxillary 2nd molars have more anatomic variations than 1st molars. The prevalence of MB2 canals in 1st and 2nd molars were 77% and 46.9% based on CBCT images. These rates were slightly decreased to 66.7% of 1st and 37.82% of 2nd molars by clinical outcome. For radiation exposure, endodontists should follow the principle of “as low as reasonably achievable” but use CBCT when there is a benefit for patient treatment, such as for identifying MB2 canals of maxillary molars.
