Dendrometer Stem Monitoring of Tomato Plants Attacked by Whiteflies in Greenhouses

Tomato (Lycopersicon esculentum) is grown extensively in greenhouses around the world as it is highly demanded by the fresh market and processing industries. Mexico is the tenth largest producer of tomatoes in the world growing 4.04 million tons annually [1]. Total planted area for tomatoes had been declining in Mexico for several years, being of 53,300 hectares during the market season 2017/18. Tomato produced in Sinaloa and Baja California continue to move from open field production to greenhouses; This action obtains greater yields in a smaller cultivated area.

Trialeurodes vaporariorum is highly attracted to some commercially available tomato cultivars [2] and 80% of tomato loss has been reported [3,4]. The most important whitefly encountered in South America is Trialeurodes vaporariorum Westwood being reported at Colombia [2], Costa Rica [5] and Brazil [6]. Adults feed by sucking juices from the underside of the leaf and produce a honey dew which causes leaf darkening. The development cycle from egg to adult takes up to one month [7]. Flies are responsible for severe physiological disorders in tomato, as irregular ripening reported in Culiacan, Mexico [4].

Management of flies should be carried out without insecticides. Biotechnical control involves techniques that act on insects’ behavior via visual or olfactory stimuli. It guides them to an attractive visual or olfactory source before being trapped [3]. Fruit orchards use McPhail-type liquid traps and yellow bottles to attract flies and drown them afterwards [8]. Fruit flies have natural enemies, which generally attack the eggs or larvae, especially when the larvae emerge from the fruit to pupate in the soil.

Dendrometers monitor physiological activity, so it has become a reliable plant water status indicator. Plant water status can only be obtained from plant measurements as it controls many physiological processes [9]. Diurnal stem contraction results from the water taken up by the plant and lost from transpiration. At night the elastic stem tissues grows storing carbohydrates and water. Stem diameter variation has become popular for irrigation scheduling, mainly under deficit irrigation conditions. It has been widely reported in fruit trees including olives [10], citric trees [11], nectarines [12] and peaches [13]. Dendrometers were used in greenhouse tomato plants its values was correlated successfully with soil water content [9]. Maximum daily shrinkage (MDS) and air vapor pressure deficit (VPD) ratio remained constant when tomato plants were not water stressed [14].

In this research whitefly dynamics within the greenhouse at different phenological stages was quantified using a vibrator and also by counting fly quantity in top leaves. Another main goal of this research is to measure stem variations by homemade resistance dendrometers. If whiteflies affect tomato plants by sap feeding, plant weakening will occur. Plant status monitored with a dendrometer will be able to determine plant stress. If a monitoring difference is encountered it will help in starting an integrated pest management routine in-time.

Experimental setup

Tomato (Solanum lycopersicum) growing greenhouses are located in Chapingo, Estado Mexico (19° 29’ N, 98 54’ W, 2250m ASL) and have automated fertigation system. Commercial hybrid ‘El Cid F1’ Saladette tomato seedlings were transplanted on March 22, 2019, in 10L tezontle bags as described by Salazar et al. [15]. Eight drip irrigation events per day were carried out using 8L∙h-1 emitters, having a different timing per event according to its phenological stage. Steiner nutrient solution was used for fertilization, presenting an electrical conductivity and pH of 2.3dS m-1 and 6.4, respectively. In the experiment, 20 tomato plants were cultivated at a plant density of 2.4 plants m-2 inside a small greenhouse of 5m x 5m x 4m (width x length x height). Tomato plants were grown inside two sections separated by a thin insect net. Ten plants grew healthy meanwhile the other ten were whitefly-infested.

Whitefly population

Greenhouse whiteflies from the experimental station of the Universidad Autonoma Chapingo located in Mexico, were identified as Trialeurodes vaporariorum Westwood [16]. Two methods were used for monitoring flies: sticky traps and whitefly adult leaf counting. Whitefly monitoring used 25-cm diameter yellow sticky traps (Figure 1a) placed 15cm below top plant canopy. Adult flies were counted on different phenological stages from vegetative development, through flowering until the second harvest [17]. Whiteflies ended glued to the plastic sticky material (Figure 1b) of the plates. Traps were removed once a week and the number of adults counted. A more efficient method to detect flies with a sticky-plastic wall uses a gear motor (Bodine, USA) fixed to the 5cm square greenhouse structure. An eccentric plate (Figure 1c) was moved by the motor and a wire (Figure 1d) fixed to the bottom of the plate make plants vibrate.

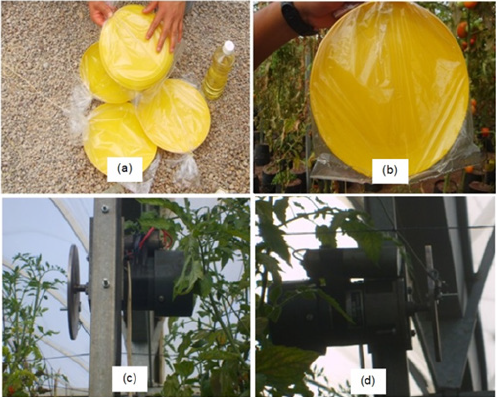

Figure 1:(a) Preparation of yellow plates with plastic cover,

(b) being placed within the greenhouse.

(c) Vibrator unit showing motor and plate and

(d) its connection to the plant wires.

The more exact technique for quantifying whitefly adults, counted adult flies lying on the first and second fully expanded leaves from the top [2]. Photographs were taken with a Huawei Y5 2019 smartphone having a 3-megapixel camera with an f/1.8 aperture. As adult whitefly move less, counts were performed early in the morning.

Data was collected four times during different phenological stages. The first sampling occurred on April 24th, one month after transplanting, being plants under vegetative growth. On June 24th flowering plants were monitored. The last two samplings took place on July 24th and August 24th during the first and second harvest respectively.

Dendrometer setup and monitoring

Stem diameter variations were measured on one plant using a linear commercial variable displacement transducer (LVDT) (mod 2.5 DF, Solartron Metrology, UK) and compared against a linear resistor dendrometer built at the Universidad Autonoma Chapingo and placed 2cm higher. The linear resistance sensor (model 9605R1.7KL2.0, BEISensors, USA) was attached to the stem using a stainless steel holder. The sensor signal was logged (Logbox AA, Novus Automation, Canoas, Brasil) at 30-s intervals and averaged every 5 min. Two linear resistance dendrometers were placed in healthy plants and another two in whitefly infested plants. Initial values of the diameter were measured with an electronic caliper when the experiment started [18]. Measurements were acquired daily after flowering until the second tomato harvest. Six-week old tomato infested plants were flowering and their stem data was retrieved and compared with healthy stem values. Dendrometer measurements from healthy and whitefly infested tomato plants were analyzed in a daily pattern and within 3-day time intervals searching for additional results.

All the plants without the screen presented adult flies. The number of flies per plant are shown in Figure 2, being of 2-3 adults per leaf during the flowering stage. After one month fruits matured and the central plants (4, 5 and 6) overpassed the tolerance threshold of 10 adults per leaf [19]. The lateral plants were less susceptible to fly attack due to sunlight, air and higher relative humidity. During the second harvest in August whitefly population doubled. The leaves at the top of the plant wilted, being stressed and losing its green color to become yellow.

Figure 2:Whitefly counted in six plants during flowering and harvest.

The monitoring systems for whitefly population analysis are shown in Table 1. Flies were not present during vegetative growth. During flowering and fruiting stages, fly population increased and whiteflies attached to the sticky-plastic by the 10min-vibrator were similar to the results obtained by leaf counting. In both sampling techniques whitefly population increased with plants age. As the vibrator worked for 5 minutes more, the quantity of whiteflies doubled (Table 1). Motor speed remained constant being of 65RPM.

The results of Table 1 show that the yellow plates are not accurate for population counting. The plates presented similar results during flowering and fruiting phenological stages (Figure 3). The adults glued to the plastic show a very high population that probably came from another leaves within the bottom of the plant (Figure 4d). Circles show adults in the plastic after 10 minutes of operation (Figure 4c).

Table 1: Comparison of counting whiteflies using three techniques during vegetative development, flowering and harvest.

Figure 3:(a) Whiteflies trapped in plates hanging in the greenhouse for one week during flowering and (b) during fruiting.

Figure 4:Plastic hanged by

(a) the side of the plants,

(b) once vibration takes place,

(c) after 10 minutes and

(d) after 15 minutes showing sticked whiteflies.

The LVDT commercial dendrometer was compared against the linear resistance sensor connected to the data logger. The linear resistance was fed by a linear current source to reduce measurement errors when the battery voltage discharges. A low pass filter within the microcontroller eliminated high frequency noise coming from the circuit oscillators. Very small measurement errors after midnight were noted with the resistance dendrometer (Figure 5). These errors resulted from high air relative humidity (RH) that was over 90% before sunrise. The point dendrometer based in the LVDT responds quicker to rapid changes as shown by the green peaks of Figure 5 at 10:00 and 11:00am.

At the end of July during the first harvest (160 days after transplanting) stem diameter differences were noted between a healthy and an infested plant. The healthy plant during the night before sunrise and after sunset has a continuous growth and achieves maximum shrinkage at 13:40 (Figure 6). Every time an irrigation event takes place stem grows and a peak observed. The plant attacked by 50 flies shrinked less 0.5 mm from a lower transpiration rate and during the night no growth was recorded. After analyzing the dendrometer measurements for three days 180 days after transplanting, the healthy plant shows continuous growth, meanwhile the highly infested plant shows a decrease in diameter size as it loses vigor (Figure 7). The healthy plant grows 1.88μm per day, meanwhile the severe infested plant decreases its diameter girth by 0.392μm per day. The infested plant with less than 50 flies over the top leaves presents a diameter growth of 0.29μm per day (Figure 7).

Figure 5:Stem diameter variation on the same plant taken by LVDT and resistance sensors.

Figure 6:Stem diameter variation during an entire day from two tomato plants (healthy and fly infested) being irrigated during 8 events.

Figure 7:Stem diameter growth during three continuous days at the end of the first harvest of a healthy plant, a lightly and a heavily infested plant.

Traps are used to study fruit fly communities, but captured flies have not been correlated with the real number of fruit flies [20]. The yellow color visual traps that were used track fly populations, but are unpractical. Their limited selectivity causes pollinators to end glued to the plastic. Population did not decrease by setting traps in a single plot of the trials [2] and proliferated more with tomato fruiting. Between the first and second harvest whitefly population increased greatly. It is important to instruct personnel in sanitary and pest management to reduce whitefly propagation. Female adults found within the greenhouse and in the plastic traps were more than males. Brevault [7] also observed a majority of female adults in the tomato crop laying eggs.

Environmental factors affect whitefly lifespan. As temperature increases, whiteflies adult longevity and fecundity decreases [21]. A negative relationship (r=-0.045) between whitefly population and average relative humidity suggests that whitefly population is not dependent on humidity [22]. Rainfall may lead to significant mortality in adult whiteflies, so whitefly populations remain within the greenhouse during the summer.

Tomato greenhouse production are using soilless media such as rockwool, peat, perlite or tezontle as they are pathogen-free and can be disinfected for reutilization. Root zone sensors are being used for irrigation scheduling but during soil moisture monitoring many drawbacks appear. Between sensors sensitivity, accuracy, repeatability, salinity variability and temperature dependence are noted [23]. In order to be used in tomato greenhouses, sensors should work with different substrates and several problems have to be solved. A dendrometer installed in the stem could provide a signal nondependent with soil salinity or substrate variable nutrient alkalinity.

The dendrometer connected to a data logger must always be in contact with the plant surface and avoid direct solar radiation [24]. LVDT sensors are used by most researchers where thin stems are sampled [25], but tomato plant stem was measured with precision with laser displacement sensors [26]. In our comparison between linear resistance and LVDT sensors the final error after 4 months of measurement was of only 0.01mm.

Changes in fruit load and tomato stem age bring important changes in stem variation evaluation. Tomato plants have a constant fruit load throughout the growing season as fruits are picked continuously [25]. They reported that previous to harvest, fruit sink strength dominated water transport towards the fruits. Plants with higher illumination in the edges of the greenhouse grew faster than plants in the center of the greenhouse. Plants at the edge of the greenhouse show larger stem shrinkage during the day and after sunset, plants stem grow again [18]. Daily stem growth behavior follows an inverse pattern as water and sap flow through the plant.

We saw that healthy tomato plants having high sap flow rates presented large maximum daily stem shrinkage (Figure 6) values, while infested plants with low circulating sap flow and transpiration showed minimum shrinkage. In Figure 6, 50 flies per plant do not represent a severe and harmful infestation [19]. As flies per plant increased over 100 adults, plant stress was noted with a shrinkage of just 0.1mm; this graph was not plotted. Figure 7 shows signatures of stem growth during a three-day continuous period. Healthy tomato plants present leaf transpiration and stem shrinkage, experiencing a final daily stem growth. Water stressed plants generally show low rates of stem growth [27]. However, a severe infested plant is completely stressed, leaves fall and stem diameter decreases. Leaf wilting and stem diameter response have been related to plant water stress [26]. Water stress affects soil water potential and stomatal conductance [28,29].

Whitefly population was counted with a vibrator that worked for ten minutes. Its values were close to the plant whitefly population counted in the top two leaf layers. As the plant grew the infestation increased and longer vibrator time could help to decrease flies inside the greenhouse.

A point home built resistance dendrometer monitored tomato stem changes during an entire season. It was found that whitefly Trialeurodes vaporariorum Westwood sucks sap from leaves, stressing the plant. It was noted a lower stem shrinkage with infested plants than with healthy ones. As time passes, plants´ vigor is lost and stem growing reverses becoming thinner (Figure 7).

I will like to thank MI Jesus Antonio Garcia Martinez who built the dendrometer and the DGIP who funded the project 21013-DTT- 65.
