Yoshio Sumida1*, Masashi Yoneda1, Katsutoshi Tokushige2, Miwa Kawanaka3, Hideki Fujii4, Masato Yoneda5, Kento Imajo5, Hirokazu Takahashi6, Yuichiro Eguchi6, Masafumi Ono7, Yuichi Nozaki8, Hideyuki Hyogo9, Masahiro Koseki10, Yuichi Yoshida11, Takumi Kawaguchi12, Yoshihiro Kamada13, Takeshi Okanoue14 and Atsushi Nakajima5, Japan Study Group of NAFLD (JSG-NAFLD)
1Division of Hepatology and Pancreatology, Department of Internal Medicine, Aichi Medical University, Japan
2Department of Internal Medicine, Institute of Gastroenterology, Tokyo Women’s Medical University, Tokyo, Japan.
3Department of General Internal Medicine, Kawasaki Medical School, Japan.
44Department of Hepatology, Graduate School of Medicine, Osaka City University, Osaka, Japan
5Division of Gastroenterology, Yokohama City University Graduate School of Medicine, Yokohama, Japan
6Department of Internal Medicine, Saga Medical School, Saga University, Saga, Japan
7Division of Gastroenterology and Hepatology, Department of Internal Medicine, Tokyo Women’s Medical University Medical Center East, Tokyo, Japan.
8Department of Gastroenterology, National Center for Global Health and Medicine, Tokyo, Japan.
9Department of Gastroenterology, JA Hiroshima Kouseiren General Hospital, Japan
10Department of Cardiovascular Medicine, Osaka University Graduate School of Medicine, Japan
11Department of Gastroenterology, Suita City Hospital, Osaka, Japan
12Division of Gastroenterology, Department of Medicine, Kurume University School of Medicine, Kurume, Japan
13Department of Molecular Biochemistry & Clinical Investigation, Osaka University Graduate School of Medicine, Suita, Osaka, Japan.
14Hepatology Center, Saiseikai Suita Hospital, Japan
*Corresponding author:Yoshio Sumida, Division of Hepatology and Pancreatology, Department of Internal Medicine, Aichi Medical University, Japan
Submission:February 03, 2020;Published: February 11, 2020
ISSN 2578-0263Volume3 Issue4
Diabetes is associated with about 30% of liver cirrhosis and affects prognosis, carcinogenesis, and the onset of complications. In cirrhosis, fasting normal and postprandial hyperglycemia are often present, and evaluation by glucose tolerance test or continuous blood glucose measurement is also considered. Although no treatment strategy has been established, if renal function is maintained, metformin will be the first choice, but for renal dysfunction cases and metformin ineffective cases, insulin will be indicated. Although the efficacy and safety of incretin-related drugs and sodium-glucose cotransporter 2 inhibitors have not been established, they can be expected to be effective in cases with obesity. On the viewpoint of preventing sarcopenia and hepatocarcinogenesis, antidiabetic drugs should be selected. Exogenous insulin should be indicated for patients with Child C grade. This review discusses antidiabetic treatments for diabetes with liver cirrhosis.
Keywords: Metformin; Insulin; Incretin; Sodium-glucose cotransporter 2; Glucagon like peptide 1
Abbreviations: GA: Glycated Albumin; CLD: Chronic Liver Disease; HCC: Hepatocellular Carcinoma; CGMS: Continuous Glucose Monitoring System; FGM: Flash Glucose Monitoring; NASH: Nonalcoholic Steatohepatitis; αGI: Alpha Glucosidase Inhibitor; SGLT2: Sodium-Glucose Cotransporter 2; DPP-4: Dipeptidyl Peptidase-4
In cirrhosis, diabetes is complicated by 30% and glucose intolerance by 80% due to decrease in glucose processing ability in liver and skeletal muscle [1], decrease in insulin clearance and hyperinsulinemia due to portal circulation shunt. In addition, hypoglycemia at night and in the early morning is likely to occur because of decreased glycogen storage in the liver and inadequate gluconeogenesis. These glucose metabolism disorders have an adverse effect on the prognosis and risk of liver carcinogenesis, so their diagnosis and treatment are important issues. Glycated hemoglobin (HbA1c), which is usually used for diagnosis and follow-up of diabetes, is not reliable as an index of glycemic control in cirrhotic patients because it shows false low value by hemolysis due to hypersplenism, and it is better to use glycated albumin (GA) as an index. However, in decompensated liver cirrhosis, the ability to synthesize albumin is significantly reduced and may affect GA, so caution is required to evaluate glycemic control in patients with cirrhosis. It has also been suggested that the average value of HbA1c plus GA/3 should be used as chronic liver disease (CLD)-HbA1c from within Japan [2]. Serum fructosamine may be more suitable test for monitoring blood glucose levels [3]. As described above, in patients with CLD, measurement of fasting blood glucose alone may miss diabetes, and postprandial blood glucose measurement and glucose tolerance test should be considered. On the other hand, there is also evidence that diabetes promotes liver fibrosis and increases liver carcinogenesis, and liver fibrosis and diabetes are closely related.
According to the guidelines on nutritional management in Japanese patients with liver cirrhosis aimed at preventing hepatocellular carcinoma (HCC), the standard for dietary intake is 25kcal/kg (ideal body weight) per day, with protein intake of 1.0-1.5g/kg/day and a 20-25% lipid: energy ratio [4].Taking snacks at bedtime (split meals) is effective for nighttime and early morning hypoglycemia measures. When liver cirrhosis progresses, various complications appear, and administration of a nutrient for liver failure is necessary to prevent salt restriction (5 to 7g) for the appearance of ascites fluid, hypoalbuminemia and hepatic encephalopathy. However, it is necessary to be careful because a nutrient for liver failure may lead to excessive intake of calories and may lead to worsening of diabetes [5]. Exercise therapy should be recommended if you do not have significant ascites or encephalopathy to increase muscle mass.
The use of antidiabetic drugs in patients with cirrhosis is debated [1,6,7] because adverse events may be more common and treatment targets may be different from diabetic patients without cirrhosis. Otherwise, the presence of T2DM in liver cirrhosis increases the risk of liver and not liver-related complications and death, so pharmacological approaches to this clinical setting should be safe and should improve survival. In the selection of treatment strategy, drugs are selected by comprehensively judging the evaluation of renal function, presence or absence of combined disease such as ascites, age, prognosis of liver disease. In the past, it was not easy to know blood glucose fluctuation at night, but in recent years continuous glucose monitoring system (CGMS) [8] or flash glucose monitoring (FGM) have become available, and early detection of glucose intolerance in patients with liver cirrhosis, selection of appropriate therapeutic agents. There is a high possibility of contributing significantly to dose setting and hypoglycemia control, and improvement in prognosis is also expected. There is no evidence for the target values of HbA1c or GA in the treatment of diabetes in patients with liver cirrhosis, and it is not clear to what extent strict blood glucose control should be aimed.

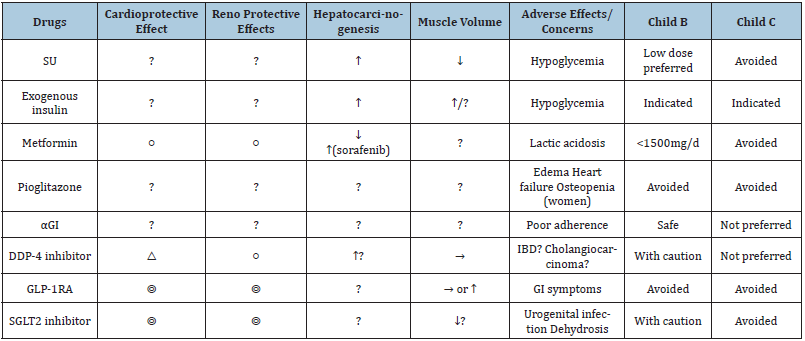

Table 1:Antidiabetic drug for patients with cirrhosis.
SU: Sulphonyl Urea; αGI: α Glucosidase Inhibitor; DDP-4; Dipeptidyl Peptidase-4; sodium-glucose cotransporter 2; GI: Gastrointestinal;
IBD: Inflammatory Bowel Disease; GLP-1RA: Glucagon Like Peptide-1 Receptor Agonist.
Metformin: Metformin is specified as the first choice in the American Diabetes Association (ADA) due to its usefulness and medical economic benefits [9]. In the past, liver cirrhosis had a high risk of lactic acidosis and was considered to be a contraindication. However, a large cohort study showed that the continuation of metformin use after cirrhosis diagnosis significantly improved survival in all stages of cirrhosis, suggesting that metformin is safe and well tolerated also in patients with decompensated liver disease [10]. Recent studies have revealed that the frequency of lactic acidosis is not high if renal function is maintained, and metformin even in cases with liver cirrhosis is the first choice of medication. Particularly, it was shown that metformin had a protective effect only in patients with NASH-related cirrhosis, probably due to the pleiotropic effects of metformin in cell proliferation and differentiation, in apoptosis and inflammation and in metabolic pathways of glucose and lipid homeostasis [11]. In particular, the effect on prognosis that has been announced recently has a variety of useful data such as a 57% decrease in the mortality rate of cirrhosis [12], an encephalopathy suppressive effect, and a liver carcinogenic suppressive effect. However, it should be not used in patients with Child-Pugh class C cirrhosis and in presence of severe renal impairment for the risk of lactic acidosis [7].
Thiozolidine: The thiozolidine derivative improves insulin resistance through PPARγ activation. Troglitazone and rosiglitadine have been discontinued due to serious problems such as liver injury and heart failure. Although the efficacy of pioglitazone currently on the market has been established for nonalcoholic steatohepatitis (NASH) [13-15], the efficacy and safety for NASH-related cirrhosis have not been established. Pioglitazone is difficult to use due to concerns such as edema, weight gain and carcinogenesis. It should be avoided in patients whose liver enzymes are >3 times ULN range. Pioglitazone may be used in Child-Pugh Class A patients. However, it should be avoided in Class B and C patients [7]. The development of novel thiozolidine derivatives targeted to mitochondria (mTOT) is in progress [16], and we hope to overcome these side effects.
Sulfonyl urea/glinide: There is a risk of hypoglycemia, and administration to patients with cirrhosis is not recommended in principle [17]. If used, lower doses of sulfonyl urea should be preferred in Child-Pugh Class A and B. SUs should be avoided in patients with Child-Pugh Class C [7]. In alcoholic liver cirrhosis in particular, pancreatic β cells may be exhausted and not recommended. Although glinide may be used in Child-Pugh Class A patients, it is not preferred in Child-Pugh Class B and C patients [7].
Alpha glucosidase inhibitor: It has been reported that alpha glucosidase inhibitor (αGI) significantly improve post-prandial hyperglycemia in a double-blind comparative study of 100 patients with compensated cirrhosis [18]. In addition to improving blood sugar, it has also been reported that when the cirrhotic patient with grade 1/2 encephalopathy is treated with acarbose 300mg for 8 weeks, ammonia in the blood is reduced by increasing the number of stools [19]. αGI have improved blood sugar and ammonia levels compared to placebo in patients with liver cirrhosis and diabetes mellitus treated with insulin [20]. Especially for postprandial hyperglycemic cases, there are reports of side effects such as elevation of ALT, and attention is given to liver function. Also, compliance with medication compliance is key because it is administered three times a day. αGI are safe in Child-Pugh Class A and B. However, they are not preferred in Class C patients [1,7].
Incretin related drugs: It is speculated that dipeptidyl peptidase-4 (DPP-4) inhibitors can be safely used in liver cirrhosis in a pharmacokinetic manner [21], and it has been reported that DPP-4 inhibitors suppress liver fibrosis in animal models [22]. However, there is no large-scale data for DPP4 inhibitors in patients with liver cirrhosis and diabetes [1], and the same is true based on the fact that the cardiovascular event suppression effect is poor and the recent risk of developing inflammatory bowel disease is increased by about 75% [23]. I would like to expect even incretin related drugs rather to glucagon like peptide-1 receptor agonist (GLP-1RA). Although the efficacy of GLP-1 RA for cirrhosis is unknown, it can be the first choice, especially for NASH cirrhosis, based on results such as cardiorenal protection (LEADER trial, AWARD10 study, and SUSUATIN 6 study). Because the preparation is an injection preparation, once a week the preparation has high compliance and patient satisfaction, and dulaglutide and semaglutide are recommended. Semaglutide is currently in clinical trials for NASH (SEMA-NASH study), but cirrhosis (stage 4) cases have not been entered. Dulaglutide’s disposable syringes are easy for nonspecialists to use. Semaglutide is highly effective in reducing weight and improving blood sugar but has just been approved and has little experience with it. In addition, clinical trials for NASH are currently underway, but cirrhosis is not included. Drugs of this class can be administered to Child-Pugh Class A patients. However, due to scarcity of data in hepatic impairment patients, GLP-1RAs should be avoided in Class B and C patients [7].
Sodium-glucose cotransporter 2 (SGLT2) inhibitors: It is a drug that can be a candidate for treatment in view of body weight, body fat reduction, cardiorenal protection, etc. We also reported the ALT improvement effect in the sub-analysis of the national trial for diabetic patients [24] and the reduction effect of liver steatosis evaluated by MRI [25]. However, if liver fibrosis progresses, it may be suggested that the ALT-lowering effect may be inferior [26] and we hope for future research results. Although cases of liver cirrhosis have been reported only in a case report [27], administration to cirrhosis with sarcopenia should be exercised in consideration of the possibility of decrease in muscle mass. In addition, in cases of poor hepatic reserve, there is also concern about deterioration of encephalopathy and the like due to dehydration, so we have limited cases to around Child A; however, SGLT-2 inhibitors should be used with caution in Class B patients. Agents of this class should better be avoided in Class C patients [1,7]. On the other hand, as it has Na excretion function, ascites improvement effect is expected rather in the ascites merger case [28], but there is not enough data. Furthermore, although there is a report of suppression of carcinogenesis in animal models [29], it is not clear in clinical data, and we hope for future data. With reference to the package insert of each drug for SGLT2 inhibitor, there are many drugs that are carefully administered to “patients with severe liver dysfunction”, and the following two drugs without such description are recommended in this article: canagliflozin and luseogliflozin. Care must be taken for urinary tract infections such as urinary cystitis and tinea genitalia, but it can be expected to be useful for obese cases.
Insulin: Conventionally, short-acting insulin is used in principle in diabetes complicated with liver cirrhosis [30]. It is difficult to set the dose because of insulin resistance and the reduced ability to metabolize insulin, and it is desirable to monitor blood glucose at hospitalization [31]. Guidelines from the ADA highlight the importance of insulin and suggest frequent dose adjustment and careful glucose monitoring for T2DM and CLD patients [7]. Although there is a report that cautions are necessary because hypoglycemic symptoms are less likely to occur if a beta receptor antagonist is administered orally for the prevention of hemorrhage for varicose veins [31], but there is no evidence that the frequency of hypoglycemia has increased. The combination of beta receptor antagonist and insulin is not a contraindication. In patients with Child-Pugh class C cirrhosis, insulin therapy remains the treatment of choice for co-existing T2DM [32].
Novel drug underdevelopment: Imeglimin [33], a novel diabetes drug currently in phase 3 clinical trials in Japan, acts on muscle, pancreatic β cells, and liver, has mitochondrial metabolism improving activity, and sub-analysis of phase 2 clinical trials in Japan also shows improvement in ALT value. Obechicholic acid, an farnesoid X receptor activator, is currently undergoing a global clinical trial for NASH fibrosis (REGENERATE trial) and NASH cirrhosis (REVERSE trial), but its insulin resistance ameliorating effect has also been shown [34] and we hope to see the efficacy of cirrhosis in the future. Proteomic profiles that include plasma Sirt 1 and protein analysis are critical to determine defects in the nuclear-mitochondria interaction relevant to the severity of NAFLD or diabetes [35].
Sarcopenia is a prevalent muscle abnormality in patients with cirrhosis that is associated with higher mortality pre- or postliver transplantation, a higher rate of infection and longer hospital stay, hepatic encephalopathy, poor quality of life, and increased healthcare cost [36]. We should select antidiabetic medications in cirrhotic patients on the viewpoint of sarcopenia [37,38], but for the majority, their effects on sarcopenia components are unclear. Metformin increases AMP-activated protein kinase activity, which inhibits the mechanistic target of rapamycin (mTOR), a key factor in muscle growth. However, metformin is being investigated as an adjunct therapy to resistance training in older adults, as it may assist in the mobilization of M2 macrophages, which could have anti-inflammatory properties in skeletal muscle. In the MrOS study, men with diabetes treated with metformin alone and metformin plus thiazolidinediones (insulin sensitizers) over 3.5±0.7 years follow-up had an attenuated loss of total lean mass and ALM compared to men with diabetes that were not treated with insulin sensitizers, and men with untreated diabetes. Thus, it is unclear whether metformin has positive, negative, or negligible effects on muscle mass and strength in humans. Insulin has anabolic effects on muscle mass and protein metabolism in young and non-insulin resistant men and women; however, this does not seem to occur for individuals with T2DM [39]. Indirectly, insulin therapy may improve muscle health by reducing blood glucose concentrations, which, as described above, can have negative effects on muscle through inflammation, oxidative stress and increased AGEs if chronically elevated. Sulfonylureas have been reported to cause muscle atrophy in a very small proportion of users; however, to the best of our knowledge there are no clinical trials investigating this relationship in a controlled setting. Incretin-based drugs such as DPP-4 inhibitor [39] and liraglutide [40,41] does not seem to decrease muscle. Be careful about sarcopenia by measuring muscle mass etc. by SGLT2 inhibitor administration for liver cirrhosis cases and judge the indication carefully [42]. Overall, there is a paucity of data pertaining to the relationship between glucose-lowering medication and muscle health in humans.
DM is an independent risk factor for HCC in CLD, including chronic hepatitis C and NAFLD. Exogenous insulin and insulin secretagogues such as sulfonylurea are known to increase the risk of HCC in patients with CLD [43,44]. On the other hand, insulin sensitizers such as metformin or thiazolidinediones are reported to reduce HCC risk in patients with CLD [45]. These agents exert antitumor effects by improving hyperinsulinemia as well as activation of AMPK and PPARγ. Accumulating evidences of retrospective studies suggest that metformin significantly reduce HCC risk, but two large randomized controlled trials (RCTs), namely, ADOPT (A Diabetes Outcome Progression Trial) and RECORD (Rosiglitazone Evaluated for Cardiovascular Outcomes and Regulation of Glycaemia in Diabetes), failed to demonstrate that metformin offered any chemo preventive effect on the development of HCC when compared with TZDs, but remained potentially advantageous over sulphonyl urea [46]. On the other hand, metformin was recently reported to increase tumor aggressiveness, and resistance to sorafenib caused upregulation of sirtuin-3 [47,48]. There is still a lack of both basic and clinical investigations into whether dipeptidyl peptidase 4 (DPP-4) inhibitors have antitumor effects against HCC. CD26, a multifunctional transmembrane glycoprotein, is expressed in HCC and functions DPP-4. Thus, DPP-4 inhibitors exert antitumor effects against HCC in a mice model [49]. DPP-4 inhibitor is reported to upregulate metastatic capacity of HCC by activating nuclear factor E2-related factor 2 to decrease reactive oxygen species levels [50]. Harada et al. [51] reported an association between DPP-4 inhibitor and rapid progression of HCC [51]. Thus, further study is required to evaluate beneficial effects of DPP-4 inhibitor on patients with HCC. Influence of GLP-1 RA on hepatocarinogeneis remains unknown. In obese or NASH mice models, SGLT2 inhibitors could prevent the development and growth of HCC [52-55]. In the clinical setting, Kawaguchi and colleagues reported a cirrhotic patient with diabetes mellitus showed spontaneous regression of hepatocellular carcinoma via reduction in angiogenesis-related cytokines [56]. There have no reports preventing hepatocarcinogenesis of SGLT2 inhibitors in T2DM/NAFLD patients. We should select antidiabetic agents from the viewpoint of hepatocarcinogenesis suppression in cirrhotic patients with DM.
From the above, I would like to propose the management of diabetes that has complicated liver cirrhosis patients (Figure 1). The combination of diabetes in patients with liver cirrhosis obviously worsens the prognosis. On the other hand, it is also pointed out that diabetes may promote the progression of liver fibrosis, and treatment from the viewpoint of breaking the vicious circle of both parties is required. The choice of antidiabetic agents may influence the prognosis of liver disease, and after sufficiently understanding the drug characteristics from among a wide variety of action mechanisms, the selection of a drug that matches the liver condition is sought.

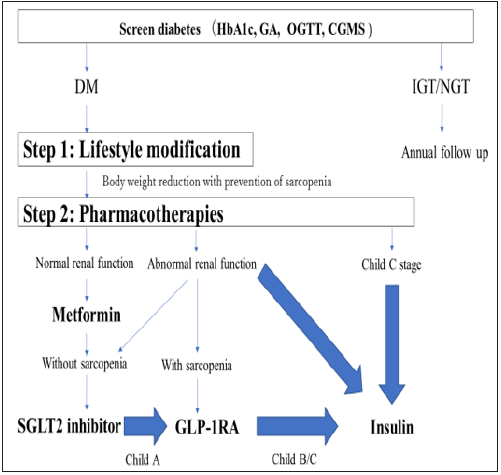

Figure 1: Strategy for diagnosis and treatment in type 2 diabetes with cirrhosis.
HbA1c: Glycated Hemoglobin; GA: Glycated Albumin; OGTT: Oral Glucose Tolerance Test; CGMS: Continuous
Glucose Monitoring System; DM: Diabetes Mellitus; IGT: Impaired Glucose Tolerance; NGT: Normal Glucose
Tolerance; SGLT2: Sodium-Glucose Cotransporter 2; GLP-1RA: Glucagon Like Peptide-1 Receptor Agonist.
This study was supported by a members of Japan Strategic Medical Administration Research Center (J-SMARC). This research was supported by AMED under Grant Number 19fk0210040h0002.
Dr. Sumida received honoraria from Mitsubishi Tanabe, Sumitomo Dainippon, Astrazeneka, Ono, and Taisho pharm. Dr. Sumida received research funding from Bristol-Meyers Squibb. Dr. Nakajima received honoraria from Gilead, Bristol-Meyers Squibb, Novartis, and EA pharma. Dr. Nakajima received research funding from EA pharma, Mylan, and EPD.
© 2020 Yoshio Sumida. This is an open access article distributed under the terms of the Creative Commons Attribution License , which permits unrestricted use, distribution, and build upon your work non-commercially.
