Anaïs Rodrigues, Carole Dauberschmidt, Claude Schummer, Georges Dahm and Serge Schneider*
National Health Laboratory, 1 rue Louis Rech, L-3555 Dudelange, Luxembourg
*Corresponding author: Serge Schneider, National Health Laboratory, 1 rue Louis Rech, L-3555 Dudelange, Luxembourg
Submission: May 05, 2021;Published: May 21, 2021
ISSN 2578-0042 Volume5 Issue3
Research shows that cannabis has a beneficial impact on many different health issues and, as a
consequence, concentrated cannabis derived products are becoming increasingly popular. Above all, high
Cannabidiol (CBD) and low Tetrahydrocannabinol (THC) extracts are aggressively marketed by many
vendors via internet-based shops. As with “classical” medication or food supplements, assessment of
product safety is an important issue. Because many different non-standardized production methods
are used and no international accepted technical verification procedures of the final products are yet
available, the quality of CBD oils generally cannot be guaranteed.
In this study, cannabinoid, terpene, pesticide, solvent and metal content of 24 CBD rich extracts
purchased from several internet vendors were investigated. Furthermore, consumer information given
on the internet site or as package insert is also discussed. Most of the samples had substandard consumer
information and CBD concentrations below the proclaimed values. Terpene concentrations were highly
variable, pesticides were detected in three samples and residual extraction solvents were detected in four
samples. Metals were present at low, non-toxic levels in all samples. Considering the growing popularity
of medical cannabis and of online shops consumer education is important and systematic quality testing
for cannabis extracts should be mandatory.
Keywords: Cannabis extracts; Cannabinoid content; Terpenes; Pesticides; Metals; Solvents; Online vendors
Abbreviations: CBD: Cannabidiol; CBDA: Cannabidiol Acid; CBG: Cannabigerol; CBGA: Cannabigerol Acid; CBN: Cannabinol; THC: Tetrahydrocannabinol; CYP: Cytochrome P; DMA: Direct Mercury Analyser; GC/MS: Gas Chromatography Coupled to Mass Spectrometry; GC/MS/MS: Gas Chromatography Coupled to Tandem Mass Spectrometry; HPLC/UV: High Performance Chromatography Coupled to Ultraviolt Detection; HS/GC/MS: Head Space Gas Chromatography Coupled to Mass Spectrometry; LC/MS/MS: Liquid Chromatography Coupled to Tandem Mass Spectrometry; LLOQ: Lower Limit of Quantification; LOD: Limit of Detection; MRM: Multiple Reaction Monitoring; PDA: Photodiode Array Detector; PTFE: Polytetrafluorethen; S/N: Signal to Noise Ratio; THCA: Tetrahydrocannabinol Acid
Cannabis counts among the oldest known medicines and nutrients of humanity. For
thousands of years it has been used in East and South East Asia and much later in Europe and
North America. However, with the development of chemical and pharmaceutical industries
in the 19th century and because of political and economic reasons at the beginning of the
20th century, it has been first marginalized and later banned. Recent research however shows
that cannabinoids in general and Cannabidiol (CBD) in particular as well as other cannabis
ingredients, such as terpenes, have beneficial impact on many health issues, including
cancer, psychosis, neuropathic pain, nausea, sclerosis, arthritis, fibromyalgia, Parkinson
disease, anxiety, autism [1-4]. Additionally, CBD is generally well tolerated [5,6], it is not
psychotropic, adverse events and side effects are rare and seem to resolve on their own with
time. Consequently, more and more countries worldwide legalize or decriminalize cannabis
for medical use.
Mono, di and sesquiterpenes count among the largest group of phytochemicals and they
give the distinct flavor and aroma to fruits and plants. In the case of medical cannabis, much
attention has been given to the theory of the “entourage effect” first described by Russo [7],
outlining potential potentiation between terpenes and cannabinoids making the “whole
plant medicine” more effective than the sum of the effects of the single compounds. Research
supports these findings and shows that the terpenes have a ”broad range of the biological
properties (…) including cancer chemopreventive effects, antimicrobial, antifungal, antiviral, anti-hyperglycemic, anti-inflammatory, and antiparasitic activities”
[8,9]. Many terpenes however are often volatilizing at, or slightly
above, room temperature. In order to prevent this volatilization,
cannabis extracts are generally prepared using supercritical CO2
based methods instead of the more classical solvent extraction
methods.
Meanwhile, the internet is becoming a popular source of
medical advice and an online pharmacy for standard and exotic
pharmaceuticals or food supplements [10]. Beside the ethical, legal
and regulatory aspects of this trade, major challenges are public
health issues such as manufacturing and distribution practice,
patient information and, above all, product quality [11,12].
However, often, easy ordering, and low prices are of higher priority
than product quality for buyers. Even if regulation efforts have been
made, quality control of products sold on the internet remains a
major concern [13]. In fact, internet drug outlets may be illegitimate
or illegal [14] making quality control efforts illusionary.

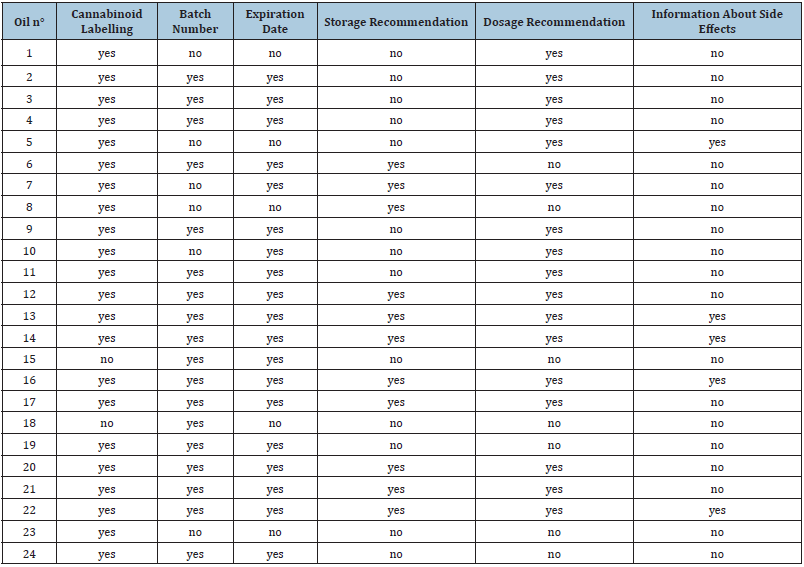

In this project, a total of 24 CBD oils purchased from
vendors from seven European countries were analyzed. The
objectives were to access user/patient information provided to
purchasers and to assess the overall CBD oil quality. Cannabinoid
content, i.e. cannabidiol (CBD), Cannabidiolic Acid (CBDa),
Tetrahydrocannabinol (THC), Tetrahydrocannabinolic Acid (THCa),
Cannabinol (CBN), Cannabigerol (CBG), cannabigerolic acid (CBGa),
terpene content (α-pinene, β-myrcene, linalool, β-caryophyllene,
humulene, guaiol, limonene), solvents, pesticides and metal were
investigated.
CBD oils
CBD oils were ordered from 25 online vendors. Twenty-four samples were finally bought, one vendor refused to sell products to an analytical laboratory. Samples were bought from Austria, France, Germany, Great Britain, Luxembourg, Netherlands and Spain. All samples were received in good condition in three days to two weeks after ordering. They were all stored at 5°C in the dark, even if three vendors recommended storing at room temperature.
Analytical methods

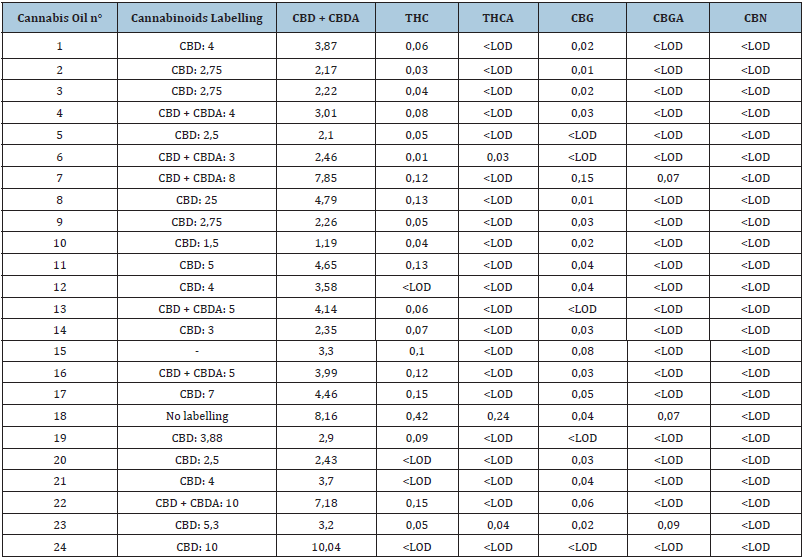

Cannabinoid and terpene content were determined using
validated HPLC/UV and GC/MS methods, respectively. Validation
parameters included the determination of the linearity, intraday
precision and accuracy, Limit of Detection (LOD) and Lower Limit of
Quantification (LLOQ). The LOD was defined as a signal to noise ratio
equal of above three and the LLOQ as a signal to noise ratio equal
or above 10. A six-point calibration curve was established before
each series of analysis. For cannabinoid dosage, 50 to 100 mg of oil
were dissolved in 20mL of ethanol, homogenized and diluted again
in HPLC buffer (20mM KH2PO4 pH 2.18/acetonitrile, 35/65, v/v) to
obtain concentrations in the 0.1mg/L range. 10μL of this solution
were injected into the HPLC/UV system. Analyses were carried
out on a reverse phase high performance liquid chromatography
system coupled to UV detector (Dionex Ultimate 3000 RS HPLC/
UV, Thermo Fisher, Waltham, USA). Chromatographic separation
was achieved on an Acclaim™ Polar Advantage II column (100mm
x 2.4mm x 2.2μm). Detection was obtained using a photodiode
array detector (PDA, 200-360nm). Quantification wavelength
was 209nm for decarboxylated cannabinoids and 223nm for
carboxylated cannabinoids. Oven temperature was set at 50°C,
chromatographic conditions were developed using HPLC quality
water containing 20mM KH2PO4 (eluent A) and acetonitrile (eluent
B). Chromatographic conditions were 39% eluent A/61% eluent B
for 4min followed by a linear gradient 61-90% B in 3min. Returning
to initial conditions was achieved in 0.4min. Equilibration time was
2min and the flow rate was fixed at 0.85 mL/min over the whole
run.
A 6 points linear calibration curve was established before
analysis of the real case samples. Absolute amounts injected were
0 (blank), 10, 25, 50, 75 and 100ng of the cannabinoids in eluent
A. The coefficient of determination (r2) was >0.99 and resolution
was >1.5 for all cannabinoids. Coefficient of variation and accuracy
bias were <15%. In real case samples, a relative standard deviation
of the relative peak purity index <5% was considered for positive
detection and a S/N >10 for quantification of cannabinoids. All
analyses were performed in duplicate; the average of the two
results was retained.

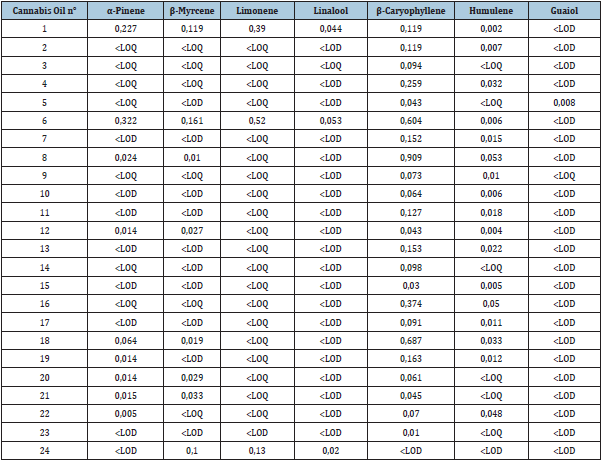

For terpene determination, 100 to 150mg of oil were dissolved
in 5 or 10mL of ethyl acetate, homogenized and diluted again from
10 to 100 times to fit into calibration ranges. Butyl paraben (at a
concentration of about 10mg/L) was added as internal standard
to each sample before analysis. 1μL of the solution was injected
into the GC/MS system (7890A gas chromatography, equipped
with an automatic injector AS 7693 and coupled to a 5975C
mass spectrometer, Agilent Technologies, Waldbronn, Germany).
Chromatographic separation was achieved on a HP-5 MS (5% phenyl
methyl siloxane) column (30m x 0.25mm x 0.25μm) with helium as
vector gas. Detection was done in scan mode (m/z 50-600). Injector
temperature was 250°C. Initial chromatographic conditions were
70°C for 1min then 25°C/min to 190°C and then 10°C/min to 310°C
for 25min. Flow rate was fixed at 1.2mL/min over the whole run.
A 6 points linear calibration curve was established before analysis
of the real case samples. 1μL of solutions of 0, 20, 100, 225, 350
and 450μL of the terpenoids content in 1mL ethyl acetate (at a
concentration of about 10mg/L) with 100 μL of butyl paraben
as internal standard (at a concentration of about 10mg/L) was
injected. r2 was >0.98 and resolution was >1.5 for all terpenes.
Coefficient of variation and accuracy bias were <15%. In real case
samples, a S/N >3 was considered for positive detection and a S/N
>10 for quantification. LOD was 0.2ng/μL.
Determination of residual solvent was carried out on a Head
Space GC/MS system (HS/GC/MC) consisting of a 6890N gas
chromatography, equipped with a head space sampler 7697A and
coupled to a 5975C mass spectrometer (Agilent Technologies,
Waldbronn, Germany). Chromatographic separation was achieved
on a DB-624 (bonded and cross-linked) column (30m x 0.32mm x
1.80μm) with helium as vector gas. Detection was done in scan mode
scanning m/z from 25 to 300. Oven temperature was fixed at 85°C. GC/MS injector temperature was 250°C. Initial chromatographic
conditions were 40°C for 4min then 12.5°C/min to 160°C and then
100°C/min to 220°C for 0.8 min. Flow rate was fixed at 2.48ml/min
over the whole run. A mass of 100 to 150mg of oil was introduced in
10mL head space vial with 100μL of a 1-butanol solution (1mL/L)
as internal standard. A 4 points linear calibration curve was
established before analysis of the real case samples. Solutions of
0 (blanc with internal standard), 1, 2.5 and 5mL/L of the solvent
in 100mL H2O with 100μL of 1-butanol as internal standard were
injected in split mode with a ratio of 40: 1. Samples with S/N >10
were dosed.
For pesticide determination, the EN 15662 method for pesticide
analysis in foods of plant origin with QuEChERS extraction was
adapted for analysis of the oils. The adaption consisted in taking
1g of sample instead of 10g. Cleanup was done using PSA - carbon
black mix of 19:1 (w/w). The sample was mixed with 10mL
acetonitrile, and shaken for 1minute. Then, a mixture of salts was
added (4g MgSO4; 1g NaCl; 1g sodium citrate and 0.5g disodium
citrate sesquidydrate), and shaken for 1minute, centrifuged for
5minutes at 4000rpm. 1ml of the upper layer was mixed with
the internal standard (triphenyl phosphate) and injected into the
analytical systems. A total of 177 pesticides were scanned using
LC/MS/MS or GC/MS/MS. LC-MS/MS analyses of pesticides were
carried out on an Aquity ultra-performance liquid chromatography
system (Waters, Zellik, Belgium). Chromatographic separation was
achieved on an Aquity UPLC HSS T3 column (100mm x 2.1mm x
1.8μm). A linear multi-step solvent gradient was applied with the
solvents A (water, 0.02% formic acid) and B (acetonitrile, 0.02%
formic acid). The gradient consisted of 0-16min 100-0% (A); 16-
18min, 100% (B); 18-20min, 0-100% (A). The flow was set to
0.4mL/min. The injection volume was 1μl. The temperature of
the sample chamber was 15°C and the temperature of the column
oven was set at 40°C. MS/MS measurements were carried out
on a XevoTQS unit (Waters, Zellik, Belgium) in Multiple Reaction
Monitoring (MRM) mode. MassLynx software (Waters) was used to
detect pesticides in monitored data. Reported limit was at 0,1mg/
kg. Semi-quantitation of identified pesticides (propamocarb) was
carried out in a second step with external calibration. CG/MS/MS
analyses of pesticides were carried out on an Agilent 7000 Series
triple Quad equipped with an HP-5MS (5% phenyl methyl siloxane)
column (30m x 0.25mm x 0.25μm) in MRM mode. Screening of
pesticides was done using Masshunter identification software. The
reporting limit for all pesticides was 1mg/kg.

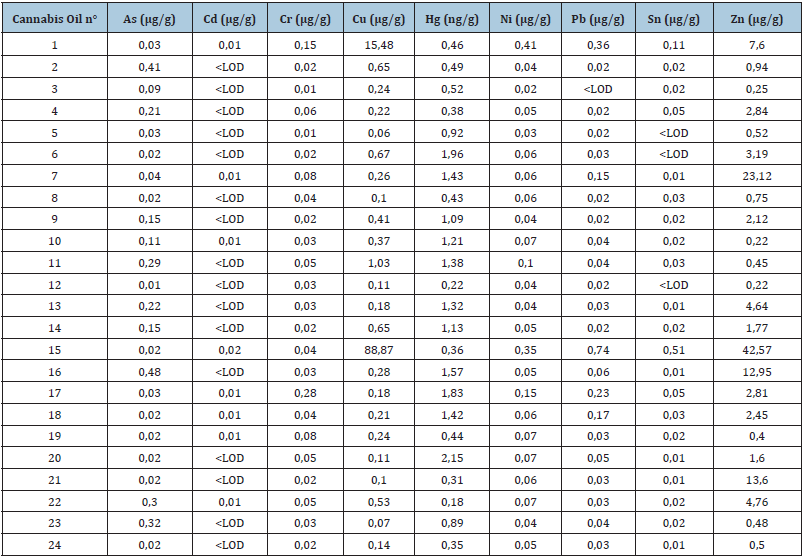

For metal determination the EN 13805:2014 (European
Committee for Standardization, 2014) method was used. To 1g of
oil in a PTFE vessel, 4mL of HNO3 (65%), 1mL of H2O2 (31%) and
1mL of H2O were added. The mixture was let to react for 5minutes
at room temperature and then heated over a 30minutes’ gradient
to 180°C using a Mars 5X press microwave. This temperature was
maintained over 30minutes. A volume of 1mL of the obtained
solution was diluted with 1mL of internal standard (10ppb of Tb,
Y and Sc in 5% HNO3). Metal analyses (expect for mercury) were
carried out in duplicate on an Agilent 7700x ICP-MS (Agilent
Technologies, Waldbronn, Germany) in He collision cell modus
and using external calibration (0.05-100μg/L). Mercury analyses
were carried out on a Milestone DMA-80 (Milestone Srl, Sorisole,
Italy) using 30mg of sample with following parameters: quadratic
calibration at 254nm, temperature program: 200°C for 1min;
elution: 650°C, 60s, amalgam heating: 650°C, 12s, measurement
time 30s. LOD for all metals was 0.01μg/g.
Consumer information
Vendor specifications and recommendations included in the product package or available on the respective internet sites are summarized in Table 1. All but two vendors (91.7%) informed about the cannabinoid content. Over the 24 vendors, 18 (75.0%) indicated a batch number; 19 (79.2%) the expiration date; 11 (45.8%) storage information and 17 (70.8%) dosage recommendations. Even if dosage of CBD is highly individual and has to be adapted to each patient, general guidelines may help healthcare professionals and patients at the beginning of the therapy. Somnolence was mentioned as a potential side effect by one vendor (n°. 5). Four vendors (n°. 13, 14, 16 and 22) recommended avoiding CBD for pregnant women. All vendors who informed about the batch number also informed about an expiration date, but only four vendors (16.7%) informed about all parameters listed in Table 1. No vendor discussed possible drug interactions. Drug-drug interactions or overdosage is generally not considered a serious health issue for CBD, but CBD is known to be an inhibitor of the cytochrome P450 enzyme family [15,16]. This may result in higher levels and even toxicity of other drugs if consumed together with CBD. CBD also reduces blood pressure [17] which may be a positive health effect in some cases but has to be considered when simultaneously taking anti-hypertensive drugs. In addition, CYP3A4 and CYP2C19 have been identified as major contributors to CBD metabolism. Inhibitors of these enzymes may increase CBD levels whereas inducers may reduce CBD blood levels. Consumers should be made attentive to these effects and be asked to discuss the CBD intake with their doctor.
Table 1: Consumer information obtained from the vendors’ internet site or as package insert.
Cannabinoid and terpene content
In two samples (n° 15 and 18), the cannabinoid concentrations were unknown and the results could not be compared to vendor claims. Seven samples (29.2%) had CBD + CBDA concentrations within 10% of claimed values (range 90-110%); eleven samples (45.8%) had concentrations ranging from 75-90%; four samples had concentrations ranging from 50-75% and one sample (n°. 8) had a CBD concentration more than 5 times below the claimed concentration. One sample, the unlabeled one (n°. 18), had THC concentration above 0.2 %w/w (legal limit in most European countries). No CBN, the major THC degradation compound, was detected in the samples. For 50% of the samples no information about the extraction method used was available. CBDA, the carboxylated precursor of CBD, was detected in 15 samples (62.5%), concentration range was 0.01 - 5.24w/w%. In one sample (n°. 3) claiming “raw” (= low temperature) extraction, no CBDA was detected. The cannabinoid concentrations are summarized in Table 2.
Table 2: Cannabinoid labelling on CBD oils and laboratory results. Data expressed as the mean in percentage of dry starting material (w/w%).
The most prominent terpenes present in cannabis are α-pinene, β-myrcene, limonene, linalool, β-caryophyllene, humulene and guaiol. β-caryophyllene, also a major terpenoid in black pepper, cinnamon and glove, was detected in 23 out of the 24 samples (95.8%) at concentration levels ranging from 0.01-0.91w/w%. β-caryophyllene acts as an agonist of peripheral cannabinoid receptor CB2 at levels as low as <5mg/kg [18]. Similarly to CBD, it reduces neuropathic pain, and has anti-inflammatory and analgesic effects [19]. Humulene was detected in 17 samples (70.8%), α-pinene in 10 samples (41.7%), β-myrcene in 9 samples (37.5%), limonene and linalool in 3 samples (12.5%) and guaiol in 1 sample. Terpenoid contents are summarized in Table 3.
Table 3: Terpenoid content in CBD oil samples. Data expressed as the mean in percentage of dry starting material (w/w%).
Solvent content
Traditionally, extraction using ethanol with or without heating was the method used to prepare cannabis tinctures. This method has the advantage of being simple and cheap, but only limited control over extraction selectivity is possible. The process results in extracts with higher concentrations in side products (chlorophyll, pigments and tannins) and the need of extra work-up to eliminate the extraction solvent. Today, supercritical CO2 extraction is the most popular preparation method. By controlling temperature and pressure, selective components of the plant material can be separated and collected from the bulk of the plant material. A total of 13 vendors gave information about the extraction method used. Out of them, five indicated cannabinoid extraction using a “raw” method, six indicated a CO2 extraction method and one claimed the use of both “raw” method and CO2. Organic solvents were found in four samples: cannabis oil n°. 7 contained 2.70% of 2-propanol and oil n°. 15, 17 and 23 contained 1.05, 0.07 and 0.13% of ethanol, respectively. Probably, these four samples were prepared using traditional solvent extraction methods but none of the vendors informed about its use. Isopropanol is sometimes used to make tinctures for external use. Even if the concentrations found are low and do not pose a health risk, 2-propanol should not be used for the preparation of extracts intended for internal use as its major metabolite, acetone, is a central nervous system depressants [20].
Pesticide content
Pesticide regulation in commercial cannabis market is still a matter of debate [21]. Because cannabis remains an illegal plant in most countries, governmental regulations generally do not exist. In Europe the only notable exception is a Dutch regulation from 2002 containing policy guidelines for pesticides, herbicides and fertilizers stipulating that “All processes and procedures which may affect the quality of the product must be recorded in the documentation for each batch”. While outdoor plantations generally do not need extensive pesticide or nutrient systems, indoor growers often use such products for pest control. Previous studies found fungicides, insecticides and acaricides in illegal cannabis plantations [22,23]. In our study, out of the 177 pesticides scanned, only propamocarb has been detected. It was semi-quantified in three samples: n°. 4 (1.5mg/kg), n°. 11 (2.0mg/kg) and n°. 22 (1.5mg/kg). Propamocarb is a fungicide of low toxicity, used among others against canker caused by Pleosporales fungi. The levels detected in the 3 samples do not pose any health risk.
Metal content
Metals detected in the CBD oil samples are summarized in Table 4. Cannabis is known for its easy uptake of metals from soil [24] which makes it a promising plant for bioremediation. In our study, all metal concentrations were below the limits fixed by European legislation (Commission regulation (EC) No 1881/2006 of 19 December 2006 setting maximum levels for certain contaminants in foodstuffs): for cadmium (limit for vegetables: 0.05ppm), mercury (limit for fish as most contaminated food: 0.5ppm), tin (limit of inorganic tin in infant formula: 50ppm) or lead (limit in food complements: 3ppm). Only one sample (n°. 15) showed an abnormal high content of copper and zinc concentrations which may be explained by contamination during the extraction process using an organic solvent (ethanol) in copper containing vessles. However, these low toxicity elements are not posing serious health issue in this sample.
Table 4: Metal residues in medical cannabis extracts.
A total of 24 samples containing hemp extracts have been analyzed for cannabinoid, solvent, terpene, pesticide and metal contents. To the best of our knowledge, this is the first study to access user information and content control of commercial CBD oils. Most of the samples had substandard consumer information. Only four samples out of the 24 had overall information about expiration date, storage and dosage conditions, residual solvent content and possible side effects. All extracts contained CBD and/or CBDA but less than one third of the samples had total cannabidiol (CBD + CBDA) concentrations in the claimed concentration range. Pesticides were detected in 3 extracts and solvents in 4, all levels were in the non-toxic range. Also, all metal concentrations were below health concerns. There is no doubt that online commerce with cannabis-derived products (oil, powder, capsules, suppositories, chewing gum, soaps, skin lotions, cookies, ...) will become more and more popular as clinical evidence about its beneficial health effects for many different ailments keeps growing. Substandard products however, may, in the short term, be interesting for the vendors but, in the long term, may bring discredit to a highly beneficial product. However, not only producers and vendors are to blame as cannabis extracts are still in a legal grey zone. In most countries classification and consequently legalisation, are not clear and shifting somewhere between medication, herbal medicine, food supplement or novel food. Furthermore, some countries still register cannabis use offences, other have decriminalized its use, still others have increased penalties. Considering the impact, the products may have on consumer health, a harmonization of EU laws is highly desirable in order to clearly define its status and quality specifications, whether with or without psychotropic THC. Systematic testing of CBD extracts and all other cannabis-derived products should be mandatory for the benefice of the patients’ health and honest CBD online retailers.
Anaïs Rodrigues is grateful to for financial support from one of the companies included in this study.
Anais Rodrigues received financial support from one company included in the study. All other authors declare no conflict of interest.
© 2021 Serge Schneider. This is an open access article distributed under the terms of the Creative Commons Attribution License , which permits unrestricted use, distribution, and build upon your work non-commercially.
