Environmental Analysis & Ecology Studies

Effect of Atmospheric Depositionon Cadmium Accumulation in Soils: A Review

Enjiang Yu1 and Hongyan Liu2,3*

1College of Resource and Environmental Engineering, Guizhou University, China

2College of Agricultural, Guizhou University, China

3Key Laboratory of Karst Geological Resources and Environment, China

*Corresponding author:Hongyan Liu, College of Agricultural, Guizhou University, Ministry of Education, Guiyang, 550025, China

Submission: December 16, 2020Published: February 10, 2021

DOI: 10.31031/EAES.2021.08.000676

ISSN 2578-0336
Volume8 Issue1

Abstract

Atmospheric depositions are the main sources of soil Cadmium(Cd) in mine lot and other industrial location, Cd accumulated in soils could have direct and indirect impacts on crops, lead to health risks as consequences. According to studies, Cd flux of atmospheric deposition showed a clear feature of spatiotemporal variation, such as its in mining area > industrial area > suburb > rural area; rainy season > dry season, dry deposition was winter spring > summer autumn; The studies also displayed much higher Cd accumulation rate in soils as affected by coal combustion, road traffic, and soil particles as well. We should pay more attention on atmospheric deposition and soil quality monitoring in the future, for Cd pollution control and environment management.

Keywords: Atmospheric deposition; Soil; Cd; Spatio-temporal variation; Accumulation rate

Introduction

Cadmium is known to be both extremely toxic and ubiquitous in natural environments. It occurs in almost all soils, surface waters and plants, and it is readily mobilized by human activities such as mining. Ingestion of even trace quantities of cadmium can influence not only the physiology and health of individual organisms, but also the demographics and the distribution of species [1]. Atmospheric deposition is one of the main sources of soil Cd in mine lot and other industrial location. Cd was non degradable and would accumulate after sedimentation, causing secondary pollution to soil, plants and water [2]. Studies results showed that Cd in atmospheric deposition mainly came from artificial sources, such as smelting, fossil fuel combustion and road traffic, while the contribution of natural sources such as soil dust and volcanic activity was relatively small [3,4]. We need to know more information about the sediment flux of Cd from different source, and the accumulation rate in soils affected by natural and anthropogenic factors.

Variation of Cd Flux from Different Source of Atmospheric Deposition

Spatial variation of Cd in atmospheric deposition He

avy metal deposition fluxes are important indicator for atmospheric deposition assessment and are mainly affected by local air quality, terrain characteristics and longdistance transportation of air [5]. Generally speaking, the atmospheric deposition of Cd in southwest, central, southern and Northern China was higher than that in Northwest and Northeast China, Inner Mongolia and Qinghai Tibet, which was reflected in different degrees of industrial economic development [6]. Even in the same area, the atmospheric deposition of Cd was still very different, and the deposition in industrial developed areas was always much larger than that in rural areas [7,8]. It could be seen from Table 1 that the atmospheric deposition flux of Cd shows spatial variation, and the overall level of different regions follows the order: mining area > industrial area > suburb > rural area.

Seasonal variation of Cd in atmospheric deposition

The seasonal variation of atmospheric deposition may be caused by the difference of seasonal precipitation, and may also be caused by the burning of waste gas, traffic density and seasonal variation of different land use patterns [9]. Sharma’s study on atmospheric deposition in Varanasi, India, found that the ratio of Cd deposition in summer and winter was higher than that in autumn [10]. Precipitation changes significantly affected atmospheric deposition of heavy metals, which may lead to higher deposition in rainy season than in dry season [11]. However, the research on dry settlement showed that the Cd content in dry deposition was higher in winter and spring than in summer and autumn, and higher in heating period than in non-heating period [2]. For example, the seasonal variation of atmospheric dry deposition flux in Qingdao was the highest in winter, followed by spring. Beijing was the highest in spring, followed by winter [7].

Distribution of Cd from different source of atmospheric deposition

In recent years, great progress has been made in source apportionment of heavy metals in atmospheric deposition. Chemical mass balance (CMB), principal component analysis (PCA), enrichment factor (EF), factor analysis (FA) and multiple linear regression (MLR) have been proposed. Cui Xingtao et al. [12] conducted correlation and principal component analysis on heavy metal elements in atmospheric deposition in Shijiazhuang City, and concluded that the main sources of Cd in atmospheric deposition were coal combustion and road traffic [12]. Through the principal component analysis of heavy metals in dry and wet deposition in Chengdu Economic Zone, Tang Qifeng et al. [13] concluded that the main sources of Cd were metallurgy and chemical production [13]. Mijic et al. [14] used the UNMIX receptor model to analyze the sources of heavy metals in atmospheric deposition in the capital of Serbia, and concluded that Cd mainly came from road traffic and industrial production. By comprehensive analysis, cadmium in the atmosphere was mainly from road traffic, fossil fuel combustion and smelting [15,16].

Distribution and Accumulation Rate of Cd in Soil from Different Source

According to a survey conducted by the Chinese Academy of Agricultural Sciences, about 35% of the Cd in farmland came from atmospheric deposition [17]. The atmospheric deposition of Cd in nine counties in Central and Eastern Guangxi accounted for 47.3% of the total input [18]. Nicholson et al. [19] investigated the sources of heavy metals in soils in England and Wales and found that about 53% of Cd came from atmospheric deposition [19]. It could be seen that atmospheric deposition is one of the important sources of soil Cd. It could be seen from Table 1 that the Cd distribution and accumulation in Soil from atmospheric deposition.

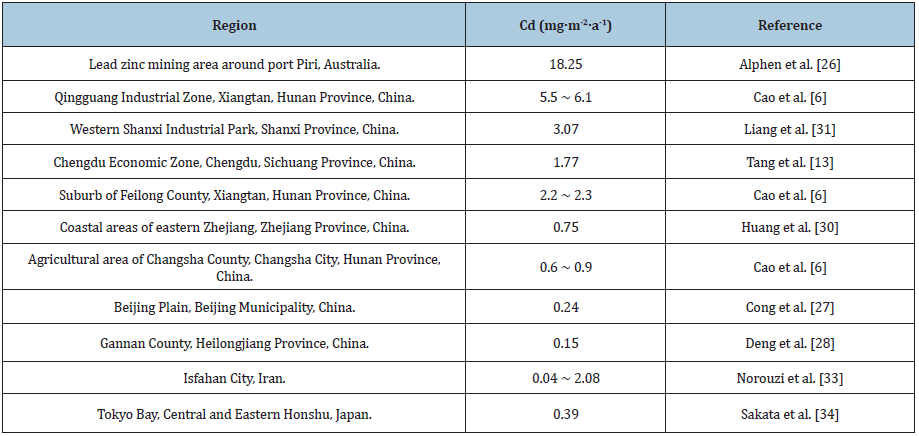

Table 1:Distribution and accumulation rate of Cd in soil.


The regional characteristics of Cd accumulation in agricultural soils in southern China are caused by geochemical Cd background anomalies and space mining/smelting activities [20,21], followed by irrational use of sewage irrigation, chemical fertilizers, pesticides, plastic films and other agricultural inputs as well as livestock and poultry manure by-products [20]. For the high background area of castor in South China, soil dust was also the main source of Cd in atmospheric deposition [22]. The content of Cd in soil in southern China is relatively higher than that in North China, which may be related to the higher geochemical background in Southwest China [23]. For example, in Southwest China (Guizhou Plateau), the excessive accumulation of Cd in agricultural soils (average 0.659mg·kg-1) is mainly caused by natural soil forming processes such as carbonate weathering [20,24]. In the process of soil formation, calcium carbonate, the main chemical component of carbonate rocks, is dissolved and leached. Even if Cd is very low in the rock, it will gradually retain and accumulate in the topsoil, which makes the Cd element accumulate in the topsoil [25].

Conclusion

With the development of social economy and industrialization, the accumulation impact of atmospheric deposition on Soil Cd becomes serious (Table 2). The increase of Cd content in soil will cause soil pollution, which will affect the animals and plants in the ecosystem, even the human health. Therefore, it is imperative to take measures to reduce the continuous input of soil Cd by atmospheric deposition. Establishing a sound environmental monitoring mechanism strictly controls the emission of industrial production to reduce the source of Cd input to the atmosphere. Improving the removal of Cd in the deposition process blocks the deposition process of atmospheric Cd and reducing the bioavailability of Cd in soil reduces the absorption of plants and animals [26-35].

Table 2:Distribution and accumulation rate of Cd in soil.


Acknowledgement

This project was supported by China National Natural Science Foundation (42067028); Guizhou Province Science and Technology Planning Project (Qiankehehoubuzu [2020] 3001).

References

  1. James RL, Gene EL, John WF, Crock JG (2000) Cadmium toxicity among wildlife in the Colorado Rocky Mountains. Nature 406(6792): 181-183.
  2. Dai QY, He QF, Liu DH, Huang F, Zhu W (2018) Pollution characteristics and ecological risk of heavy metals in atmospheric deposition[J]. Environmental Science and technology 41(03): 56-64.
  3. Shao X, Cheng H, Li Q, Lin C (2013) Anthropogenic atmospheric emissions of cadmium in China[J]. Atmospheric Environment 79: 155-160.
  4. Sha Q, Lua M, Huang Z, Yuan Z, Jia G, et al. (2019) Anthropogenic atmospheric toxic metals emission inventory and its spatial characteristics in Guangdong province, China[J]. Science of the Total Environment 670: 1146-1158.
  5. Tian HZ, Cheng K, Wang Y, Dan Z, Lu L, et al. (2012) Temporal and spatial variation characteristics of atmospheric emissions of Cd, Cr, and Pb from coal in China[J]. Atmospheric Environment 50: 157-163.
  6. Cao X, Tan CY, Wu LH, Luo YM, He QH, et al. (2020) Atmospheric deposition of cadmium in an urbanized region and the effect of simulated wet precipitation on the uptake performance of rice[J]. Science of the Total Environment 700: 134513.
  7. Luo L, Ma YB, Zhang SZ, Wei DP, Zhu YG (2009) An inventory of trace element inputs to agricultural soils in China[J]. Journal of Environmental management 90(8): 2524-2530.
  8. Ni RX (2017) Study on Inventory and Changes of Input/output Balance of Heavy Metals in Farmland in China and Heavy Metals Pollution Risk Assessment. Chinese Academy of Agricultural Sciences.
  9. Liu HL, Zhou J, Li M, Hu YM, Liu XL, et al. (2019) Study of the bioavailability of heavy metals from atmospheric deposition on the soil-pakchoi (Brassica chinensis L.) system[J]. Journal of Hazardous Materials (362): 9-16.
  10. Sharma RK, Agrawal M, Marshall FM (2008) Atmospheric deposition of heavy metals (Cu, Zn, Cd and Pb) in Varanasi City, India[J]. Environ Monit Assess 142(1-3): 269-278.
  11. Pan YP, Wang YS (2015) Atmospheric wet and dry deposition of trace elements at 10 sites in Northern China[J]. Atmospheric Chemistry and Physics 15: 951-972.
  12. Cui XT, Luan WL, Li S (2012) An analysis of the source of heavy metals in atmospheric dustfall of Shijia zhuang City[J]. Geology in China 39(4): 1108-1114.
  13. Tang QF, Yang Zh F, Zhang BR (2007) A study of elements flux and sources from atmospheric bulk deposition in Chengdu economic region[J]. Earth Science Frontiers 14(3): 213-221.
  14. Mijic Z, Stojic A, Perisic M, Rajšić S, Tasić M, et al. (2010) Seasonal variability and source apportionment of metals in the atmospheric deposition in Belgrade[J]. Atmospheric Environment 44(30): 3630-3637.
  15. Sternbeck J, Sjodin A, Andreasson K (2002) Metal emissions from road traffific and the inflfluence of resuspension results from two tunnel studies[J]. Atmospheric Environment 36(30): 4735-4744.
  16. Kara M, Dumanoglu Y, Altiok H, Elbir T, Odabasi M, et al. (2014) Seasonal and spatial variations of atmospheric trace elemental deposition in the Aliaga industrial region, Turkey. Atmospheric Research 149: 204-216.
  17. Lei L, Ma Y, Zhang S, Dongpu Wei, Yong Guan Zhu (2009) An inventory of trace element inputs to agricultural soils in China[J]. Journal of Environmental management 90(8): 2524-2530.
  18. Chen X, Yang Z, Chen Y, Yang Q, Wang L, et al. (2019) Study on Cd input flux of farmland soil in 9 counties in central and eastern Guangxi[J]. Geophysical and Geochemical Exploration 43(02): 415-427.
  19. Nicholson FA, Smith SR, Alloway BJ (2003) An inventory of heavy metals inputs to agricultural soils in England and Wales[J]. Science of the Total Environment 311(1-3): 205-219.
  20. Luo YM (2018) Regional difference in soil pollution and strategy of soil zonal governance and remediation in China[J]. Science Bulletin (2): 145-152.
  21. Zhang YP, Yang AM, Wang J, Zhang KK, Hu DY (2017) Assessment of cadmium content of potato grown in Weining County, Guizhou Province, China[J]. Environmental Monitoring and Assessment 189: 226.
  22. Zhang ZL, Lin Shao X, Xie S, Li L, Chen L, et al. (2020) Analysis of atmospheric deposition characteristics of heavy metals in Caohai, Guizhou Province by bryophyte monitoring [J / OL]. Guangxi flora 12(12): 1-11.
  23. Chen HY, Teng YG, Lu SJ, Wang YY, Wang JS (2015) Contamination features and health risk of soil heavy metals in China[J]. Science of the Total Environment 512-513: 143-153.
  24. Zhang S, Song J, Cheng Y, McBride MB (2018) Derivation of regional risk screening values and intervention values for cadmium-contaminated agricultural land in the Guizhou Plateau[J]. Land Degradation & Development 29(8): 1-12.
  25. Ministry of Environmental Protection of the People's Republic of China (2014) Survey communique of soil pollution in China[R]. Ministry of Environmental Protection of the People's Republic of China. Ministry of Land and Resources of the People's Republic of China, Beijing.
  26. Alphen MV (1999) Atmospheric heavy metal deposition plumes adjacent to aprimary lead-zinc smelter[J]. Science of the Total Environment 236(1-3): 119-134.
  27. Cong Y, Chen YL, Yang ZF (2008) Dry and wet atmospheric depostion fluxes of elements in the plain area of Beijing municipality, China[J]. Geological Bulletin of China 27(2): 257-264.
  28. Deng CZ, Sun GY, Yang W (2012) Analysis of the deposition flux and source of heavy metal elements in atmospheric dust fall in Ganan County, Heilongjiang Province[J]. Earth and Environment 40(3): 342-348.
  29. Feng WL, Guo ZH, Xiao XY, Peng C, Shi L, et al. (2019) Atmospheric deposition as a source of cadmium and lead to soil-rice system and associated risk assessment[J]. Ecotoxicology and Environmental Safety 180: 160-167.
  30. Huang CL, Song JQ, Pan WF (2011) Impact of dry and wet atmospheric depostion on content of heavy metals in soils along coastal area of eastern Zhejiang Province [J]. Geological Bulletin of China 30(9): 1434-1441.
  31. Liang JN, Liu J, Chen J (2014) Characteristics of heavy metals in atmospheric deposition in heating periods of an industrial park in western Shanxi Province, China[J]. Acta Scientiea Circumstantiae 34(2): 318-324.
  32. Liang J, Feng CT, Zeng GM, Zhong MZ, Gao X, et al. (2017) Atmospheric deposition of mercury and cadmium impacts on topsoil in a typical coal mine city, Lianyuan, China[J]. Chemosphere 189: 198-205.
  33. Norouzi S, Khademi H, Cano AF (2016) Biomagnetic monitoring of heavy metals contamination in deposited atmospheric dust, a case study from Isfahan, Iran[J]. Journal of Environmental Management (173): 55-64.
  34. Sakata M, Tani Y, Takagi T (2008) Wet and dry deposition fluxes of trace elements in Tokyo Bay[J]. Atmospheric Environment 42(23): 5913-5922.
  35. Zhang RJ, Pu YF, Xu YF, Sheng LF, Jin JL, et al. (2004) An observational study of Atmospheric Aerosol concentration distribution and dry deposition in Qingdao[J]. Climate and Environment Research (02): 390-395.
