The initial local dynamic fracture is an important stage of deformation process which
defines the macroscopic strength of brittle materials. Nucleation and development of initial
sources of damage is closely associated with the local structural instabilities of dynamic
deformation process. In their scale, the structural instabilities belong to mesoscale, which
supposes that experimental study of the response of material on shock loading should also
be carried out at the mesoscale. In the present work, the results of studying the dynamic
fracture of typical brittle material, gabbro-diabase, are presented. The goal of research was a
determination of the criterions for nucleation of localized structural instabilities as sources
of initial stage of dynamic fracture. Shock tests of specimens were performed under uniaxial
strain conditions (plane collision) by using light gas gun of 37mm bore diameter. The gabbrodiabase
under investigation has the following characteristics: density ρ=3,05g/сm3 and sound
velocity Cl=6,25cm/s. The specimens for shock tests were in the form of parallelepiped of
52mm in size and 12.2mm in thick. They were polished and covered with aluminum layer
of 25μm, which provides a mirror reflection of laser beam of interferometer from the free
surface of target. The local probing of the free surface velocity of target (opposite to loaded
surface) by using interferometric technique allows to determine the criterion for initial stage
of damage [1,2]. The time resolved free surface velocity profiles were registered with the
velocity interferometer, the laser beam of which was focused on the free surface of target
up to 60-70μm, so all the local strength characteristics inferred from the velocity profile
concerns to mesoscale.
Macroscopically, the threshold for the initial stage of dynamic fracture corresponds to
appearance of horizontal steps at the front of compressive pulse. The structure of the shock
wave in the form of the free surface velocity profile, ufs(t) is shown in (Figure 1) where a
time dependence of velocity variance at the mesoscale-1, D(t), is also presented. The velocity
variance is seen to be maximum in the middle of the piece OE and decreases to zero to the
beginning of the step EF. The velocity variance, D(t), characterizes the reversible relaxation
behavior of medium at the mesoscale-1 (1-10μm). The irreversible displacement of structural
element of mesoscale-2 (50-500μm) in the form of step EF begins just at the moment when
relaxation of local stresses at the mesoscale-1 is exhausted after what the motion of structural
element of mesoscale-2 as a whole occurs. This irreversible motion of meso-2 structural
elements means the fragmentation of material. Analogous steps can be found at the rest of
the velocity profiles, registered at the impact velocities of 92m/s, 117.5m/s and 224.8m/s.
The velocity, Uinst, corresponding to step EF, defines the structural instability threshold, whilst
the presence of oscillations at the plateau of compressive pulse indicates the fragmentation
of structure. The shape of the velocity profiles evidence that the spall strength equals to zero
for all the shots, which means that fragmentation happens over the total region of impact
velocities under consideration. The typical micrograph of inner structure of post-shocked
specimen is provided in Figure 2. One can see the numerous cracks surrounding the structural elements. The cracks spread over the target from loaded to free
surfaces. In this work, a statistical treatment of dimensions of
structural elements after damage of gabbro-diabase targets was
performed. The distribution is found to corresponds to hierarchic
row K=Li/Li-1 where the similarity coefficient K lies within limits of
1.8-2.5 [3].

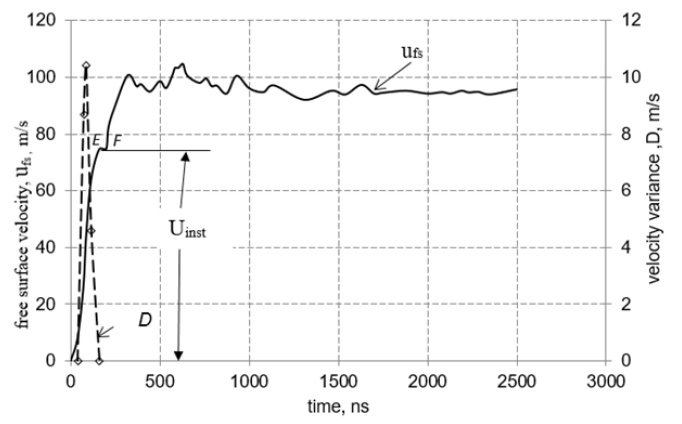

Figure 1: Free surface local velocity profile, ufs(t), and velocity variance profile, D(t), for 12mm gabbro-diabase target loaded at the impact velocity of 117.5m/s.
Figure 2: Micrograph of cross-section of post-shocked 12.2mm gabbro-diabase target loaded at the impact velocity of 92m/s.
