Villar Cociña E1, Frías Rojas M2 and Savastano H3
1Department of Physics, Central University of Las Villas, Cuba
2Eduardo Torroja Institute (CSIC), Spain
3University of Sao Paulo, Brazil
*Corresponding author: E Villar Cociña, Department of Physics, Central University of Las Villas, Santa Clara, Villa Clara, Cuba
Submission: August 14, 2020;Published: September 23, 2020
ISSN 2578-0255Volume5 Issue4
In this research work a synthetic review of the quantitative characterization of various materials (sugar cane waste ashes, bamboo leaf ash, calcined paper sludge, loessic soils, zeolite, fly ash and silica fume) based on the computing of the kinetic parameters of the pozzolanic reaction in pozzolan/calcium hydroxide(CH) systems is offered. The paper presents of more relevant results in the quantitative characterization (computing of the kinetic parameters) of the pozzolanic reaction of different materials originated from agriculture, mining or industry activities carried out by the authors.Two pozzolanic activity tests (conductometric method and accelerated chemical method) are employed. A kinetic-diffusive model (published by the authors in previous works) is used to describe the pozzolanic reaction. The kinetic parameters that characterize the process (in particular, the reaction rate constant and free energy of activation) are determined with relative accuracy in the fitting process of the model. The pozzolanic activity is quantitatively evaluated according to the results obtained for the kinetic parameters. This allows the comparison in a direct way of the pozzolanic reactivity of the materials, which is very useful for the employment of these materials for envisaged applications. The values of the reaction rate constant jointly with the free energy of activation give a precise index of the reactivity or pozzolanic activity of the materials. Complementary experimental techniques, such as X-ray diffraction (XRD) and scanning electron microscope (SEM), were also employed, but not shown in the paper for space reason since that would necessitate a much larger paper.
Keywords: Quantitative characterization; Pozzolanic activity; Kinetic parameters; Kinetic-diffusive model
Abbreviations: SCBA: Sugar Cane Bagasse Ash; SCSA: Sugar Cane Straw Ash; BLA: Bamboo Leaf Ash; CPS: Calcined Paper Sludge; LS:Loessic Soils;FA: Fly Ash; SF: Silica Fume
Industrial by-products and wastes are attracting much research studies in recent years because of their high silica and/or alumina content for the use as additions in commercial Portland cement. It is well-known that hydrated phases formed during pozzolanic reaction commonly improve the performance of concrete [1,2]. The reuse of waste materials for concrete production is a worldwide practice. The incessant generation of solid waste materials represents serious environmental and technical problems as a consequence of several industry activities. Also, the assessment of the pozzolanic activity of cement replacement materials is becoming increasingly important because of the need for more sustainable cementing products. The majority of the wastes are disposed in landfills having an adverse effect on the environment and creating air pollution due to fine dust generation. Waste ashes as pozzolanic materials to replace cement can reduce the consumption of clinker and reduce landfill requirements. This helps solving environment problems caused by cement production, decreasing both energy used and CO2 emissions. In recent years, agro-industrial solid wastes and zeolitic minerals applied as pozzolans in the manufacture of blended mortars and concrete has become the focus of new researches on alternative binders [3-8]. In the most of these researches, the methods for evaluating pozzolanic activity of the materials are focused on the qualitative aspect of the behavior of the pozzolanic materials rather than the quantitative aspect of lime- pozzolan reaction, with the latter regarding computation of kinetic parameters. The investigation of the kinetics of pozzolanic reactions is an important experimental task that gives characteristic constants for the reaction rate. Using them, one can evaluate the effectiveness of applying different types of pozzolanic materials as mineral additions to mortars and concretes, as well as to compare their properties. Presently, researchers are beginning to focus on known kinetic coefficient as an acceptable and rigorous criterion for evaluating the pozzolanic activity of the materials. With this precise purpose, several traditional mathematical models have been applied to the study of the pozzolanic reaction [9-16] describing with more or less accurately the experimental results. Other authors [17-20] have continued the development of other models for the quantitative characterization of reaction kinetics in pozzolan/lime and pozzolan/cement systems.
Recently Villar Cociña et al. [21-23] proposed a kinetic-diffusive model that allows characterizing the pozzolanic activity of sugarcane wastes for all ages of the reaction. The results showed a good correlation between the experimental and theoretical data what encouraged its application in the evaluation of different pozzolans. The present paper shows the principal results obtained by the authors in the quantitative characterization of various pozzolanic materials (sugar cane bagasse ash (SCBA), sugar cane straw ash (SCSA), bamboo leaf ash (BLA), calcined paper sludge (CPS), loessic soils (LS), zeolite, fly ash (FA) and silica fume (SF)) based on the computing of the kinetic parameters of the pozzolanic reaction by applying the kinetic-diffusive model especially developed for this type of evaluation. This allowed the pozzolanic activity of these materials to be characterized in a rigorous way through the computing of the kinetic parameters, which also gives the possibility of comparing in a direct way the pozzolanic behavior of the materials. The above is very useful for the selection of one or another preferred pozzolan, which will depend on the characteristics needed for the building site. Also, in the elaboration of ternary cements, of great importance in the actuality due to the present world-wide economic crisis, it is very important the knowledge of the kinetic parameters as a fundamental tool for quantifying the reactivity of the pozzolanic materials that will be added to the cement.
Materials
The materials analyzed involve both artificial pozzolan (thermally activated waste) and natural pozzolans that are readily available in industrial and agriculturally based economies. For the selection of the calcining temperature necessary for the activation of the materials the best results (high reactivity) from some research works were taken into account [23-27].
Sugar cane wastes (SCW)
The sugar cane straw (SCS) and sugar cane bagasse (SCB) were the two types of biomass recollected in the vicinity of the sugar factory “J. P. Carbó” in Villaclara, Cuba. Sugar cane straw ash (SCSA) and sugar cane bagasse ash (SCBA) were obtained in an electric furnace with controlled conditions at 800 °C calcining temperature during 20min. Once calcined, the ashes were ground and sieved to particle size <90µm, finesses similar to Portland cement. More information about the influence of calcining temperature on the reactivity of these materials can be found in the literature [23,24].
Bamboo leaf ash
The bamboo leaves were recollected in the vicinity of the Faculty of Animal Science and Food Engineering of the Sao Paulo University, Pirassununga, State of Sao Paulo, Brazil. The bamboo leaf ashes were obtained in a laboratory electric furnace at 600 °C calcining temperature for 2h of retention. Once calcined, the ashes were ground and sieved below 90µm.
Calcined paper sludge
The paper waste used in this study was newsprint paper sludge with a high clay component from a newsprint paper company in Madrid, Spain, which uses exclusively recycled paper as raw material. The paper sludge was dried, and it was burnt in an electrical laboratory furnace at 600 °C during 2h. The activated product was cooled at room temperature and ground and sieved to below 90µm. More information about the influence of calcining temperature on the activation of this material can be found in reference [25].
Loessic soil
Quintana and Villar-Cociña performed a study of loessic soils. A typical stratigraphical column of Pampean Loessic sediments, located at center of Cordoba Province, Argentina, was sampled. Diverse layers of loess were identified. In this paper only the intermediate layer was chosen, 5.50m thick, with sandy layers and cemented layers of loess. More information about the characteristics of the different layers can be found in reference [28].
Zeolite
Rosell-Lam and Villar-Cociña studied a Cuban zeolite. A natural zeolitic rock from Tasajeras deposits situated in province of Villaclara, Cuba was used. The zeolite was ground and sieved to below 90µm, with grain size average of 84.8µm. More information about the influence of grain size on the pozzolanic activity can be found in Rosell-Lam et al. [29].
Fly ash
The fly ash was originated in the burning process of mineral coal-fired thermoelectrical plant, located in Capivari de Baixo, Santa Catarina Estate, Brazil. Such ash is produced in an electrostatic precipitator and corresponds to about 80 wt% of the total ashes generated for this station. The ashes have a fine granulometry below 90μm with average grain size of 49.7μm.
Silica fume
The silica fume used in the study was supplied from Elkem Co., Ltd. (Sao Paulo, Brazil). Elkem Microsilica has an 85-98% amorphous silicon dioxide (SiO2) in the form of microscopic spherical particles. According to the supplier company (Elkem Microsilica), the average diameter of these particles is 0.1-0.15μm [30]. Table 1 shows the samples designations and the activation conditions.

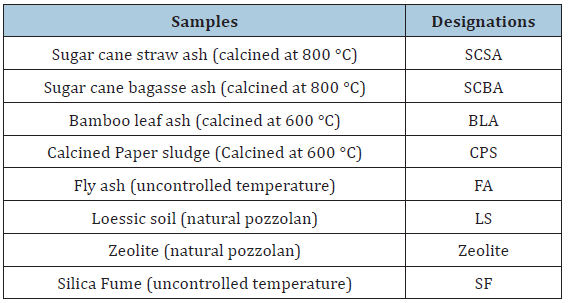

Table 1: Designations of the samples used.
Lime
The lime used in the pozzolan/calcium hydroxide system was an analytical grade calcium hydroxide (95% of minimum purity, 4.8% of maximum magnesium and alkaline salts content, and 0.5% of maximum insoluble substance content).
Pozzolanic activity methods
To carry out a qualitative or quantitative determination of pozzolanic activity many experimental methodologies have been developed [31-34]. In this research, as in other studies carried out by the authors [25,26,35,36] two different pozzolanic activity methods were applied. Both methods are based in the monitoring of the lime consumption with the reaction time and they can be used indistinctly. The computing of the kinetic parameters of the pozzolanic reaction by applying the kinetic-diffusive model that will be used in this research is independent of the method used for the evaluation of the pozzolanic activity as it was demonstrated elsewhere [35].
Conductometric method
This method follows the conductivity of the pozzolan-calcium hydroxide solution with reaction time. A saturated solution of calcium hydroxide (CH), prepared with deionized water and Ca(OH)2 was used. The Ca(OH)2 in excess was mixed with deionized water and stirred for 2h, after which the solution was maintained at rest for 24h. Thereafter, the solution was filtered, and it was valued with hydrochloric acid (HCl). Each 100 ml of saturated Ca(OH)2 solution were mixed with 2.10g of pozzolanic material (which is the proportion commonly found in the literature for similar experiments) and magnetically stirred. Immediately after the pozzolan was mixed with the CH solution, the conductivity measurements began. The measurements of conductivity were made at 40±1 °C at different times. To correlate the CH concentration with the conductivity of the CH solution a calibration curve that demonstrates a linear dependence, was applied [21,28,34].
Accelerated chemical method
This method also follows the pozzolan-calcium hydroxide reaction over time. The test consisted of putting the pozzolanic material (1g) in contact with a saturated lime solution (75mL) at 40±1 °C for 1, 7, 28 and 90 days. At the end of each period, CaO (quicklime) concentration in the solution was analyzed. The fixed calcium hydroxide (mmol/L) was obtained as the difference between the original concentration of a solution of saturated calcium hydroxide and the CaO found in the solution in contact with the sample, at the end of a given period [36].
Mathematical model
It is known that the pozzolanic reaction in CH/pozzolan systems is heterogeneous and it can be considered about solid-solution type:
A(L) + bB(S) →F(S) + E(L)
When solution A reacts on the surface of the solid reactant B (with stoichiometry coefficient b) a layer of reaction products F is formed around the nucleus of reactant B that has not yet reacted (unreacted nucleus within) which decreases gradually. If the layer F is porous the reaction takes place by diffusion of A through the layer F until it is verified on the interface between F and the nucleus without reacting. E(L) accounts for the fluid products of the solid-solution type reaction that could be formed. The form of the rate equation is determined by the control regime or the rate-limiting step which can be one of the following two, principally [37,38]: (1) diffusion through the layer of reaction product (diffusive control), (2) chemical reaction at the surface on the unreacted nucleus (kinetic control). Villar Cociña et al. [21,22] proposed a kinetic-diffusive model for describing the pozzolanic reaction in sugar cane straw-clay ash/CH systems. Thereafter, for the case of sugar cane straw ash/CH and sugar cane bagasse ash/Ch systems, a correction term (Ccorr) was added to the model to account for the remaining concentration of CH that is not consumed in the reaction. In some systems the CH is not consumed totally. The corrected model is [23]:
where De is the effective diffusion coefficient of A through the porous layer of product F, K is the reaction rate constant, Co is the initial concentration of the solution and τ is a constant of time (time interval in which the radius of the nucleus of pozzolan diminish to 37% of its initial radius (rs)). The radius rs of the pozzolan particles was taken as the average size particle for each analyzed material. The dimensionless magnitude x=(Co - Ct)/Co represents the relative loss of lime concentration and Ct represents the absolute loss of lime concentration with time for the pozzolan/CH system. As the pozzolanic reaction develops in stages, it is possible that the rate-limiting stage corresponds with the diffusion through the layer of reacting product or with the chemical reaction at the surface on the unreacted nucleus. For that reason, it is possible in certain cases to have different behavior: diffusive (described by the 2nd term of Eq.(1)), kinetic (3rd term) and kinetic-diffusive (2nd and 3rd terms). Further explanations about the model can be found elsewhere [21,22]. The fitting of this model allows determining the kinetic parameters (effective diffusion coefficient and reaction rate constant) and, therefore, a rigorous characterization of the process.
Chemical characterization
The chemical compositions of the ashes were determined by an X-ray fluorescence (XRF) technique (Table 2). The main oxide present in SCSA and SCBA ashes is SiO2, followed by CaO. Other oxides such as Al2O3, Fe2O3, K2O and SO3 are present in smaller amounts. In the case of the zeolite the main oxides present are SiO2 (about 67%), followed of Al2O3 (about 12%). Other oxides such as Fe2O3, CaO, Na2O and MgO are present in small amounts. For FA the main oxides present (Table 2) are: SiO2 as the major component in ash following Al2O3, Fe2O3, CaO and TiO2. The rest of the oxides were below 0.5%. The main oxide present in BLA and SF ashes is SiO2 with a percentage of 80.4 and 87.4% respectively, followed by CaO (5.06%), Al2O3 (1.22%) for Blash and MgO (2.81%) and Fe2O3 (2.13%) for SF. Other oxides are present in both samples in smaller amount.
Table 2: Chemical composition of the pozzolans analyzed.
Pozzolanic activity
Figure 1: Variation of conductivity with reaction time for zeolite, loessic soil (LS), fly ash (FA) bamboo leaf ash (BLA) and silica fume (SF).

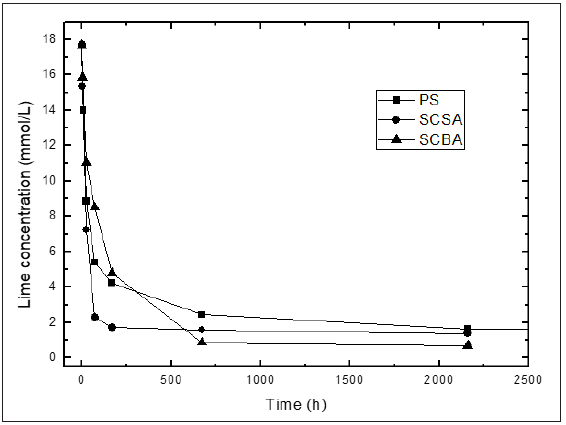

Figure 2: Variation of lime concentration with reaction time for calcined paper sludge (CPS), sugar cane straw ash (SCSA) and sugar cane bagasse ash (SCBA).
The results obtained for pozzolanic activity are shown in Figures 1 & 2. In (Figure 1) the conductivity variations versus time for the pozzolans/CH suspensions are shown for zeolite, LS, FA, BLA and SF pozzolans; while Figure 2 shows the results of accelerated pozzolanic tests for CPS, CSCA and CSBA ones up to 90 days of reaction. In the present study there was no influence of the pozzolanic activity methods on the computing of the kinetic parameters [35]. The conductometric test (Figure 1) showed a decrease of the electrical conductivity of the suspensions. This behavior was attributed to the formation of hydrated phases with the corresponding decrease of the CH concentration in the solution, which leads to a decrease in conductivity. A considerable variation (loss) of conductivity in early ages is obtained; is evident that SF consumes more CH than the BLA. However, a high reactivity of BLA is appreciated from the qualitative point of view comparable to SF, a highly expensive pozzolan, followed by LS, FA and zeolite. The stabilization to the curve is rapidly reached for SF and BLA (only 30h are needed approximately), followed by LS. For the other materials, the stabilization of the curve is reached for long times. This indicates the moment when the reaction has finished practically.
According with the above-mentioned it might be possible to conclude that a greater reactivity is qualitatively observed for SF and BLA, followed by LS, FA and zeolite. However, another important factor that must be taken into account when an evaluation of the reactivity is carried out is the difference between the initial and final conductivities (stabilized electrical conductivity) in the different pozzolan/CH solutions (a major difference, the reactivity of the material will be higher [3]). This could be related with the amount consumed of calcium hydroxide, a great difference corresponds to a greater consume of CH in comparison with a minor difference. For example, for the case of the materials shown in Figure 1 it is evident that FA consumes more CH than the LS but does not provide information on the rapidity of the reaction. It is clear that qualitatively is very difficult to have an accurate idea of the pozzolanic activity. For that reason, an evaluation from the point of view quantitative of the pozzolanic reactivity that involves all this aspects and that allows the computation of the kinetic parameters is very important. On the other hand, the results of accelerated pozzolanic tests for reaction times of up to 90 days are shown in Figure 2. The absolute loss of lime concentration plotted against reaction time for the pozzolans/CH samples is shown. A considerable loss of lime concentration in early ages is obtained for all samples (SCSA, SCBA and CPS). The stabilization of the curve was reached after long period of time and it depends on the analyzed sample. A qualitative analysis shows a greater reactivity for SCSA followed by SCBA and CPS. This fact could be related to the higher alumina content in CPS than for SCSA and CSBA respectively, forming also hexagonal plaques of calcium aluminates (C4AH13) [39].
Application of the mathematical model and determination of the kinetic parameters
As above-mentioned, the knowledge of the kinetic parameters of the pozzolanic reaction is a good criterion for evaluating quantitatively the pozzolanic activity of the materials. In the international bibliography the values reported of kinetic parameters for pozzolan/CH solution are very scarce. We have not encountered in the literature at our disposal any attempt of reporting kinetic parameters for various pozzolanic materials that give the possibility of comparing quantitatively the reactivity of same ones. With the aim of computing the kinetic parameters, the kinetic-diffusive model (Eq. (1)) was applied for all samples. (Figures 3-6) illustrate the relative loss of lime concentration plotted against reaction time for SCSA/CH, SCBA/CH, CPS/CH, LS/CH, zeolite/CH, FA/CH and BLA/CH and SF/CH respectively. The solid and dash lines represent the curves of the fitted model. Fitting the relative loss of lime concentration versus reaction time successively to the kinetic control model, diffusive control model and a mixed (kinetic-diffusive) control model and carrying out an exhaustive analysis of the important statistical parameters such as correlation coefficient (r), coefficient of multiple determination (R2), 95% confidence intervals, residual sum of squares (RSS), residual scatter, residual probability and variance analysis, it can be stated that for the case of SCSA, SCBA, BLA, CPS and LS the kinetic control model shows the best correspondence with the experimental data. This means that the chemical interaction speed on the surface of the nucleus of the pozzolan particle is slower than the diffusion speed of the reactant through the reaction product layer formed around the nucleus. This might be due to the high porosity of the reaction product layer in these materials, which facilitates a quick diffusion process [40]. For the samples of zeolite, FA and SF, a kinetic-diffusive control regime predominated showing the best correspondence with the experimental data. This means that the chemical interaction speed on the surface of the nucleus of the pozzolan particle was comparable with the diffusion speed of the reactant through the reaction product layer around the nucleus. Therefore, both processes determine the general speed of the whole process. The values of the parameters (τ, and K) are given in Table 3. Taking into account the values of the kinetic parameters it is possible to conclude that both BLA and SF have a very high and similar reactivity. The silica fume has a reactivity slightly higher (larger K, but of the same order) than the BLA calcined at 600 °C. The pozzolanic reactivity for SF and BLA calcined at 600 °C show the highest reactivity (larger value of K) followed by FA, SCSA, SCBA, LS, CPS and zeolite. These results agree with the qualitative analysis carried out previously in the “Pozzolanic activity section” above.
Figure 3: Relative loss of lime concentration versus reaction times for SCSA, SCBA and CPS. Black circle (experimental), solid, dash and dots line (model).

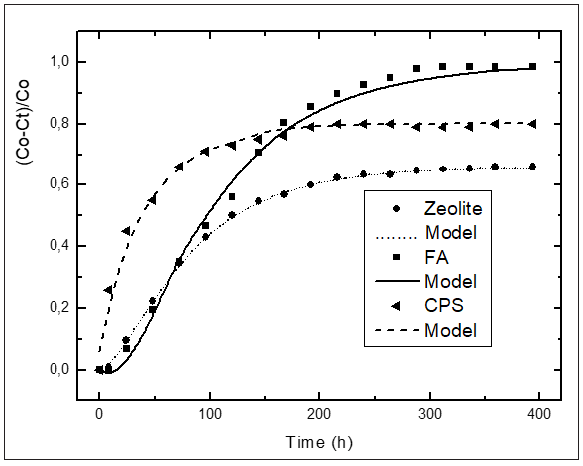

Figure 4: Relative loss of conductivity versus reaction times for Zeolite, FA and CPS Black circle (experimental), solid, dash, and dote line (model).
Figure 5: Relative loss of conductivity versus reaction times for BLA. Black circle (experimental), solid line (model).
Figure 6: Relative loss of conductivity versus reaction times for SF. Black circle (experimental), solid line (model).

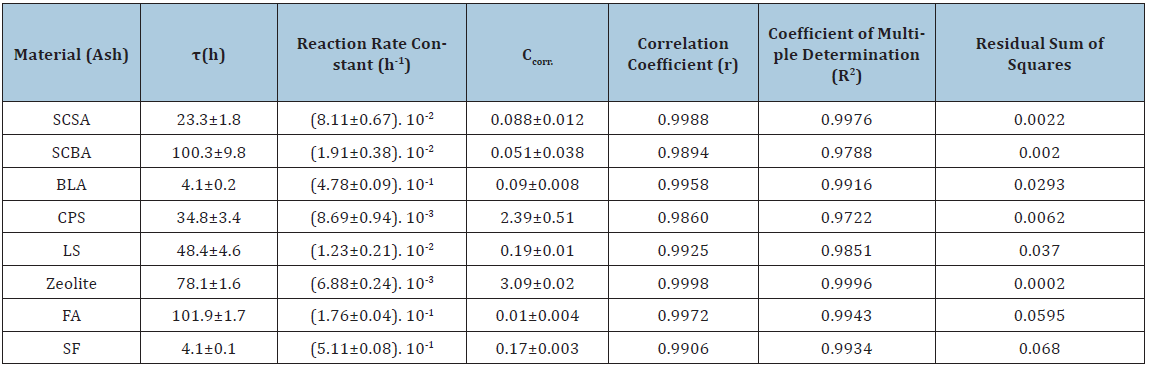

Table 3: Reaction rate constants, τ parameter, free energy of activation, Ccorr. parameter and statistical parameters for the pozzolanic materials.
The authors thank FAPESP (Brazil) (process 2011/12691- 2) and CNPq (Brazil) (401704/2013-0 and 306386/2013-5) for the financial support to carry out and to conclude this research work. Also, the authors would like to thank the FAPESP (process n. 2011/16842-5) and to CSIC-FAPESP program (i-Link+2013, project ref: i-link0675, 2013/50790-8) for their financial support, and to the Framework Agreement of Collaboration between IETcc/ CSIC (Spain) and FZEA/USP (Brazil) (ref: BDC 20195707 ACAM 2019040029).
