Nanocrystal Synthesis within Solid-State Confinement

Due to wide ranging technological applications and intriguing physicochemical properties, synthesis of nanocrystals (NCs) has been immensely active area of research. The properties in nanoscale are severely affected by the architecture and compositions of the NCs and these parameters can be tailored by understanding the complex nanostructure-growth mechanisms and their precise engineering. To date, solution-based methods, generating nanostructures with variable dimensionality and complexity have been significantly progressed, which require rigorous control of reaction-conditions with the use of surfactants and difficulty in synthesizing multicomponent-NCs with incompatible interfaces [1]. To synthesize multicomponent-NCs, other approaches through a process of chemical etching, galvanic chemistry, ion-exchange, with atomic diffusion-mediated nanoscale Kirkendall effect to synthesize multicomponent-NCs have been employed [2,3]. Recently another strategies by utilizing variety of hollow and confined nanostructures have been explored, giving rise to chemical reactions and growing metal NCs within their well-protected confined environment, high surface area, controllable interior access, and solution-partition [4,5]. These, the ‘rattle’ or ‘yolk-shell’ nano-structures where small NCs are confined within a hollow-porous shell have been intensively investigated [6-9]. Due to tedious multistep processes of the aforementioned approaches, research groups have employed ship-in-a-bottle method, producing NCs inside hollow silica microsphere [10-13]. Although traditional high-temperature solid-state reaction route allows us to synthesize unrestricted metal combinations and alloys, the high-temperature synthesis has been rarely explored synthesizing multimetallic NCs on the exposed surface due to the facile sintering of NCs [14-19]. In this review, I highlight syntheses of NCs within spatially confined reaction medium via high temperature solid-state reaction routes. For this particular reaction, vital to the strategy is the ‘thermally isolated environment’ of silica medium during the high temperature reactions among diverse precursor-metal ions or NCs, controlling their migration, sintering and phase-mixing/segregation. Herein, I will introduce crucial examples of high-temperature nanoconfined solid-state reaction.

In order to apply high temperature solid-state reactions to the synthesis of nanocrystals, tens of nanometer-sized silica nanosphere as the reaction medium was employed, which can allow for treatment of the high-temperature reactions among the medium-embedded atoms, ions and/or nanoparticles. Through this strategy, various chemical processes such as the diffusion and movement, morphological transformations and solid-state chemical reactions can be confined within nanoscale and be systematically investigated. The ultimate goal of these strategies is to expand the scope and utility of the NC-synthesis beyond the conventional solution-based reactions and to fully exploit the diverse combinations of reactants to generate libraries of nanocrystals. Shin et al. [20] produced Fe₃O₄/PdO heterodimer encapsulated with silica nanosphere by air annealing silica nanospheres (~30nm) encapsulated with Fe₃O₄ NCs and Pd²⁺ complexes at 800 °C, it can be further transformed into either a FePd alloy or Fe₃O₄/Pd hybrid NCs by second heat-treatment [20]. When Au component was added to the aforementioned system, ternary system of FeAuPd NC within SiO₂ nanosphere (FeAuPd@SiO₂) was synthesized at the temperature higher than 700 °C under 4% H₂/96% N₂ atmosphere. This reductive heat-treatment caused outward migration of FeAuPd NC, leaving behind a hole inside silica (Figure 1) [21]. Additionally, subsequent air-annealing of FeAuPd@SiO₂ nanomaterials resulted into the phase-segregated oxidized hybrid NCs with different morphologies such as spherical, dumbbell, three-ball-snowman, and mushroom-like structures, depending on the degree of migration of the parent alloy NC inside the SiO₂ nanospheres (Figure 1). The migration of the FeAuPd NCs within the silica could be attributed to the change of amorphous silica-phase into the glass transition phase at high temperatures with accompanying decreasing viscosity of the SiO₂ nanosphere.

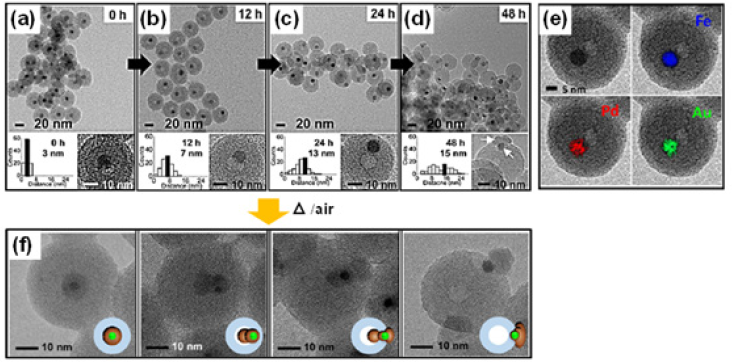

Figure 1: (a-d) TEM and HRTEM images of FeAuPd@SiO2 at different annealing time, (e) elemental mapping images of the core NCs (TEM-EELS), (f) HRTEM images of morphological change of the core NCs with different position in the SiO2 nanosphere. Adopted with permission from [21].

Thermal transformation of NCs was also investigated by alternative heat-treatment of the silica nanosphere encapsulating both Au NC/Au⁺ and M²⁺ (M=Pt or Cu) (Figure 2). In case of Au/Pt²⁺@SiO₂, the resultant Au/Pt²⁺ NCs were thermally converted into a reduced AuPt NCs under reductive environment [22]. Upon oxidative annealing, the AuCu NCs inside SiO₂ nanospheres produced by reductive annealing at 500 °C uniquely in-situ transformed to different Au-CuO heterostructures with varying either reaction temperature or Cu²⁺ content [23]. The distinct evolution pathway of Au/CuO heterodimer through the kinetically accessed and oxidatively phase-segregated Au@CuO core@shell, reveals the escaping motion of the encapsulated Au-core towards silica surface, which is more facilitated by a thicker CuO shell (Figure 2). This result also demonstrated the high thermal stability of the Au@CuO with a very thin CuO-shell thickness due to the insufficient compressive lattice strain. This study suggests that morphological thermal stability and operational durability of hybrid NCs under high temperature operation can be adjusted based on the compositional and morphological parameters. Although spatially confined NCs within thermally stable reaction medium can be synthesized via high-temperature solid-state reaction, it is still challenging for synthesis of highly mobile small NCs due to becoming low viscosity of the silica medium at high temperature. And hence, the investigation of their high temperature solid-state behavior and chemistry is difficult (Figure 3). To suppress the mobility of the small clusters within elastic reaction medium at high temperature, silica nanosphere modified with porogenic amino silanes was employed [24]. Such aminated silica medium at high temperature generates internal porosity gradient due to decomposition of the amine-functional groups and the generated internal pores limit the nucleation, growth and migrations of NCs. By taking advantage of this strategy, a diverse pool of NCs with Pd, Pd-metal alloy, Pd-metal oxide hybrids were synthesized with first-row transition ions embedded in the aminated silica medium under different thermal conditions.

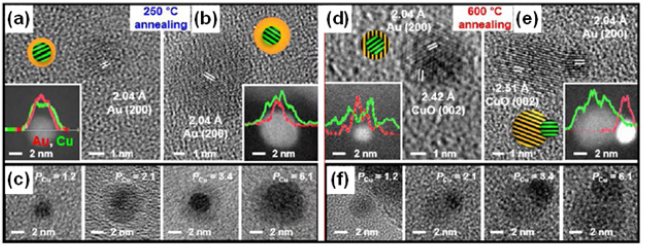

Figure 2: HRTEM images of oxidative heat-treatment of AuCu core NCs inside SiO2 nanosphere with different Cu content and temperature. Adopted with permission from [23].

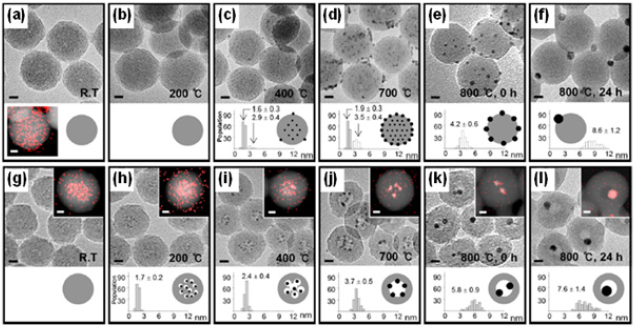

Figure 3: (a-f) HRTEM images of Pd2+/SiO2 nanoparticles without porogenic amine modification at different annealing temperature, (g-I) HRTEM images and STEM-EDS elemental mapping of Pd2+/SiO2(NH2)s nanoparticles with porogenic amine modification at different annealing temperature (scale bar: 10nm). Adopted with permission from [24].

Spatial confinement approaches can transform a structure of the nanomaterial from core@shell into hollow structure, which was conducted with metal cation (Pt²⁺/Pd²⁺)-incorporating-silica-encapsulated manganese oxide core@shell upon annealing in reductive environment. The morphology of the core@shell structure was gradually transformed into a hollow structure composed of manganese silicate embedded with tiny metal NCs [25]. Additionally, a unique reversible thermal transformation between hollow structure and solid core@shell structure of Mn₃O₄ core encapsulated in silica shell incorporating Pd/PdO NCs, upon alternatively thermal treatment under oxidative and reductive environment, respectively (Figure 4) [26,27]. Mechanistically, the hollowing process of the manganese oxide core could be ascribed to the phase transition of initially separated MnO and SiO₂ into a thermodynamically more favorable silicate phase through outward diffusion of Mn²⁺ ions toward SiO₂ behind the cavity by oxidative thermal annealing. Moreover, the hollow silicate nanospheres reverted to the initial core@shell structure by the filling of the interior cavities with a phase-separated Mn₃O₄ NCs. Additional incorporation of Ni²⁺ in the silica shell resulted in the growth of a single Ni NC at the newly generated hollow silicate cavity, producing a yolk@shell structure through a distinct transformation pathway involving preferential reduction of Ni over Mn in the in-situ generated Ni_xMn_1-xO mixed-metal oxide phase [28].

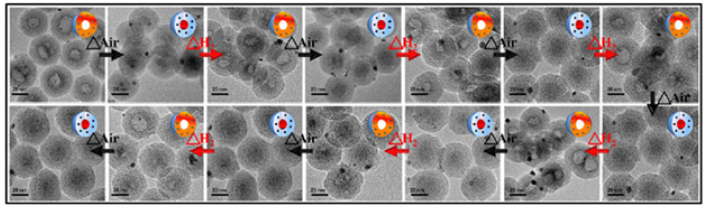

Figure 4: TEM images of switchable morphology between core@shell and hollow structure by alternatively annealing at 500 °C under oxidative and reductive environment. Adopted with permission from [26].

Aforementioned strategies could take a place as a very useful tool to synthesize a variety of NCs through high temperature solid-state reaction route. The use of thermally stable reaction medium, silica, containing metal precursors or NCs can provide a platform to investigate various heat-induced processes involving migration, phase segregation/mixing, complex morphological modulation and reversible hollowing, which ultimately provides libraries of surfactant-free NCs. Unlike solution-based reactions, by leveraging the confinement effect and highly viscous-rubbery-state of silica at high temperatures, solid-state reactions can be conveniently captured at multiple stages and complex NC-morphologies can be isolated as synthetic snapshots. Additionally, by generating micro-pores inside silica, thermally-induced migration behavior of highly mobile small sized NCs can be restrained, giving rise to numerous combinations of NCs. The insight accumulated from investigation of the spatial confinement strategies via high-temperature solid-state reaction could provide an opportunity to open new paradigm for the research field in nanotechnology. This could also give a customizable platform for various applications including renewable energy technology, catalysis, bio-imaging, etc.

This work was supported by the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT & Future Planning (MSIP) (NRF-2020R1G1A1007160).
